EPEVER MT50 LCD Display Remote Meter Compatible with MPPT Solar Controller such as Tracer-BN Tracer-AN LS-B LS-BP VS-BN eTracer iTracer

• Automatic identify the controller, and display relevant parameter data,Simple and convenient operation.

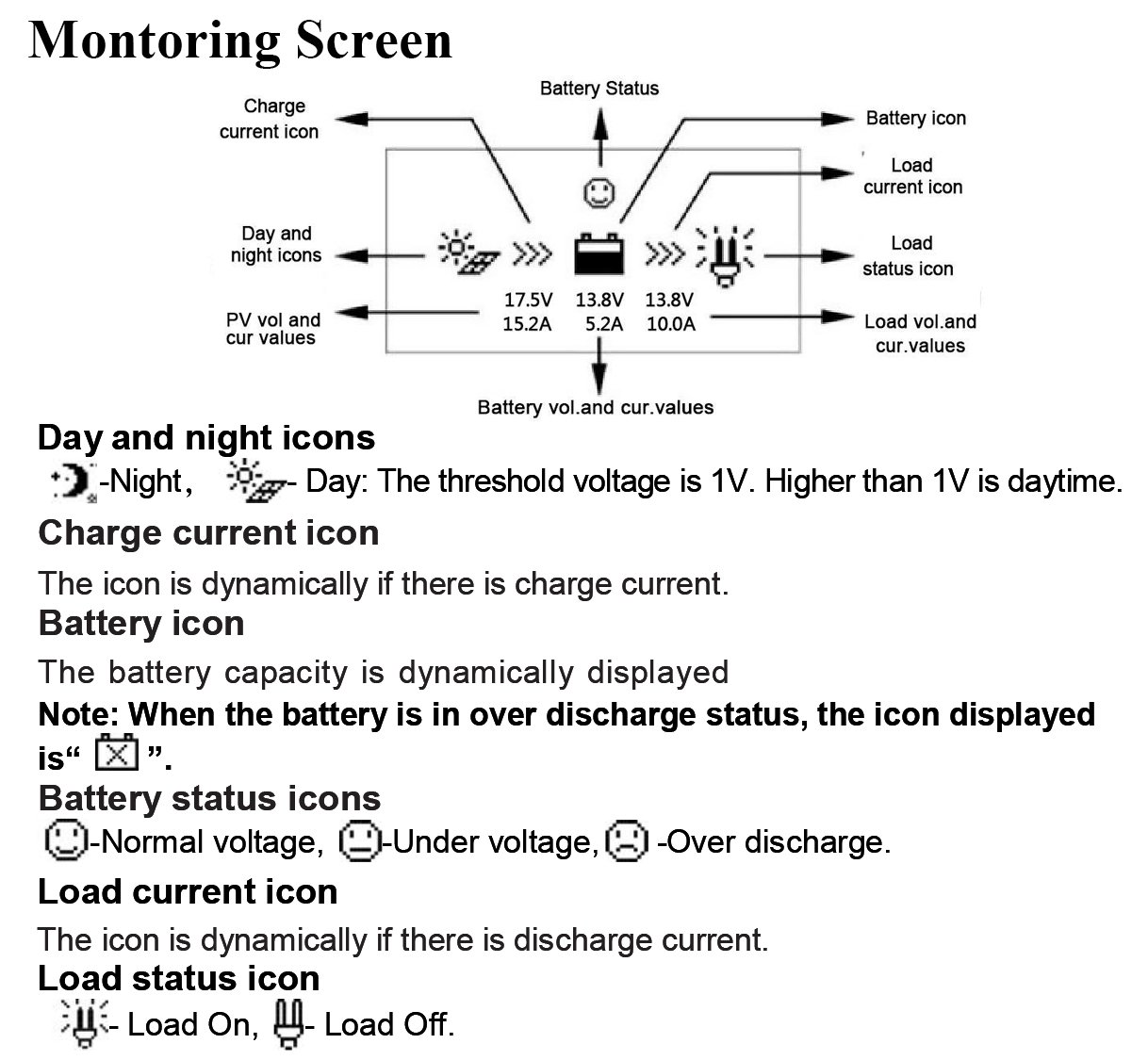

• Large-screen informative LCD displays all the operating data and system working status
• Real-time alarm of failure information,longer communication distance based on RS485
• Diversified load control modes : Manual Control, Light ON/OFF, Light ON+ Timer, Time Control.
• Type selection: Gel, sealed, flooded and User(programable),energy statistics display function.

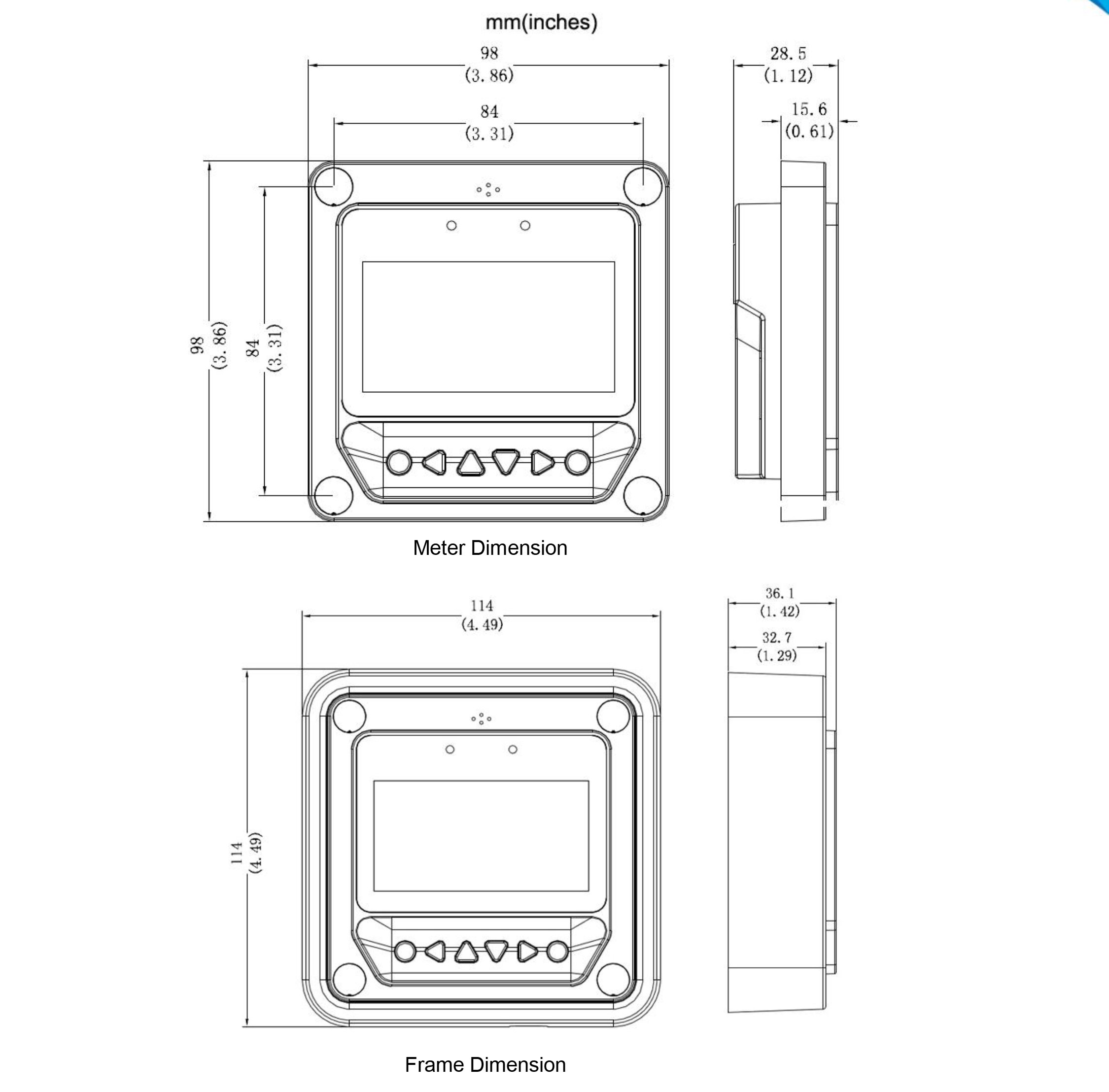

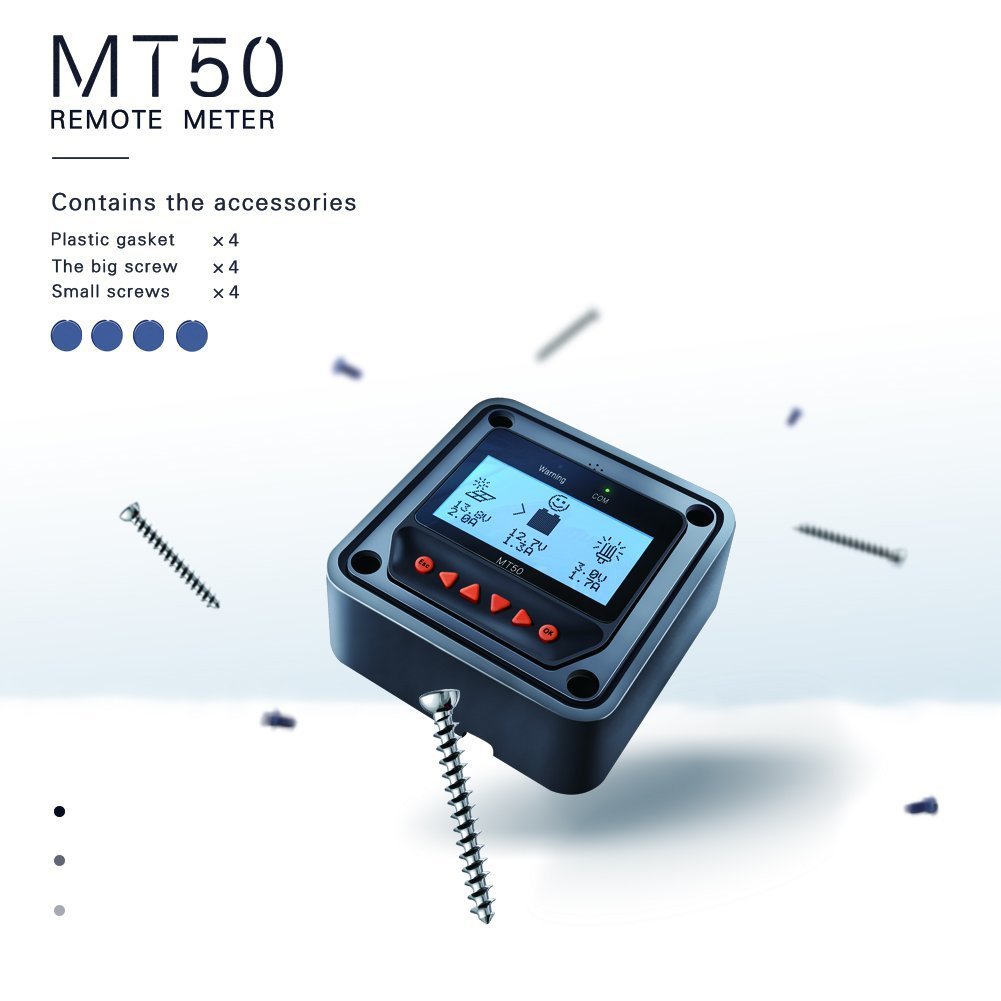

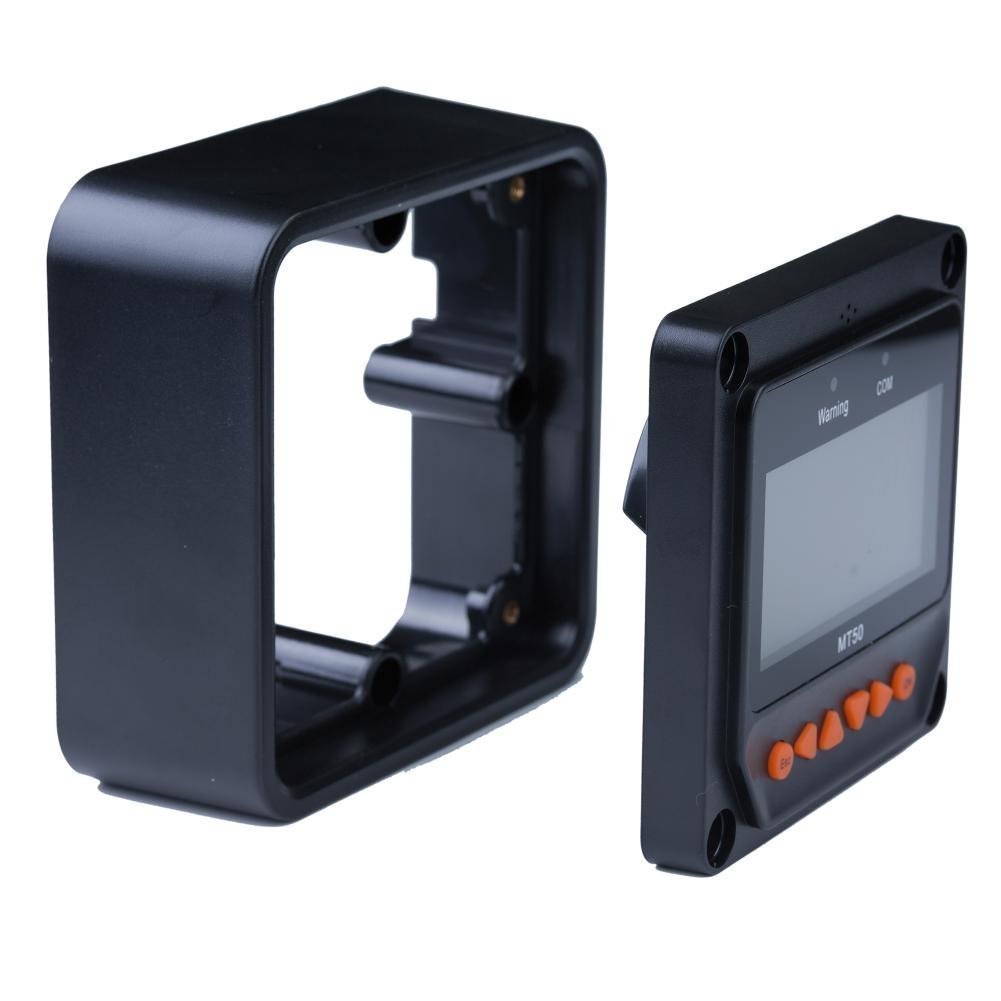

MT50 is an optional remote meter to monitor and program EPsolar controller. Compatible with:LS-B, LS-BP,VS-BN, Tracer-BN, Tracer-A, eTracer, iTracer. Note: Voltage setting please in strict accordance with: 1. Over Voltage Disconnect Voltage > Charging Limit Voltage ≥ Equalize Charging Voltage ≥ Boost Charging Voltage ≥ Float Charging Voltage > Boost Reconnect Charging Voltage; 2. Over Voltage Disconnect Voltage > Over Voltage Reconnect Voltage; 3. Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥ Discharging Limit Voltage; 4. Under Voltage Warning Reconnect Voltage > Under Voltage Warning Voltage ≥ Discharging Limit Voltage; 5. Boost Reconnect Charging Voltage > Low Voltage Disconnect Voltag. Electrical Parameter Self-consumption: Backlight and acoustic alarm ON<65mA Backlight ON<23mA Backlight OFF<15mA Mechanical Parameter Faceplate Dimensions: 98×98 mm Frame Dimensions: 114×114 mm Connector Type: RJ45 Meter Cable: Standard 2m,Max 50 m Meter weight Simple package: 0.23 Kg Standard package:0.32 Kg Environmental Parameter Ambient temperature: -20℃~+70℃ Package Included: 1x MT50 LCD Display Remote Meter 1x Wall Mounting Board 1x 2M Cable 4x Mounting Screws
