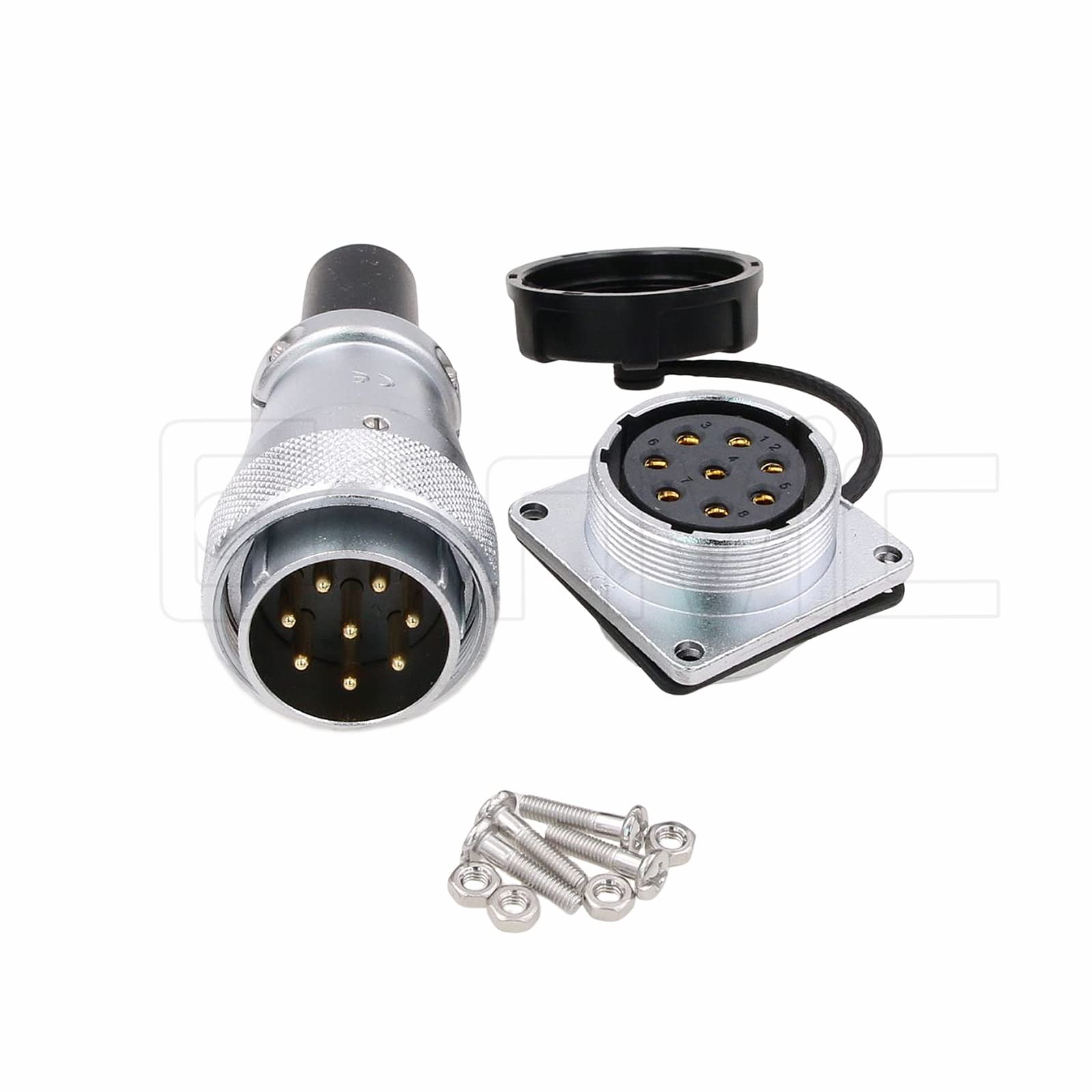

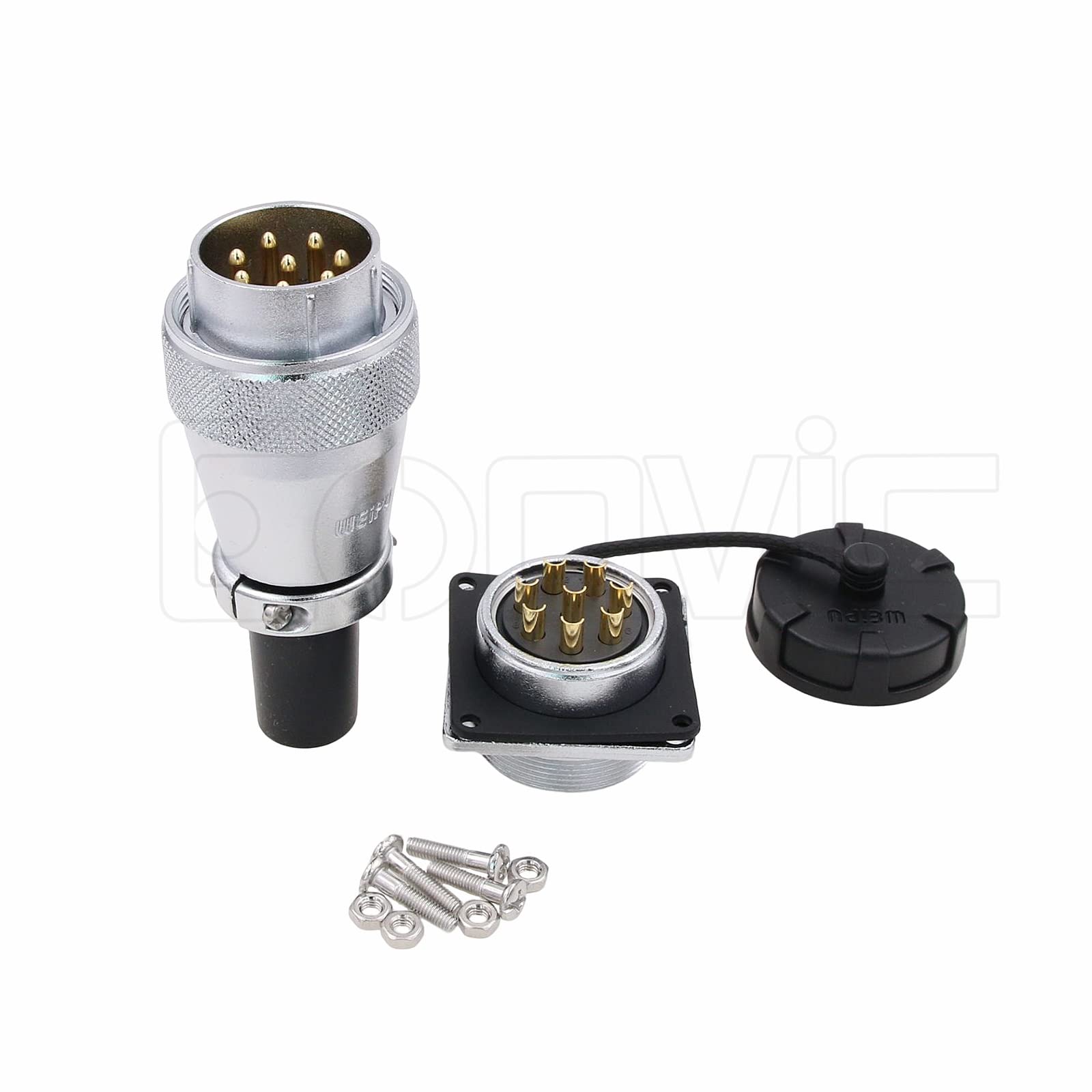

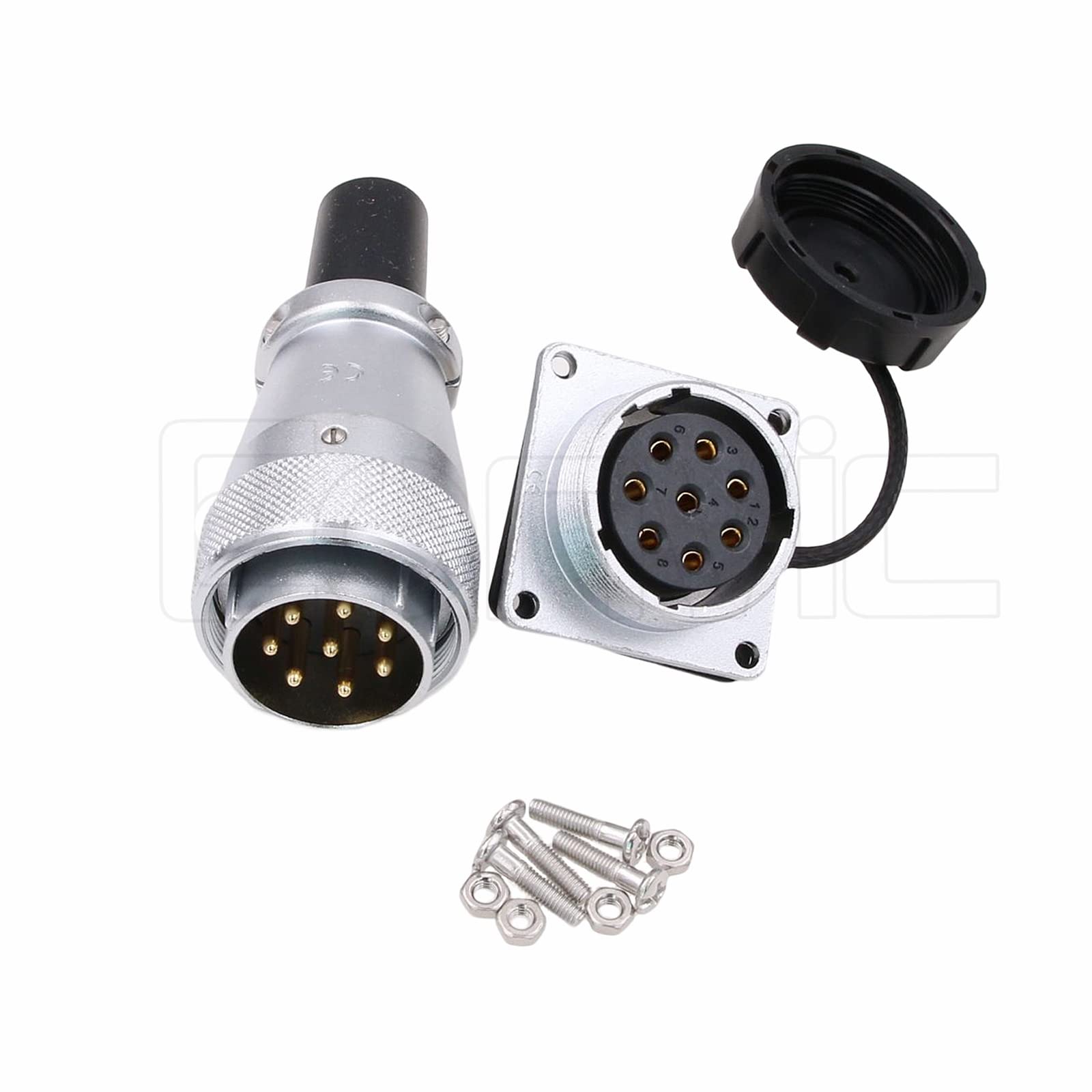

Eonvic WEIPU WS28 8 Pin Connector Waterproof IP67 Metal Male Plug Female Square Socket Panel Mount Aviation Cable Connector (8Pin)

• Threaded Coupling,Shell material: Zinc alloy with chrome plating
• Contact material: Brass with gold plating, Insert material: PPS, max temperature 260 ℃. Temperature range: -40°C~+ 85°C.
• WS28 8pin connector. Rated Current:25A Contact Diameter:Φ2.5mm Rated Voltage:500V Test voltage: 1500V Contact resistance:1mΩ Insulation resistance:2000MΩ Wire Size:≤4mm²/ 11AWG.
• Every cable was tested to ensure that there are no short circuit, no potential breakdown problems before shipping.Please contact us if the cable you received is defective or doesn’t work. We will solve the problems properly or send you a new replacement at once.

About Eonvic connector cables Eonvic connectors are used in instrumentation, medical devices,and anywhere a high density, high reliability, quick mating connector is needed. These high precision connectors.With a life span greater than 5000 insertions, complete EMC shielding, shock resistance, vibration resistance,and corrosion resistance this is the highest quality connector on the market. In order to provide an one-stop service, we proudly offer cable assemblies for our customers. Each cable assembly is fully tested for pin-pin continuity, as well as having a high voltage test to ensure that there are no potential breakdown problems. Every cable assembly is fully inspected to ensure that it meets the requirements specified. We do it according to customers' requirements. If you would like to discuss your requirements or receive a quotation, please feel free to contact us. We have good price for big quantity, and we can customize with the cable according to customer's requirements.( You can tell me the length of cable you need,we can customize with it according to your requirements)
