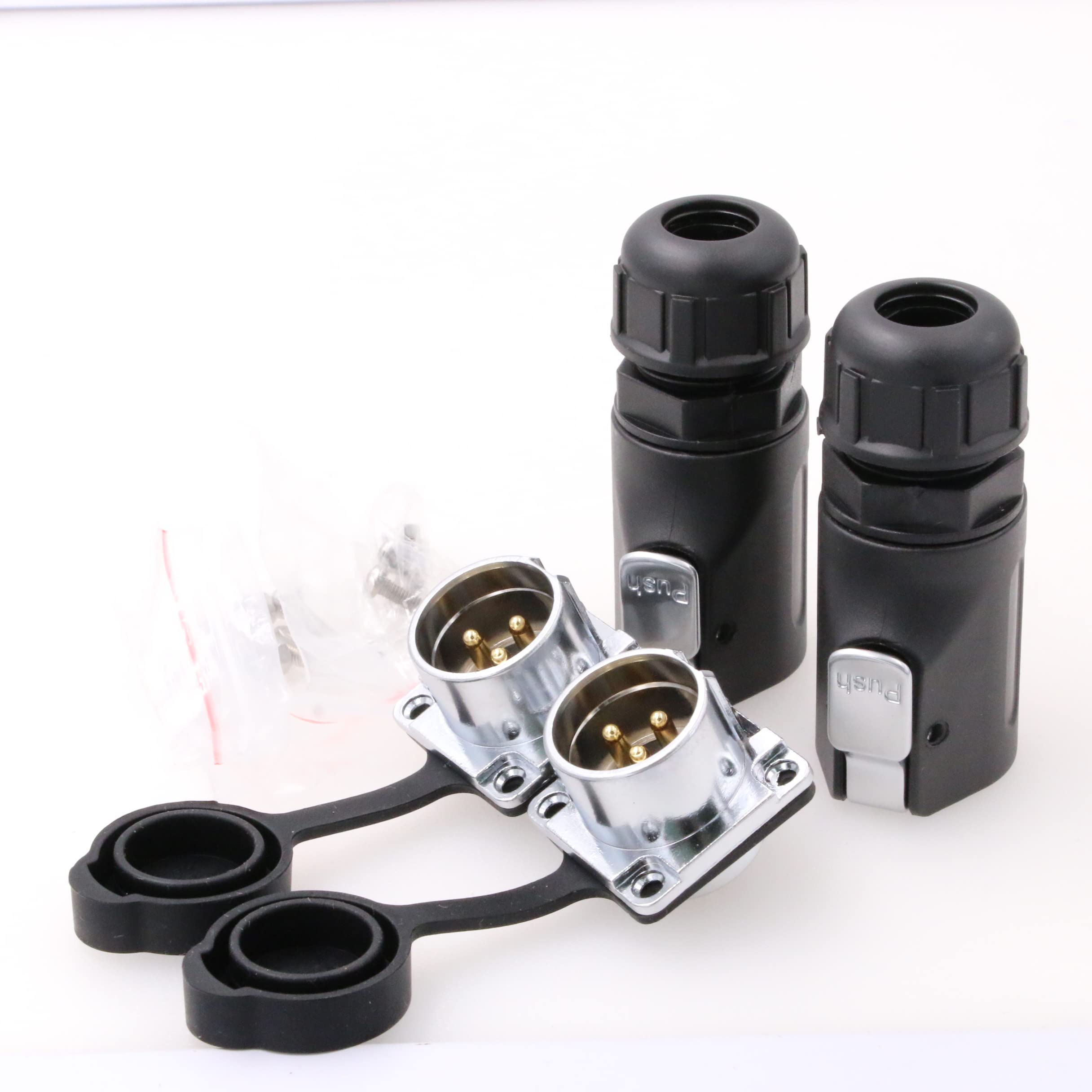

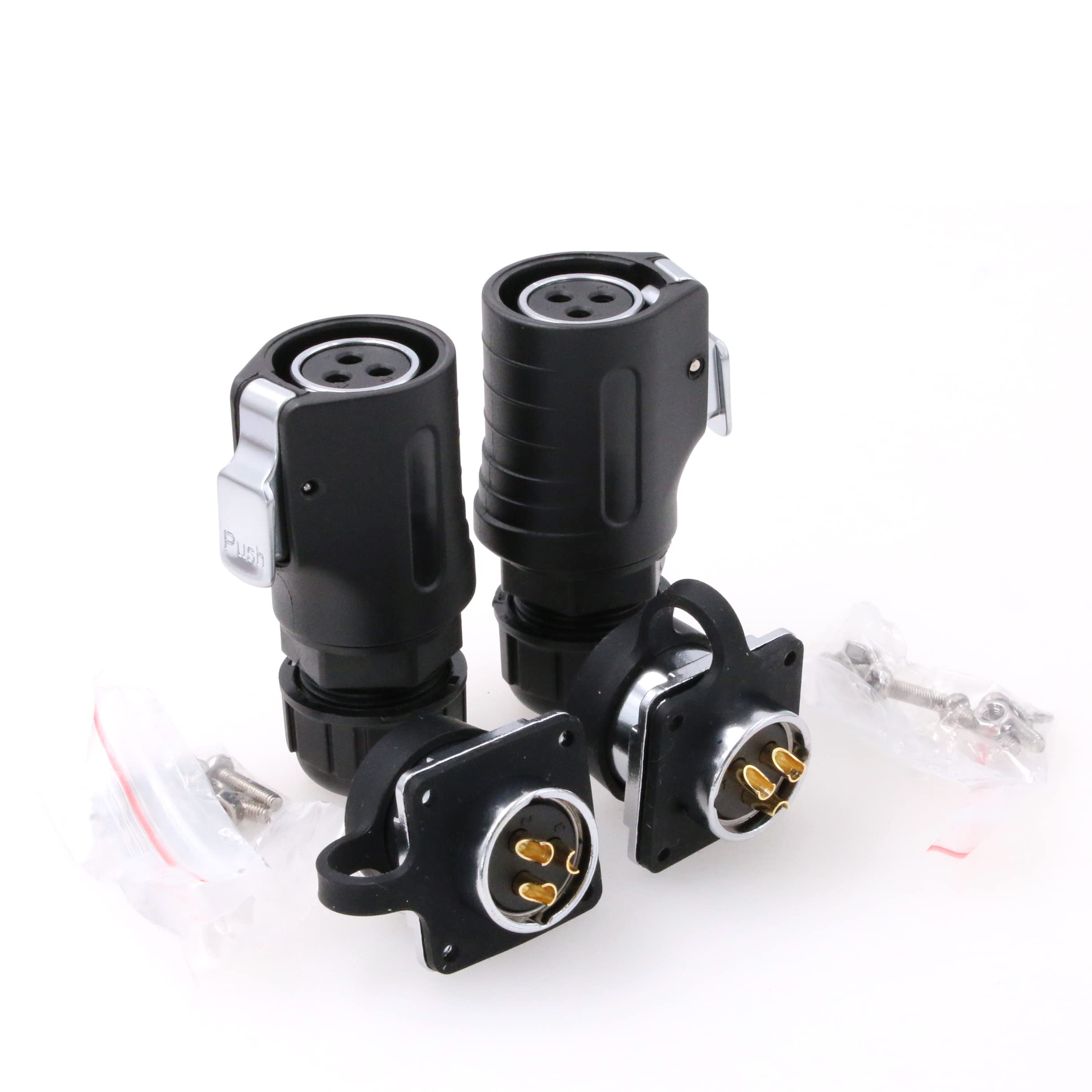

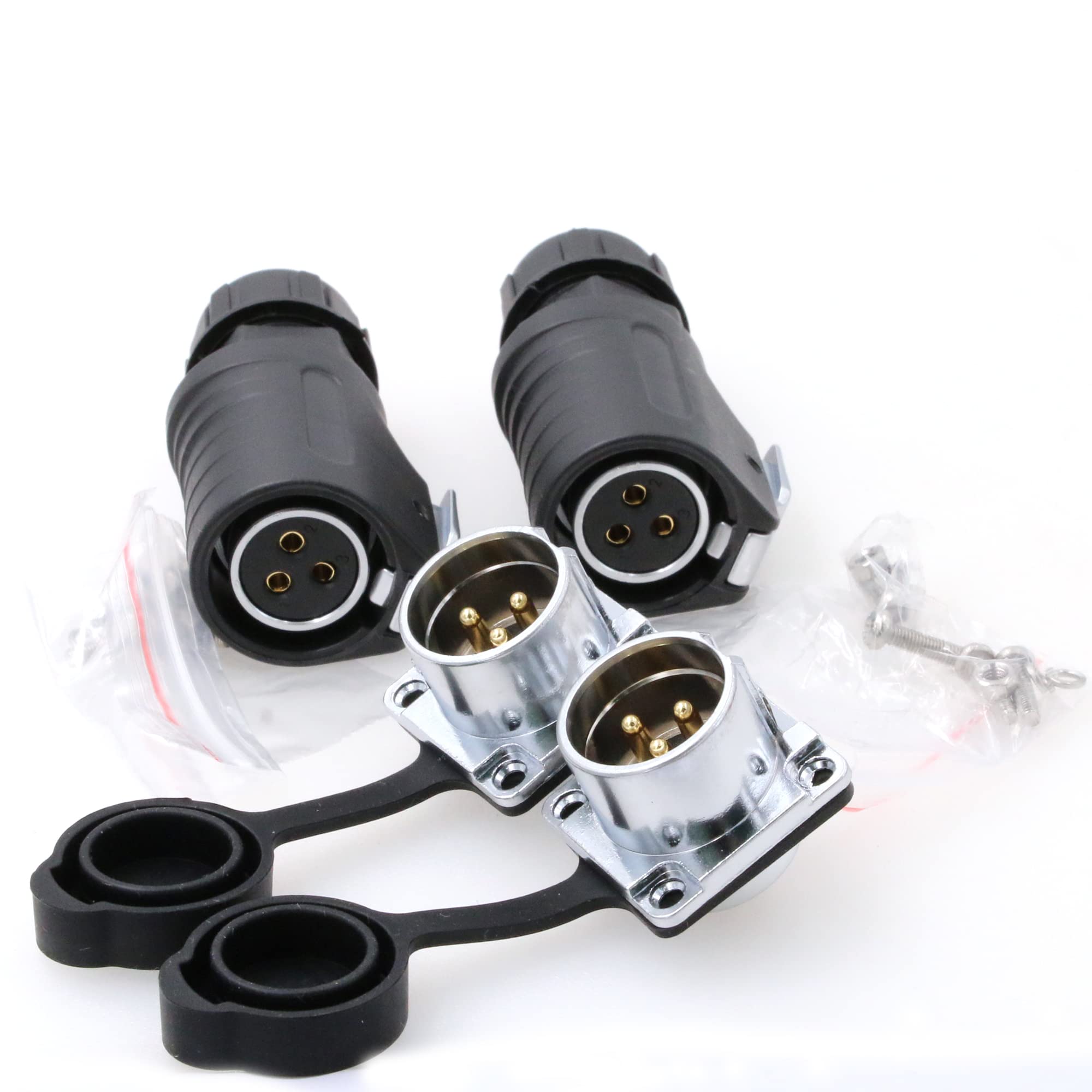

Eonvic LP20 3 Pin Aviation Connector Female Plug Male Panel Socket Waterproof Wire Connectors Industrial Solder Plug Socket Panel Mount Connector (3Pin)

• Rated current: 20A, working voltage: 500V AC, Diameter range: Φ2.7*3, Waterproof Protection level: IP67.Vibration: Frequency: 5~200Hz, Vibration Amplitude: 5mm, Speed: 10m/s,0.10 0.10 instant open circuit.
• Our LP20 series power connector can be widely used in RV solar, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, robot, outdoor security cameras, medical device, audio/video,outdoor led lighting and other applications no mater in indoor or outdoor.

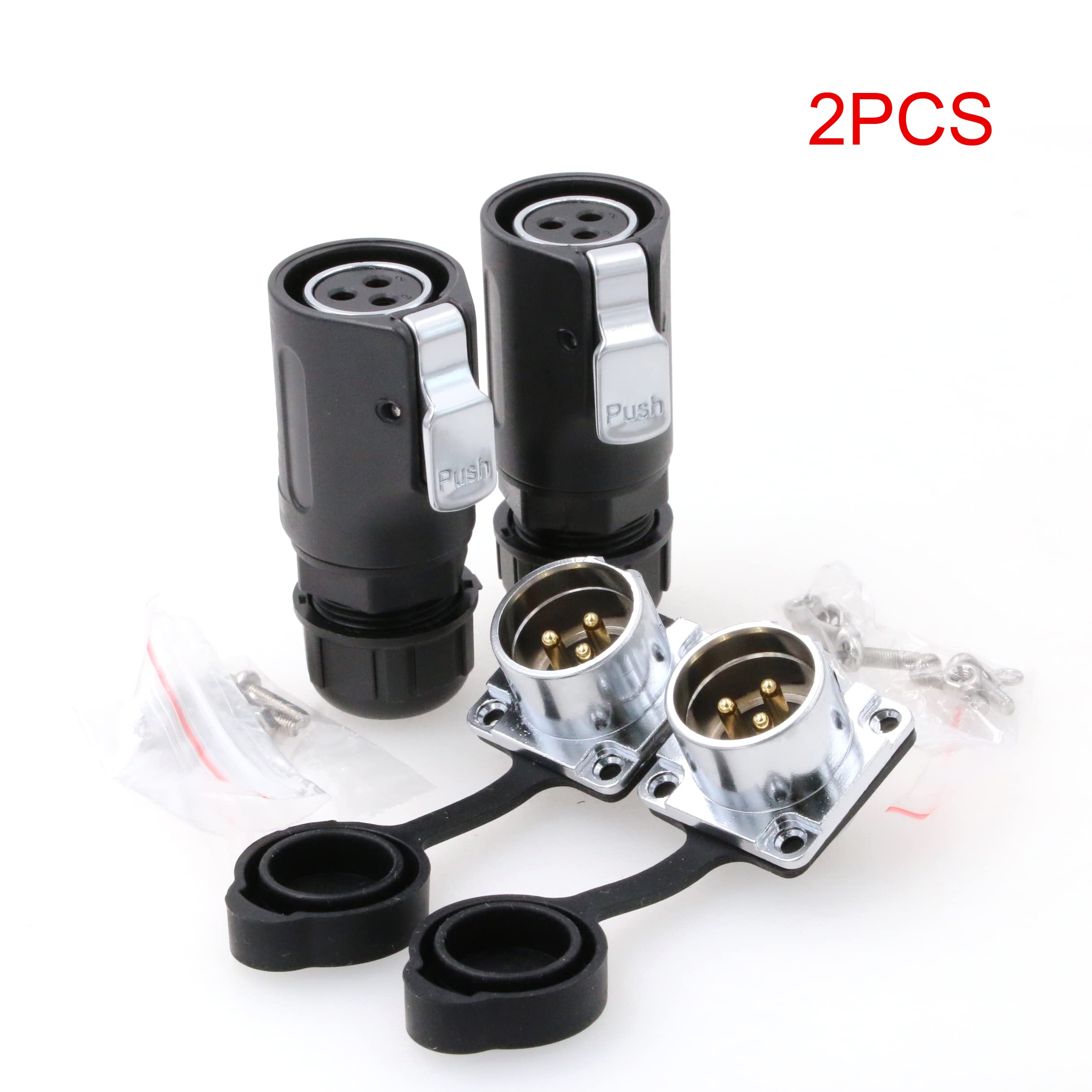

• LP20 series aviation connectors: 3pin, 4pin,7pin plug and socket or customized cores, plug: female, socket with cover: male. 2 Set /pack.
• Easy lock type connector, easy to install, adopts lock screw, bayonet type fast locking connection, quick, stable, safe and convenient.
• PBT material of the protective housing, features fire safety, compression, anti-explosion and anti-deformation for long time usage. Made of gold-plated contact in a great performance of corrosion resistance and electrical conductivity effectively deals with temperature rise.

About Eonvic connector cables Eonvic connectors are used in instrumentation, medical devices,and anywhere a high density, high reliability, quick mating connector is needed. These high precision connectors.With a life span greater than 5000 insertions, complete EMC shielding, shock resistance, vibration resistance,and corrosion resistance this is the highest quality connector on the market. In order to provide an one-stop service, we proudly offer cable assemblies for our customers. Each cable assembly is fully tested for pin-pin continuity, as well as having a high voltage test to ensure that there are no potential breakdown problems. Every cable assembly is fully inspected to ensure that it meets the requirements specified. We do it according to customers' requirements. If you would like to discuss your requirements or receive a quotation, please feel free to contact us. We have good price for big quantity, and we can customize with the cable according to customer's requirements.( You can tell me the length of cable you need,we can customize with it according to your requirements)
