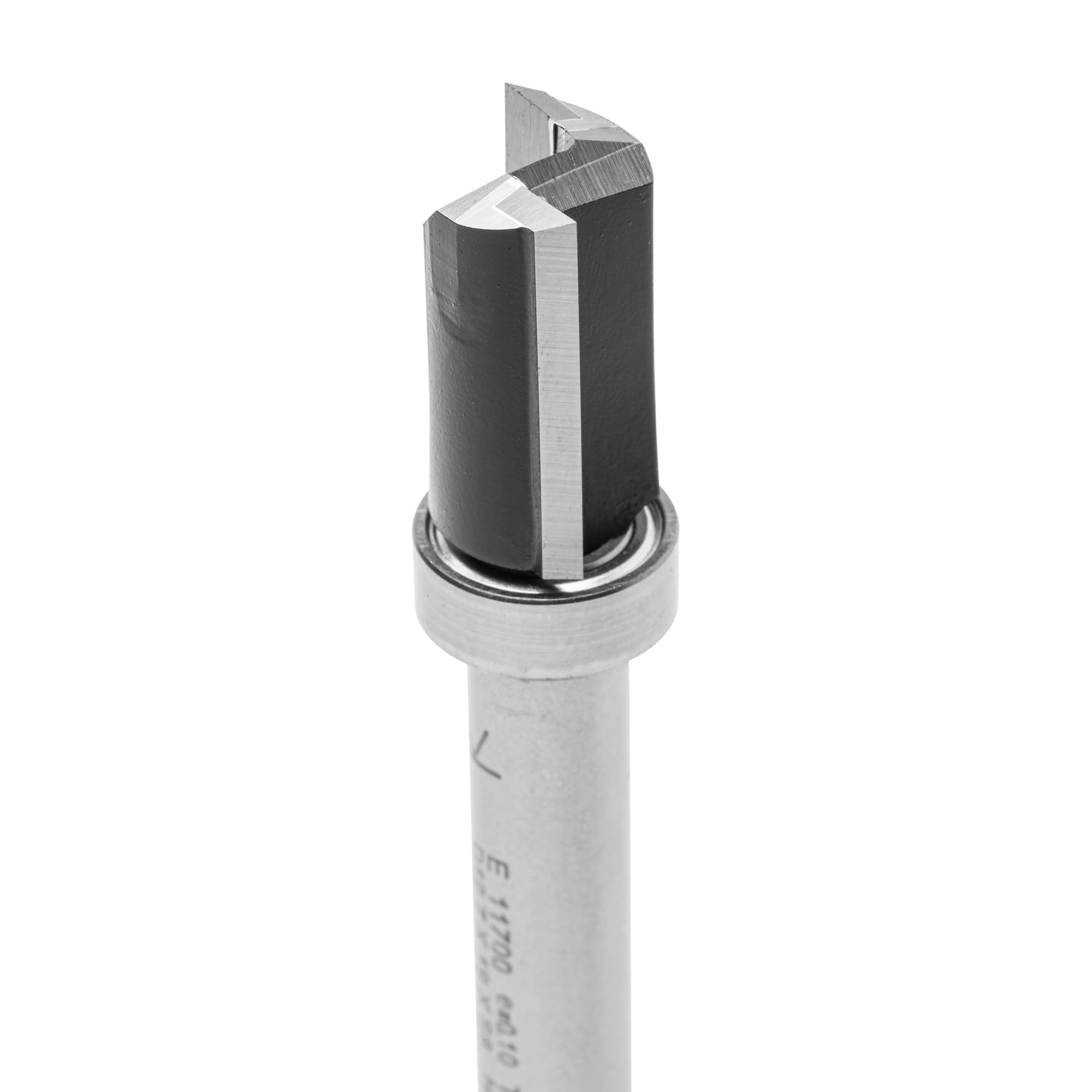

ENT 11700 Flush milling Cutter Carbidefor Milescraft Tine Template, Diameter (D) 12.7 mm, NL 19 mm, S 8 mm, SL 32 mm, GL 55 mm, Z2+1, with Ball Bearing on Shank

• Flush milling cutter which, in conjunction with the Milescraft tine milling template, can be used to produce stable and easy to produce finger and dovetail tines. The ball bearing ensures precise guidance along the workpiece.
• Product features: TC - Tungsten carbide - suitable for softwood and hardwood - Use with hand router, table router, CNC milling machine - Z2 + 1 - double-edged with HW basic sheath - clockwise turning

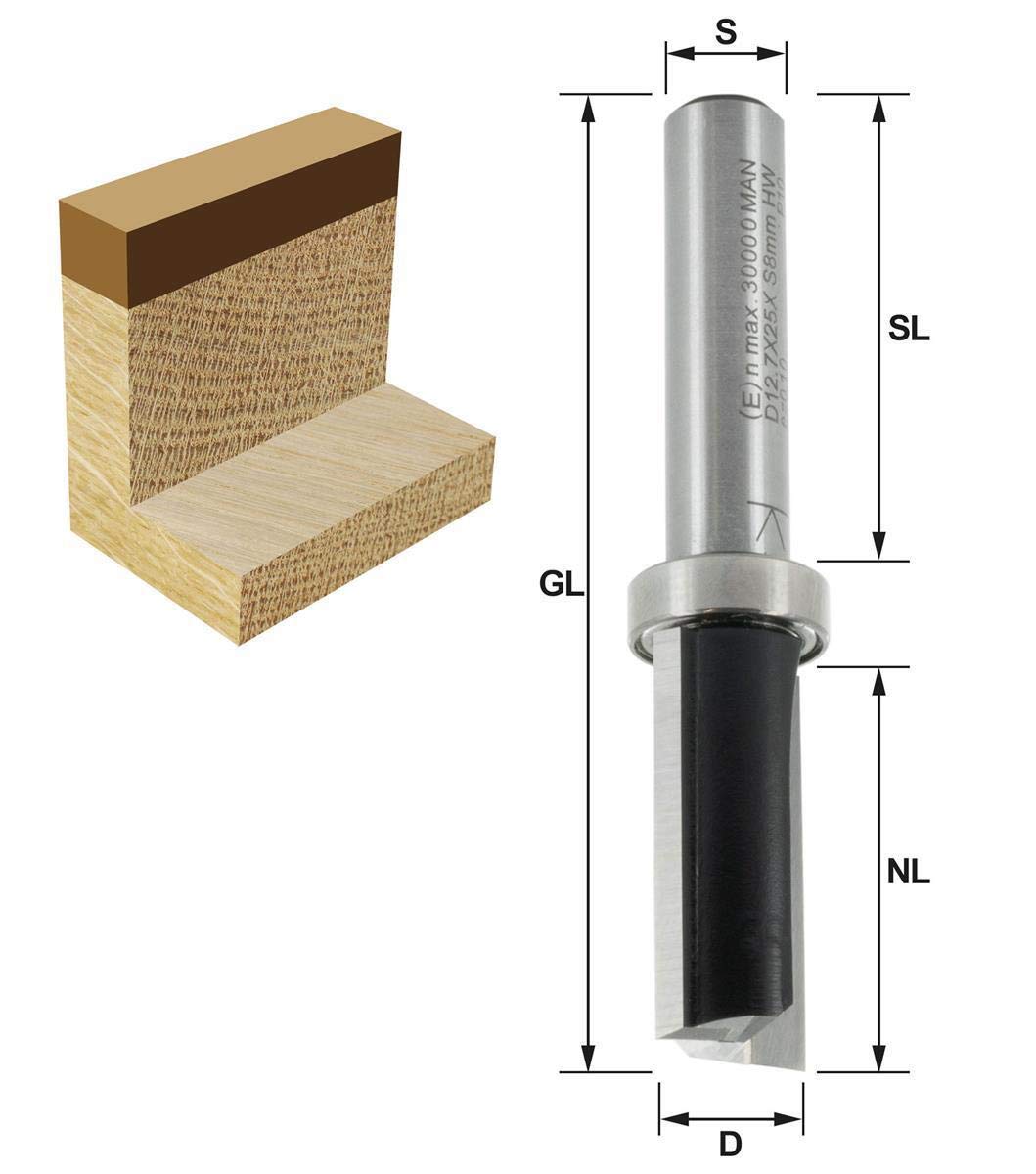

• Technical data: Diameter (D): 12.7 mm; Width (NL): 19 mm; Cutting edges: 2+1, Shaft (S): 8 mm, Shaft length (SL): 32 mm, Total length (GL): 62 mm, Ball bearing (KL): 12.7 mm

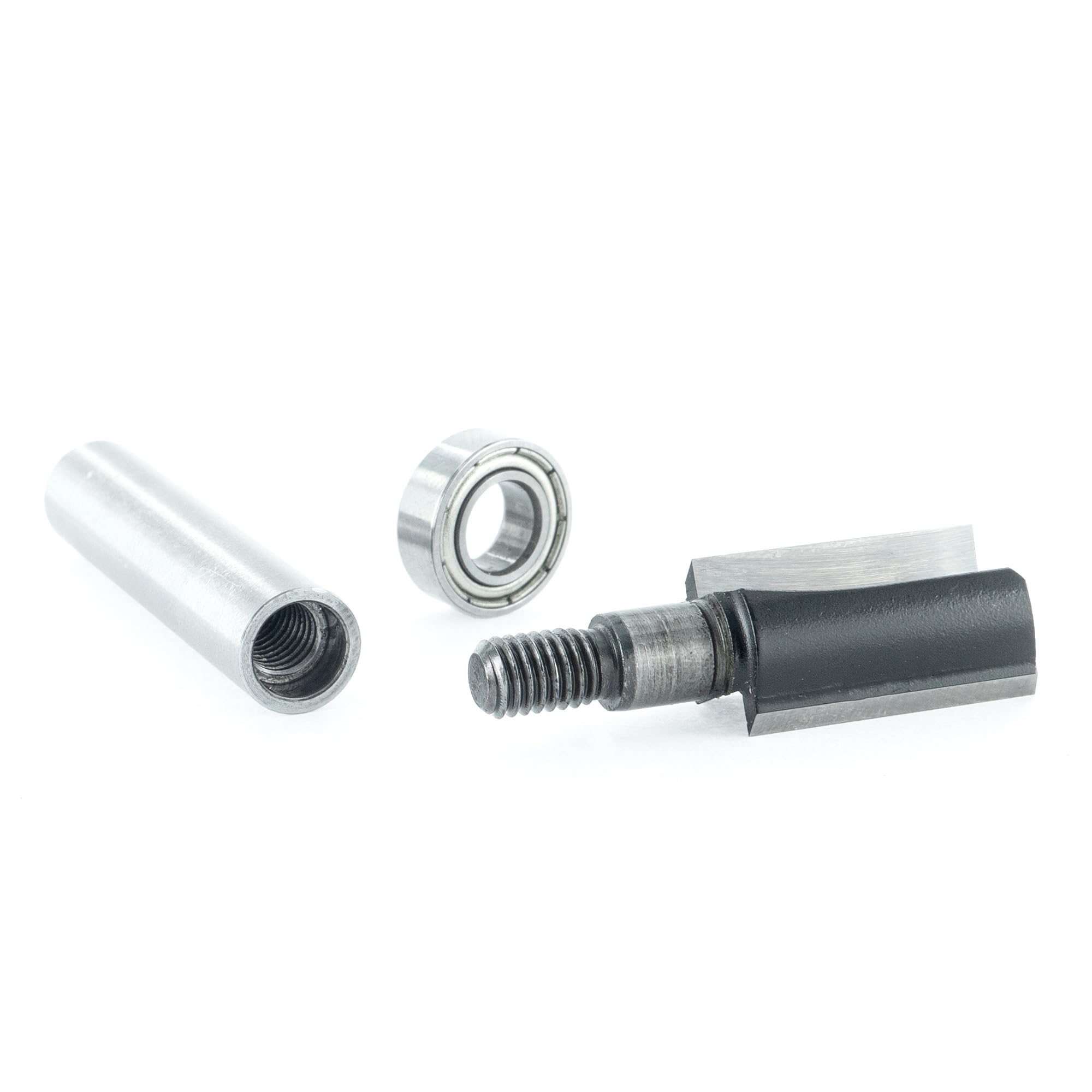

• Note: Basic and flank cutting (also suitable for drilling in). With replaceable ball bearing.

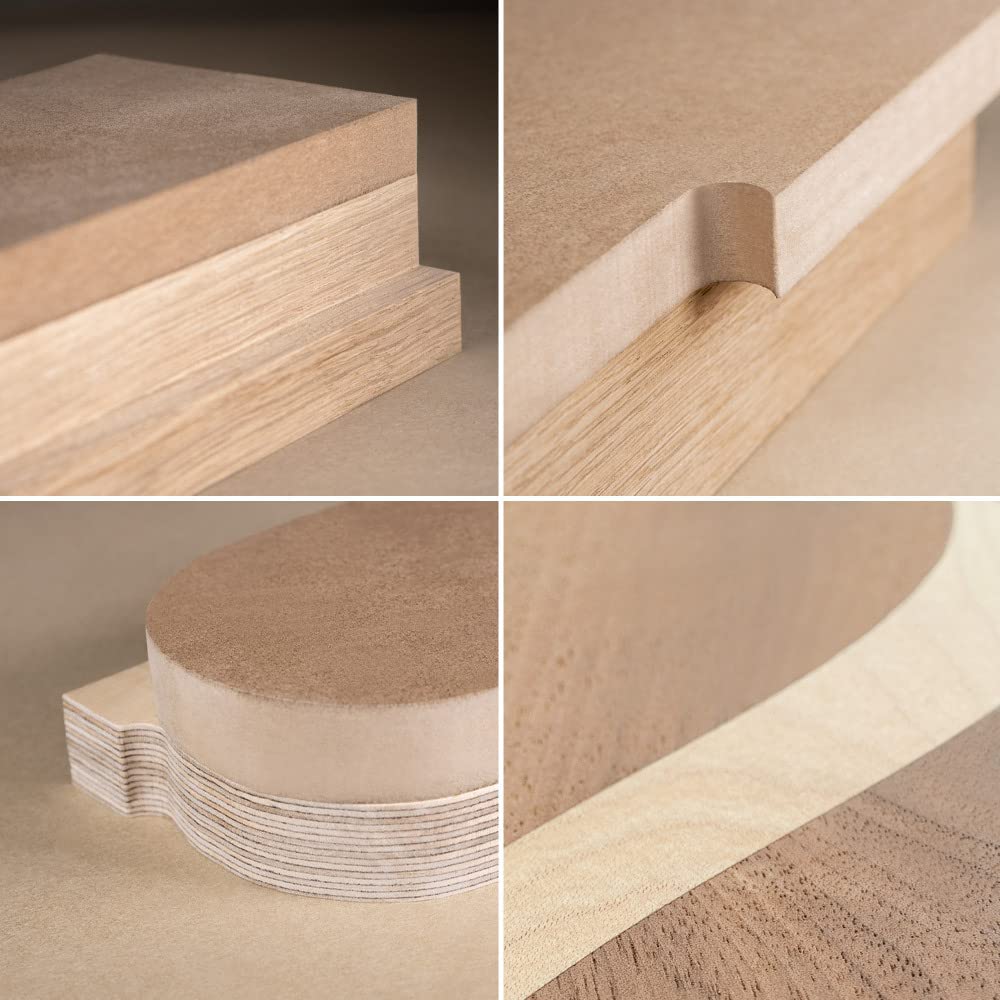

• Basic trim and flush router bit cutting edge, with high quality carbide cutting edges and an additional soldered Drilling bit cutting edge. For Hinge mortising router bits, for fitting overhanging veneers and for making finger joints. Drilling router bit cutting edge made of carbide makes this Milling cutter suitable for dipping into hardwood. Milling cutter is suitable for the Milescraft template.

flush milling cutter for Milescraft Tine cutting template - Art.-No. 11700 Flush milling cutter, which can be used in conjunction with the Milescraft tine cutter to produce stable and easy to manufacture finger and dovetail tines. The ball bearing provides precise guidance along the workpiece. Product properties Cutting material: Carbide - carbide Material: Softwood, hardwood, coated boards Machine: hand router, table router, CNC milling machine Cutting: Z2+1 - double-edged with drill cutting edge Rotation: clockwise rotation Note: basic and flank cutting. With replaceable ball bearing. Specifications: Diameter (A): 12.7 mm Width (B): 19 mm Cutting: 2+1 Shaft (C): 8 mm Shaft length (D): 32 mm Total length (GL): 55 mm
