ENQIMAOYI 5pcs 6 Pins T Shape Solderless Connector LED Strip Light, RGBWW 12 mm Splitter Right Angle Corner Connector for SMD 5050 RGBCCT LED Strip

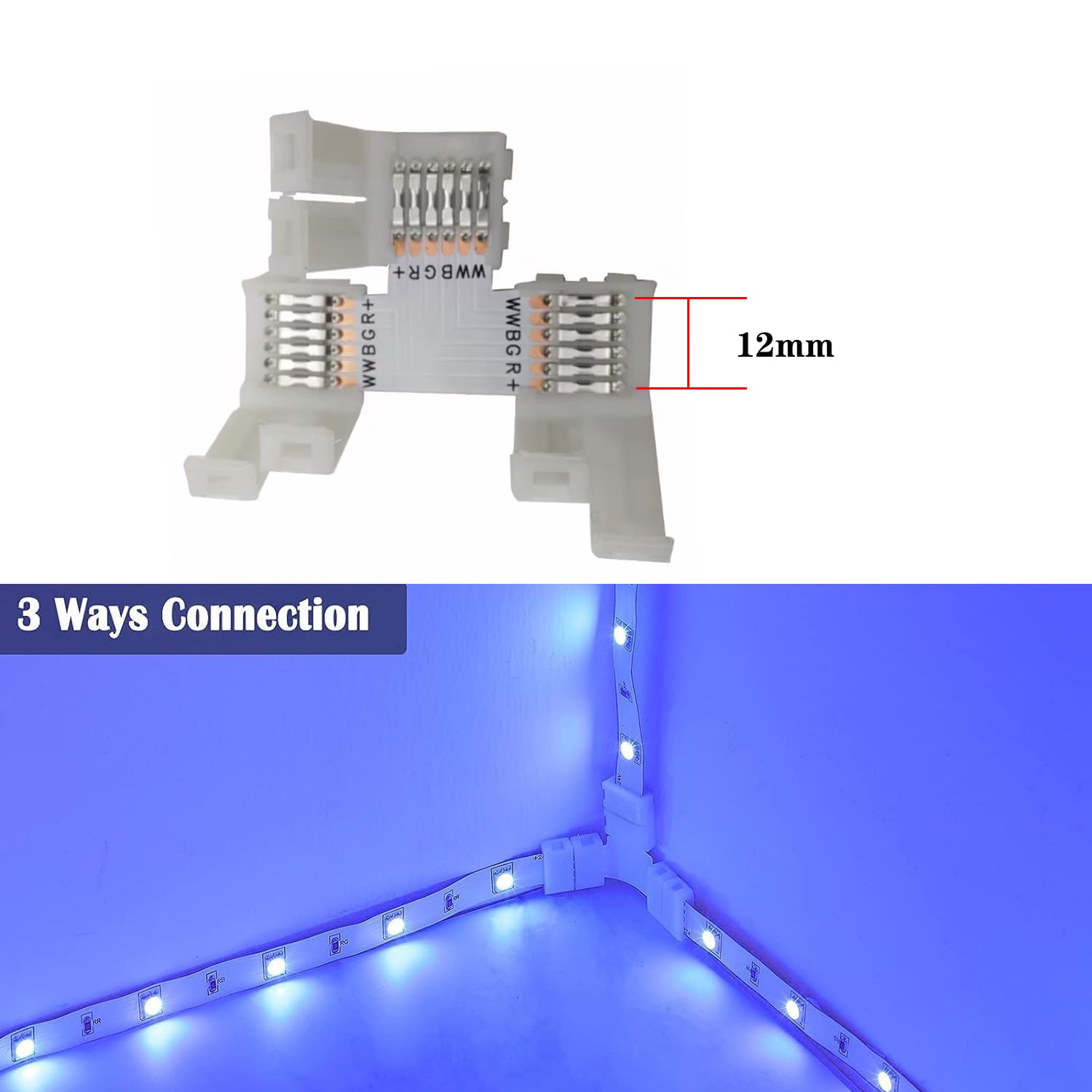

• Compatible LED Strips:strip light connector for 6PIN 12mm wide RGB CCT LED strips. (Silicon gel on the surface of soldering area must be peeled off when connecting waterproof LED strip lights).
• No Soldering: LED strip connectors are flexible and durable for bending or twisting in any angles without breaking.
• Durable and Reliable: Crafted from high-quality PVC material, these connectors are built to last. They provide a secure grip on the LED strip, ensuring stable connections that won't loosen over time.
• Easy Installation: Simply cut open the LED light strip at the marked position, open the buckle of the connector, insert the indicator bar, ensuring the correct positive connection, and close the buckle.
• Package includes: 5x 6 pin T shape connectors

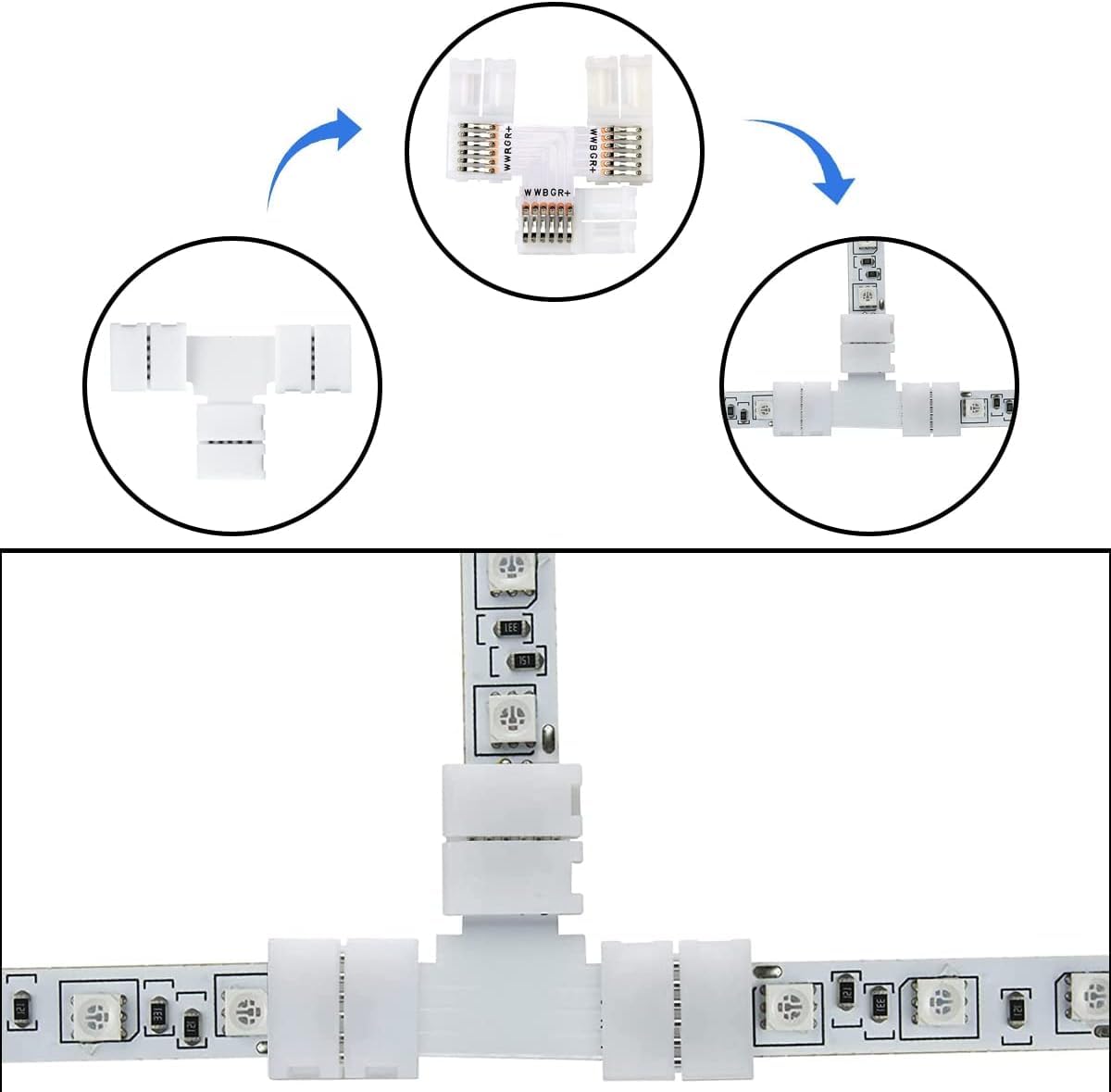

Specifications: Material: PVC Current: 5A Voltage: DC12-24V Type: 12mm 6pin Led Connector Application: For SMD5050 RGBWW RGB CCT LED Strip Light Package Includes: 5 Pcs 12mm 6 Pin T Shape Led Corner Connector Installation Instructions: 1. Ensure your LED strip is 12mm wide 6 pin RGBWW 5050 LED strip and has 6 copper contacts (+, G, B, R,W,W) at every cutting line. 2. Carefully cut your LED strip along the cutting line. 3. Open the cap of the connector. 4. Please insert the LED strip into the connector. Make sure the 6 copper contacts on the LED strip are under the 6 electrical conductors in the connector. Make sure to match the + side of the LED strip to the + side of the connector. If you use a waterproof LED strip, please first remove the waterproof material before installation. 5. Close the cap.
