ENQIMAOYI 44 Keys LED Lights Remote Control,Dual Outputs 4 Pin 2 Ports RGB Controler Box Wireless IR Remote Controller for 3528 5050 LED Light Strip

• WIRELESS CONTROL: This RGB control box is equipped with IR wireless remote control, the remote control distance can reach 20 meters, and it is easy to control the light belt from a long distance.
• Dual Outputs led light controller: Dual outputs 12v rgb led strip controller can be adjust R/G/B color freely. Led strip controller has 20 static colors, adjust brightness, 8 control modes: Static/ Flash/ Strobe/ Fade-change/ RGB Smooth-change.
• 1 to 2 Ports Controller: This 44-keys ir controller can connector 2 roll led strip. Equipped with memory function, it can record colors or animations after turning off the power.
• MULTIPLE MODES: This LED controller can realize a variety of lighting effects. You can change the dynamic mode and speed of the lights through the remote control, and you can DIY different lighting effects yourself.
• Package Include: 1 x LED controller ; 1 x 44 Keys remote controller; 1x operation instructions.

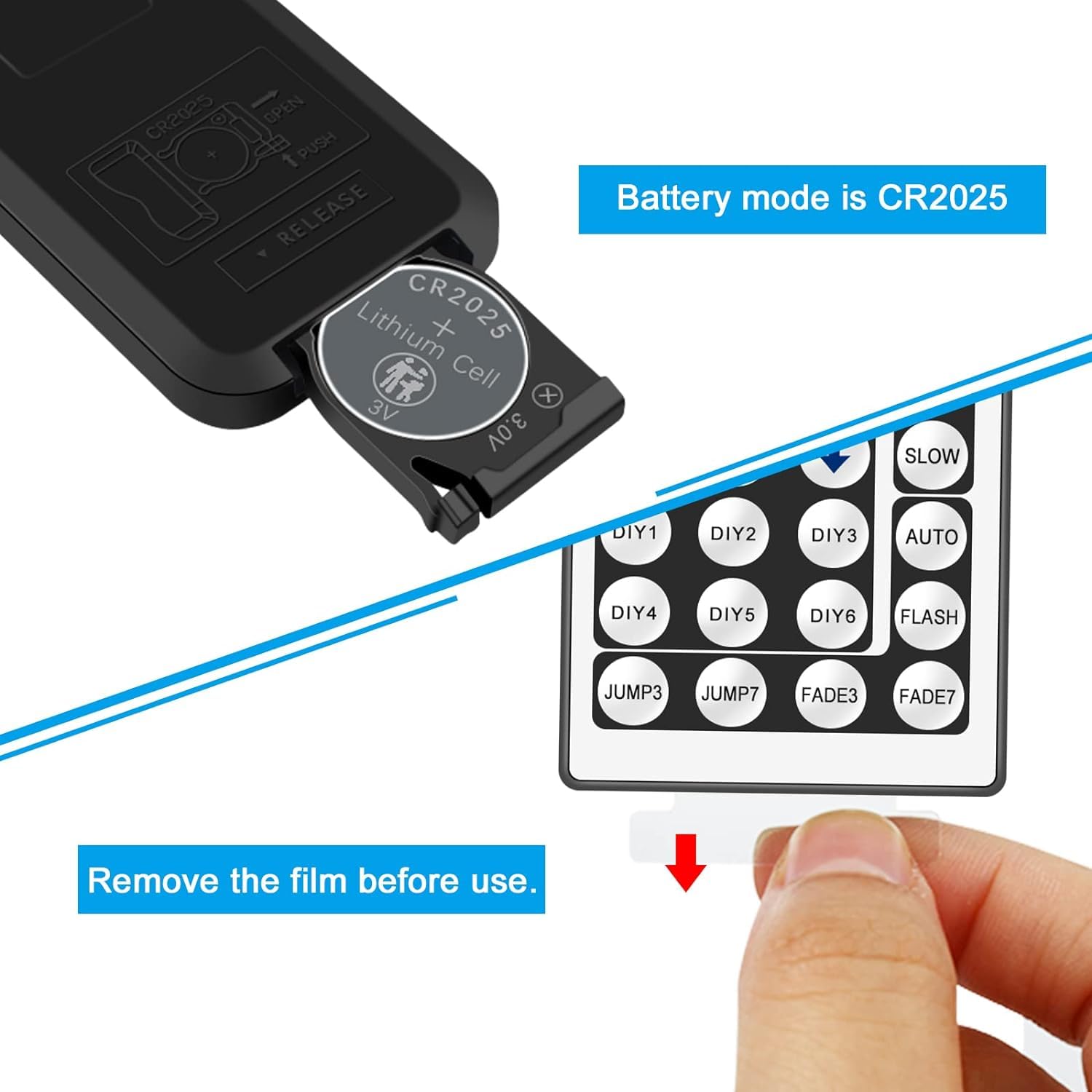

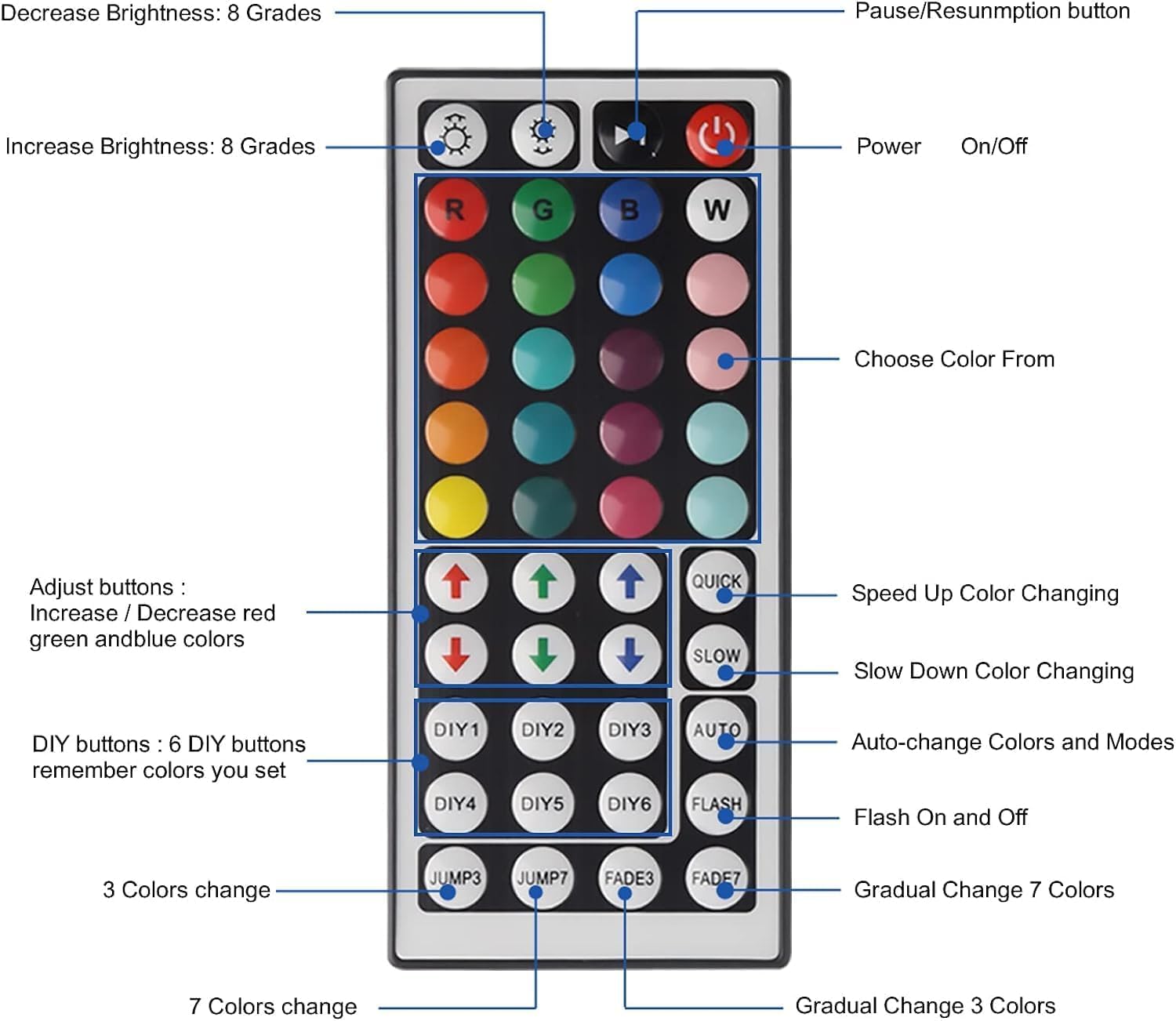

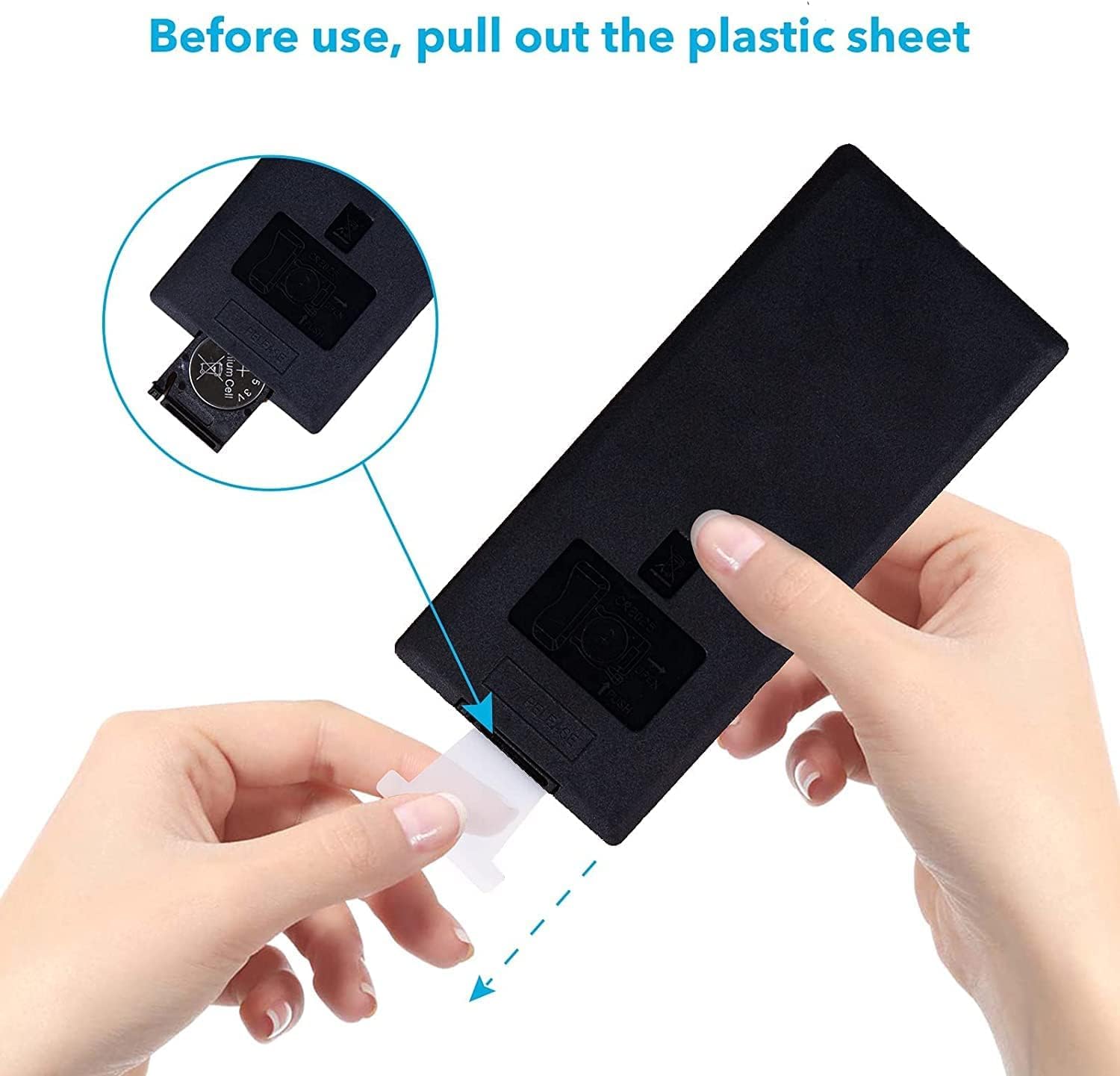

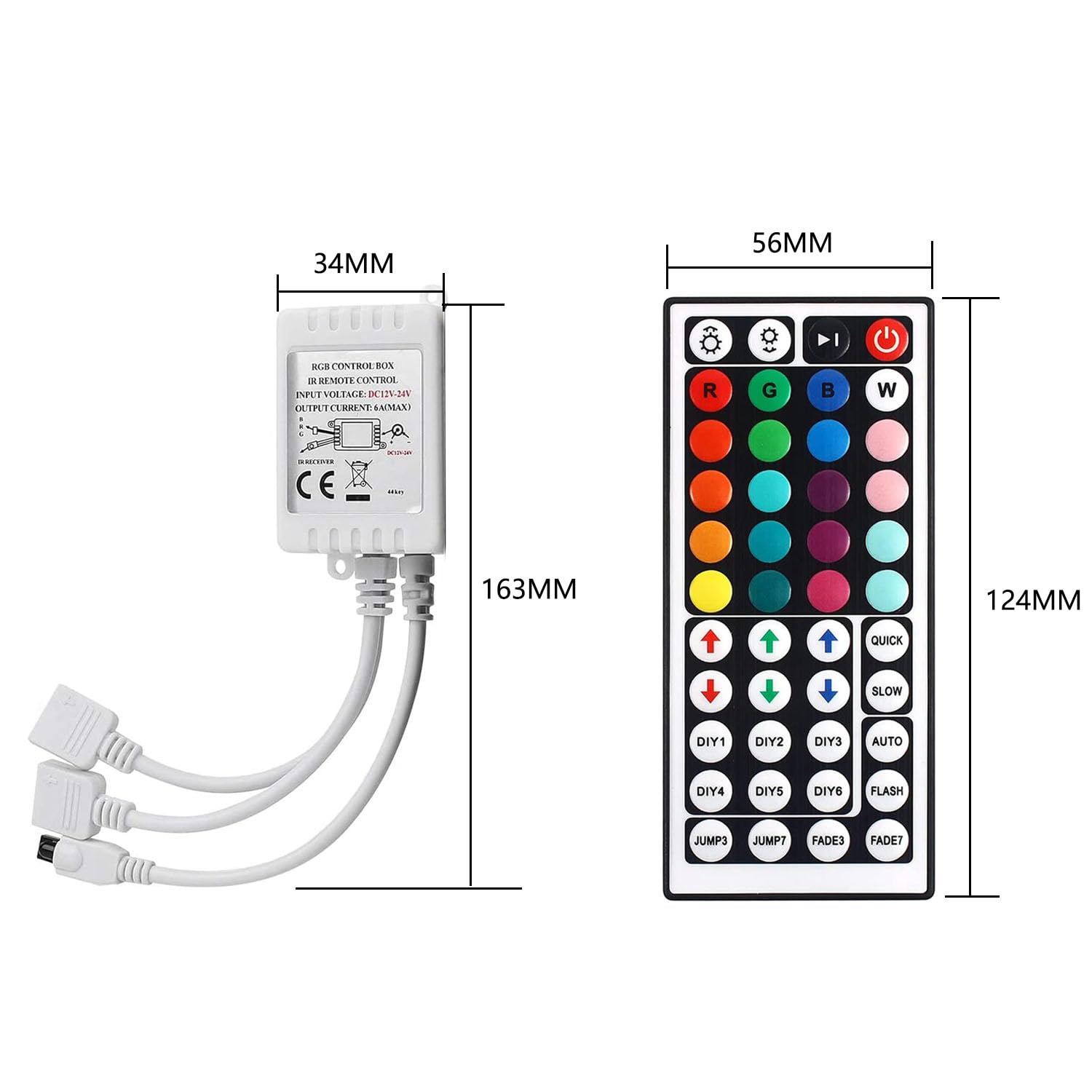

The IR Remote can connect 2 rolls of LED strips Connection mode: Common Anode(+) Controller Output: DC 12-24V, 6A / Channel, 2-Port. Max Load Current: 3*2A. Output: three CMOS drain-open output Working Temperature: -20°C~60°C. Control box dimension: 50mm x 34mm x 22mm ± 0.2mm RGB light strip Remote controller dimension: Size:124 (L) ×56(W) × 6 (H) ± 0.2mm Note: You need to Remove plastic isolation plate before use, and Point to IR receiver while control the remote. NOTE: The power voltage must be same as the led strip light supply voltag. 44-Key Controller DIY function setting steps Step 1: turn on the lights. Press one of the RGB buttons. For example, press red button if you want to DIY red color. Step 2: Press the DIY1 button (the lights will change to white color for the first time). Step 3: Press and hold (at least 5 seconds) green and blue down arrow buttons, the lights will start changing. If you need lighter red color, press and hold the red up button, the longer you hold, the lighter red color you have. You can also press green and blue down, the changing will be more clearly. Step 4: Keep the color you just set by pressing the DIY1 button again. Step 5: Repeat the steps above to set the rest of five DIYs. . Package contents 1 × RGB Controller(2 ports) 1 × 44keys IR Remote Control The LED strip and adapter are for reference and not including.
