20pcs 2 Pin 8MM COB LED Connectors,T L Shape LED Corner Connectors,Gapless Solderless Clear Connector,Strip to Wire Connectors for SMD & COB 3528 2835 LED High Density Strip Lights

• SMD/COB Strips: Stronger compatibility, The led connectors use for all 2pin 8mm width COB LED strips lights and SMD 3528-2835 LED strips lights (not applicabler 5050 strips)

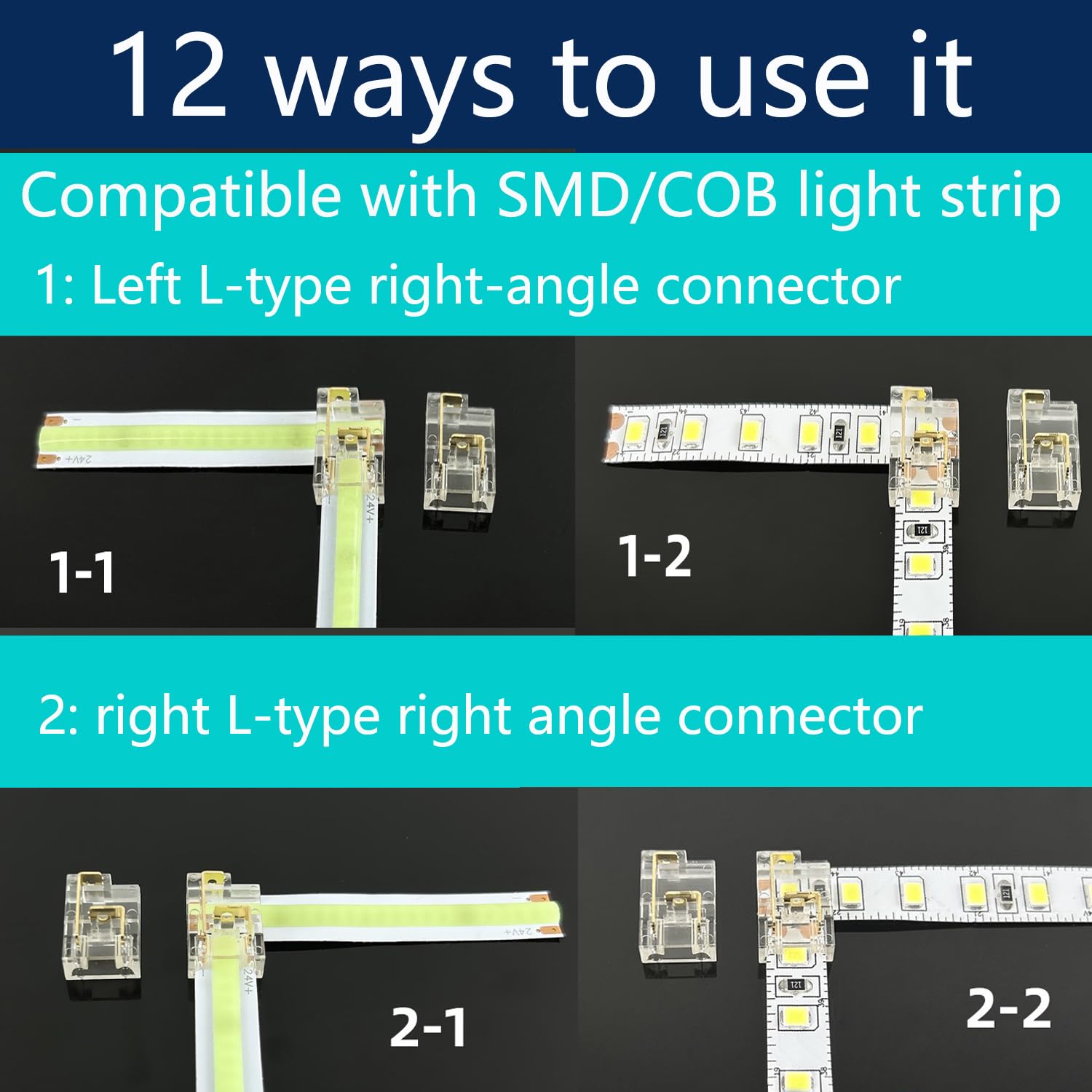

• QUICK AND FLEXIBLE CONNECTION: Both ends of the connector can be connected to light strips and wires, which can flexibly make the connection of strip to strip, strip to wire. It connects COB high density Light strips to wire without stripping insulation, no soldering.
• FREE FROM THE LIMIT OF TERMINAL POSITION: Connect wire by yourself as need, use these COB 2pin led connectors with 22 gauge 2 conductor extension cable to get lighting exactly where you want it. No mater board to wire input or strip to strip jumper, extension distance and angle are no more problems to you.

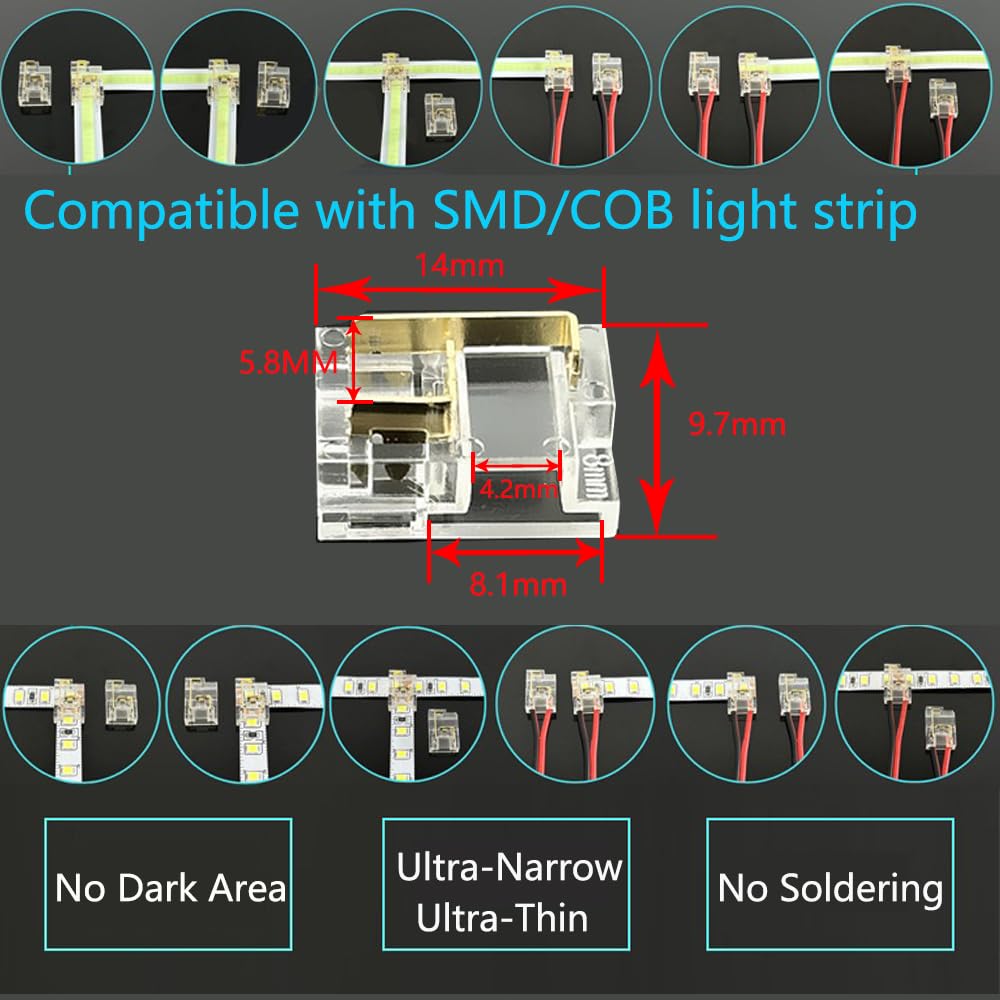

• Newly upgraded-High Transparency：The LED connectors made of pure copper core and PC transparent plastic cover, with stronger transparency, no dark area, The new ultra-narrow and ultra-thin design is more suitable for working inside narrow space like aluminum channel, groove on furniture and more, It is an choice for the quick installation of aluminum slot line lights.
• STRONG COMPATABILITY: The led strip connector compatible with 5v, 12v, 24v led light strips, work for IP20 8mm width 3528 2 Soldering Pads tape light. You only need to align the front side (led surface) of the light strip with the pins of the connector, then press down the metal conductor with pliers to get connected.

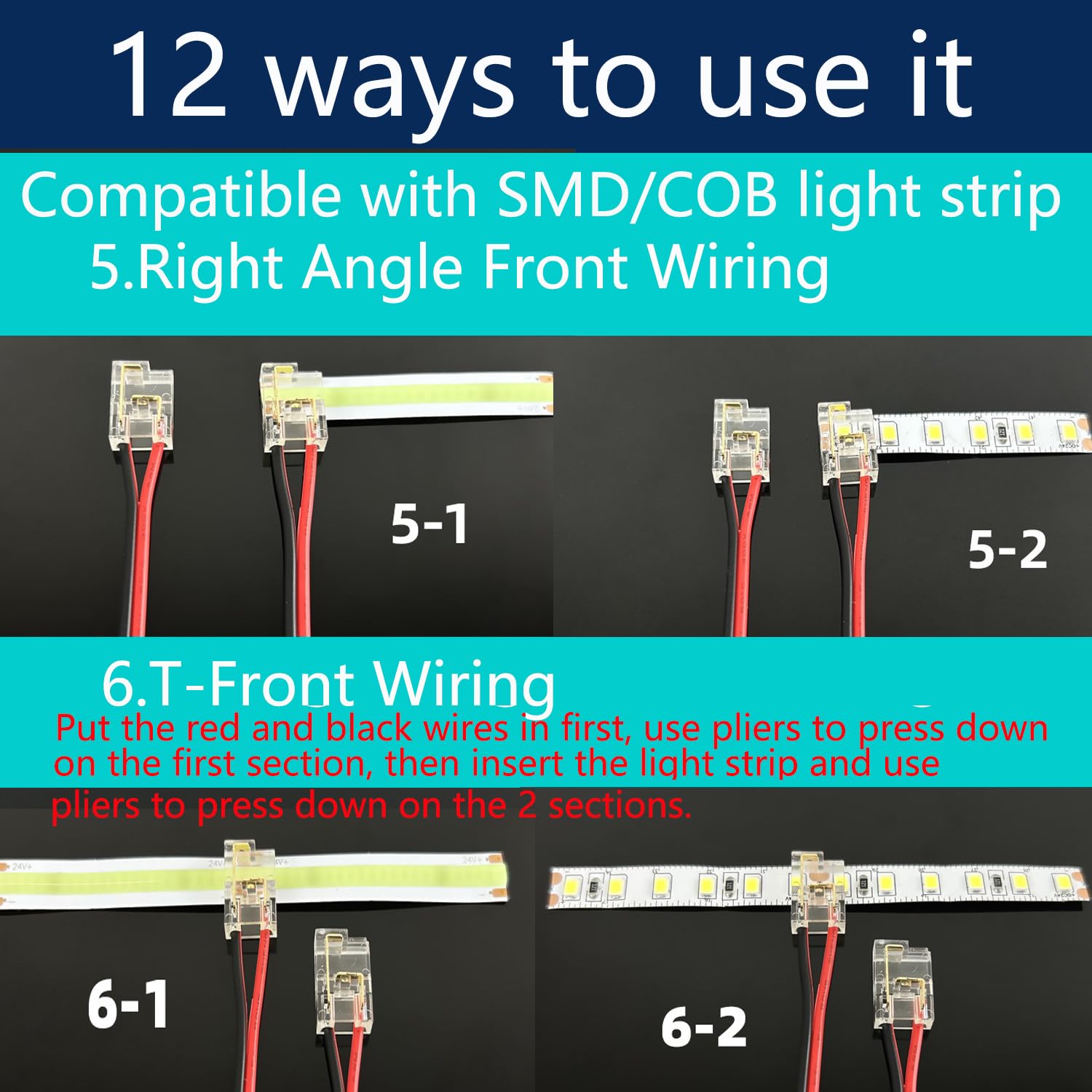

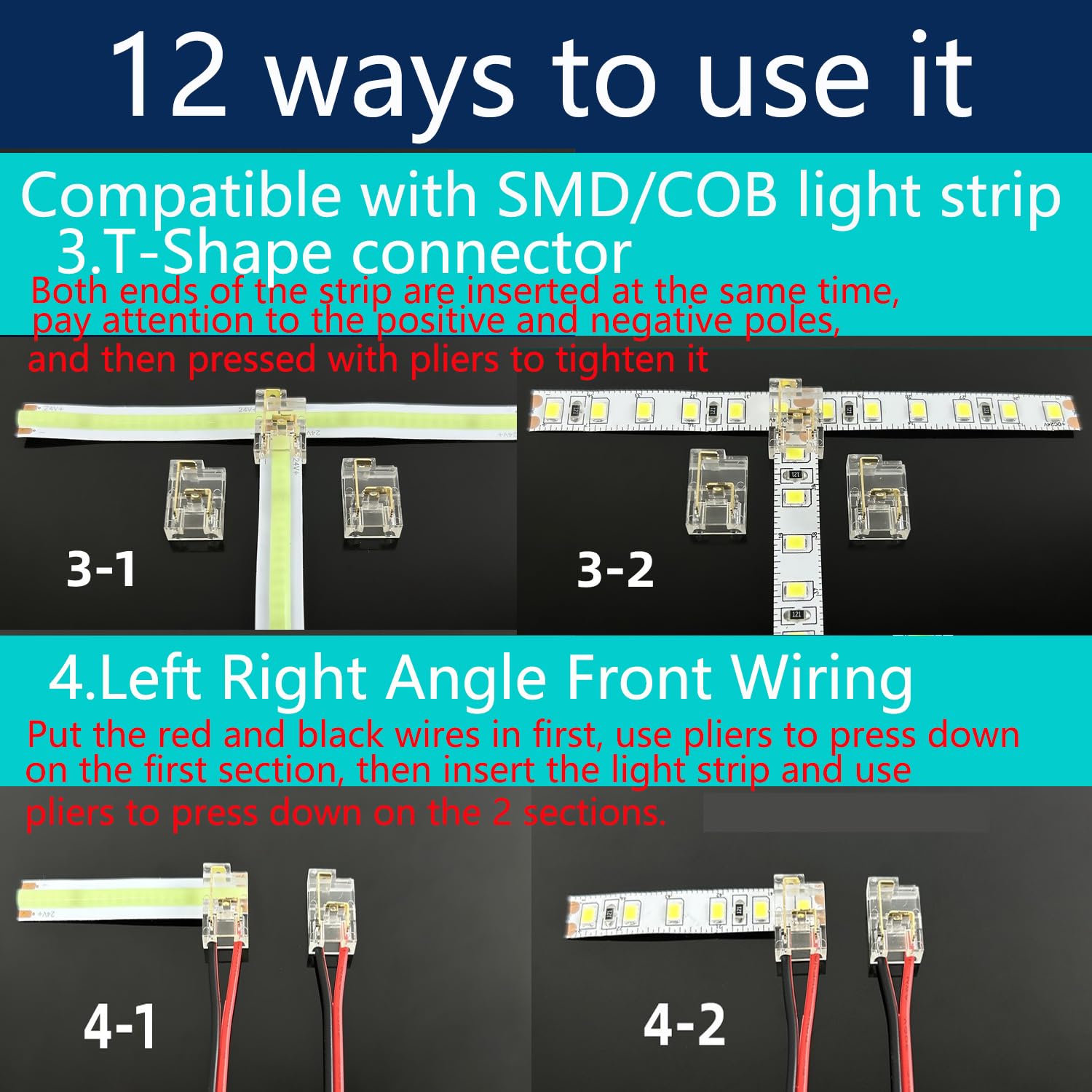

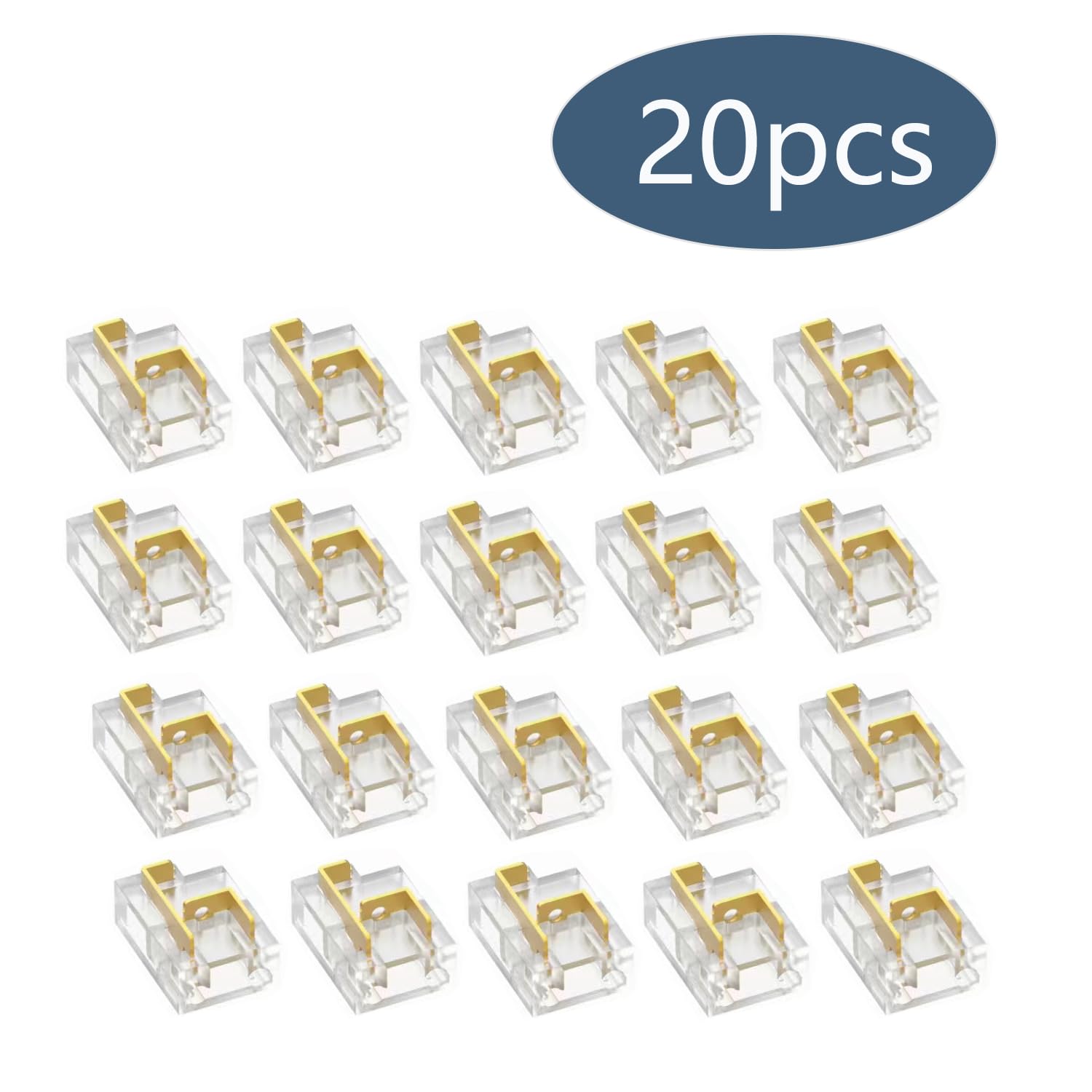

NOTE: 1. Make sure your LED light strip is 8mm width COB strip lights with 2 Soldering Pads. Not work for 12mm or 10mm width led light strips. Installation tips: Strip End: 1.Cut the strip straight perfectly, then fully open the clip. 2. Insert the light strip, align the 2 Soldering Pads of the light-emitting surface of the light with the 2-pins on the connector. Then press down the transparent cover. Wire End: 1.Cut the desired wire length you need and separated the 2 wires around connection part. 2. Insert wires into the connector guide slot, make sure that positive and negative on the strip light surface are corresponding to the wires. 3. Press down the metal conductor with pliers to get connected. Ensure the metal joint pierces through the wire insulation as there are so many non-standard wires on the market! 4. reminder: no stripping of the wires. Just be sure polarity nodes are matched up "+" to "+" and "-" to "-". Package: 20pcs LED Connectors
