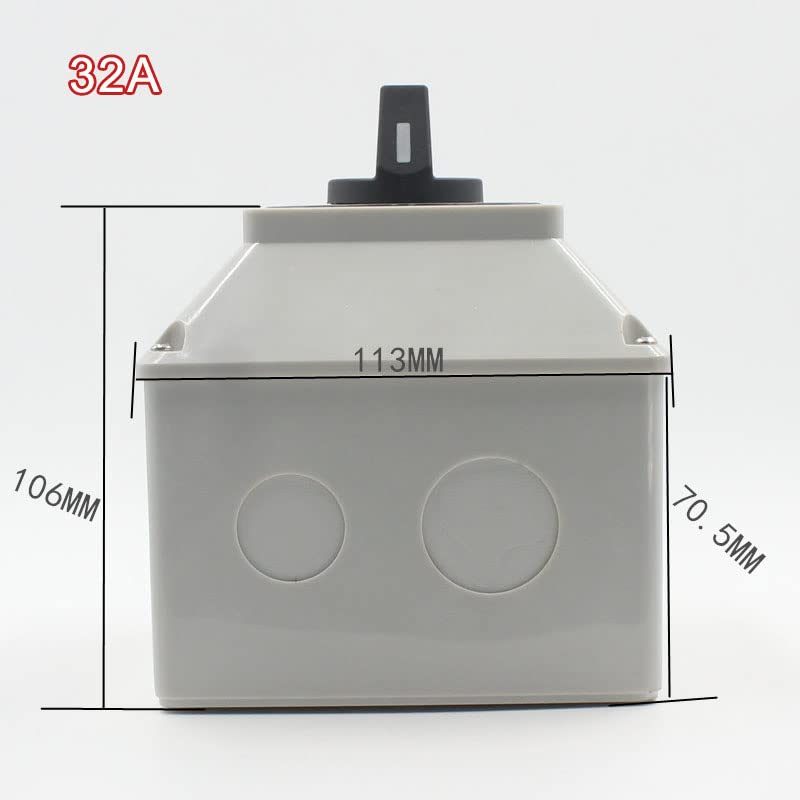

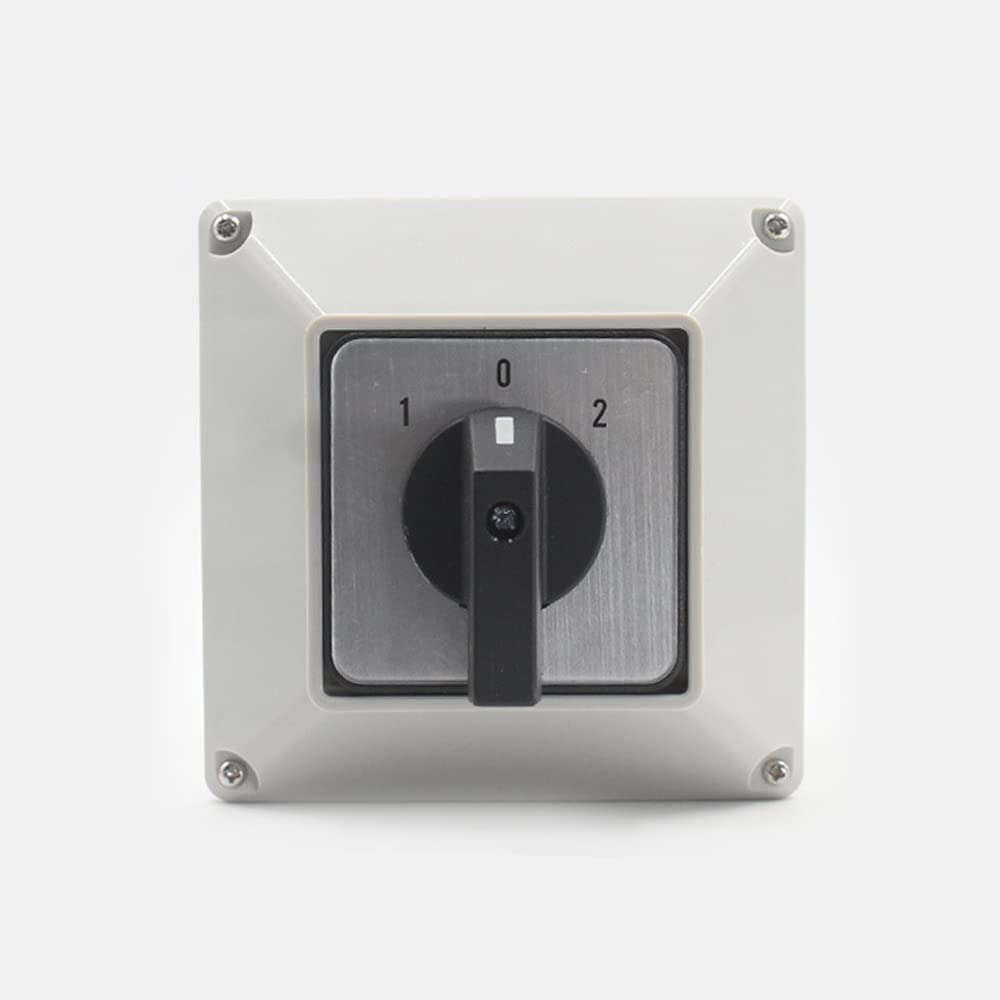

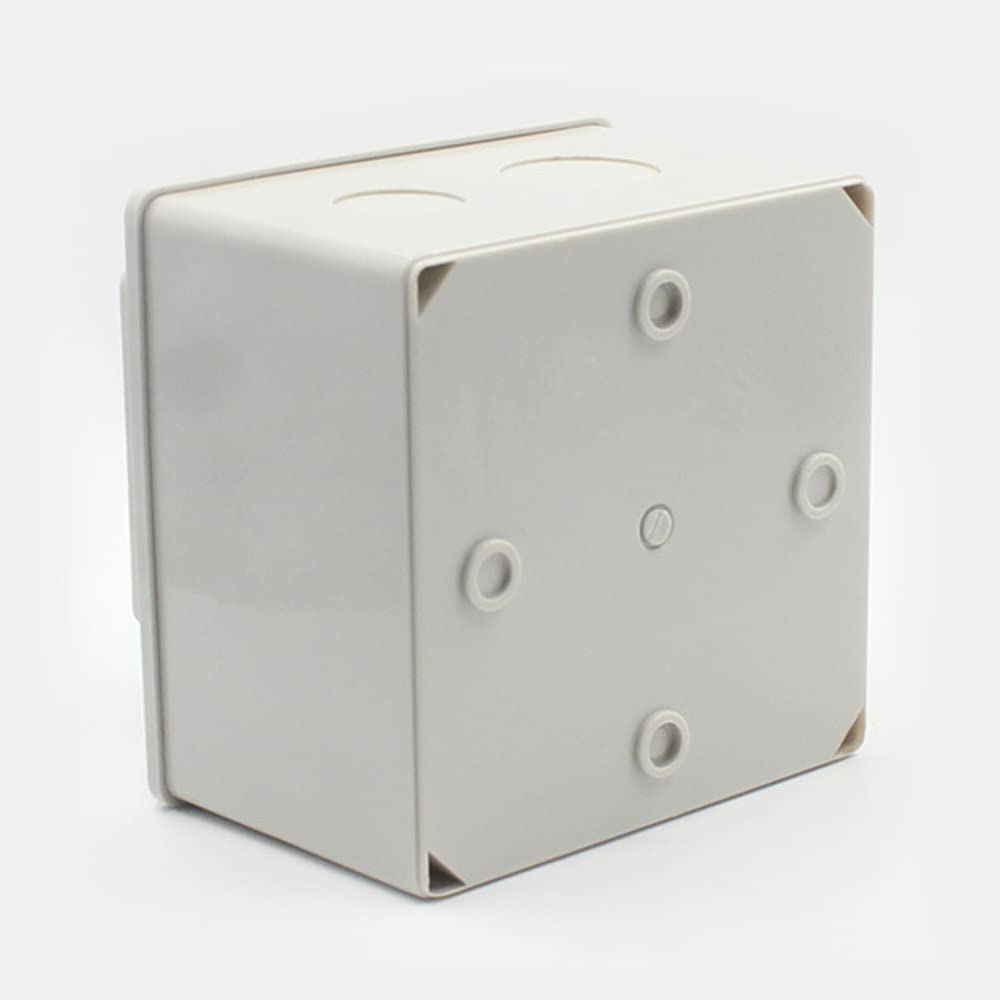

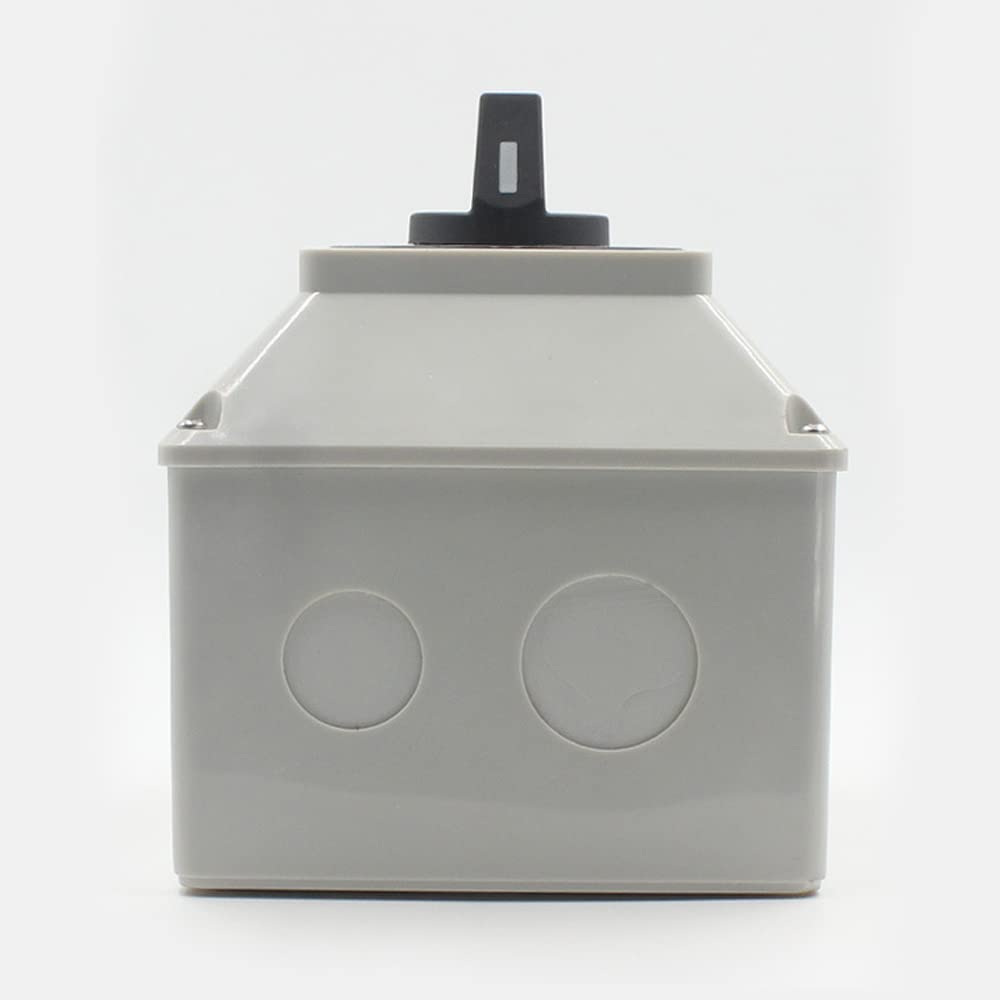

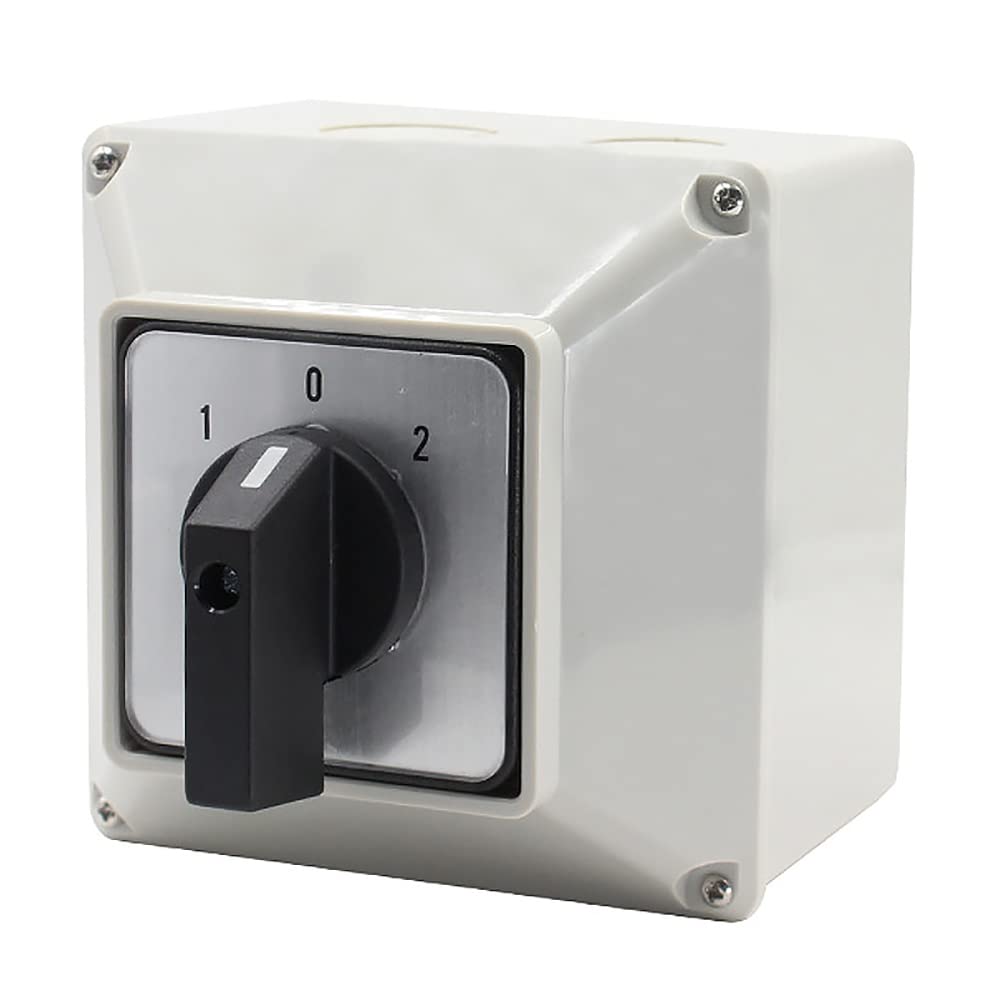

Enclosed Changeover Switch 32A 3 Position 12 Terminals 380V Universal Rotary Cam Selector

• Precise Control: The design of the cam allows for highly accurate contact with the internal contacts, making the switching mechanism very stable and ensuring the accuracy of each position, thereby avoiding misoperation
• Multifunctional Switching: This switch features a three-position switch function (ON-OFF-ON), allowing it to achieve multiple control options within the same device. It meets various electrical control needs and is flexible for use in switching different devices
• Structural Design: With a two-segment design, meaning two control contacts, the structure is simple yet capable of achieving precise current switching, making it suitable for general power distribution and control needs
• IP65 Waterproof Housing: Made from flame-retardant PC material, it has excellent insulation properties and high heat resistance, effectively preventing the ingress of water, dust, oil, and other external substances
• Wide Application: It can be used as a circuit control switch, test equipment switch, motor control switch, main control switch, signal conversion switch, and in various other circuits

Features Feature plastic external material,3-Position 12 screw terminals Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, It can also make the conversion of the control circuit. This Changeover switch is easy to use, and with long serving life Universal Rotary Cam Changeover Switch is convenient to replace the broken one Specifications Position: 3 Terminals:12 Screw Terminals Current Optional: 20A/25A/32A/63A Voltage: 380V Insulation Voltage: 690V Rated Voltage: 380V Rated Current: 20A Switch Panel Size: 48mm Rated Impulse Withstand Voltage: 7kV Rated Short-Circuit Making Capacity: 25 Rated Short-Time Withstand Current: 25 Mechanical Life: 100,000 cycles Electrical Life: 12 Rated Voltage Range: 37V-440V Weight: 350g Package included 1 x Changeover Switch
