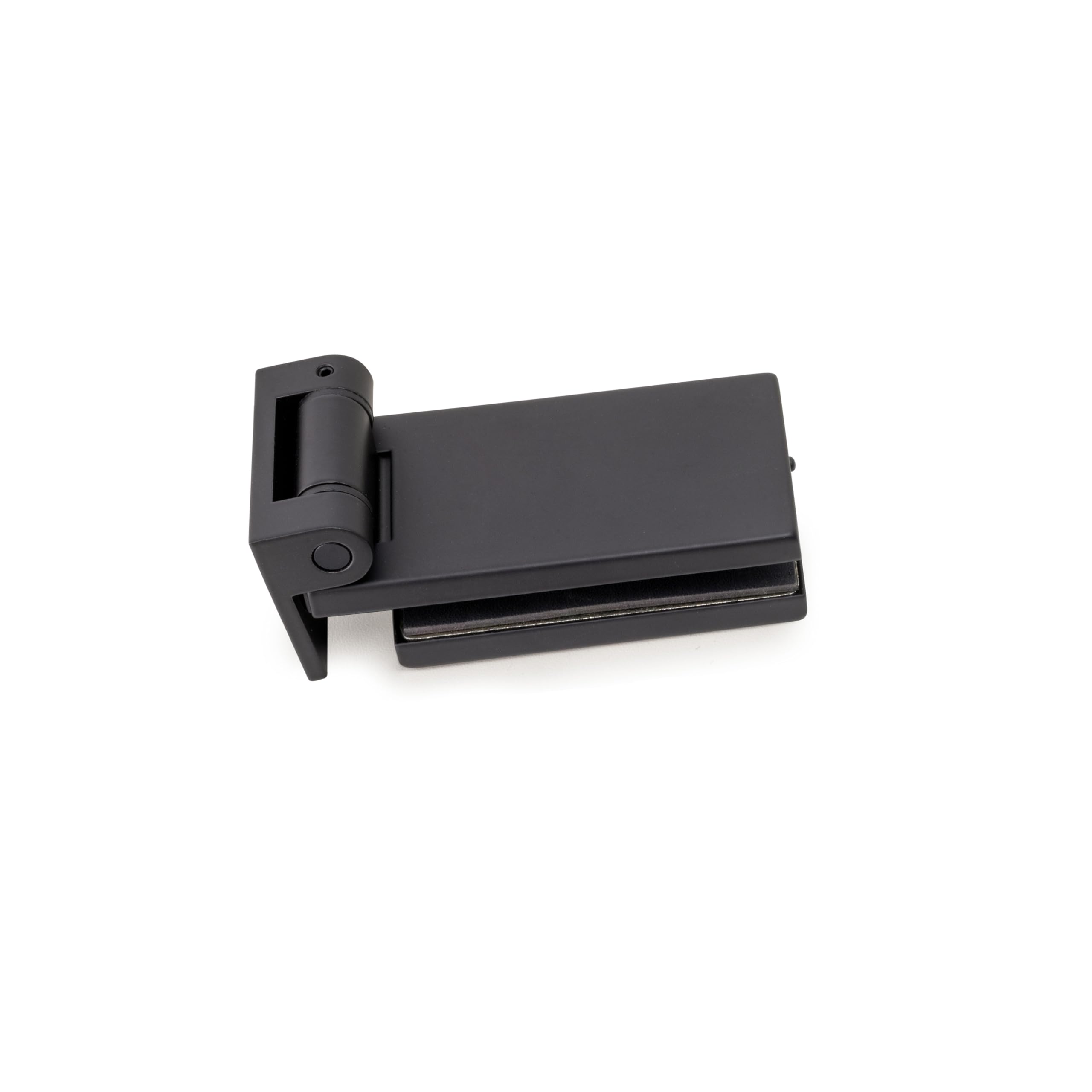

Emuca - Glass Door Hinge with Trim, Horizontal Hinge with 40mm Spade, for 8-12mm Door, Aluminium and Steel, Black Painted

• Horizontal hinge for glass door with stainless steel trims.

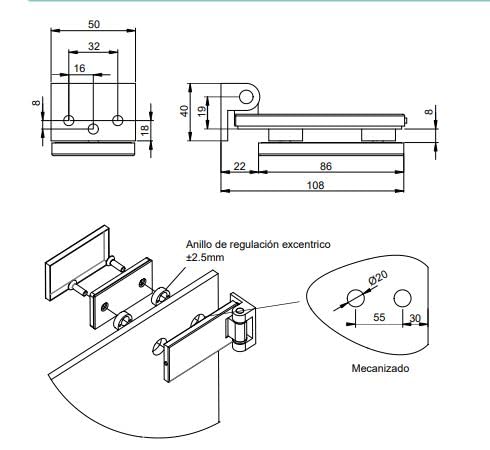

• The hinge blade is 40mm, can be installed on glass doors with a thickness of 8 to 12mm and has a pivot range of 180º. It has eccentric rings that allow an adjustment of ±2,5 mm. Two hinges support 60kg and 3 hinges 90kg.
• This hinge can be installed together with the black Emuca glass door handles corresponding to code 9172614 or 9172714.
• Manufactured in steel and aluminium with black painted finish.
• Includes one hinge and all mounting hardware.

Horizontal hinge for glass door with stainless steel trims. Ideal for glass doors, showcases or shower doors. The hinge blade is 40mm, can be installed on glass doors with a thickness of 8 to 12mm and has a pivot range of 180º. It has eccentric rings that allow an adjustment of ±2,5 mm. Two hinges support 60kg and 3 hinges 90kg. Manufactured in aluminium. Includes one hinge and all mounting hardware.
