Emelec VíasCom EQ 3026

• Transmission of SDI/HD-SDI/3G-SDI/6G-SDI/12G-SDI signals 20AWG single core video cable (0.80/3.75/6.00). BNC with high-quality gold-plated contacts
• Flexible cable with a robust cover of Ø 6.00 mm. Ideal for mobile applications and intensive work. Long lasting use

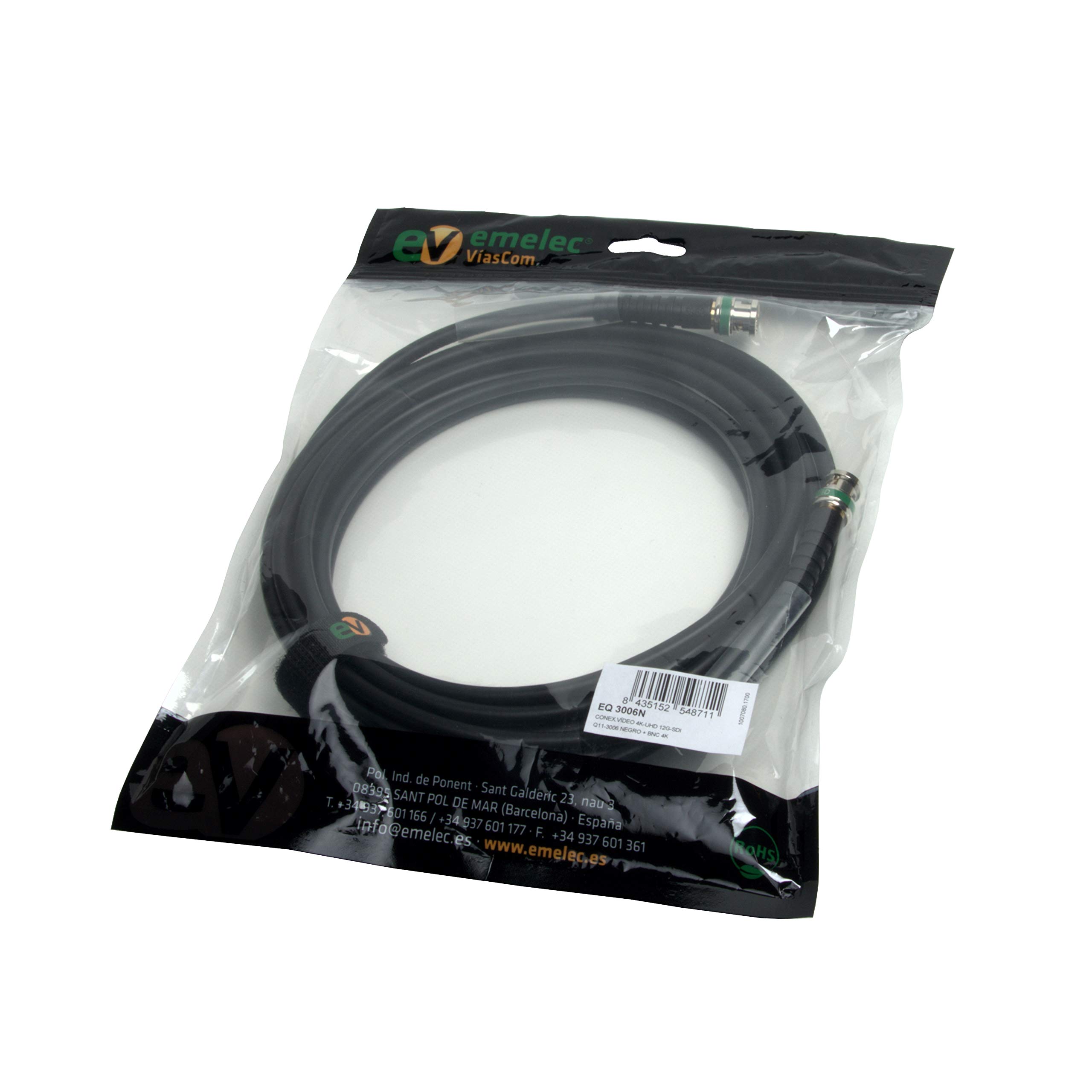

• Clear pockets on both ends for labelling. Includes Velcro closure for easy storage
• Connectors with computer-controlled numerical control machines (CNC), which give the product a more precise workmanship, no impurities and more robustness

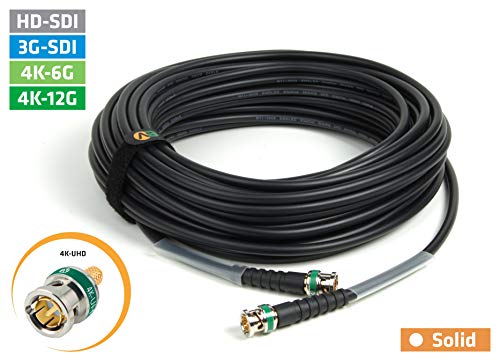

• Connection consisting of a coaxial cable with a BNC connector on each end

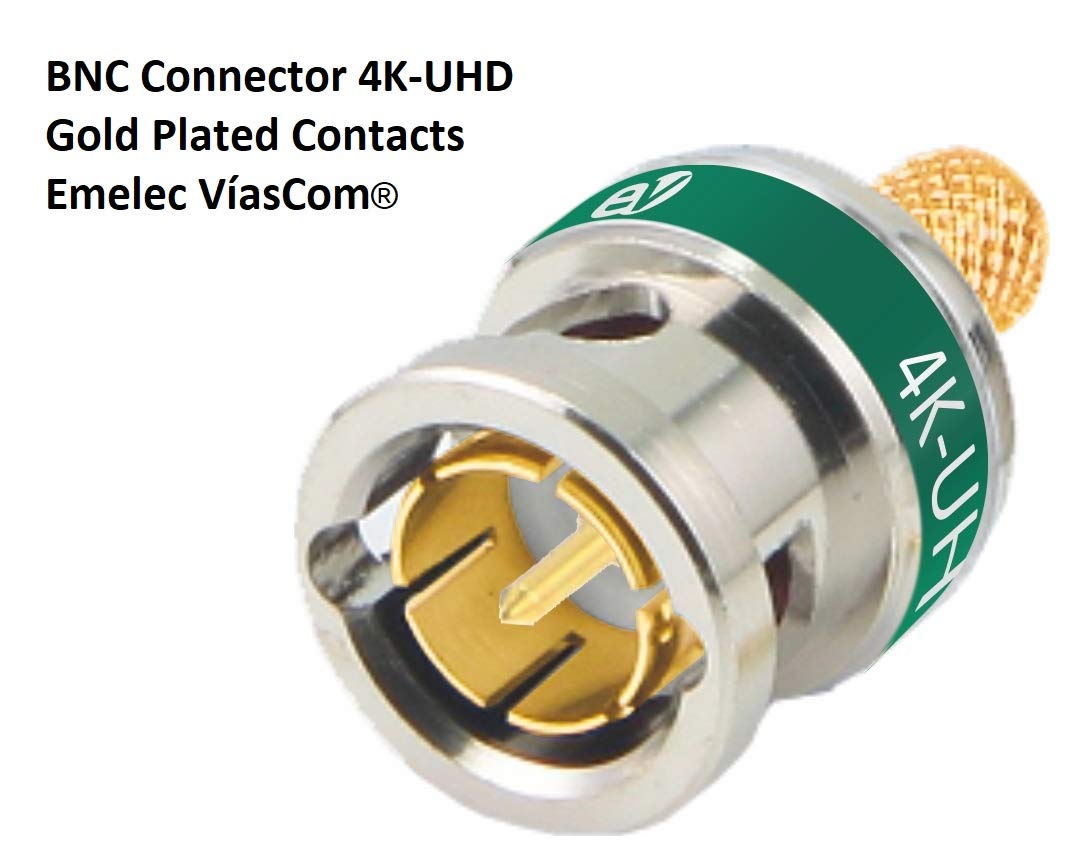

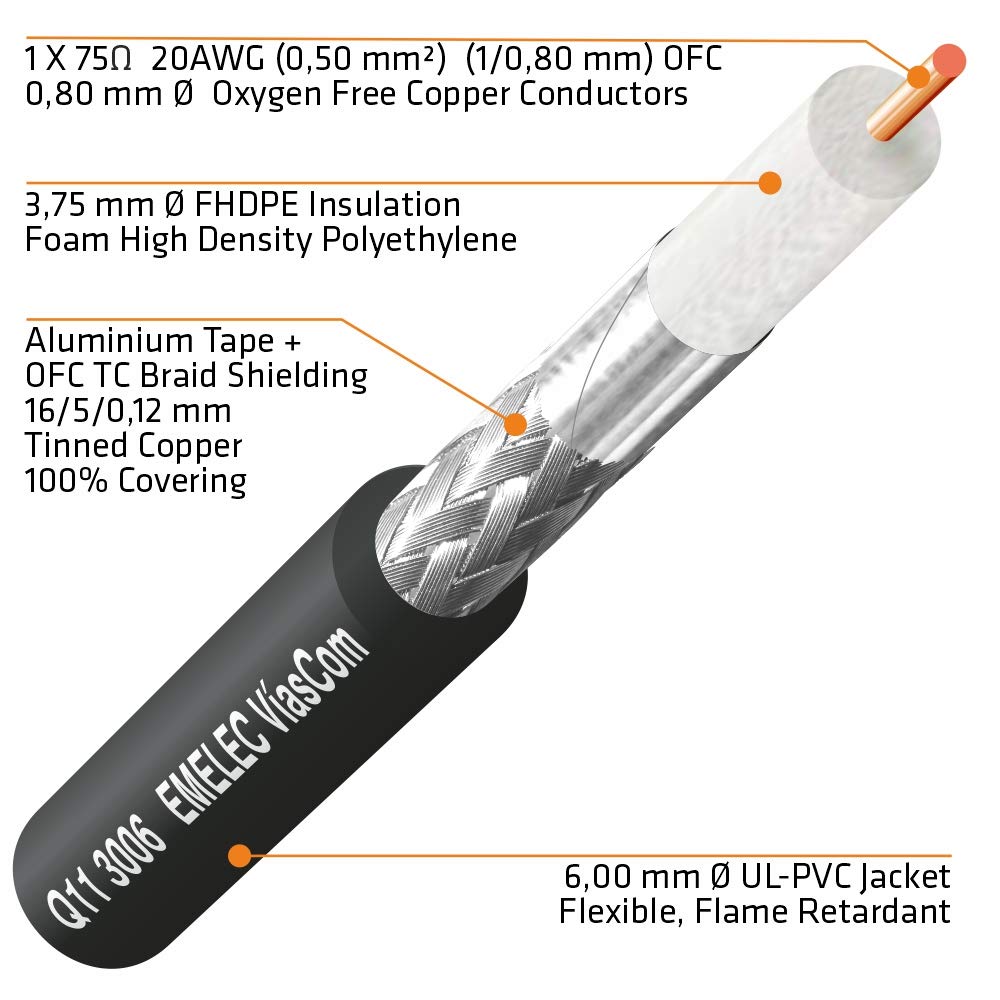

Video port with 20AWG (0.80/3.75/6.00) single core 12G-SDI (4K UHD). This connection uses the Q11-3006 Emelec VíasCom Digital Video Cable, which is prepared for transmitting HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI signals in conjunction with our CC912 connector. OFC (Oxygen Free Copper) Copper Cable, HDPE foam dielectric allows for superior signal propagation speed and reduced attenuation, 100% shielded with an aluminum band and a tinned copper braid. The outer shell is made of a flame retardant PVC, which is robust and flexible. The BNC 4K connectors are made of zinc alloy and copper alloy, with nickel-plated surfaces and gold-plated contacts. They are specially designed for our video cables to work with Ultra High Definition 6G-SDI and 12G-SDI and HD-SDI and 3G-SDI signals. Ideal for stationary and mobile applications. All connections are prepared by highly qualified and experienced staff. They are individually tested to ensure perfect function.
