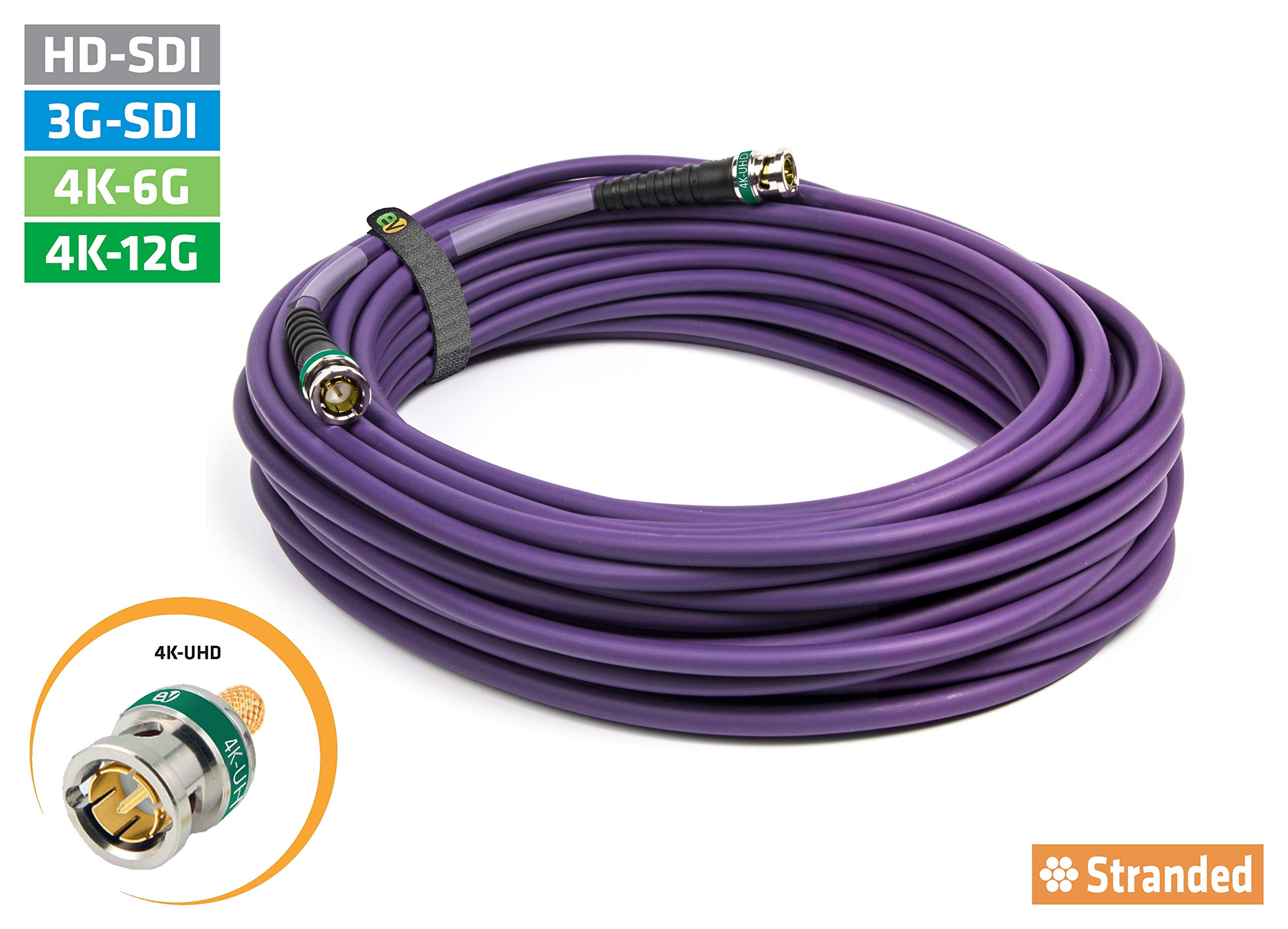

Emelec VíasCom EQ234/400 – 40 m Video Connection 4K-UHD 12G-SDI (0.76/3.40/6.00) with BNC 4K-UHD – Multi-Row Conductor – Violet – Flexible PVC

• SDI/HD-SDI/3G-SDI/6G-SDI/12G-SDI signal transmission. 22AWG Multicore Video Cable (0.76/3.40/6.00) BNC with high quality gold-plated contacts
• Flexible cable, with a robust cover diameter 6 mm. Ideal for mobile applications and intense jobs. Resistant to prolonged use
• Connectors built with computerized numerical control (CNC) machines that provide the product with a more precise, impurity-free finish and greater robustness
• Connection consisting of a coaxial cable with a BNC connector on each end

Video connection with 22AWG cable (0.76/3.40/6.00) 12G-SDI (4K-UHD) multicore conductor. This connection uses the Emelec VíasCom Q11-234 digital video cable prepared to transmit HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI signals along with our CC912 connector. OFC (Oxygen-free Copper) copper cable, high-density polyethylene foam dielectric enables superior signal propagation speed and decreased attenuation, shielded to 90% with tinned copper braid. The outer shell uses a non-flame-spreading, durable and flexible PVC. BNC 4K connectors are made of zinc alloy and copper, with nickel-plated finishes and gold-plated contacts. They have been custom designed for our video cables to work with Ultra High Definition 6G-SDI and 12G-SDI and High Definition HD-SDI and 3G-SDI signals. Ideal for both fixed and mobile applications. All connections are prepared by highly qualified and experienced staff. They are individually tested which ensures perfect operation.
