Elucian 10A AFDD RCBO Type A 30mA True 10kA B Curve 1P+N Click Scolmore CU1AFDD10B10

• AFDD & RCBO PROTECTION IN ONE DEVICE – Combines arc fault detection with RCBO protection to help protect circuits against arc faults, earth fault leakage, overload and short-circuit conditions.
• 10A B CURVE, TRUE 10KA RATING – Rated at 10A with a B curve tripping characteristic and true 10kA breaking capacity for dependable circuit protection performance.
• TYPE A 30MA RCD PROTECTION – Features Type A residual current protection with a 30mA trip current, suitable for modern installations requiring additional fault protection.
• ARC FAULT DETECTION – Designed to detect series arc faults, parallel arc faults and over-voltage faults, helping reduce fire risk from dangerous electrical arcing conditions.

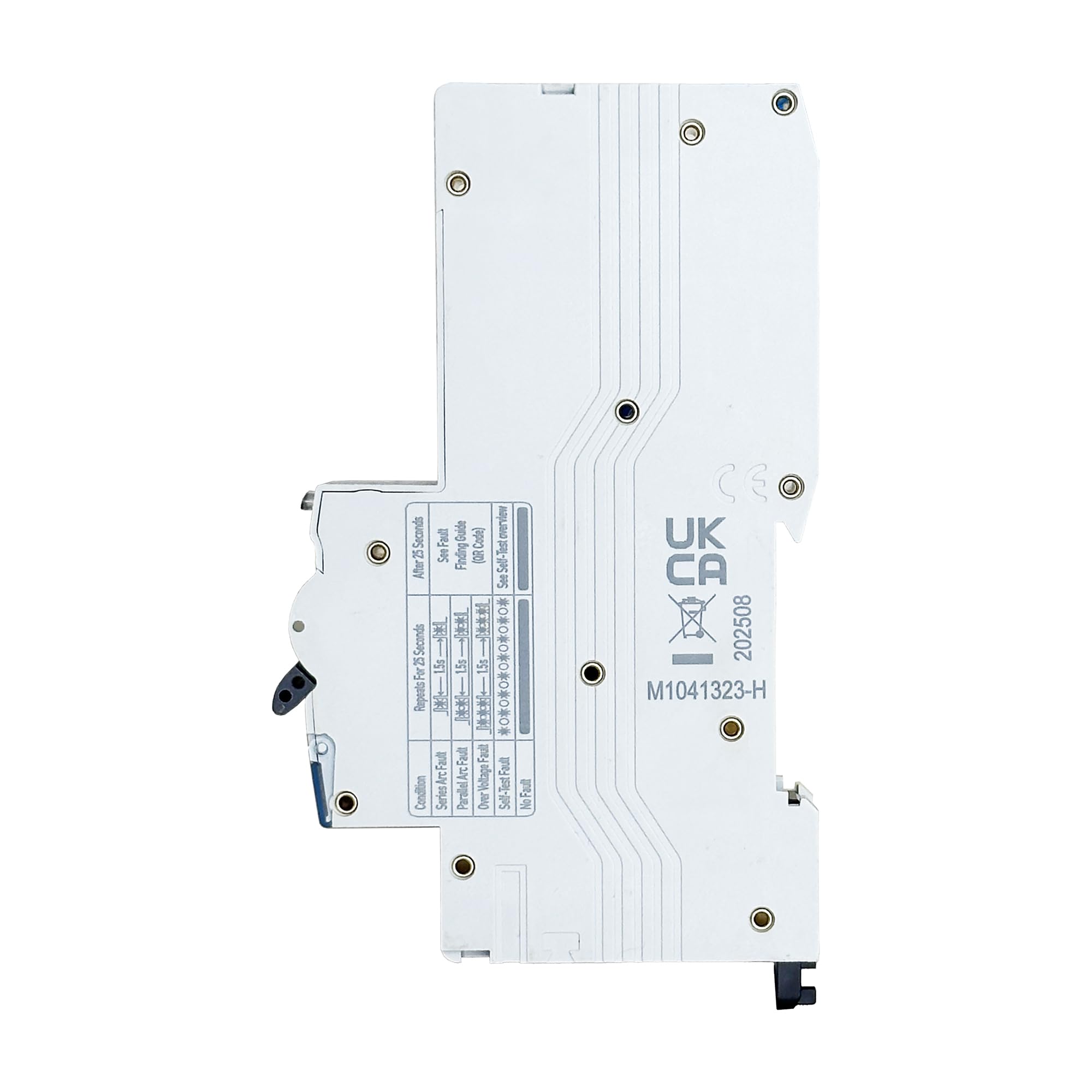

• SELF-TEST / SELF-MONITORING FUNCTION – Elucian AFDD range performs a self-test on first power-up and then hourly to help ensure full operation; the specification also identifies self-test fault indication.

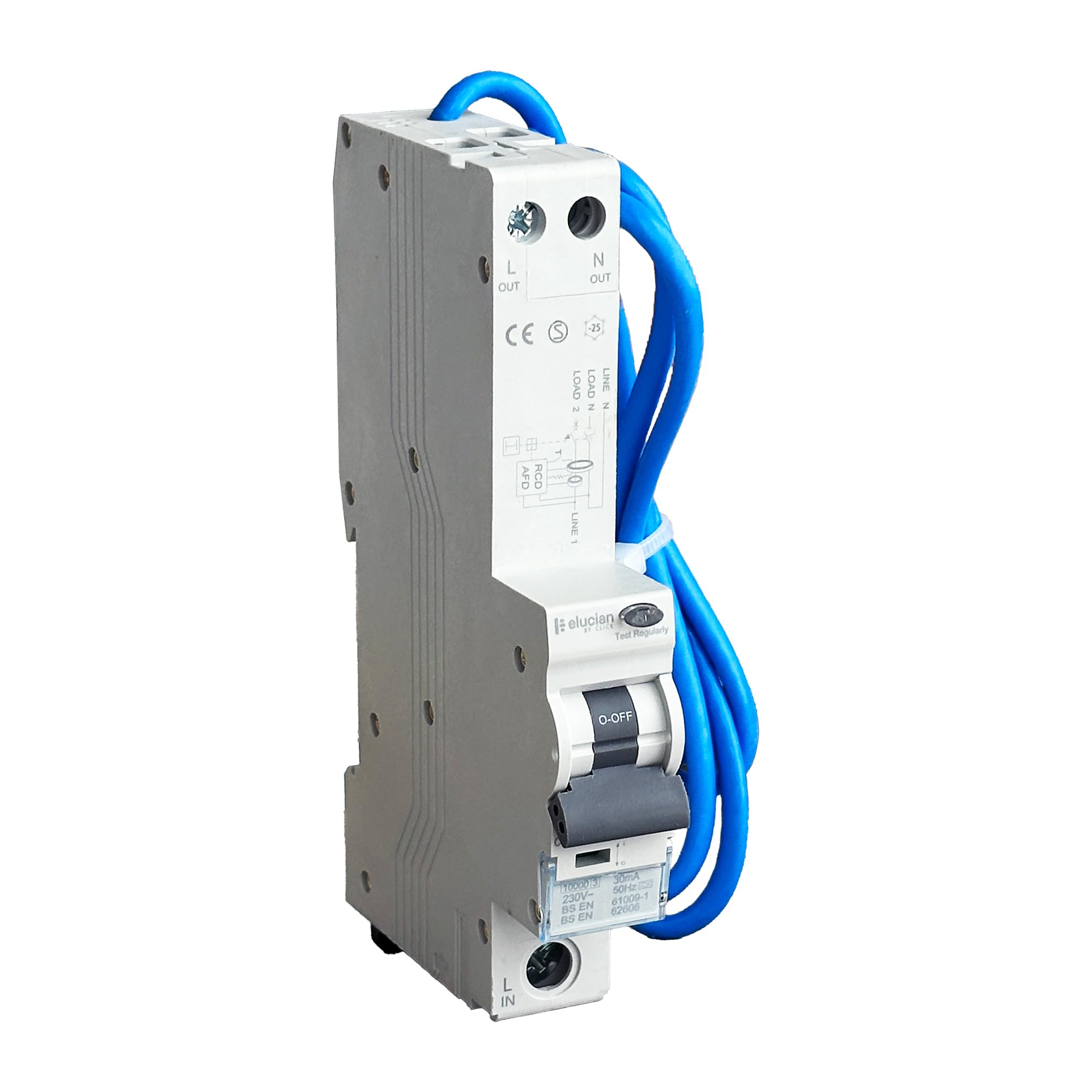

• 1P+N WITH 1 METRE NEUTRAL TAIL – Configured as 1 pole + neutral and supplied with a 1m neutral tail for practical board connection.
• CONFORMS TO BS EN 62606 – Technical specification lists compliance with BS EN 62606 for the AFDD function and BS EN 61009-1 for the RCBO function.
• ELUCIAN BY CLICK DEVICE – Single-width format with dimensions of 17.8 x 118 x 76.6mm, supplied as part of the Elucian by Click Scolmore range.

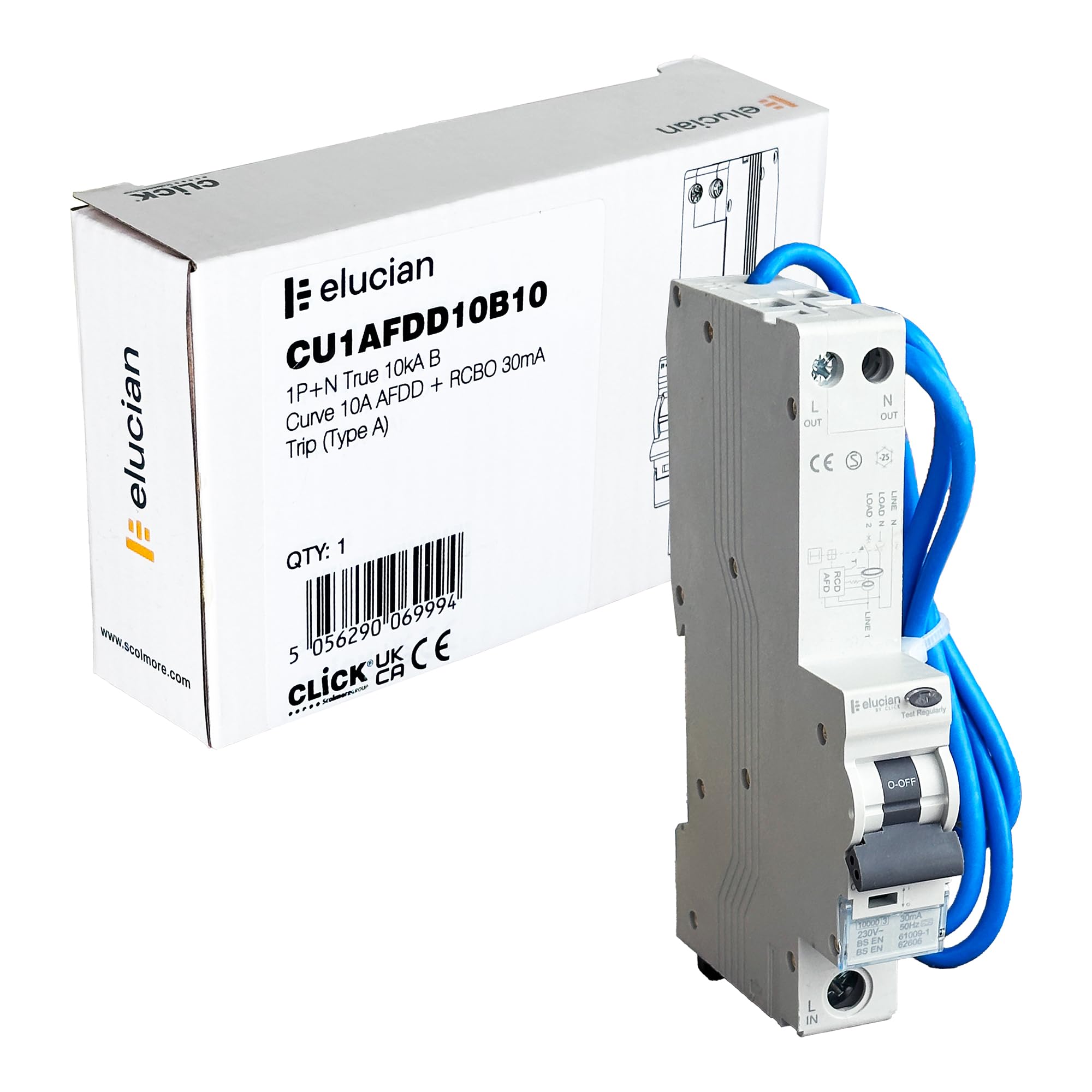

The Elucian CU1AFDD10B10 is a 1P + N AFDD RCBO designed to provide multiple layers of circuit protection in one compact device. Rated at 10A, with a B curve, Type A 30mA residual current protection and true 10kA breaking capacity, it is built to protect against arc faults, earth fault leakage, overcurrent and short-circuit conditions. Providing detection for series arc fault, parallel arc fault, over-voltage fault and self-test fault, making it a strong option for modern board builds where protection and space efficiency both matter. This model is supplied with a 1 metre neutral tail and is part of the Elucian by Click Scolmore protective device range. Elucian AFDD range includes a self-test function that activates on first power-up and then runs hourly, while the product specification confirms compliance with BS EN 62606 and BS EN 61009-1.
