ELP 5MP USB Camera Module with 100 Degree No Distortion Lens with Aptina MI5100 OTG Webcam for Industrial Machine HD Web Conference Compatible with Windows Android Linux

• 5 Megapixel hd cmos usb camera module, super high resolution 5megapixels 2592x1944 usb camera module.
• USB camera module with 100 degree no distortion lens, about 85 degree fov, un-distortion picture and video, low power consumption, ideal for portable equipment.
• High speed usb 2.0 interface for high resolution pc camera interface, super small outline and thin profile for embedded applications.
• Many operating systems compatible, windows, linux, android, ubuntu, raspberry pi, mac os.
• Wide applications: use for personal hobby capturing images, natural scenery video, photo scanner, robot, medical machine, industrial cameras, teaching system, security monitoring

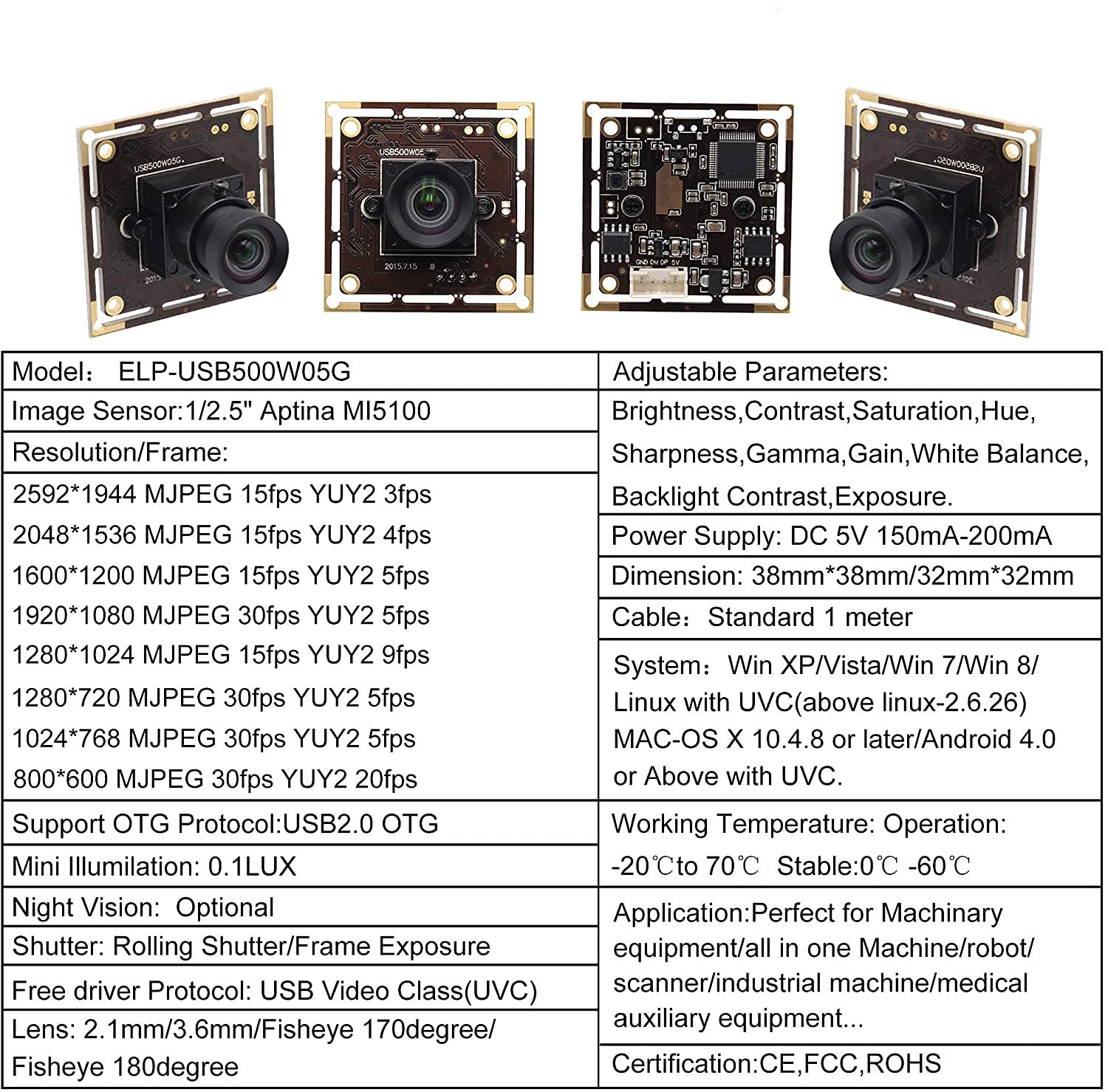

Product Name:ELP-USB500W05G-FD100 is 5megapixel HD camera usb adopt Aptina sensor with sharp image. Sensor:Aptina MI5100 Lens Size:1/2.5 inch（4:3） Pixel Size: 2.2um image area:5.7mm x 4.28mm Max. Resolution: 2592(H) X 1944(V) Compression format:MJPEG / YUV2（YUYV） Resolution & frame:2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 15fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG S/N Ratio: 38dB Dynamic Range: 70dBv Sensitivity: 1.4V/lux-sec@550nm Mini illumination: 0.1lux Connecting Port type: USB2.0 High Speed Free Drive Protocol: USB Video Class（UVC） OTG protocol: USB2.0 OTG AEC: Support AEB: Support AGC: Support Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure Lens Parameter: No distortion Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree LED board control interface: Support 2P-1.25mm socket Power supply: USB BUS POWER 4P-2.0mm socket Operating Voltage: DC5V
