Elmex Test Terminal with Sliding Bridge For Hook Blade 6mm Grey pack of 50

• Test Disconnect Terminal Block
• nominal voltage: 1000 V, nominal current: 41 A , connection method: Screw connection with spring support
• number of connections: 2, cross section: 0.5 mm² - 10 mm² , AWG: 24-8
• width: 8 mm , height: 56 mm , length : 85.5 mm
• mounting type: TS35/7.5 , TS35/15 and TS32

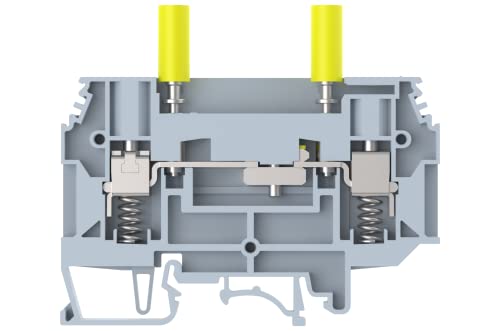

Test Terminal with Sliding Bridge For Hook Blade 6mm Grey pack of 50. Terminal Type - KULDT6 , Test Disconnect Terminal Block , nominal voltage: 1000 V, nominal current: 41 A , connection method: Screw connection with spring support , number of connections: 2, cross section: 0.5 mm² - 10 mm² , AWG: 24-8, width: 8 mm , height: 56 mm , length : 85.5 mm , mounting type: TS35/7.5 , TS35/15 and TS32. The terminal block provides a function shaft on both sides of the disconnect point and can be fitted with plug-in bridges and test adapters. Compact 1000 V test disconnect terminal block with screw disconnect slide.
