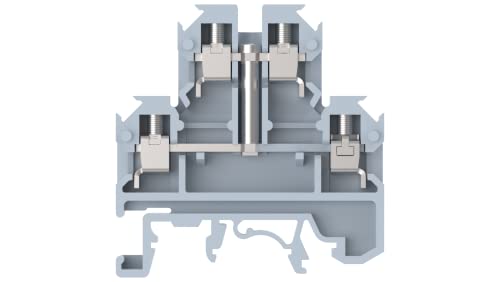

Elmex Compact Double Deck Feed Through Terminal 2.5mm Grey Pack of 100

• Multi level terminal block with equipotential bonder
• nominal voltage: 500 V, nominal current: 24 A, connection method: Screw connection
• number of connections: 4, cross section: 0.5 mm² - 4 mm², AWG: 20 - 12
• width: 6 mm , length: 50 mm , height : 50.8 mm
• mounting type: TS 35/7.5, TS 35/15 , TS 32

Compact Double Deck Feed Through Terminal 2.5mm Grey Pack of 100. Terminal Type - KU2D4S , Multi level terminal block with equipotential bonder, nominal voltage: 500 V, nominal current: 24 A, connection method: Screw connection, number of connections: 4, cross section: 0.5 mm² - 4 mm², AWG: 20 - 12 , width: 6 mm , length: 50 mm , height : 50.8 mm , mounting type: TS 35/7.5, TS 35/15 , TS 32. Since there are two function shafts per level, all potential distribution tasks can be implemented quickly . Two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks .
