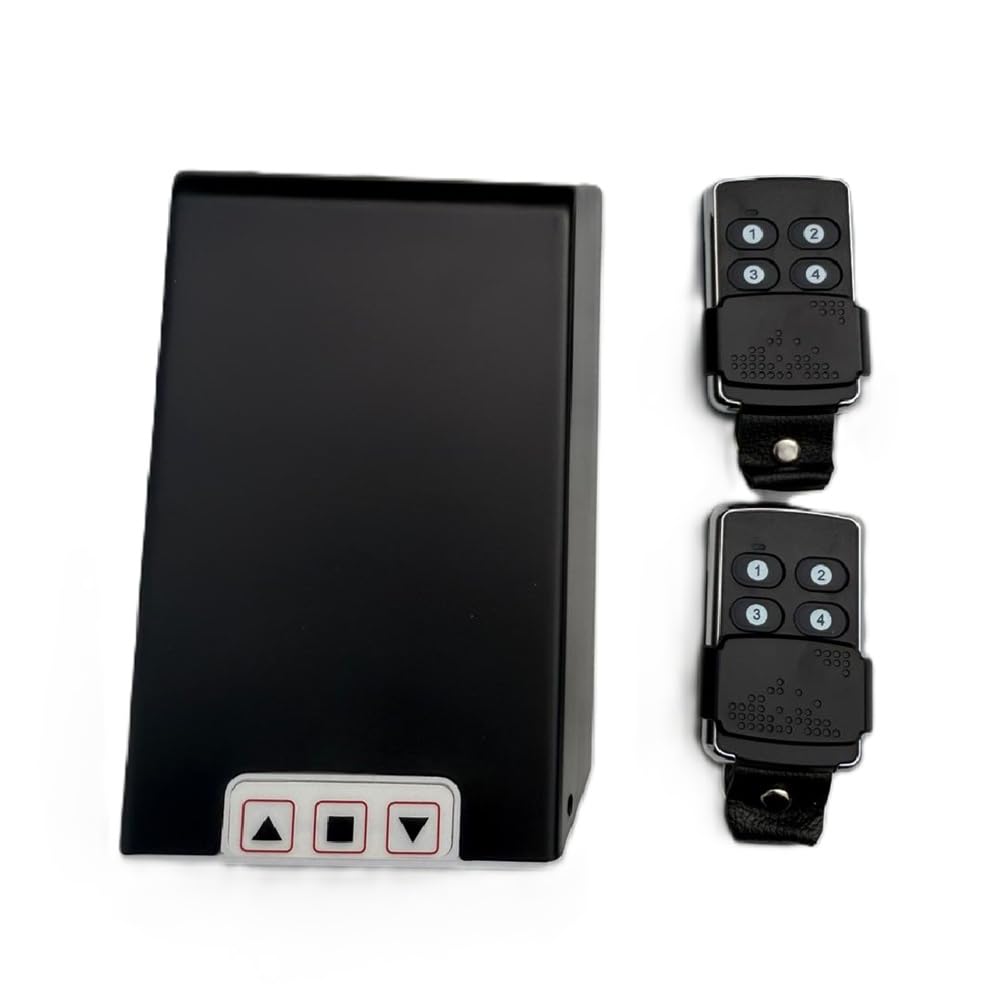

Ellard Easy Fit Controller incl 2 remotes (Replaces Fitters Mate)

• Garage Door Controller

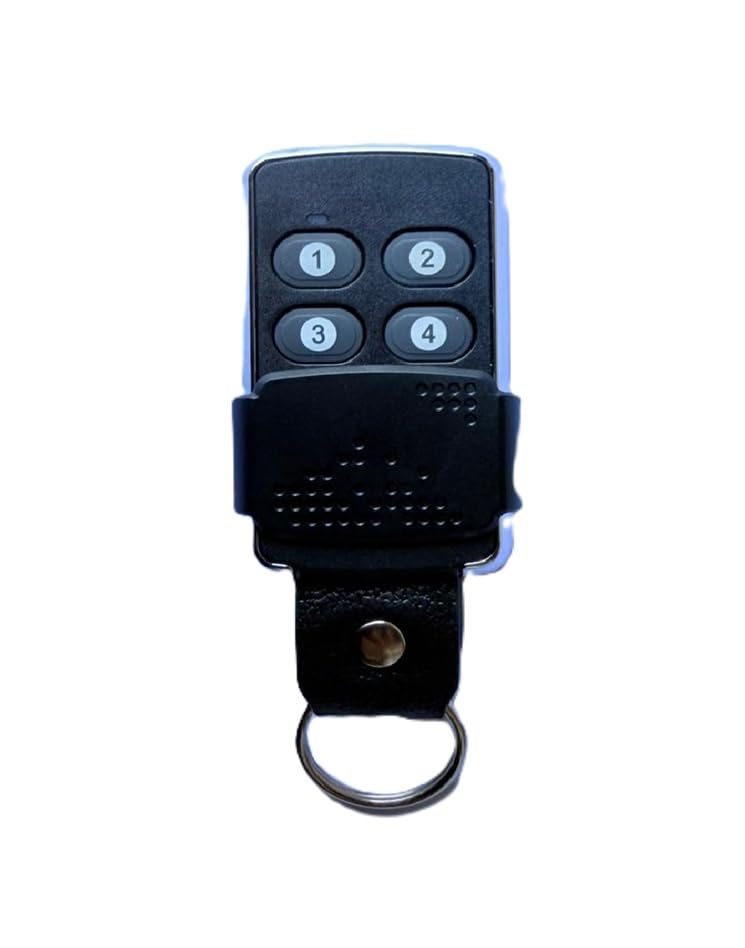

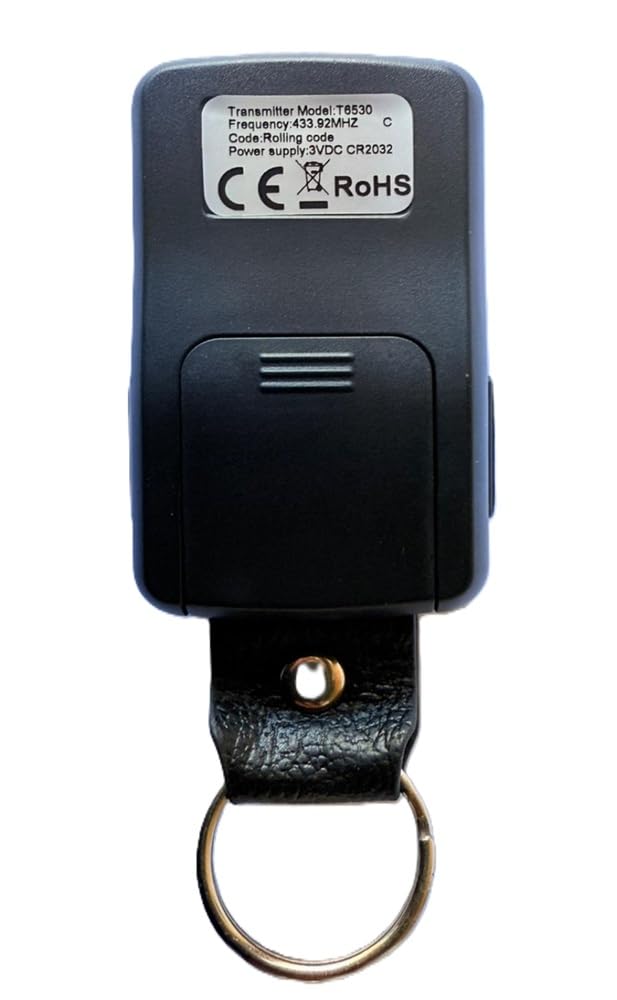

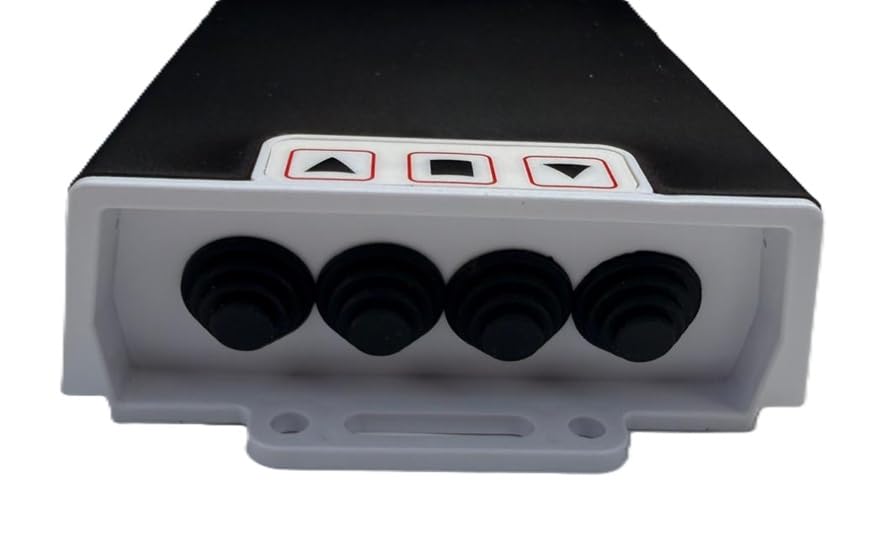

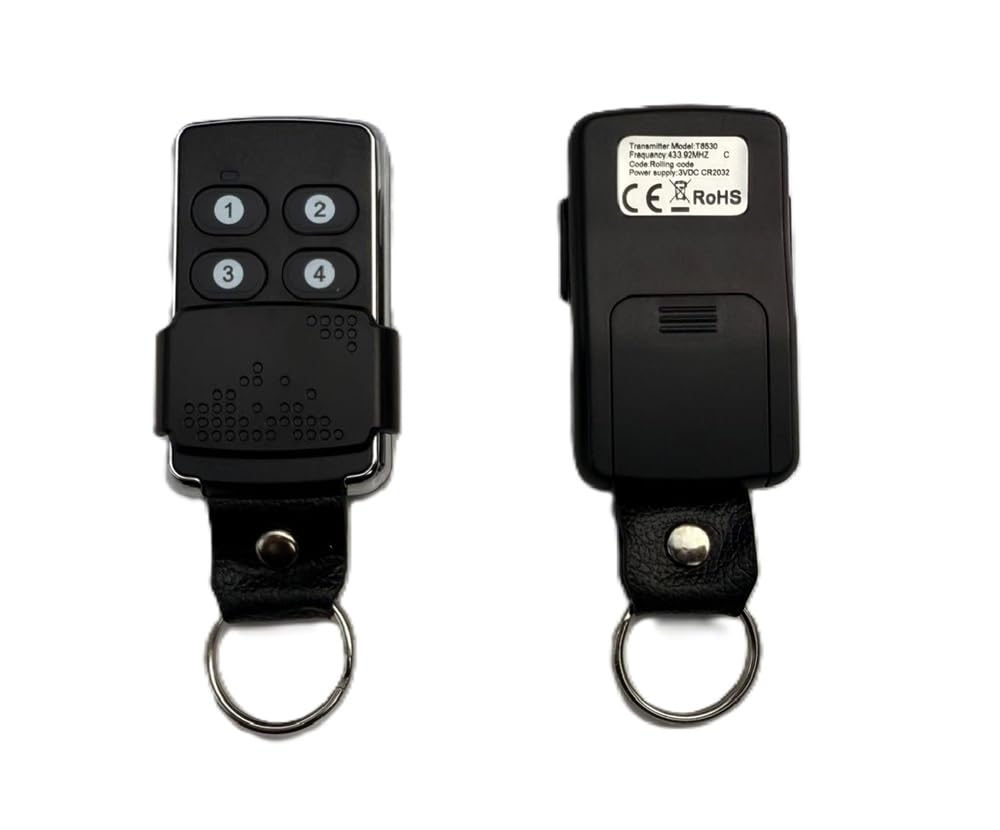

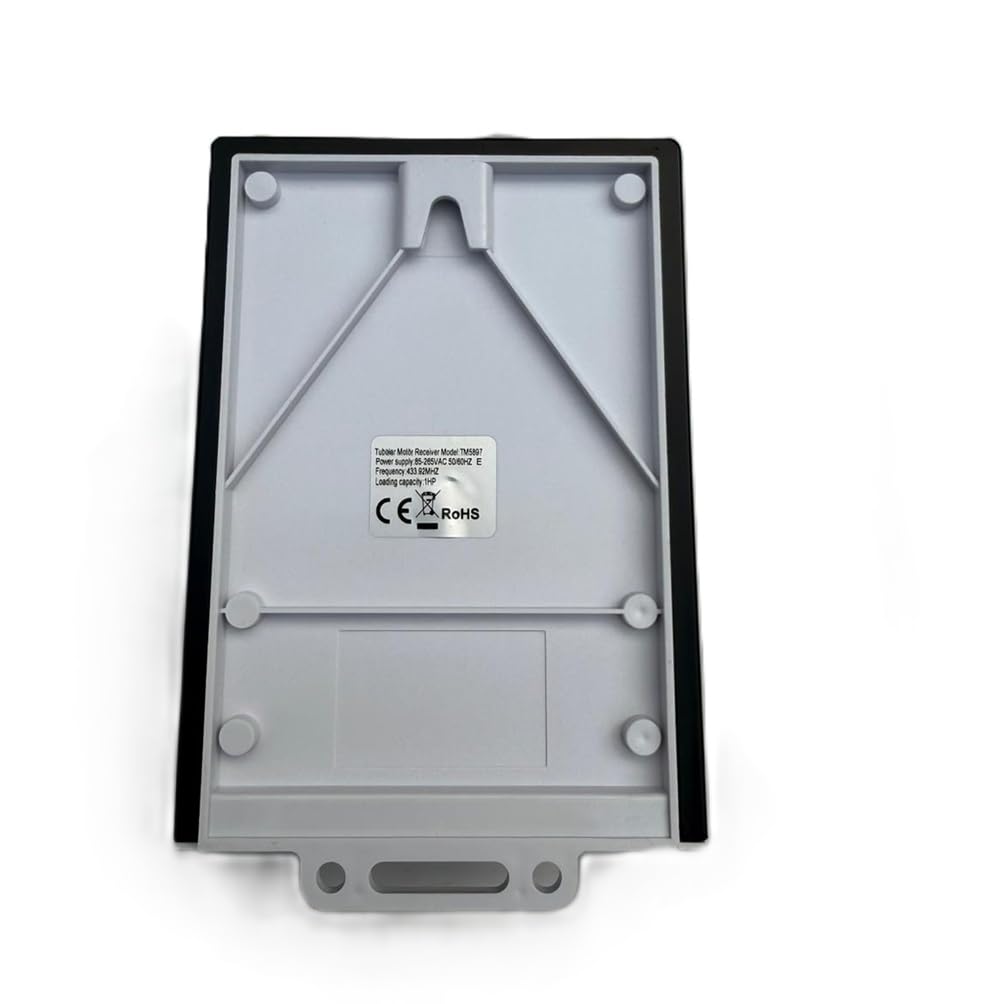

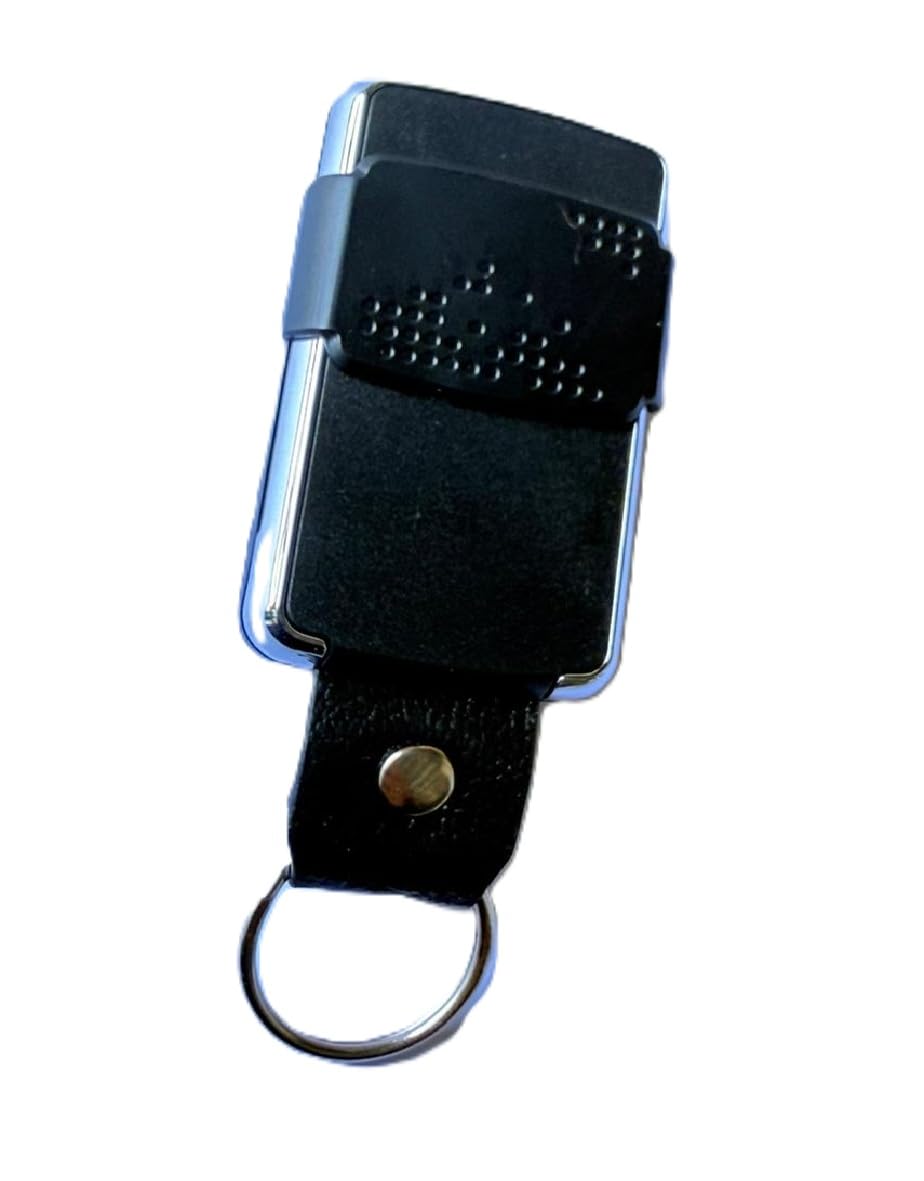

The Easy Fit is the replacement to the popular Fitter’s Mate. FEATURES OF THE ELLARD EASY FIT The Easy Fit is a simple control panel designed specifically for tube motors up to 230Nm. It has a maximum output of 750W at 3.2A. It can be set to work in both an Impulse Up/ Deadman Down or Deadman Up/ Deadman Down setting, depending on customer preference. This is achieved through the use of DIP switches. There is also a DIP switch that enables the motor direction to be reversed, without rewiring the unit. There are Up/Stop/Down controls in the form of built on membrane buttons on the front of the panels. The Easy Fit also features a safety brake input. In addition to this, the Easy Fit has the option to be used with a remote control. The remote handsets are sold separately. When used with remotes, the Easy Fit can be used with either a single remote operating a single shutter, or by the flick of a DIP switch use one remote to control up to 4 different units. A maximum of 30 handsets can be used with the Easy Fit panel.
