Elitech One-Way Output Digital Temperature Controller, Cooling or Heating Mode, Direct Drive Single-phase 1.5HP Compressor, For Beverage Cabinets, ECS-16

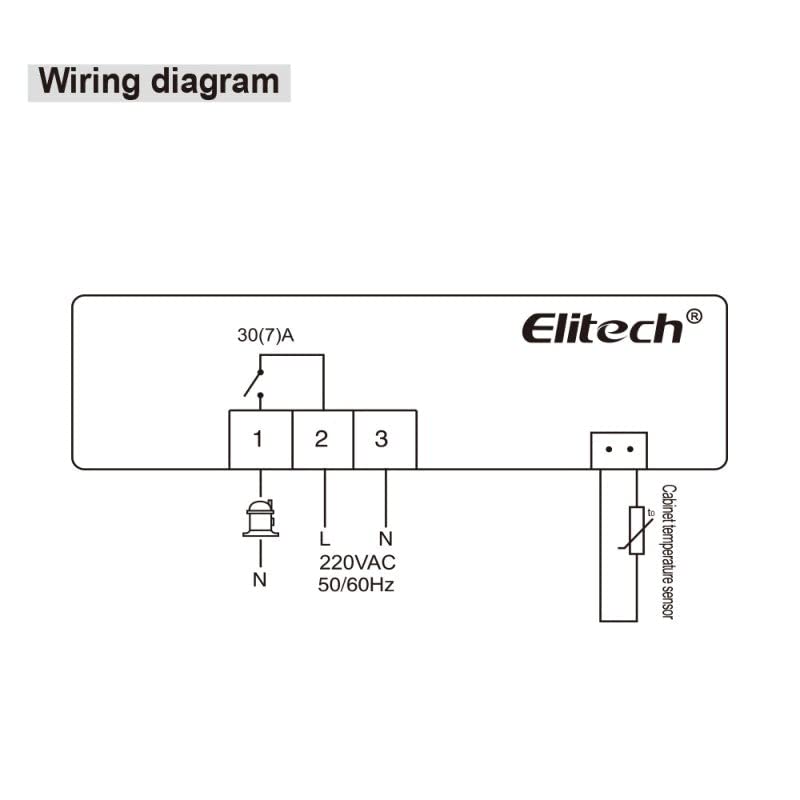

• Output: Refrigeration relay and optional defrost or light relay. The output of defrost or light could be selected by the parameter item U3.
• Adopt 30A big relay and could directly drive 1.5HP single phase compressor, reducing the material cost for customers.
• With the function of one key recovery, multiple parameter menus optional.
• The front panel adopts color design, more artistic.
• Big light inlet window, LED display, 50% increase of display area, more fashionable, intuitive and easily readable.

The controller is suitable to the following machines: beer dispenser systems, blast chillers, buffet displays, chest display coolers/ freezers, cold room, fish fridges, freezer counters, half height chillers/freezers, ice cream freezers, mini bars, serve over counters, storage chest freezers, topping shelves, top loading bottle cooler, upright display coolers/ freezers, upright storage freezers/ coolers, wall site freezers, wine display chillers and back bar coolers.<br/> <b>Technical parameters</b><br/>1) Measuring range：-50℃～+90℃<br/>2)Resolution:1℃<br/>3)Accuracy:-50℃～50℃;±1℃, others, ±2℃<br/>4)Cabinet Temperature control range:-50℃～85℃<br/>5)Power supply:220VAC±10%; 50/60Hz<br/>6)Power consumption:<3W<br/>7) Output capacity:<br/>Refrigeration：30A/240VAC , directly drive a single phase 1.5HP compressor<br/>Defrost：5A/250VAC(optional)<br/> 8) Front panel protection level:1P65<br/>9) Ambient temperature：0℃～55℃<br/>10) Storage condition:temperature-25℃～75℃<br/>11) Storage humidity:20%~85%(non condensing)<br/>
