ElekTek Unswitched Lamp Holder Brass B22 BC Bayonet Cap & Shade Ring with CNC Solid Brass 7/16th Screw-in Wood Mount - Made in UK

• Standard UNSWITCHED B22 (22mm) BC Bayonet Cap Lamp Holder with shade ring - suitable for bulbs up to 200W (for SWITCHED B22 version, ElekTek Safety Switch available in separate listing)
• IMPORTANT: This Screw-in Wood Mount is NOT COMPATIBLE for connecting/securing with a nut - the 22mm BC bayonet lamp holder is intended primarily for attachment to a pre-drilled wooden surface and the solid brass wood-screw insert has 1/2" (26TPI) thread at lamp holder end and 7/16" Whitworth (10.86mm external dia.) Wood screw type thread the other

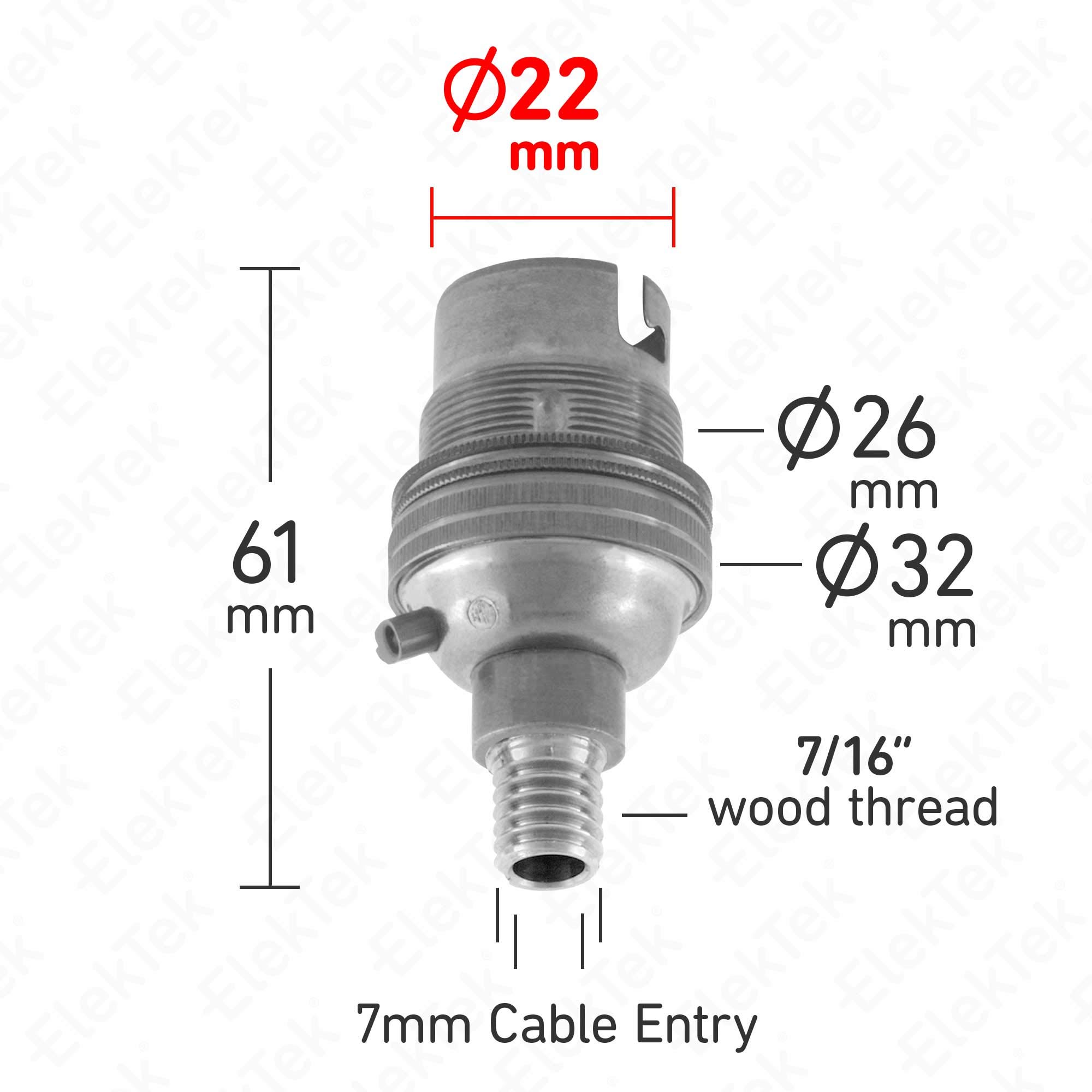

• Maximum diameter 32mm, Height 61mm with wood mount, 48mm without - 1/2" 26tpi lamp holder threaded entry, reduced to 7mm cable aperture.

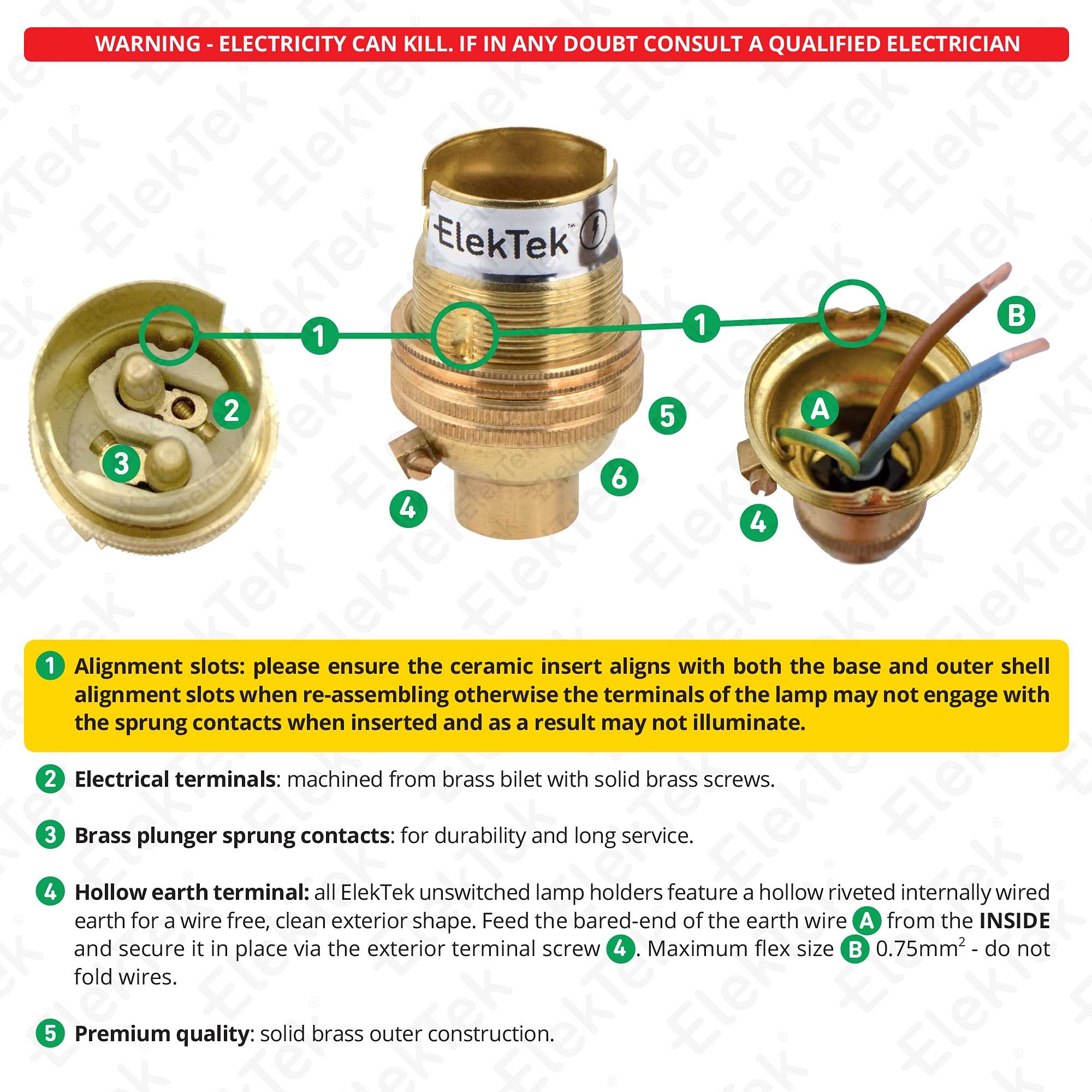

• Integrated hollow EARTH terminal, wires from the inside so no wires are visible externally. Internal locking screw mounted in a separate riveted & threaded base ensuring your lighting does not come apart with use (beware of cheaper, pressed type bases that cannot carry a locking screw) - loosen screw, thread onto existing threaded fitting and tighten locking screw before wiring
• Hand assembled - easy to separate for fitting: simply remove the thin upper shade ring by unscrewing anti-clocwise; hold base with the Earth terminal pinched between thumb and index finger and unscrew thicker lower ring by unscrewing anti-clockwise. When re-assembling ENSURE ceramic insert is aligned correctly in base & body alignment slots are aligned with ceramic insert
• Made in the UK - Help Support UK Business

Premium quality solid brass UNSWITCHED Lamp Holder with internal locking screw mounted in a separate riveted & threaded base ensuring your lighting does not come apart with use (beware of cheaper, pressed type bases that cannot carry a locking screw). Maximum diameter 32mm, Height 61mm with wood mount/48mm without. 1/2" 26tpi threaded entry B22 (22mm), reducing to 7mm cable aperture through wood mount. B22 Bayonet Cap with Shade Ring, Flameproof ceramic insert, Brass plunger contacts and wiring terminals. Integrated hollow EARTH terminal - wires from the inside, so no wires are visible externally - Made in the UK. WARNING: All electrical work should be undertaken by persons competent in the wiring and installation of these items. If in any doubt, please consult a qualified electrician. All metal electrical fittings must be earthed; all metal ElekTek products have earth terminals where required.
