ElekTek Safety Switched Lamp Bulb Holder B22 BC Bayonet & Shade Ring 7/16 Screw Wood Mount base Brushed Antique Brass Made in UK - Child Safe Switch Push Bar locks OFF & cuts power if no bulb fitted

• IMPORTANT: Push-Bar Switch will ONLY work when a bulb is fitted - Patented Safety Switch Design B22 (22mm) BC Bayonet Cap Lamp Holder with shade ring, suitable for Incandescent, LED and Halogen bulbs up to 100W - Suitable for lighting circuits only - T2 temperature rating (220°C). Fully approved to BS 7895:1997 (UNSWITCHED B22 wood-mount version available in separate listing)

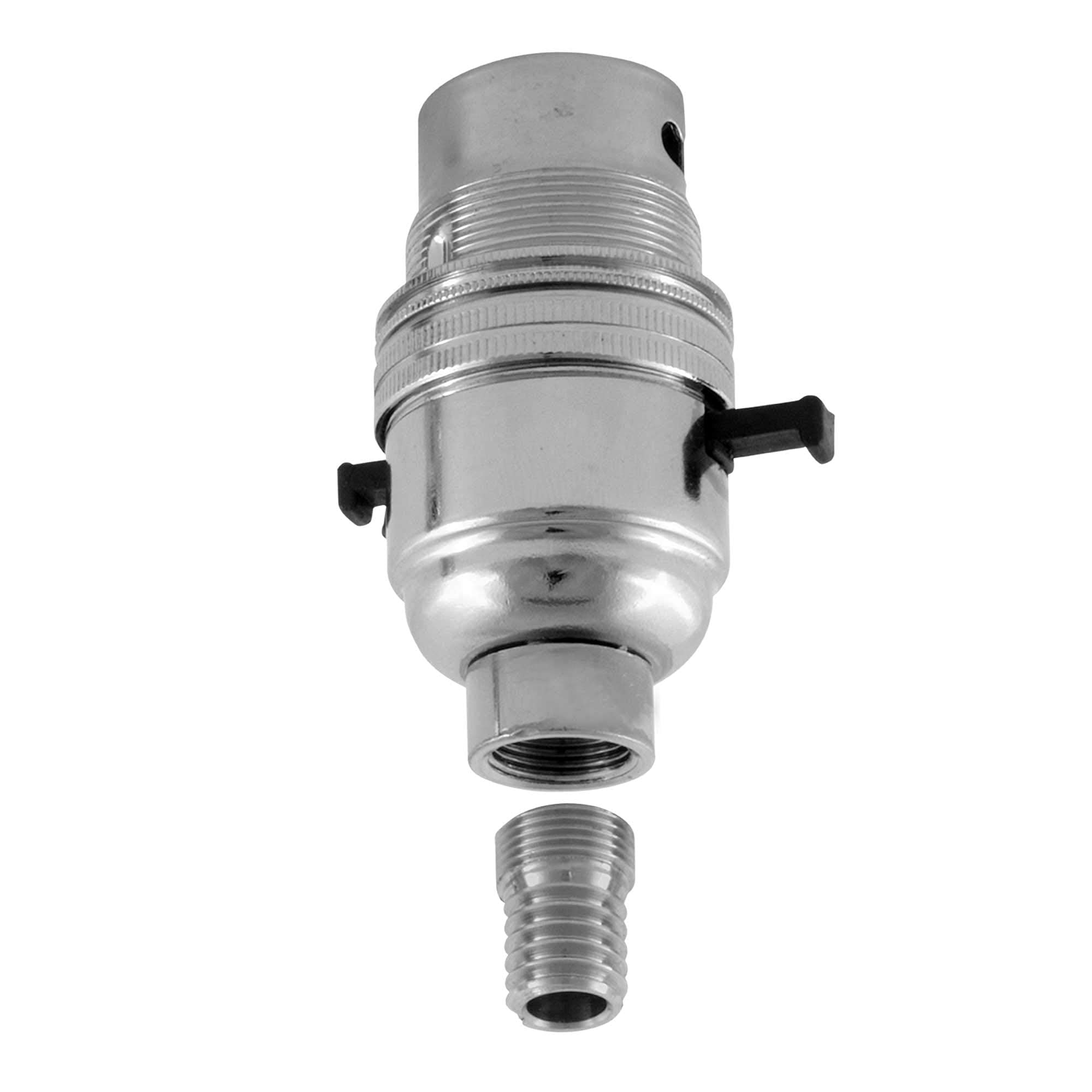

• IMPORTANT: This Screw-in Wood Mount is NOT COMPATIBLE for connecting/securing with a nut - the 22mm BC bayonet lamp holder is intended primarily for attachment to a pre-drilled wooden surface and the solid brass wood-screw insert has 1/2" (26TPI) thread at lamp holder end and 7/16" Whitworth (10.86mm external dia.) Wood screw type thread the other
• Internal locking screw mounted in a separate riveted & threaded base ensuring your lighting does not come apart with use (beware of cheaper, pressed type bases that cannot carry a locking screw) - loosen screw, thread onto existing threaded fitting and tighten locking screw before wiring
• Hand assembled - easy to separate for fitting: simply remove the thin upper shade ring by unscrewing anti-clocwise; hold base with the Push Bar pinched between thumb and index finger and unscrew thicker lower ring by unscrewing anti-clockwise. When re-assembling ENSURE the alignment slots of the upper shell are aligned correctly to the switch insert

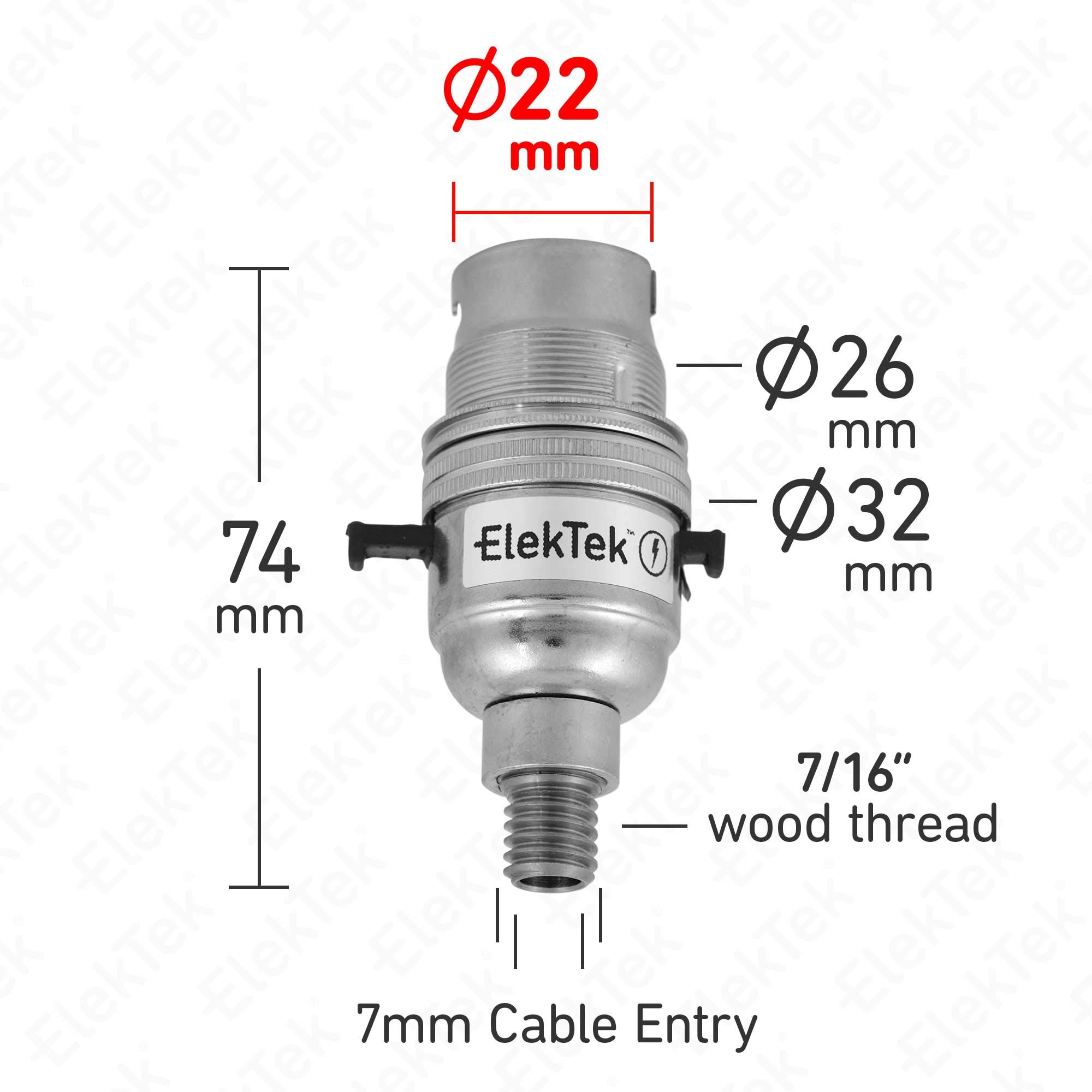

• Maximum diameter 32mm, Height 74mm with wood mount, 63mm without - 1/2" 26tpi lamp holder threaded entry, reduced to 7mm cable aperture. Made in the UK - Help Support UK Business

Premium quality solid brass Safety Switch Lamp Holder - the patented Safety Switch insert ensures that whenever the bulb is removed the exposed brass plungers are cut off from the live supply. This means that you will be unable to operate the push bar switch when the red safety Button is not depressed by a bulb. This Safety lamp holder is a must in your house if children with inquisitive fingers are around. Features, internal locking screw mounted in a separate riveted & threaded base ensuring your lighting does not come apart with use (beware of cheaper, pressed type bases that cannot carry a locking screw). Maximum diameter 32mm, Height 74mm with wood mount/63mm without. 1/2" 26tpi threaded entry B22 (22mm), reducing to 7mm cable aperture through wood mount. B22 Bayonet Cap with Shade Ring, Brass plunger contacts and wiring terminals. Integrated hollow EARTH terminal - Made in the UK. WARNING: All electrical work should be undertaken by persons competent in the wiring and installation of these items. If in any doubt, please consult a qualified electrician. All metal electrical fittings must be earthed; all metal ElekTek products have earth terminals where required.
