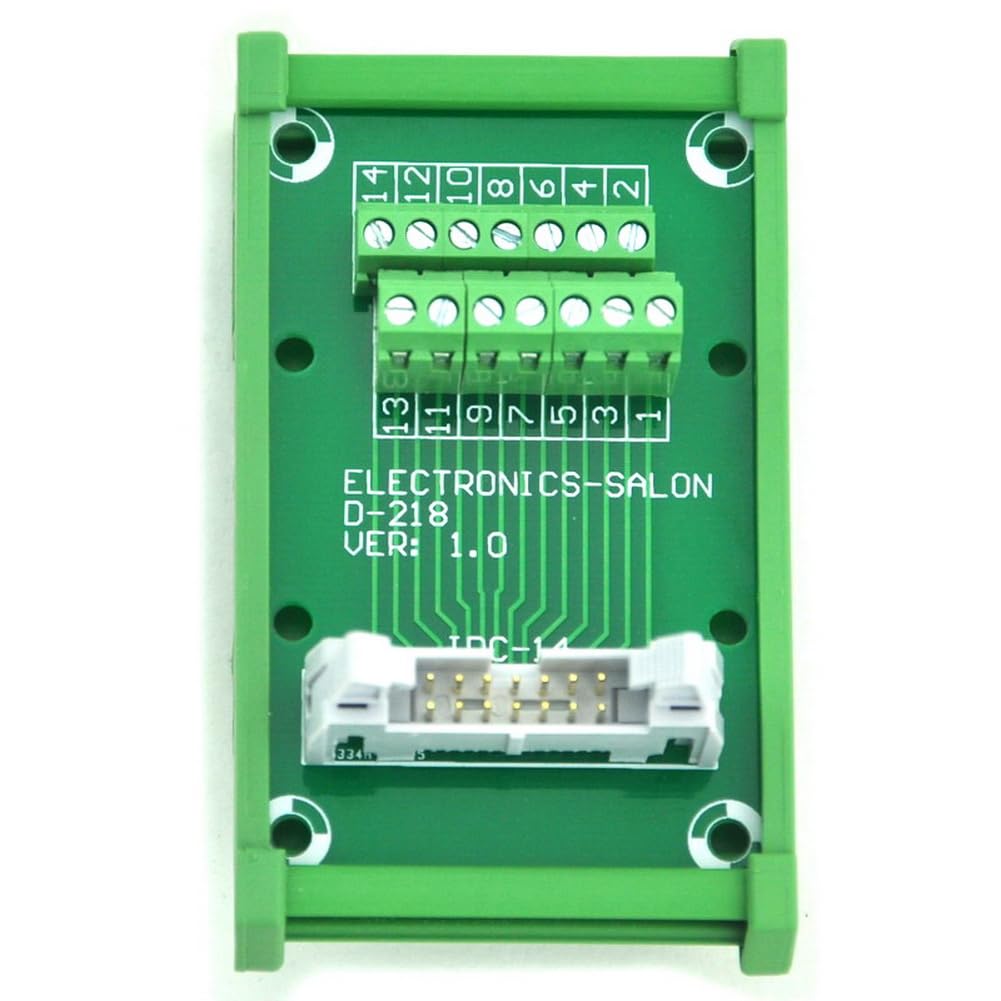

Electronics-Salon IDC-14 DIN Rail Mounted Interface Module, Breakout Board, Terminal Block.
About this item
- IDC-14 DIN Rail Mounted Interface Module.
- IDC pin pitch 2.54mm/0.1" male header connector.
- Pitch 3.81mm/0.15" screw terminal block.
- FR-4 fiber glass PCB, dual copper layers.
- PCB dimensions: 72 x 47.35mm(W x L).
Product description

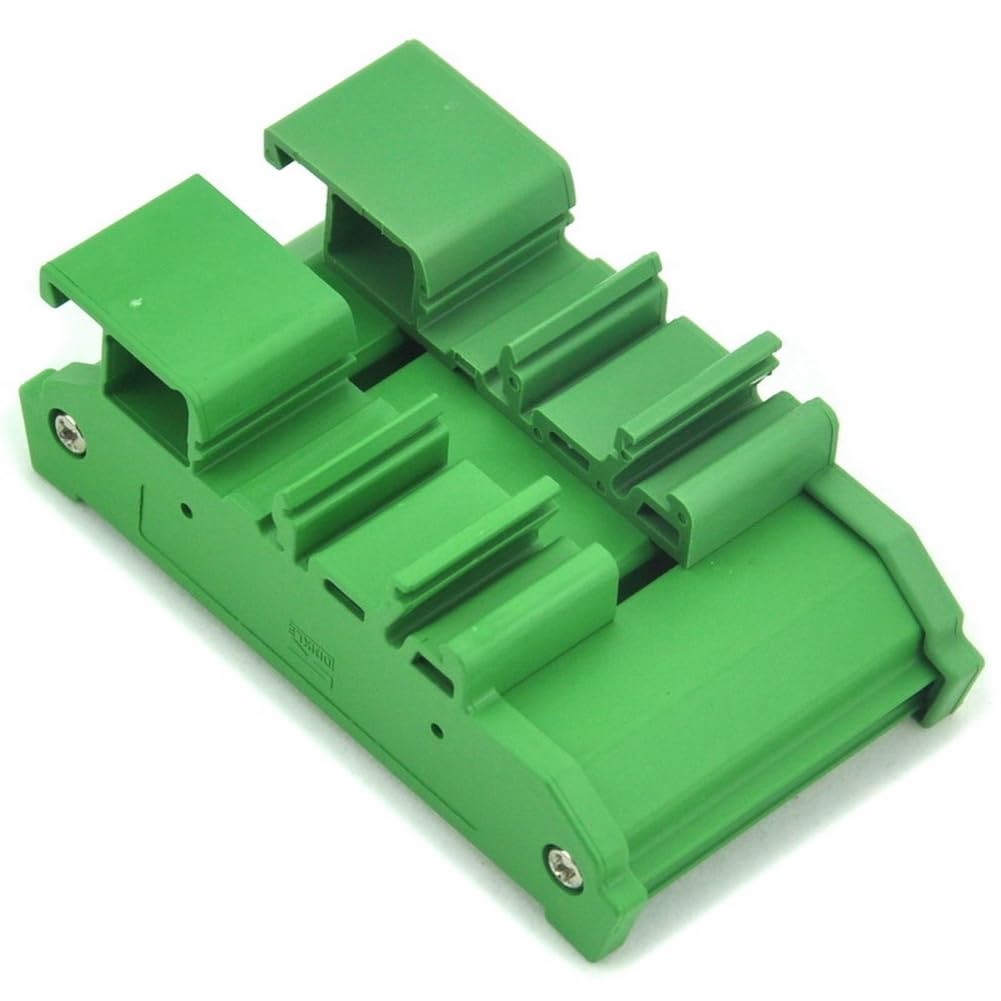

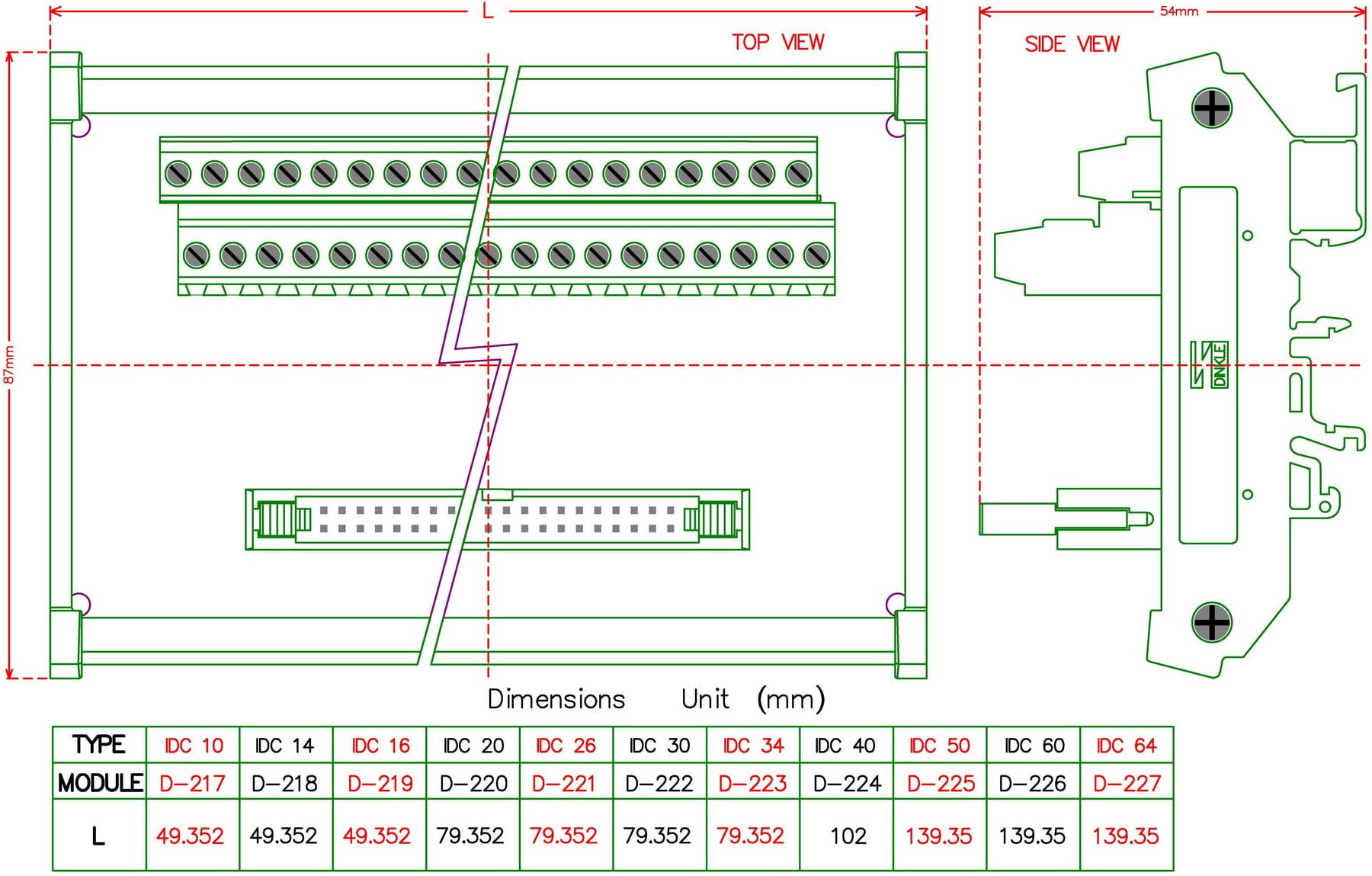

IDC-14 DIN Rail Mounted Interface Module. IDC pin pitch 2.54mm/0.1" male header connector. Pitch 3.81mm/0.15" screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. High quality PCB housing/carrier. FR-4 fiber glass PCB, dual copper layers. External dimensions: 87 x 49.5 x 54mm(W x L x H). PCB dimensions: 72 x 47.35mm(W x L). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ยบC to 50ยบC Terminal block specifications: Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. ใ
Product details
