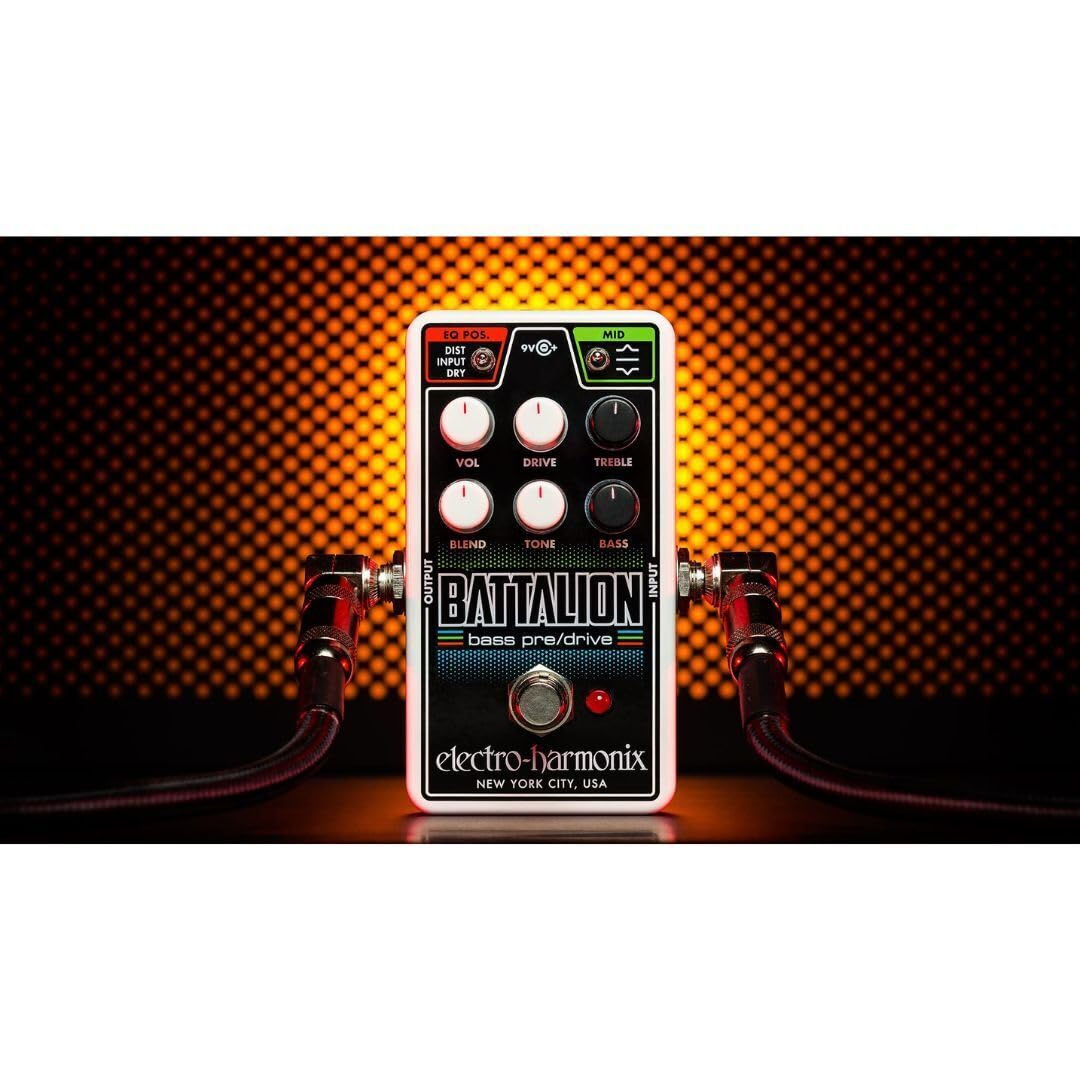

Electro Harmonix Nano Battalion Bass Preamp & Overdrive

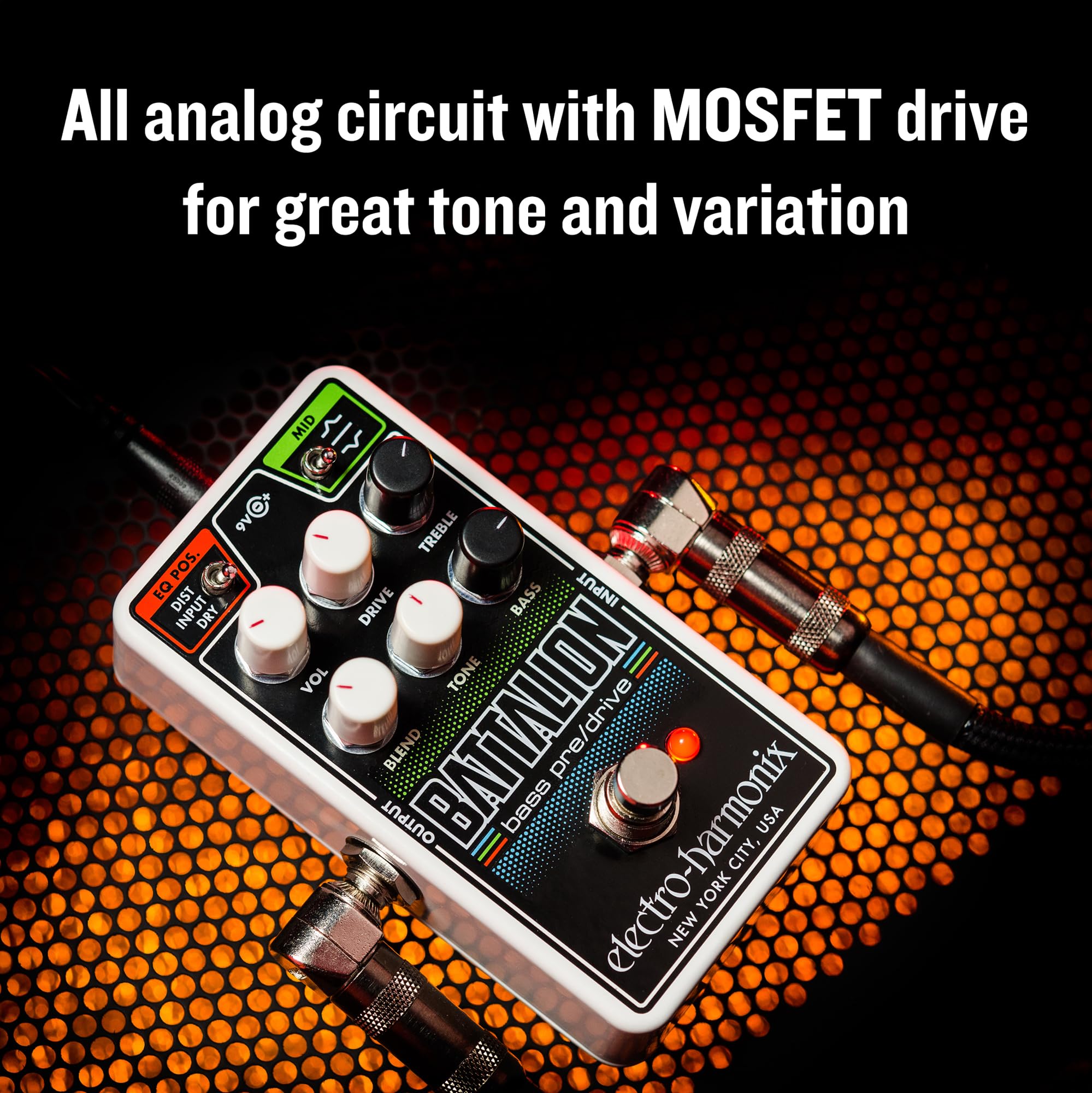

• All analog circuit with MOSFET drive for great tone and variation

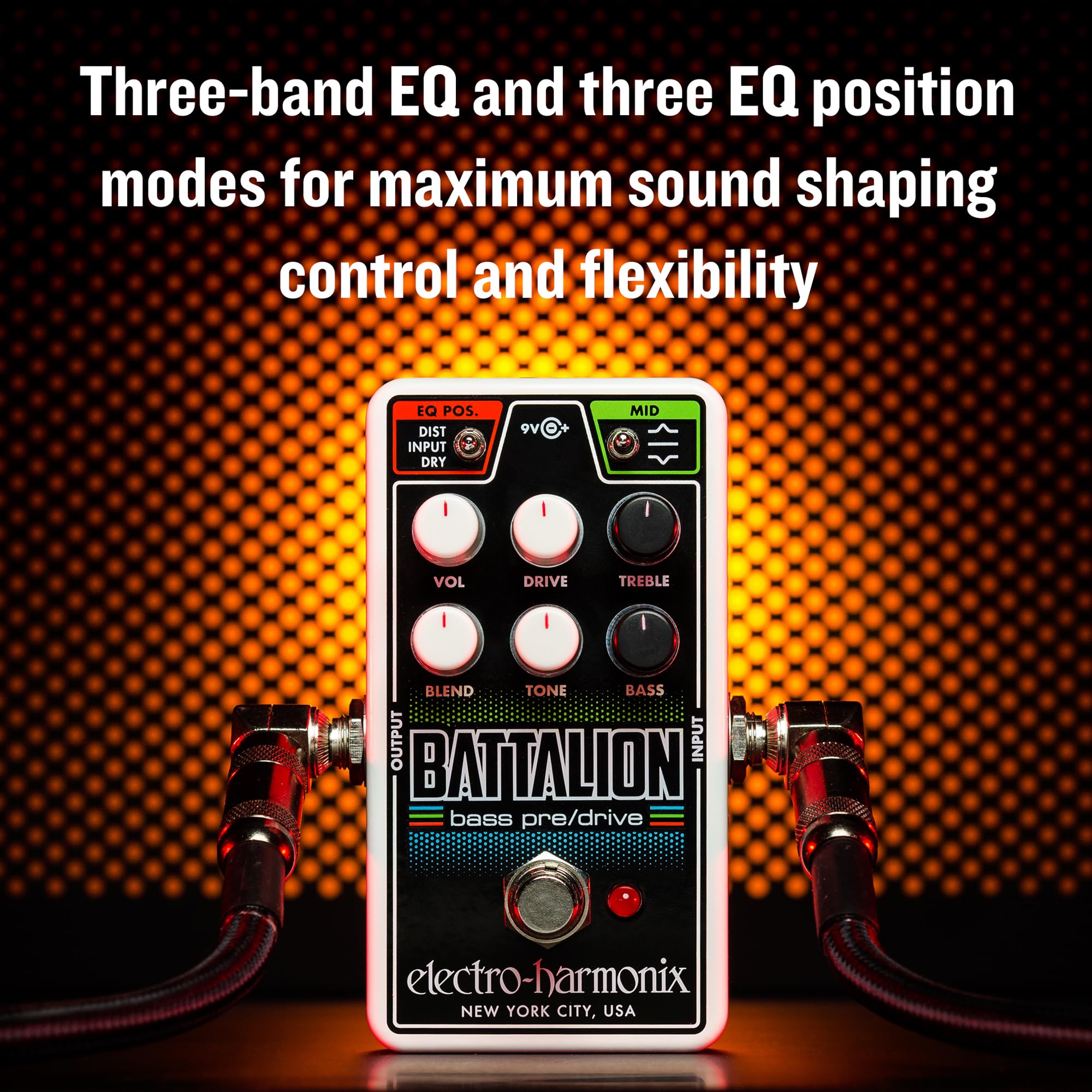

• Three-band EQ and three EQ position modes for maximum sound shaping control and flexibility
• Great for active or passive, pickup-equipped bass

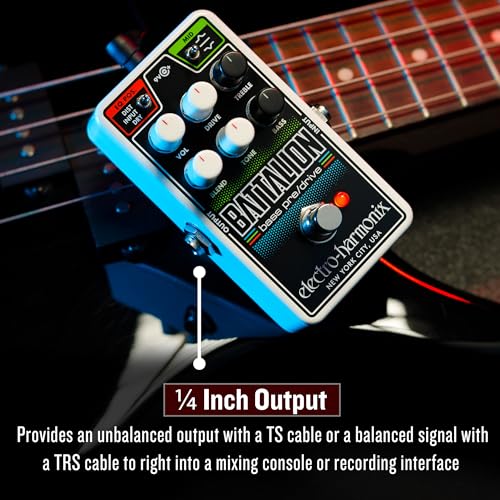

• ¼ inch output provides an unbalanced output with a TS cable or a balanced signal with a TRS cable to right into a mixing console or recording interface
• Comes with an EHX9.6DC-200 PSU

The Nano Battalion Bass Preamp and Overdrive features a MOSFET drive circuit that delivers a broad range of distorted tones plus a three-band EQ with three EQ position modes for greater flexibility. The three-band EQ includes Treble (boost/cut above 1kHz) and Bass (boost/cut below 200Hz) controls, plus a Mid switch which provides a 9dB boost or cut at 500Hz. Three signal path options determine where the EQ is applied. In Distortion Mode the EQ comes after the distorted signal and has a powerful effect on its timbre while the clean signal is not affected. In Input Mode the EQ comes first in the signal path affecting both the clean and distorted signals. Boosting frequencies in this mode can drive the distortion to a more saturated state. In Dry Mode the EQ affects the clean signal, but not the distorted signal. User-friendly controls include Volume to set the master output level, Blend to adjust the ratio between the clean and distorted signals, Drive to control the intensity and saturation of the distortion and Tone which cuts high frequencies from the distorted signal. The Nano Battalion includes a ¼" input jack and ¼" output jack. When a normal TS cable is connected to the output jack it delivers an unbalanced signal. When a TRS cable is plugged into this jack, it outputs a balanced signal that can go directly into a mixing console or recording interface.
