Electric Meters Single Phase, Electric Digital Meter, 220V Digital Single Phase Metre, Energy Meter Single Phase Digital Single Meter Digital 1-Phase 2 Wire 4p Din-Rail KWh Meter Electricity Meter El

• 【Compatibility】：This Energy Meter Single Phase is suitable for measuring single-phase AC active energy with a rated frequency of 50Hz or 60Hz for fixed installation indoors. It is suitable for ambient temperature not exceeding -25℃～+55℃, relative humidity not more than 95%, and no air Contain corrosive gas and avoid the influence of dust, mold, salt spray, condensation, insects, etc.

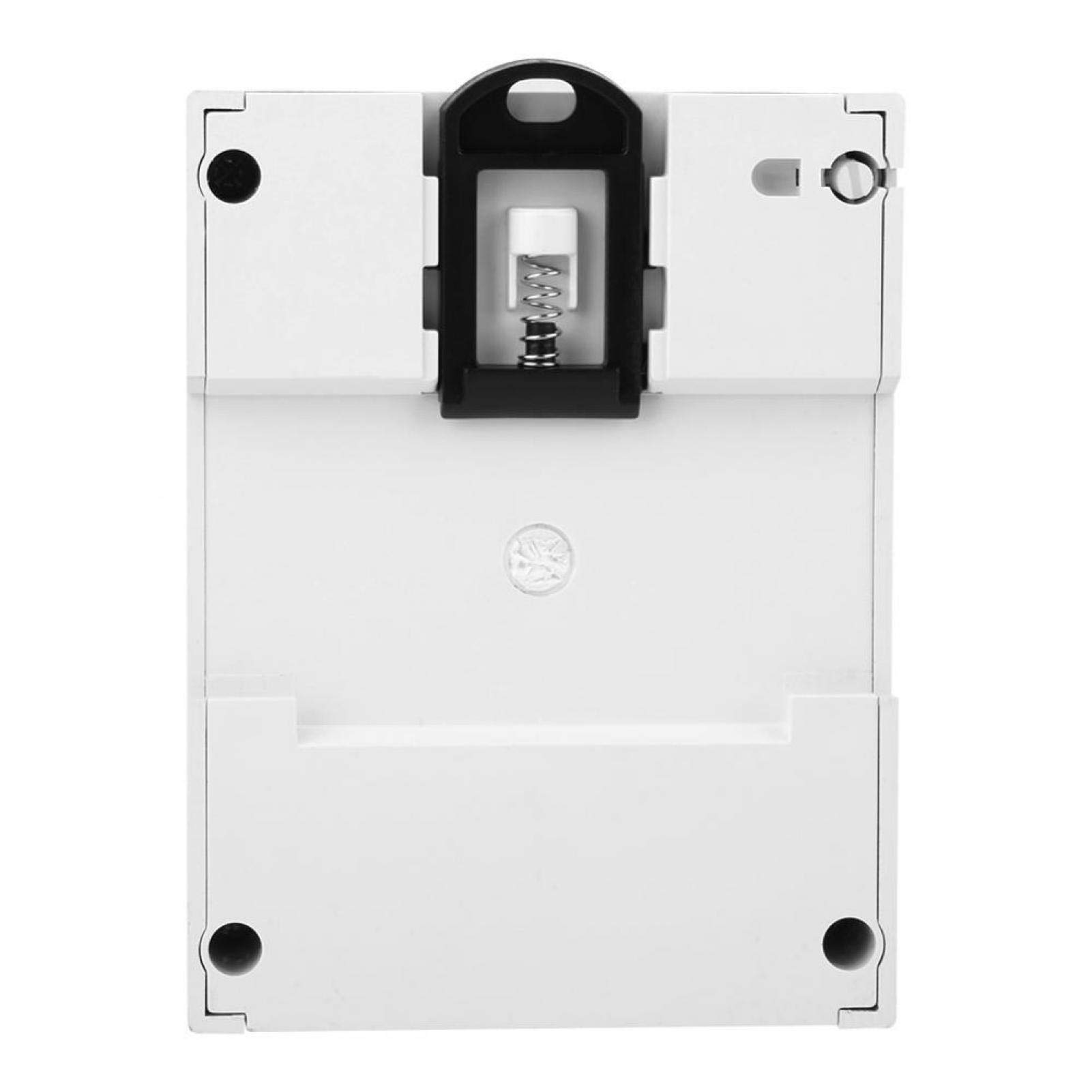

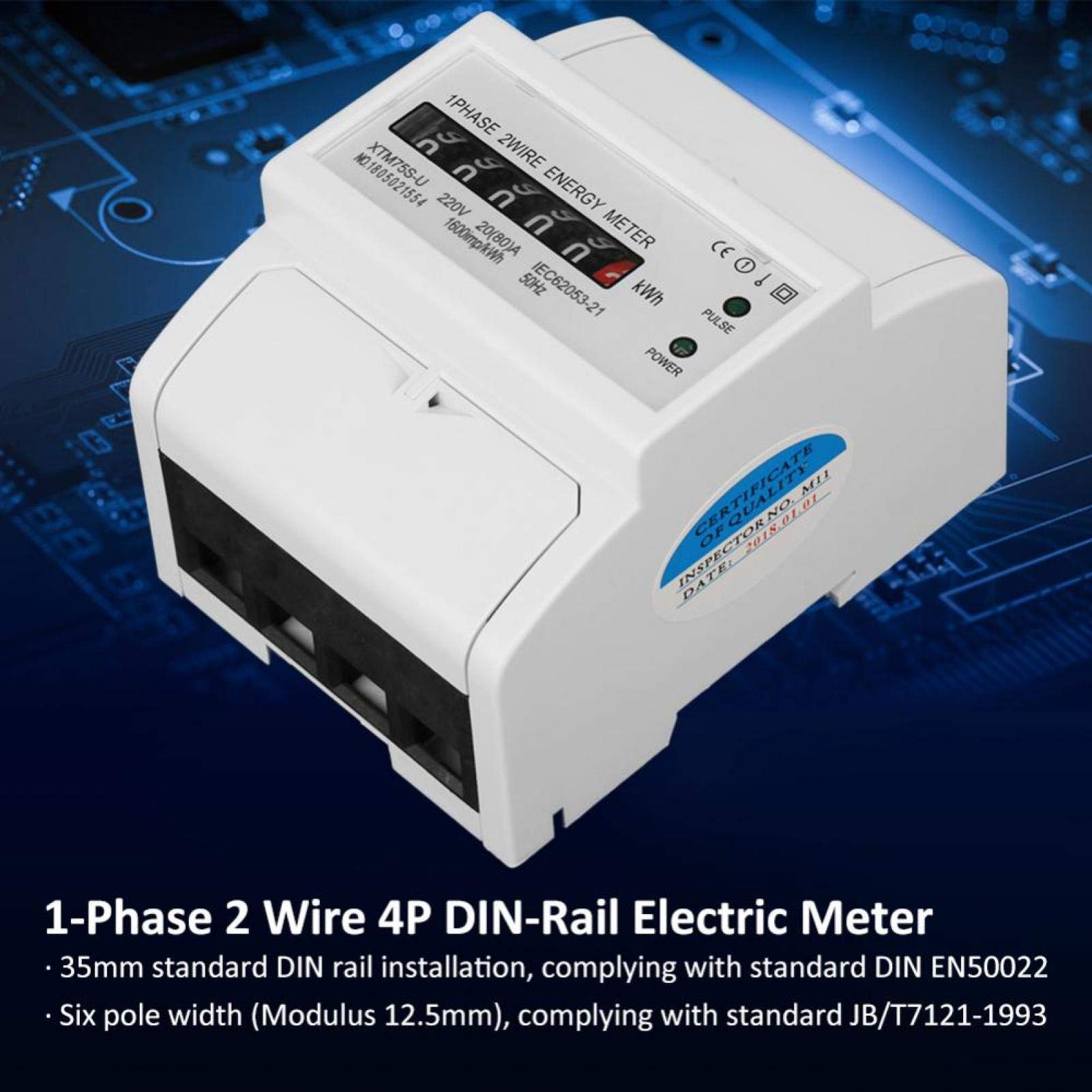

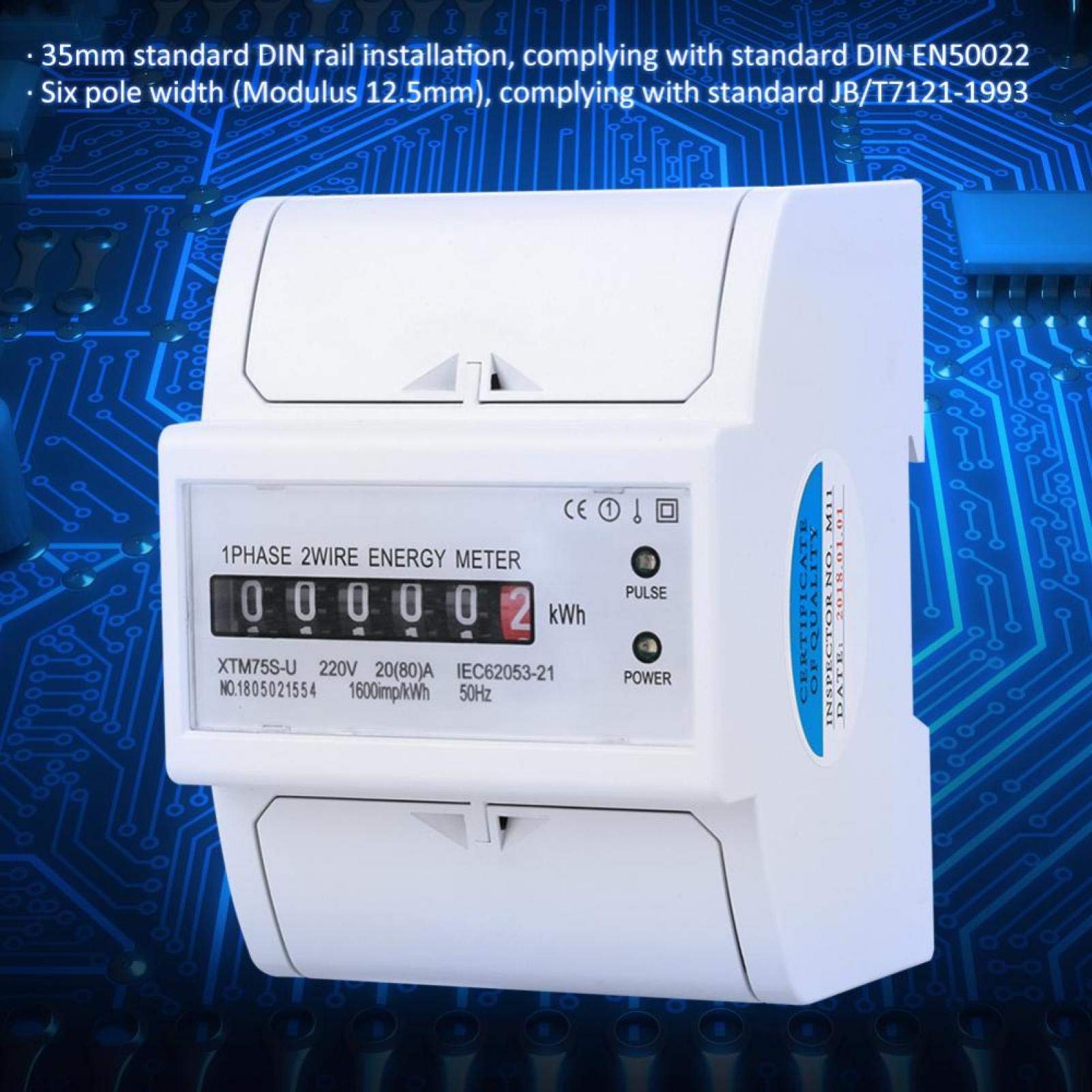

• 【Powerful Functions】：Energy Meter Single Phase adopts 35mm standard DIN rail installation, complying with standard DIN EN50022.Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti-stealing and long life.
• 【Professional Made 】：You can choose to add a pulse output passive (non-polar) remote port, which Energy Meter Single Phase conforms to the standard IEC 62053-31.
• 【Standard Short Terminal Cover】：You can choose to extend the terminal cover to protect safe use. One-way measurement of single-phase two-wire active power consumption. The direction in which the load current flows does not matter. Comply with standard IEC 62053-21.
• 【Easy To Use】：You can choose to automatically detect the direction of the load current and be indicated by a single LED. You can choose 5+1LCD digital display (99999.1kWh).

Specifications: Model: XTM75S-U Accuracy: Class 1 Voltage: 220V Current: 5(30)A, 20(80)A (Optional) Insulation performance: AC voltage 4kv for 1 minute,1.2/50us waveform impulse voltage 6kv Size: 10 x 7.6cm / 3.94 x 2.99in Weight: Approx. 270-277g Package included: 1 x DIN-Rail Electric Meter 1 x Manual Note:Please notethat the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
