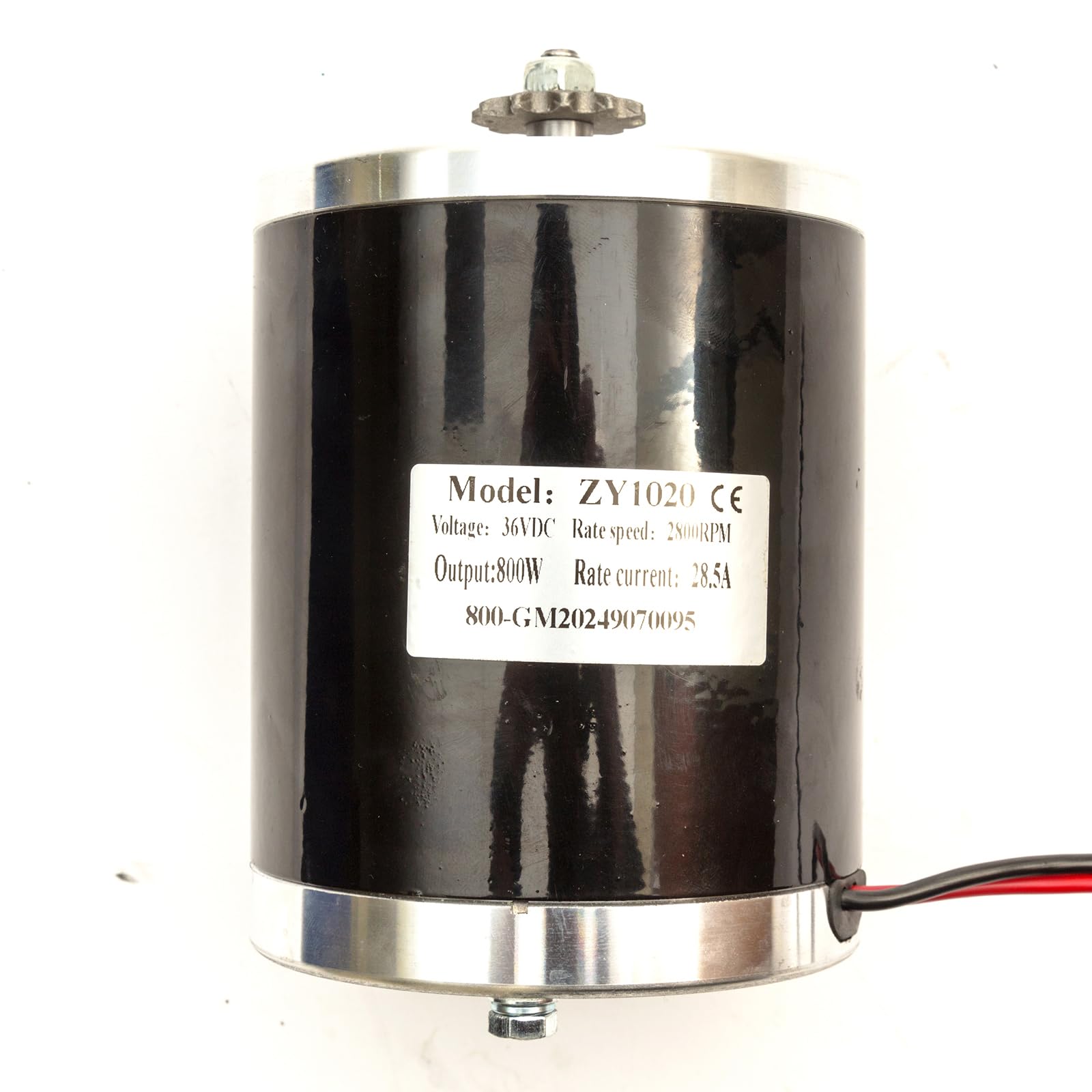

Electric Scooter Motor 800 Watt 36 Volt 11 Tooth 8mm Chain Sprocket ZY1020 Reversible Rotation 2800 RPM

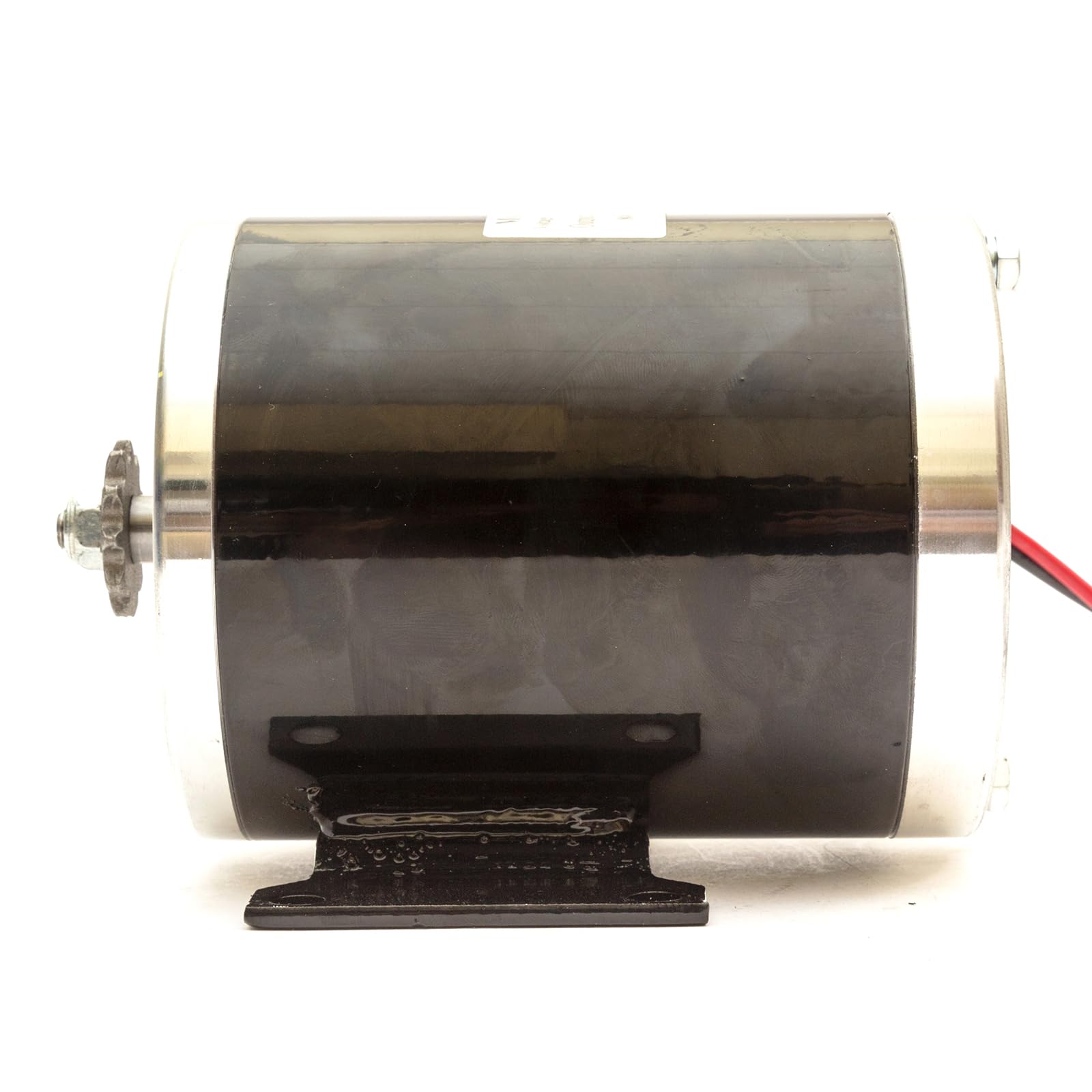

• A powerful 36v 800w brushed electric motor with integrated mount bracket

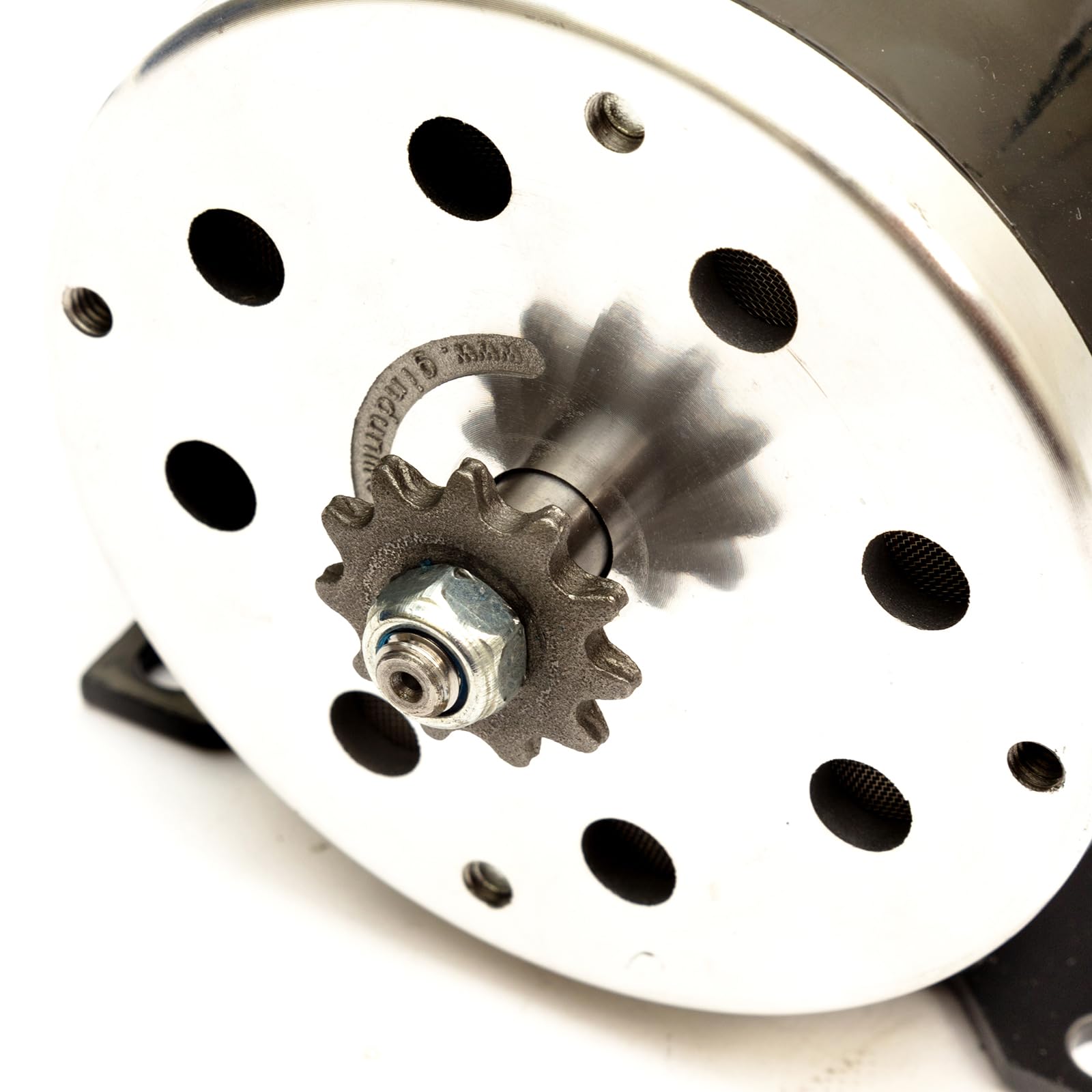

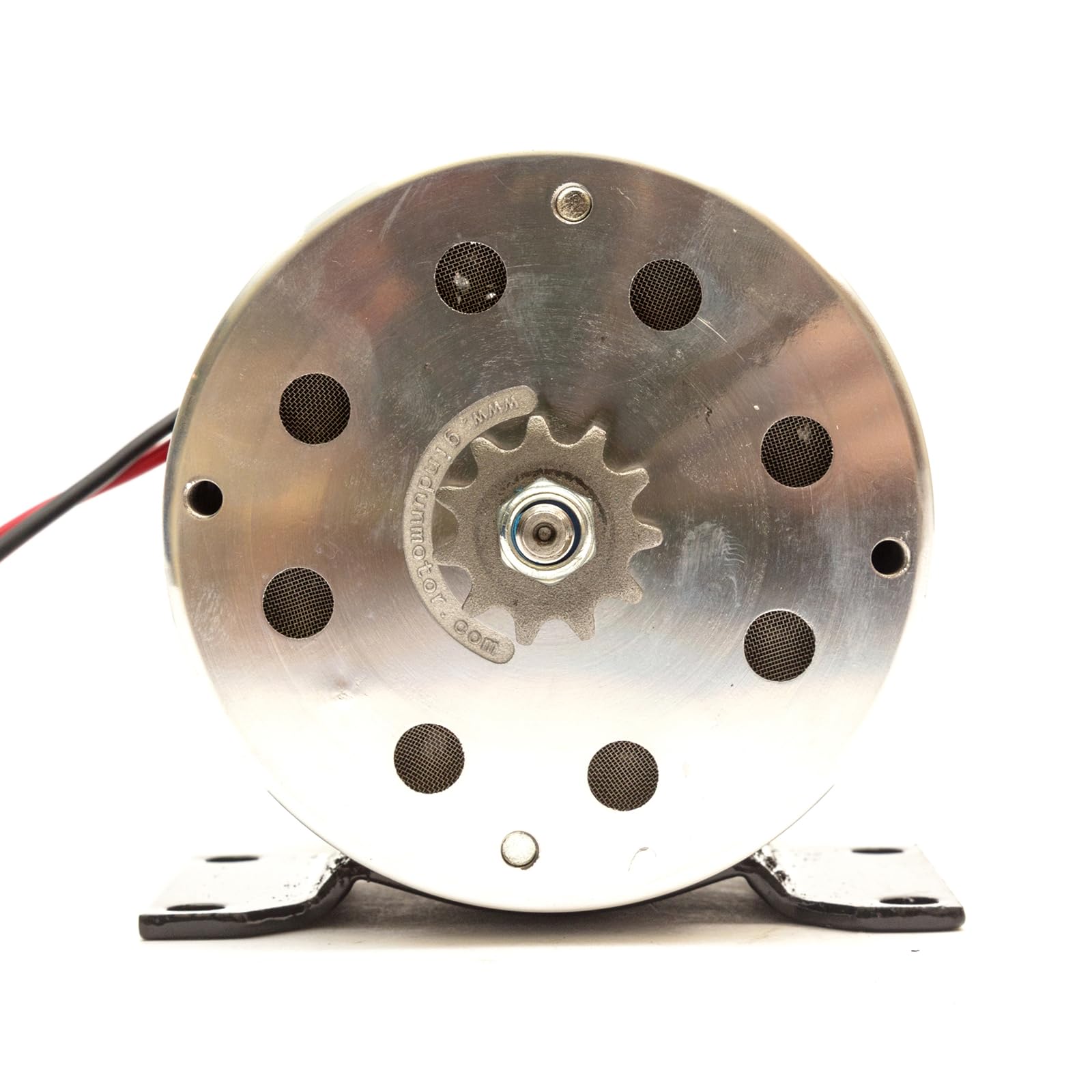

• The sprocket is 8mm / T8F size and rotates clockwise when wired red wire to positive

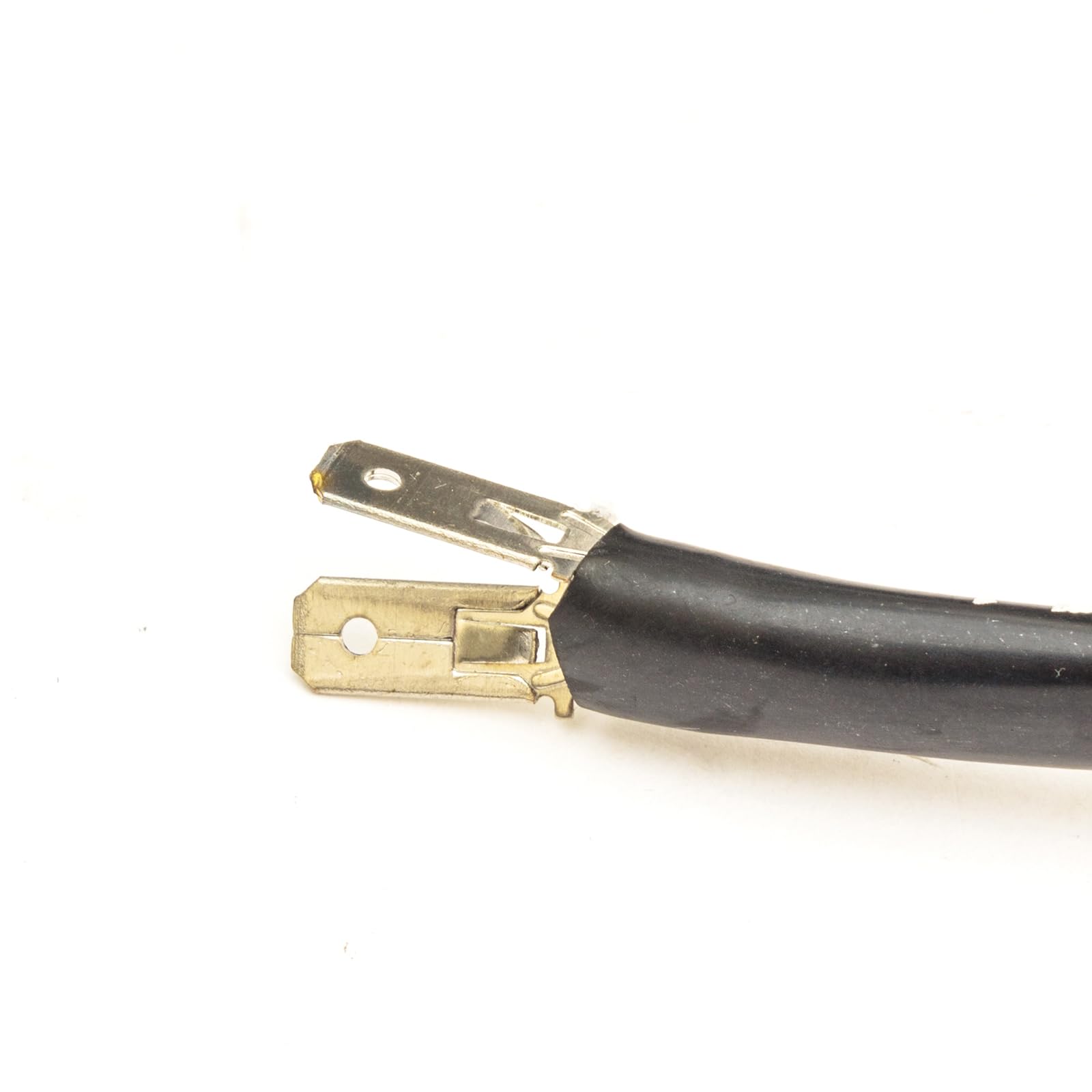

• This motor is reversible by wiring the black wire to positive and red to negative
• If using as a replacement, the ZY and MY motor codes dictate small differences in some of the motors dimensions and specification so check carefully
• Voltage: 36 v / Wattage: 800 w / Chain Size: 8mm (T8F) / Number of Teeth: 11 / Sprocket Thickness: 4.45 mm / 0.18 inches / Sprocket Diameter (Tip of Tooth to Tip of Tooth): 30.85 mm / 1.21 inches / Length of the Shaft on Which the Sprocket Sits: 22 mm / 0.87 inches / Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 101.98 mm / 4.01 inches / Diameter of Fixing Hole(s): 8.47 mm / 0.33 inches / Barrel Diameter: 107.86 mm / 4.25 inches / Shaft Diameter: 11.96 mm / 0.47 inches / Overall Height: 116.85 mm / 4.6 inches / Rated Current: 28.5 A / Rated Speed: 2800 RPM
