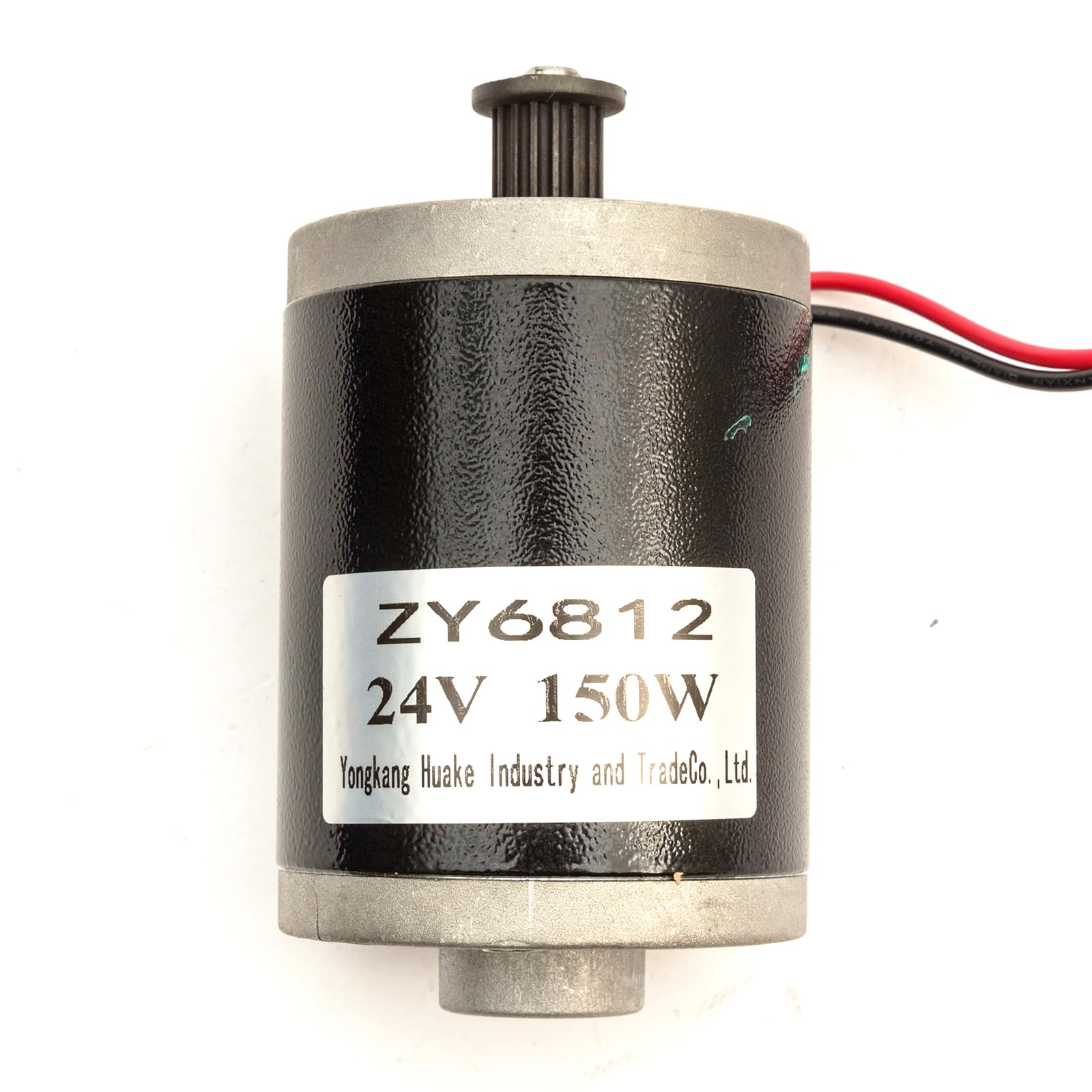

Electric Motor 24 Volt DC 150 Watt 24v 150w Brushed ZY6812 16T Belt Drive

• A multi purpose popular upgrade 24 volt 150 watt Brushed Electric Motor
• The ZY and MY motor codes dictate small differences in some of the motors dimensions and specification

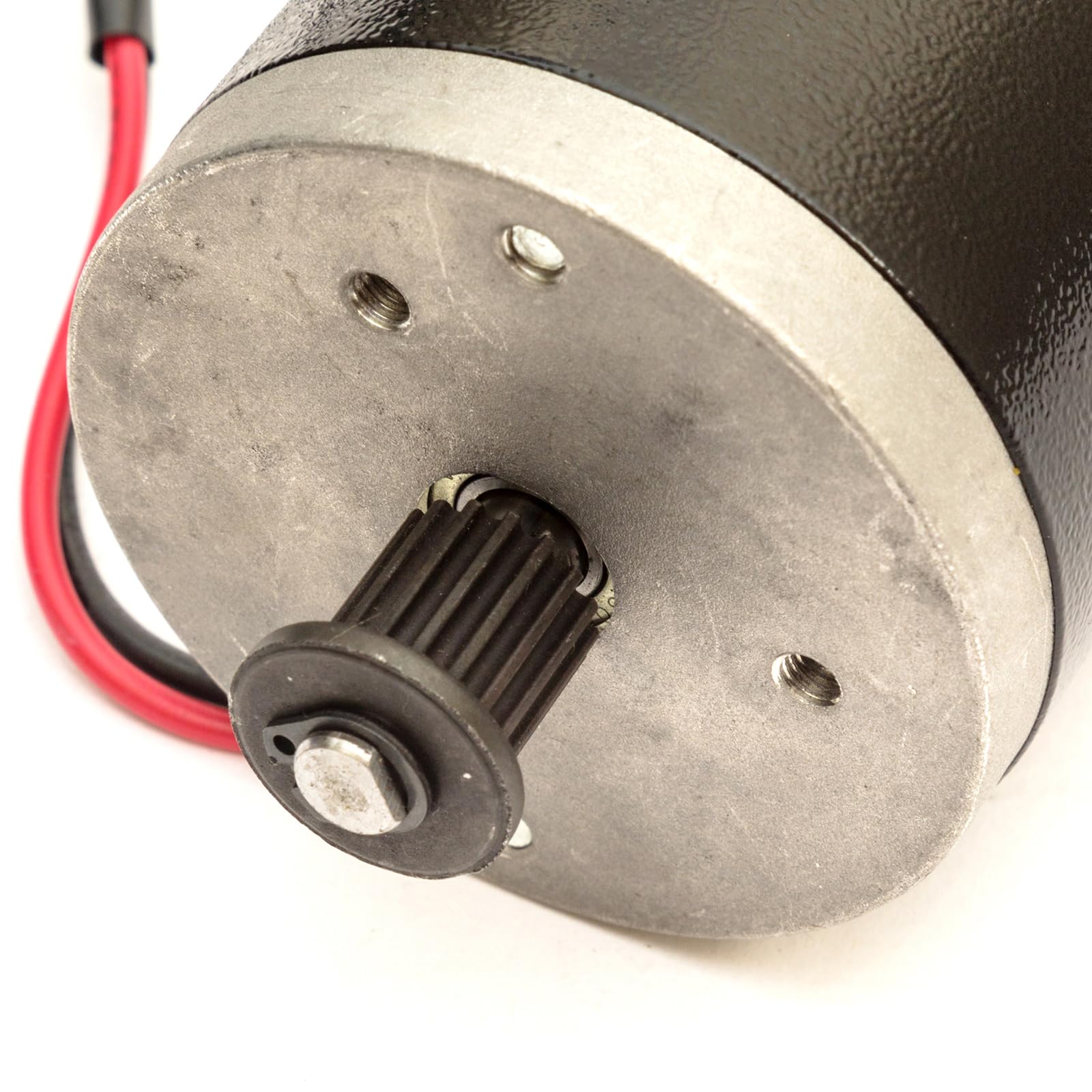

• Ideal for high power high torque applications. Incorporates a 16T belt drive, ideal for high power high torque applications
• The drive is clockwise. It can operate in forward or reverse
• SPECIFICATIONS: Voltage/24 v/Wattage/150 w/Number of Teeth/16/Length of the Shaft on Which the Sprocket Sits/25 mm / 0.98 inches/Distance Between Fixing Holes (Centre of Eye to Centre of Eye)/36 mm / 1.42 inches/Wiring Length (approx.)/300 mm / 11.81 inches/Drive Type/Belt/Number of Bullet Connectors/2/Barrel Diameter/70 mm / 2.76 inches/Barrel Length/108 mm / 4.25 inches/Brushed or Brushless?/Brushed/Model Number/ZY6812/Shaft Diameter/8 mm / 0.31 inches/Rated Speed RPM/2650 RPM

Voltage: 24 v Wattage: 150 w Number of Teeth: 16 Length of the Shaft on Which the Sprocket Sits: 25 mm / 0.98 inches Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 36 mm / 1.42 inches Wiring Length (approx.): 300 mm / 11.81 inches Drive Type: Belt Number of Bullet Connectors: 2 Barrel Diameter: 70 mm / 2.76 inches Barrel Length: 108 mm / 4.25 inches Brushed or Brushless?: Brushed Model Number: ZY6812 Shaft Diameter: 8 mm / 0.31 inches Rated Speed RPM: 2650 RPM
