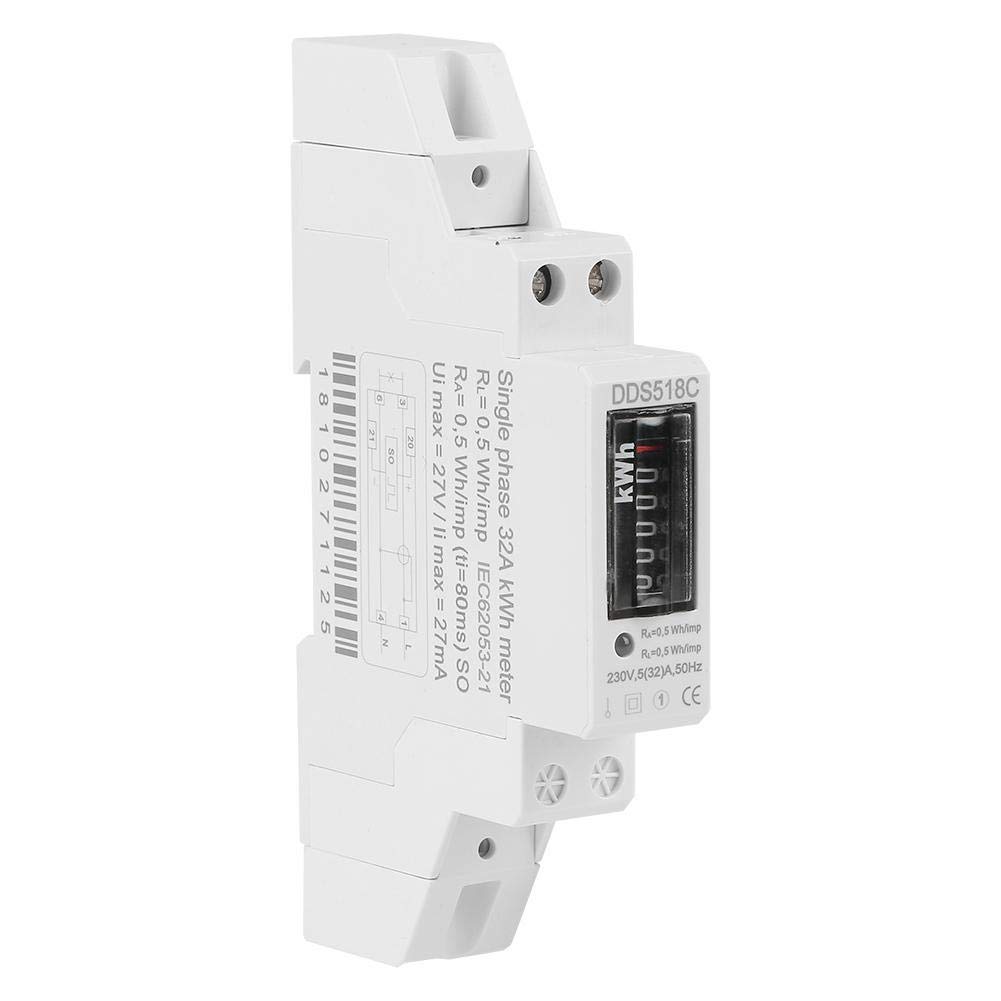

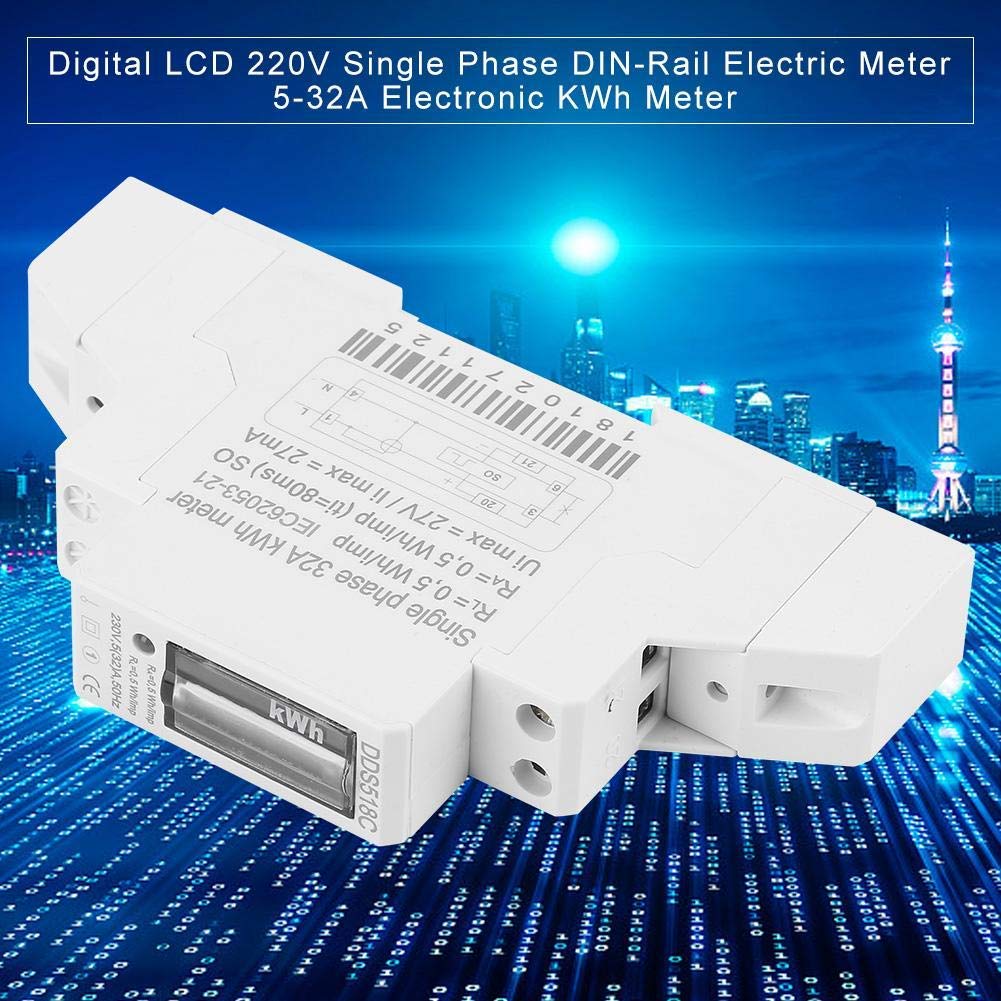

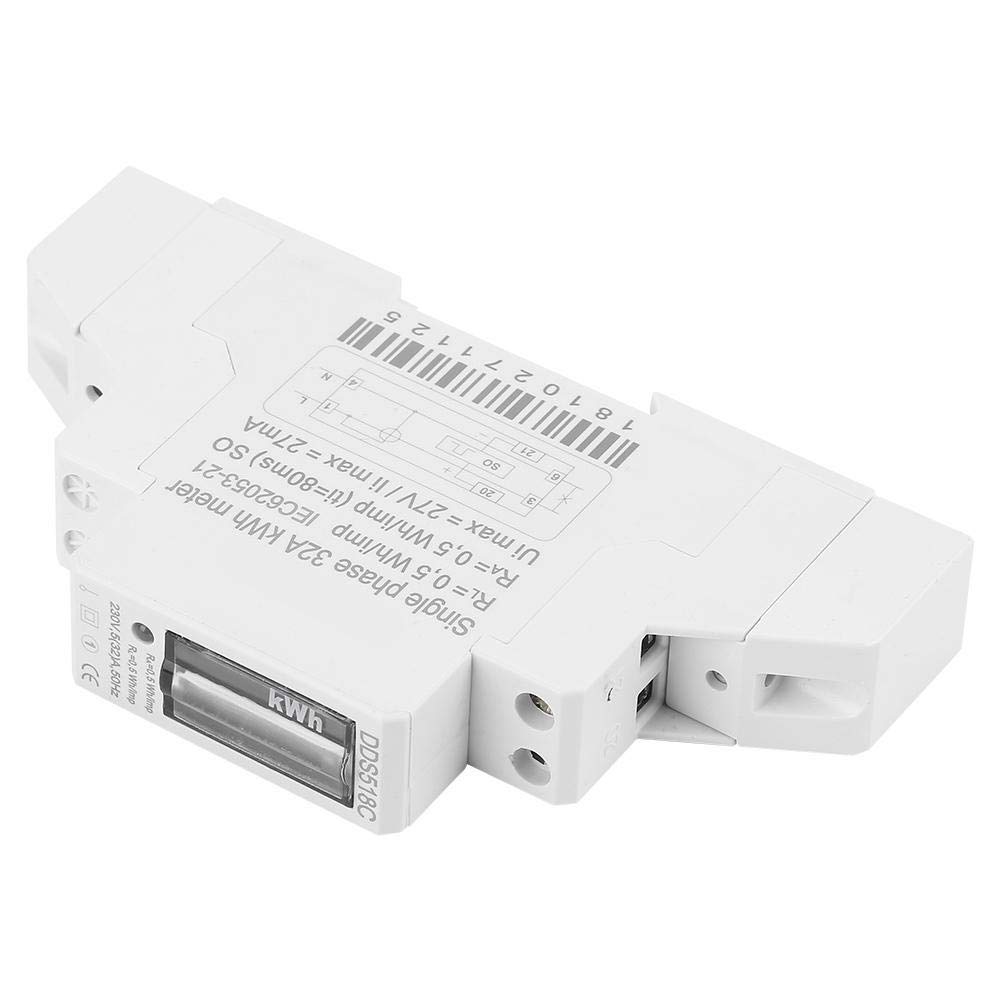

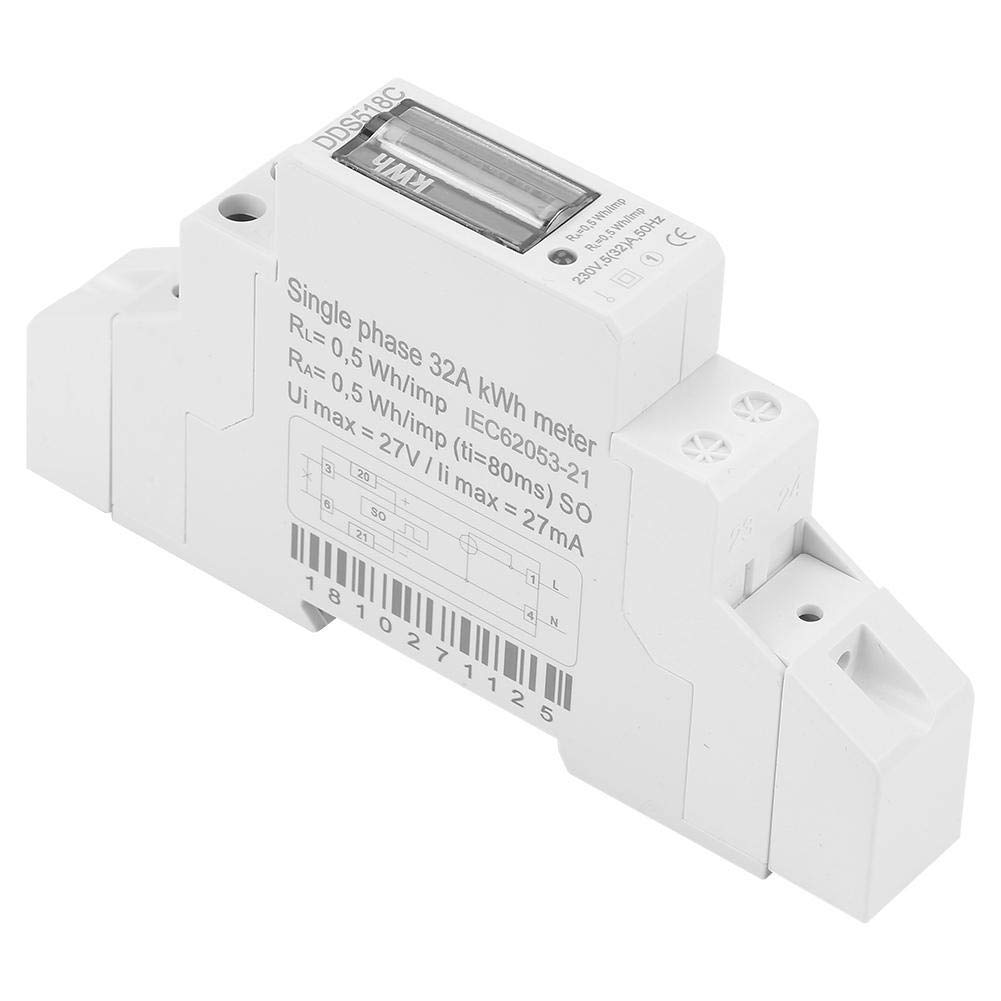

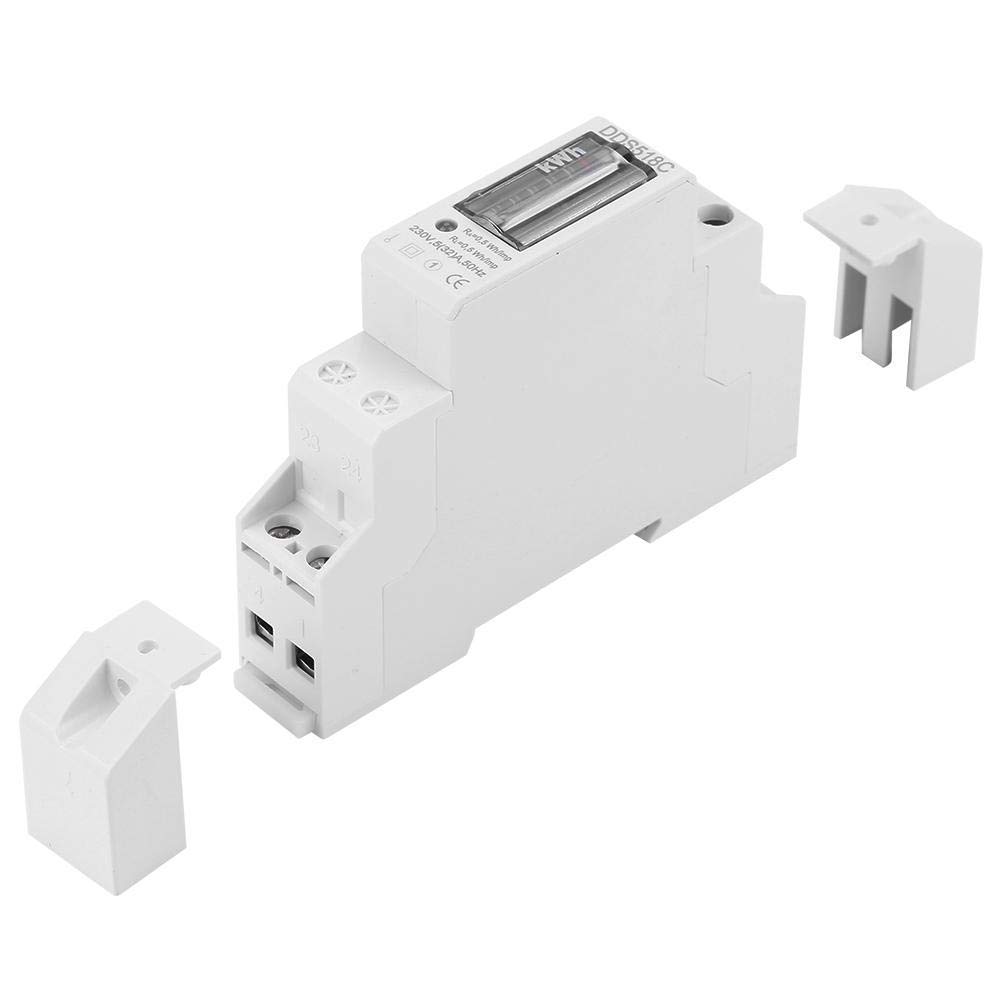

Electric Meter Digital LCD 220V Single Phase DIN-Rail Electronic KWH Meter -25 ℃ ~ 55 ℃ with Low Power Consumption

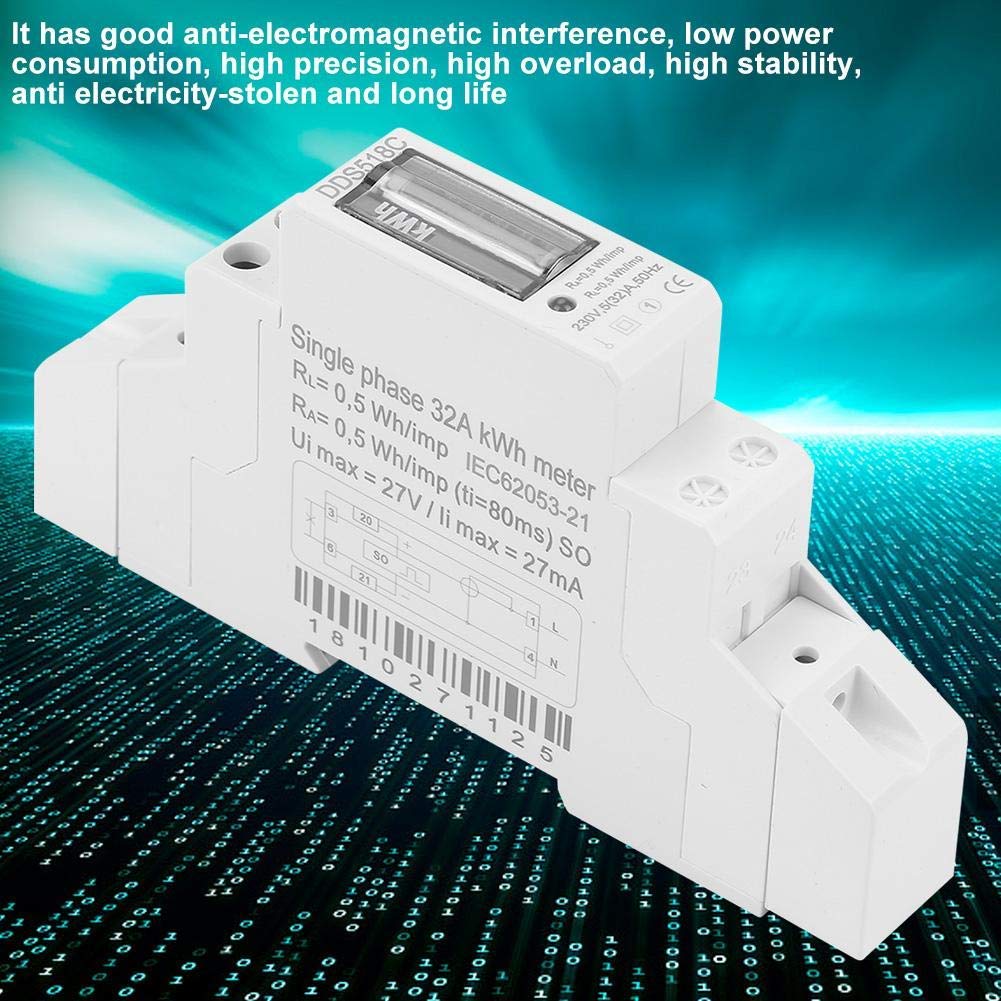

• 【Advantages】The energy meter has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life
• 【Features】The features of the energy meter are high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mm DIN standard guide rail installation
• 【Installation Considerations】The electric meter should be installed in indoor ventilated and dry place. The bottom plate of the electric energy meter shall be fixed to the rigid refractory, non-vibrating wall, and in protective cabinets in places where there are filth and potential damages
• 【Application】This din-rail energy meter is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ℃ ~ 55 ℃, relative humidity is ≤ 95%
• 【Specification】Display mode: LCD, Rated voltage: 230V 50Hz, Rated current: 5-32A, Working temperature: -25 ℃ ~ 55 ℃, Relative humidity: 95% Power indication: when the green light on, indicates that working power supply is normal, pulse indication: when the red light on, indicates that the power pulse is detected, when there is a sampling signal, the pulse light is about 80ms

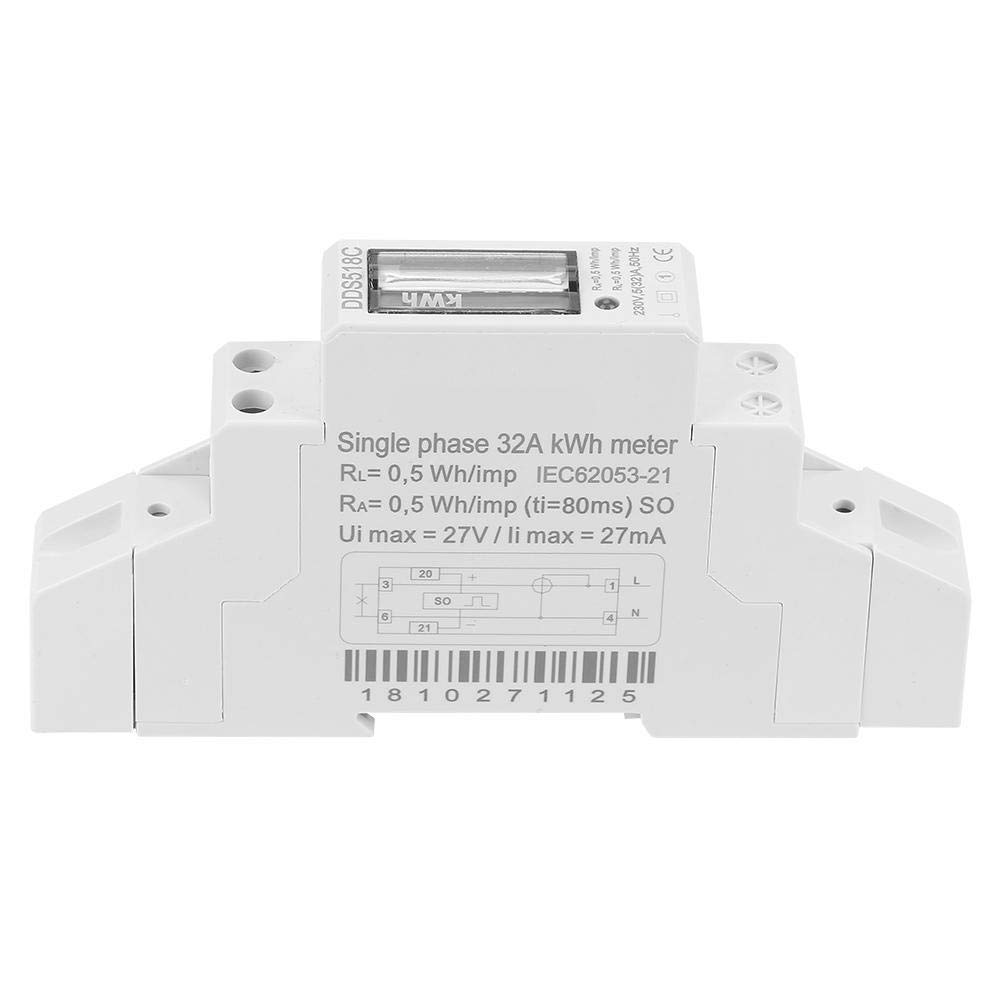

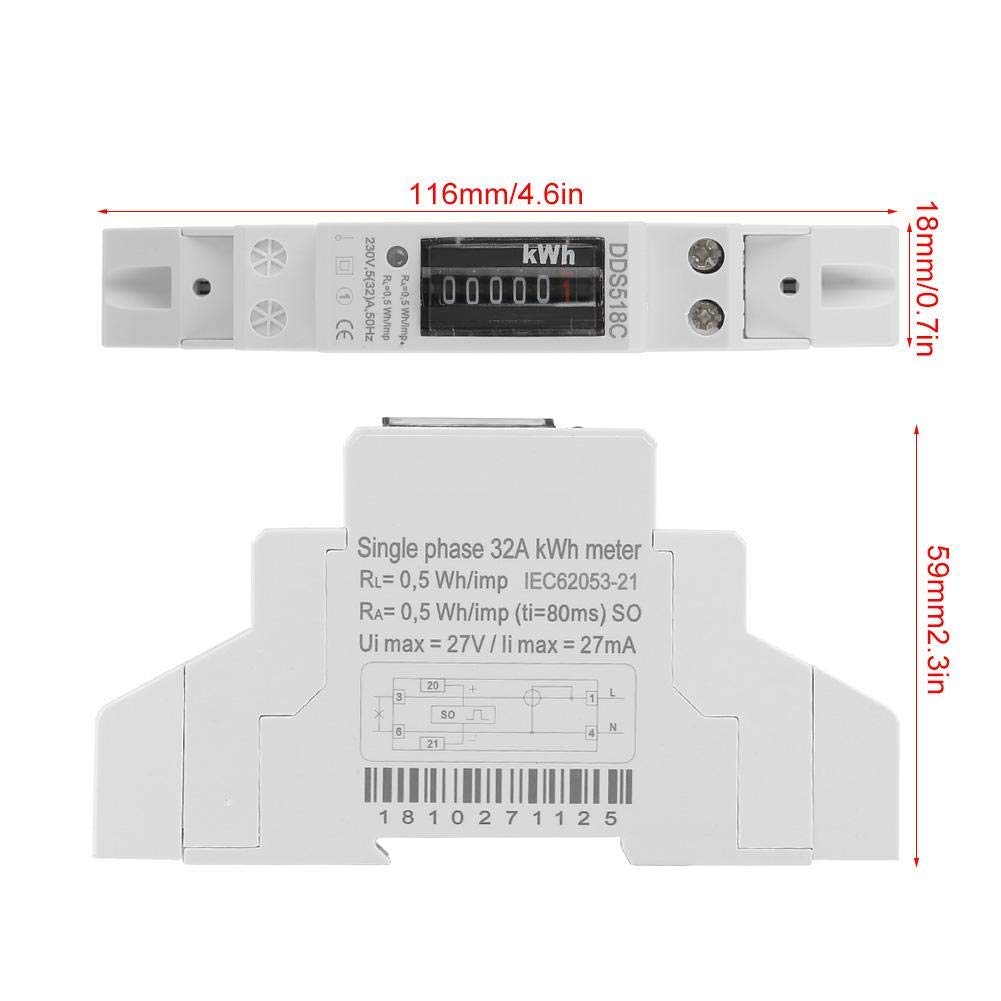

Features: The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption. LCD display is 5+1 meter shows the total power consumption. Specification: Model: DDS518C Phase number: single phase Type: guide type Display mode: LCD Accuracy level: level 1 (equivalent to measurement error <1%) Including S0 port 2000Imp/kWh (ti = 80ms) Size: as the picture Weight: Approx.104g/3.7oz Installation considerations: 1.Installation of Electric Meter required experienced electrician or professionals. 2.Electric meter should be installed in indoor ventilated and dry place, adopt 35mmDIN standard guide type installation, the bottom plate of the electric energy meter shall be fixed to the rigid refractory, non-vibrating wall. 3. The installation should be in accordance with the wiring diagram, preferably with a multi-strand copper wire, avoiding the abnormal or burning of the electricity meter because of the bad contact. 4. When the electricity meter is correctly connected to the power grid, the power indicator of the meter is on 5. Electric energy meter should take the measures when it is used in the area with more so as to avoid damaging the electric energy meter by . The load capacity of the electricity meter is 0.05ib ~ Imax (direct access) Package list: 1 x Din-rail energy meter
