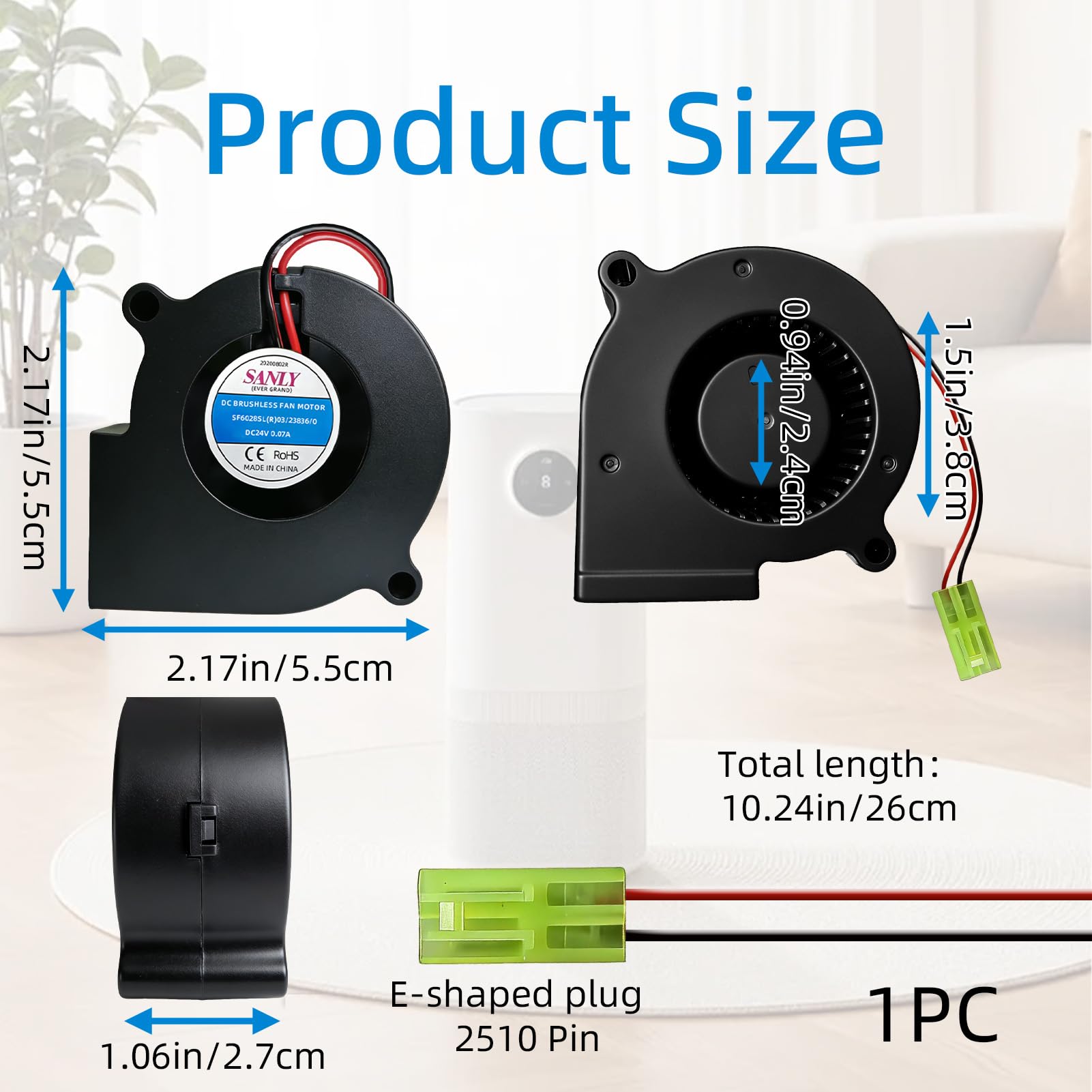

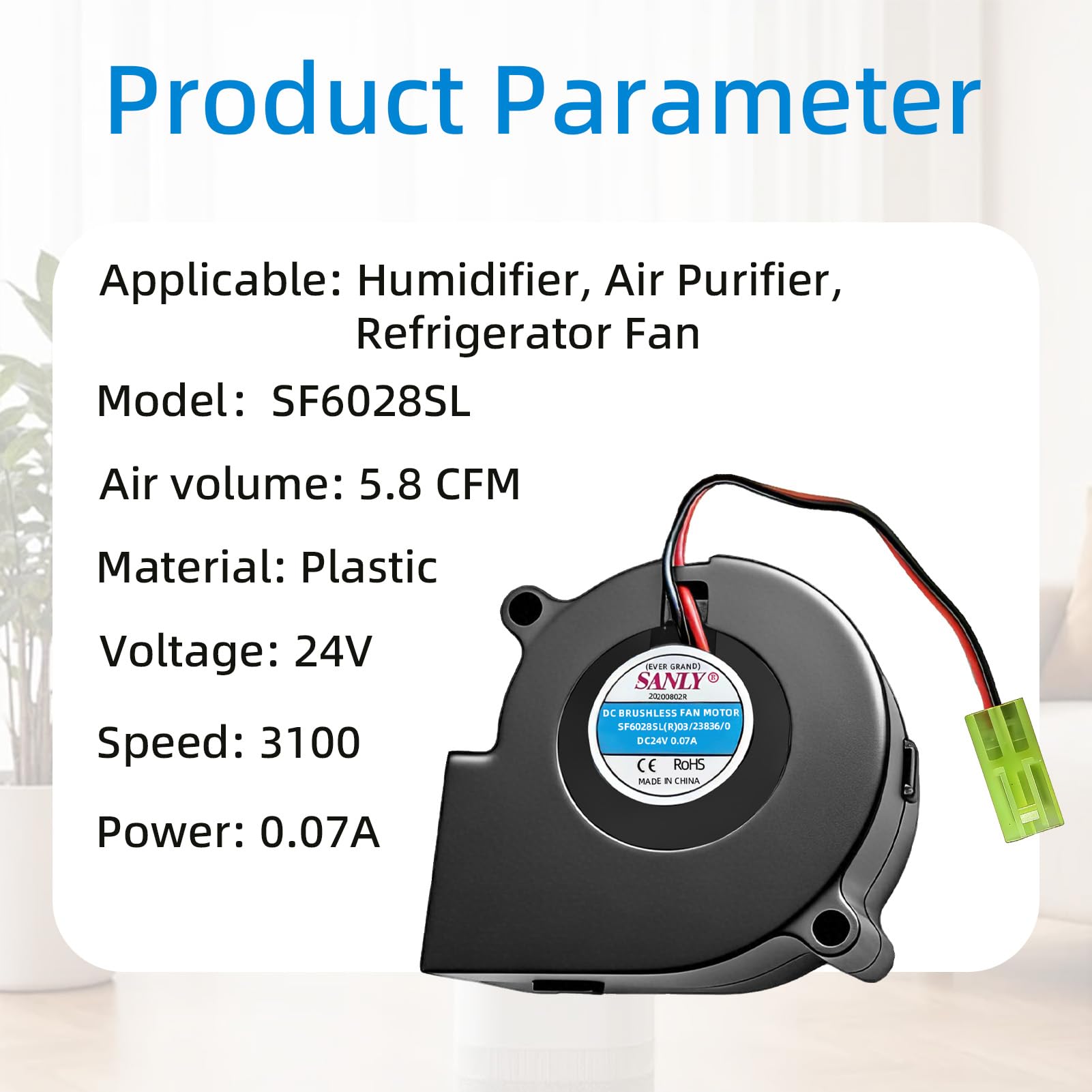

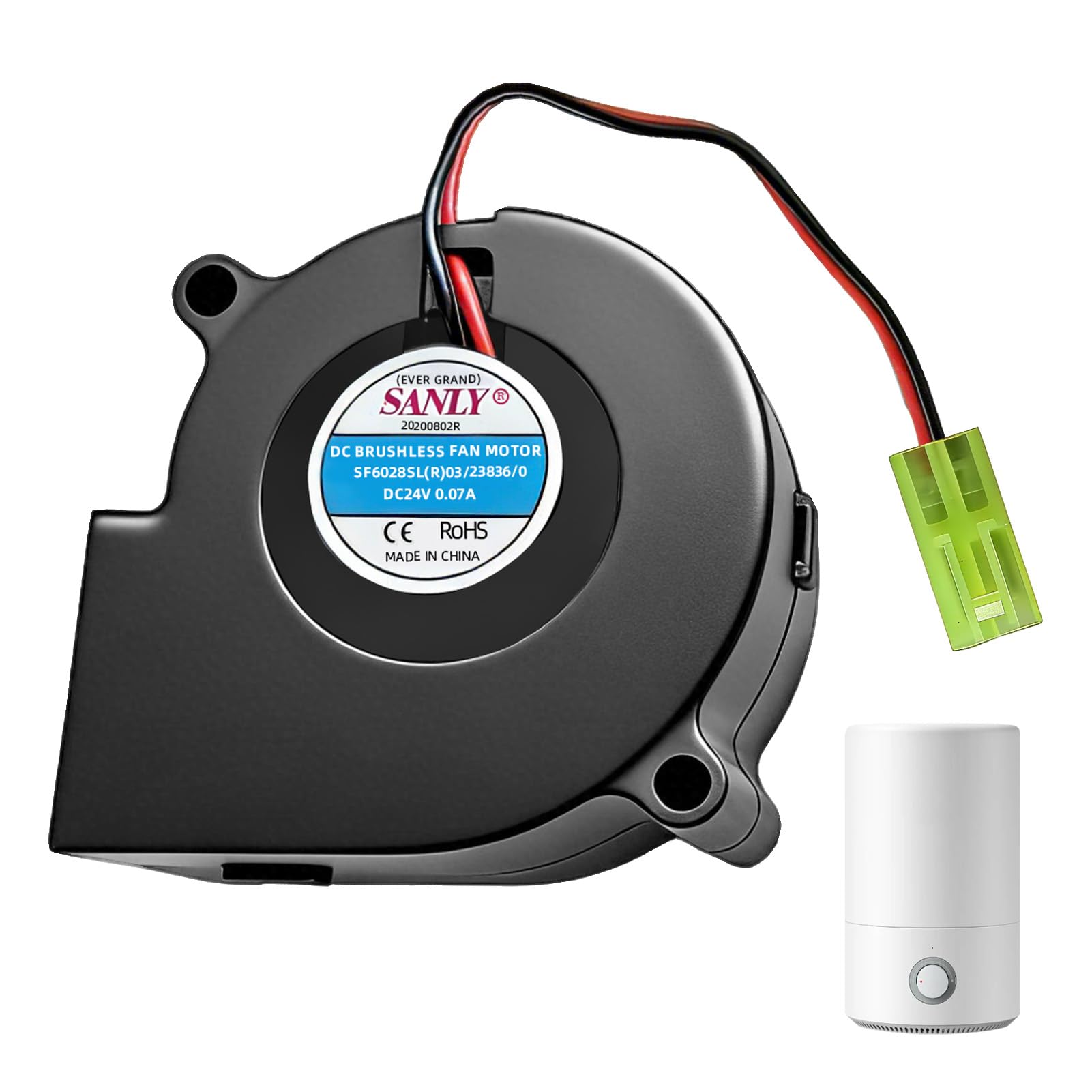

Electric Fire Fan Motor Unit, Brushless Fan Motor DC24V 0.07A Model SF6028SL(R) Compatible with Dimplex Wall Fire, DNV20AB and Other Models

• Fire Fan Motor Unit Fits for Dimplex SF6028SL(R), 24V DC Electric Fire Fan Motor Fits for Dimplex Electric Fire Brushless Fan Motor Unit. Convenient and hassle-free installation process
• Compatible with Dimplex Electric Fire Models: BBK20 (Series A - D), BBK20 (Series E), DNV20CH (Series A - C), DNV20AB (Series A - C), DNV20BL (Series A - C), DNV20BR (Series A - C), MFD20 (Series A), OKT20 (Series A), RDY20 (Series A - D), RDY20 (Series E), SCR20 (Series A), TAH20 (Series A), TAH20 (Series E), WMR20 (Series A), ALM20 (Series A), AUB20 (Series A), CAS600, CAS400NHLL, CAS400HLL, CAS600NH, RTOPCS20, RTOPW20
• And Models: RTOPI20BR, RTOPI20CH, SVT20 (Series A), ALAMEDA (ALM20), BURBANK (BBK20), CASSETTE 400 HEAT LARGE LOGS (CAS400HLL), CASSETTE 400 NO HEAT LARGE LOG (CAS400NHLL), CASSETTE 600 HEAT (CAS600), CASSETTE 600 NO HEAT (CAS600NH), DANVILLE ANTIQUE BRASS (DNV20AB), DANVILLE BLACK (DNV20BL), DANVILLE BRASS (DNV20BR), DANVILLE CHROME (DNV20CH)
• And Models: MANSFIELD BRASS (MAN20B), MANSFIELD CHROME (MAN20CH), PEMBERLEY (PEM20), REDWAY (RDY20), OPTIMYST INSET BRASS (RTOPI20BR), RETAIL OPTIMYST INSET CHROME (RTOPI20CH), OPTIMYST WALL FIRE FSC (RTOPW20), SACRAMENTO (SCR20), SILVERTON OPTI-MYST FIRE (SVT20), TAHOE (TAH20), BURGATE (BRG20), MERIBEL (MRB20) and WHITMORE (WMR20)
• Brushless Design: Electric Fire Brushless Fan Motor: Features an efficient brushless fan motor for optimal performance, Features a brushless fan motor unit that ensures efficient and quiet operation

Connection Method and Precautions: Basic Wiring (If no corresponding plug is available) Confirm Power Supply Specifications: A DC 24V power supply must be used (matching the DC24V 0.07A on the fan label). Incompatible voltage will damage the fan or cause it to malfunction. Wiring Operation: Red wire connects to the positive power supply terminal (+24V). Black wire connects to the negative power supply terminal (GND/0V). Insulation Treatment: After connecting, wrap the exposed wire cores with electrical tape or heat shrink tubing to prevent short circuits. Direct Plug Connection (If there is a green terminal) This green terminal is a male connector. Locate the corresponding female connector: The red wire of the male connector corresponds to the positive pin of the female connector, and the black wire corresponds to the negative pin. Simply plug them in. Note: Do not force it in the wrong direction. The terminal has a foolproof design; incorrect orientation will prevent insertion. ⚠️ Key Precautions Voltage matching is crucial: Only use a 24V DC power supply. Do not connect to 220V AC, 12V (will result in insufficient fan speed), or a power supply exceeding 24V (will burn out the fan). Current requirement: The power supply output current should be ≥0.07A. Insufficient current will cause difficulty in starting the fan or abnormal fan speed. Positive and negative terminals must not be reversed: Reversing the polarity will cause the fan to not rotate, and prolonged reverse connection may damage the drive circuit.
