HUDAMZKY Electric Bike 1T4 1T5 Waterproof Cable Controller Light Ebrake Throttle Display E-Bike Cable Conversion Accessories (1T4)

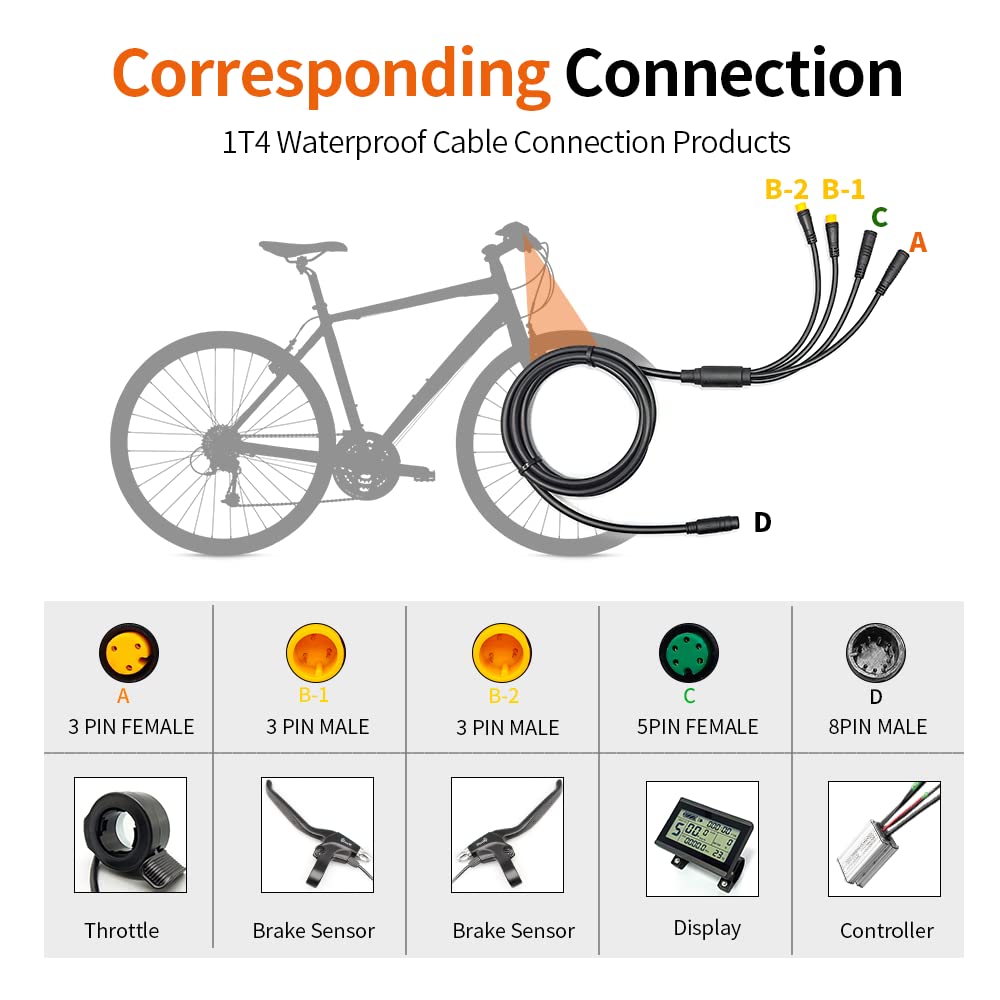

• Electric bicycle waterproof 8-pin 1T4, connect controller and display, throttle,and left and right brake levers

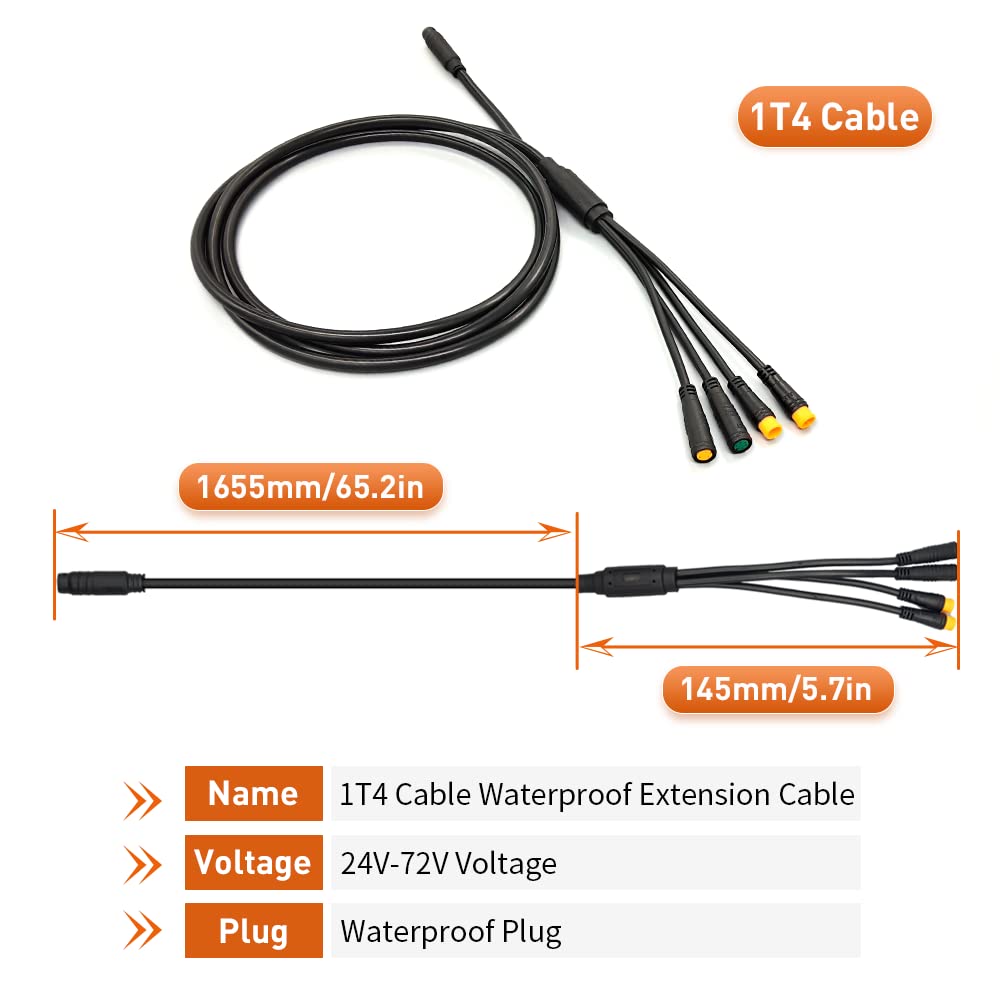

• Cable length: 180cm (70.8inch)
• Controller connector: 8pin-Male (black)
• Display connector: 5pin-Female (green)
• Throttle connector: 3pin-Female (yellow)

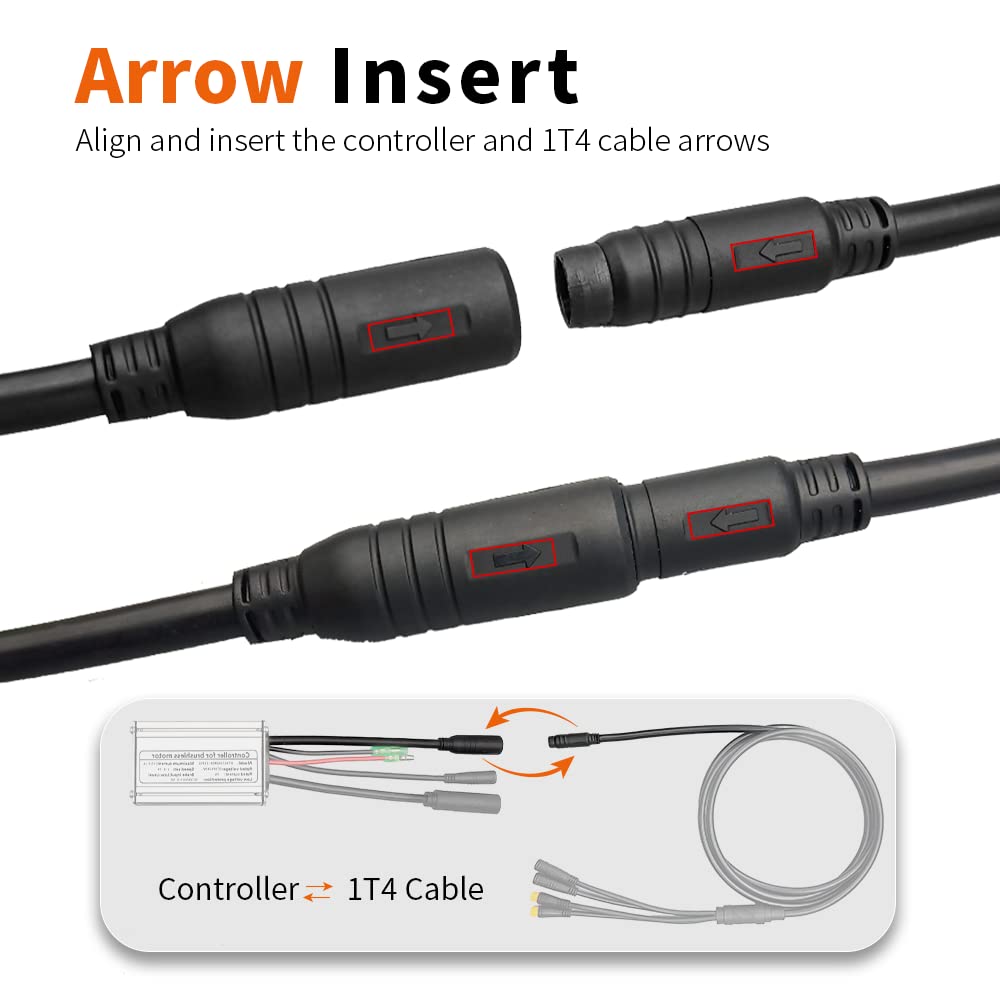

This waterproof cable is used in an electric bike conversion motor kit to connect other components to the controller to form a complete system. One end is connected to the electric bicycle controller, the other end is connected to a pair of brake levers, a display and a throttle. Please note: There are two types of brake lever connectors on the market, 3-pin and 2-pin. This cable brake lever connector is 3Pin Male, Yellow connector，Not red! Parameter: Product name: waterproof cable Applicable voltage: 24V, 36V, 48V, 52V, 72V Specification: 1T4 Length: 1800mm Connector: Julet Warranty period: 1 year Colour: Black Certification: CE, RoHS
