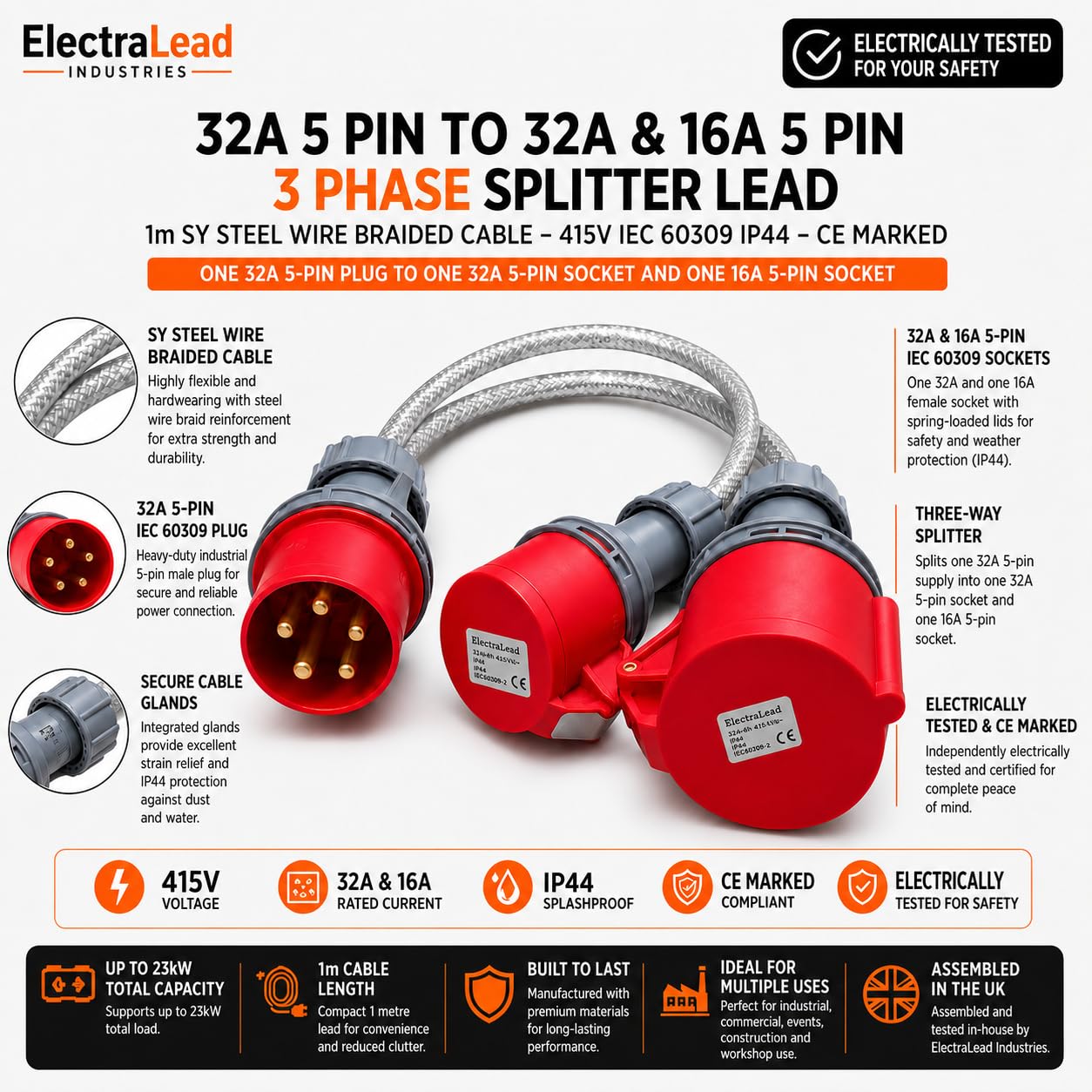

ElectraLead 32A 5 Pin to 32A & 16A 5 Pin Red 3 Phase Splitter Lead – 1m SY Steel Wire Braided Cable – 415V IEC 60309 IP44 – CE Marked Industrial Connectors – PAT Tested

• 32A THREE-PHASE SPLITTER – Connects one red 32A 5-pin 415V IEC 60309 supply to one 32A 5-pin socket and one 16A 5-pin socket, allowing two compatible three-phase appliances or circuits to be connected from one supply point.

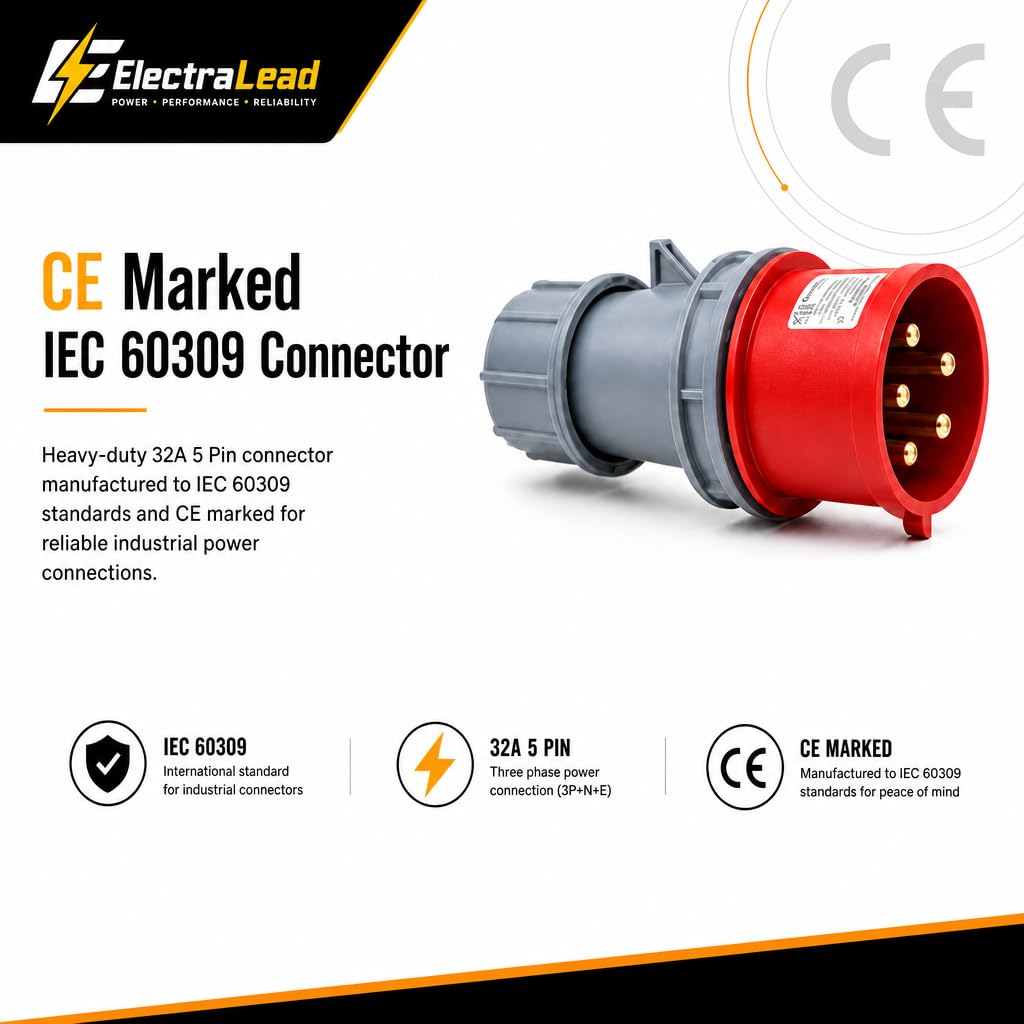

• CE MARKED INDUSTRIAL CONNECTORS – Fitted with heavy-duty red IEC 60309 plug and socket connectors featuring a 3P+N+E five-pin configuration. The IP44 splash-resistant design is suitable for workshops, events, temporary power systems and sheltered outdoor environments.
• SY STEEL WIRE BRAIDED CABLE – Manufactured with transparent SY control cable that provides visible steel-wire braid reinforcement, mechanical protection and flexibility. The input and 32A section use 5G4.0mm² cable, with 5G2.5mm² cable used for the 16A outlet tail.
• UP TO 23KW INPUT CAPACITY – At 415V three-phase, the 32A supply provides approximately 23kW maximum capacity, while the individual sockets are rated at approximately 23kW for the 32A outlet and 11.5kW for the 16A outlet. The combined connected load must remain within 32A per phase and the upstream protective device.

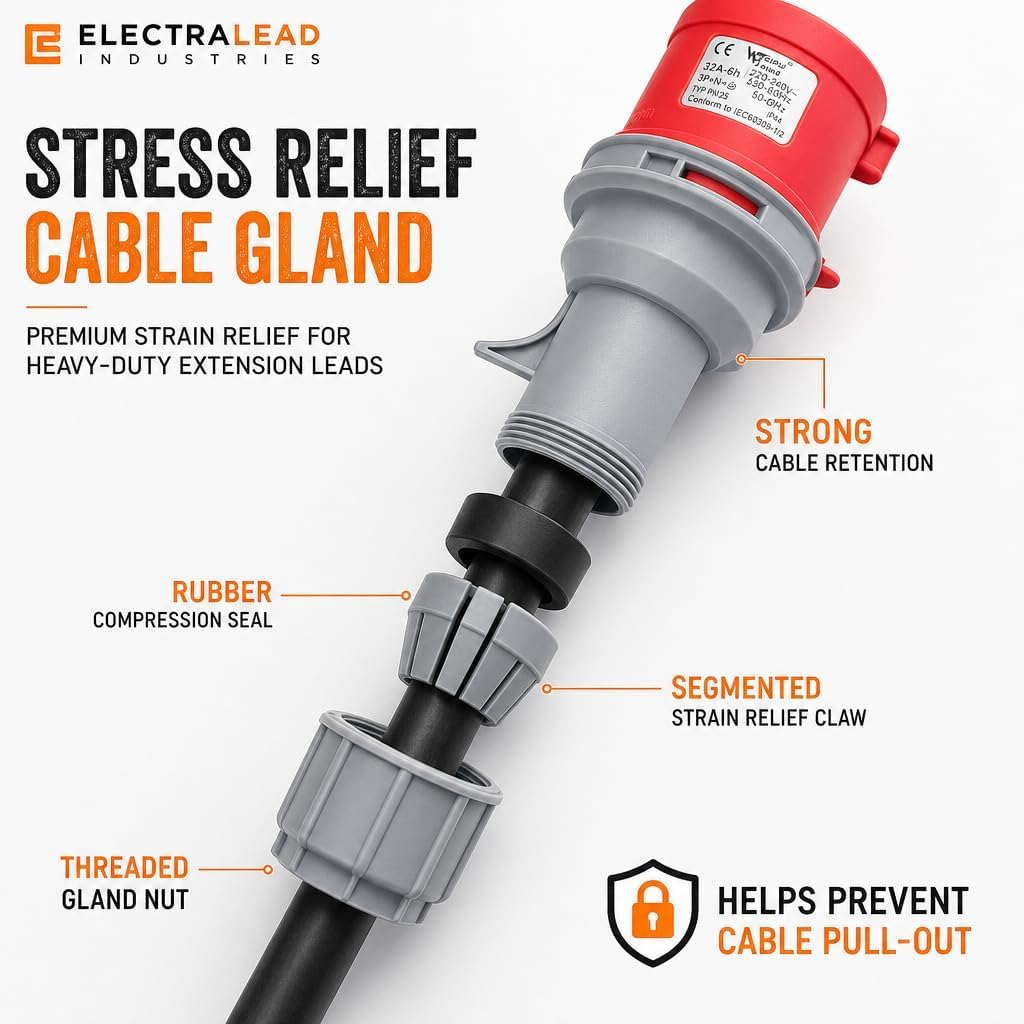

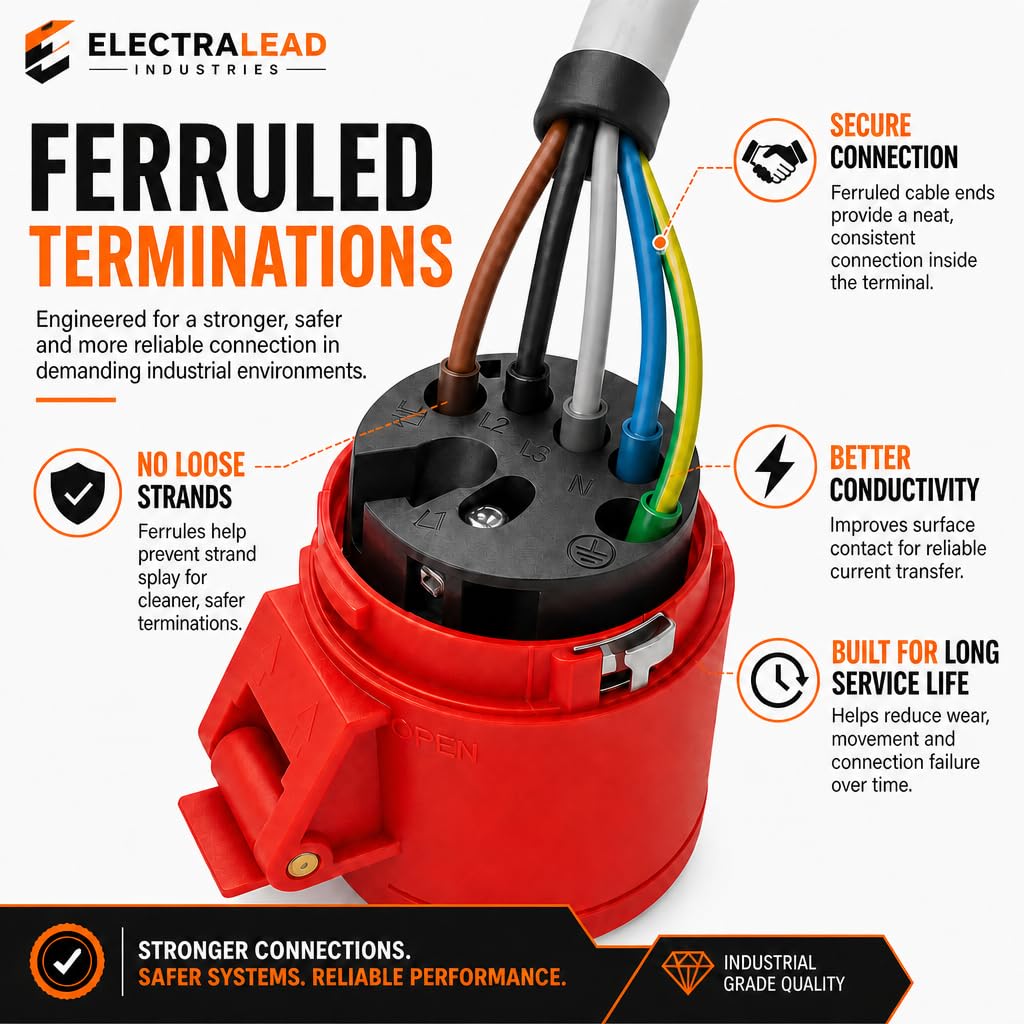

• ASSEMBLED AND PAT TESTED – Assembled in-house by ElectraLead with secure cable glands and carefully terminated conductors, then electrically inspected and PAT tested before dispatch. This is a non-fused splitter and does not provide independent overcurrent protection for each outlet.

ElectraLead 32A 5-Pin to 32A and 16A 5-Pin Three-Phase Splitter Lead This industrial splitter lead allows one red 32A 5-pin 415V IEC 60309 supply connection to feed one 32A 5-pin socket and one 16A 5-pin socket. It is designed for compatible three-phase equipment used in workshops, industrial installations, events, temporary power systems, machinery and sheltered outdoor environments. The assembly is manufactured using transparent SY steel-wire braided cable, combining flexibility with additional mechanical reinforcement. The input and 32A section use 5G4.0mm² cable, while the 16A outlet tail uses 5G2.5mm² cable. One red 32A 5-pin 415V IEC 60309 plug input One red 32A 5-pin IEC 60309 socket output One red 16A 5-pin IEC 60309 socket output Three-phase 3P+N+E configuration Approximately 1m SY braided cable tails CE marked industrial plug and socket connectors IP44 splash-resistant connector construction Assembled and PAT tested before dispatch Power Capacity At 415V three-phase, the 32A input has a theoretical maximum capacity of approximately 23kW at unity power factor. The 32A outlet is rated for approximately 23kW and the 16A outlet for approximately 11.5kW; however, these ratings cannot be added together. The total combined connected load must remain within the 32A-per-phase input supply, phase loading and fitted upstream protective devices. Important Safety Information This product is a passive, non-fused splitter and does not convert voltage or provide independent MCB or RCD protection for either outlet. The 16A outlet must be provided with suitable 16A overcurrent protection as part of the installation. Use only with correctly rated three-phase equipment and an appropriately protected electrical supply. Installation and suitability should be confirmed by a competent electrician. Part of the ElectraLead Industrial Power Range ElectraLead assembles industrial power leads, adaptors and MCB distribution units in-house using IEC 60309 components and suitable heavy-duty cable. A range of amperages, cable lengths and connector configurations is available across the ElectraLead industrial power range.
