ElecGear 2x TMR Joystick and Desoldering Heating Plate Replacement for Universal Controllers, Calibration PCB, TMR Hall Control Stick and Soldering Wick Repair Tools – (TMR-UniA)

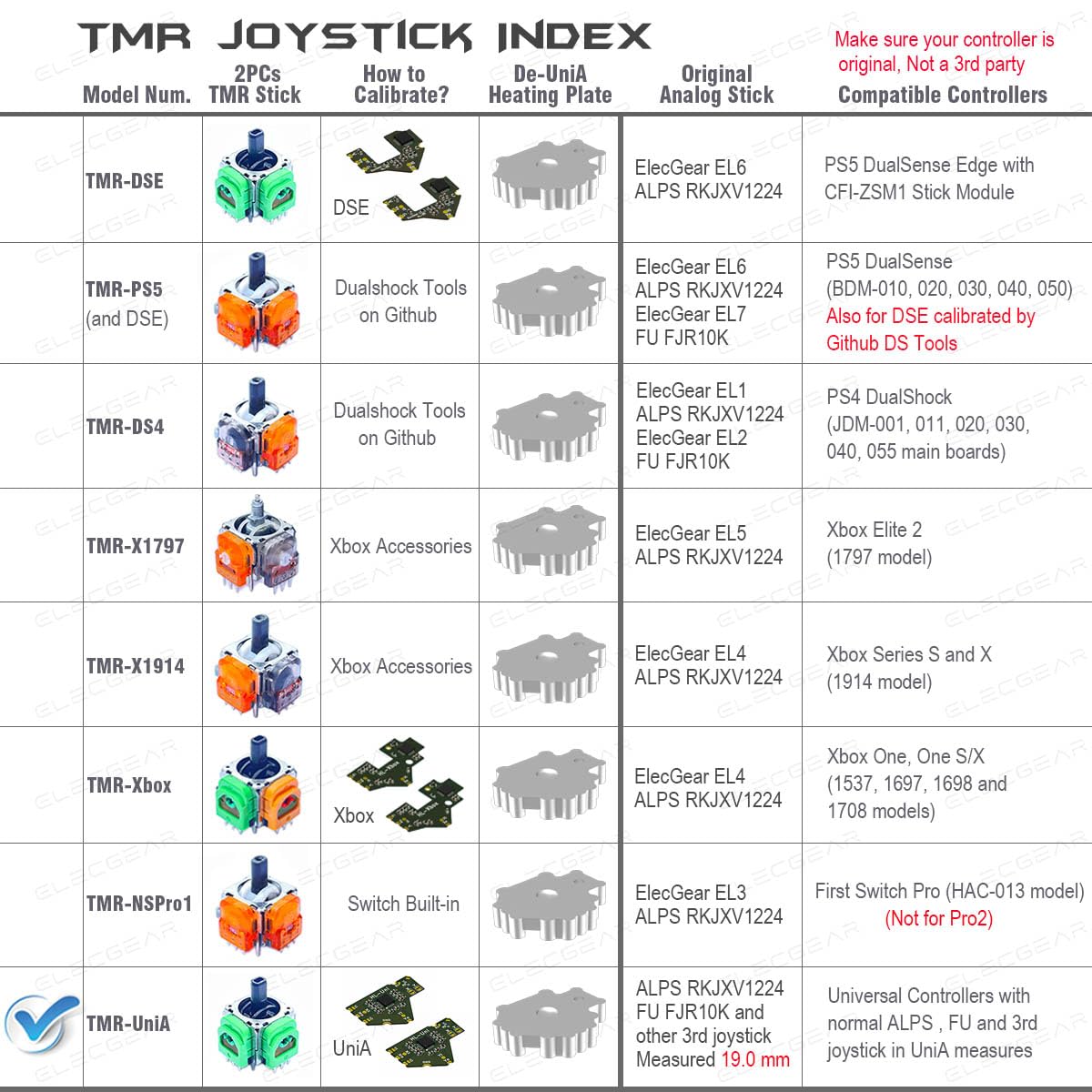

• [2x TMR Joysticks for Universal Controller] – This UniA kit is to mod the joysticks in universal wireless and wired controllers. A replacement for ALPS, FU and 3rd Joysticks. The upgraded hall sensor delivers higher sensitivity and accuracy. This UniA TMR stick is in UniA form factor. It fits ordinary analog sticks measured 19.0 mm. 🔺Not for UniB with 20.2mm or X360 stick

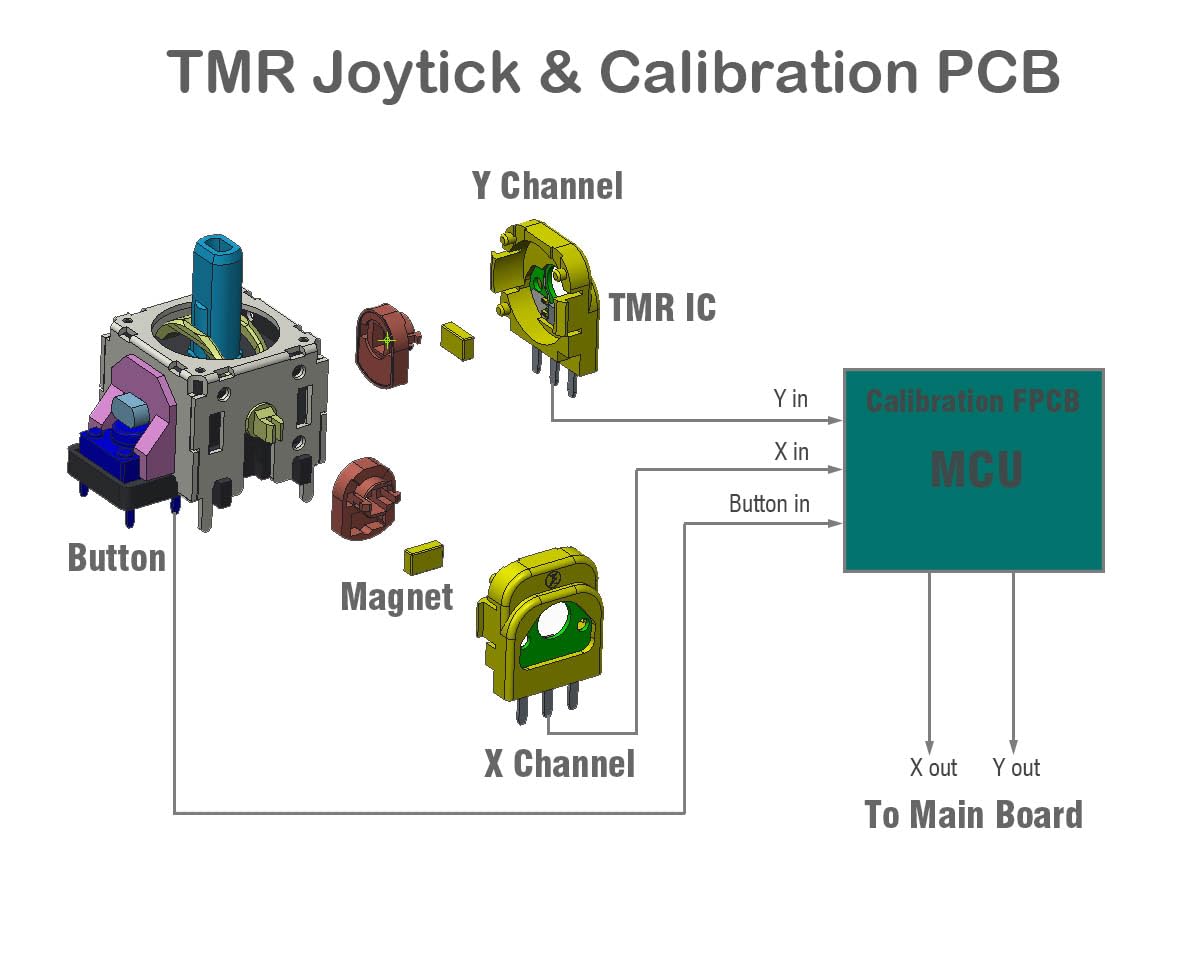

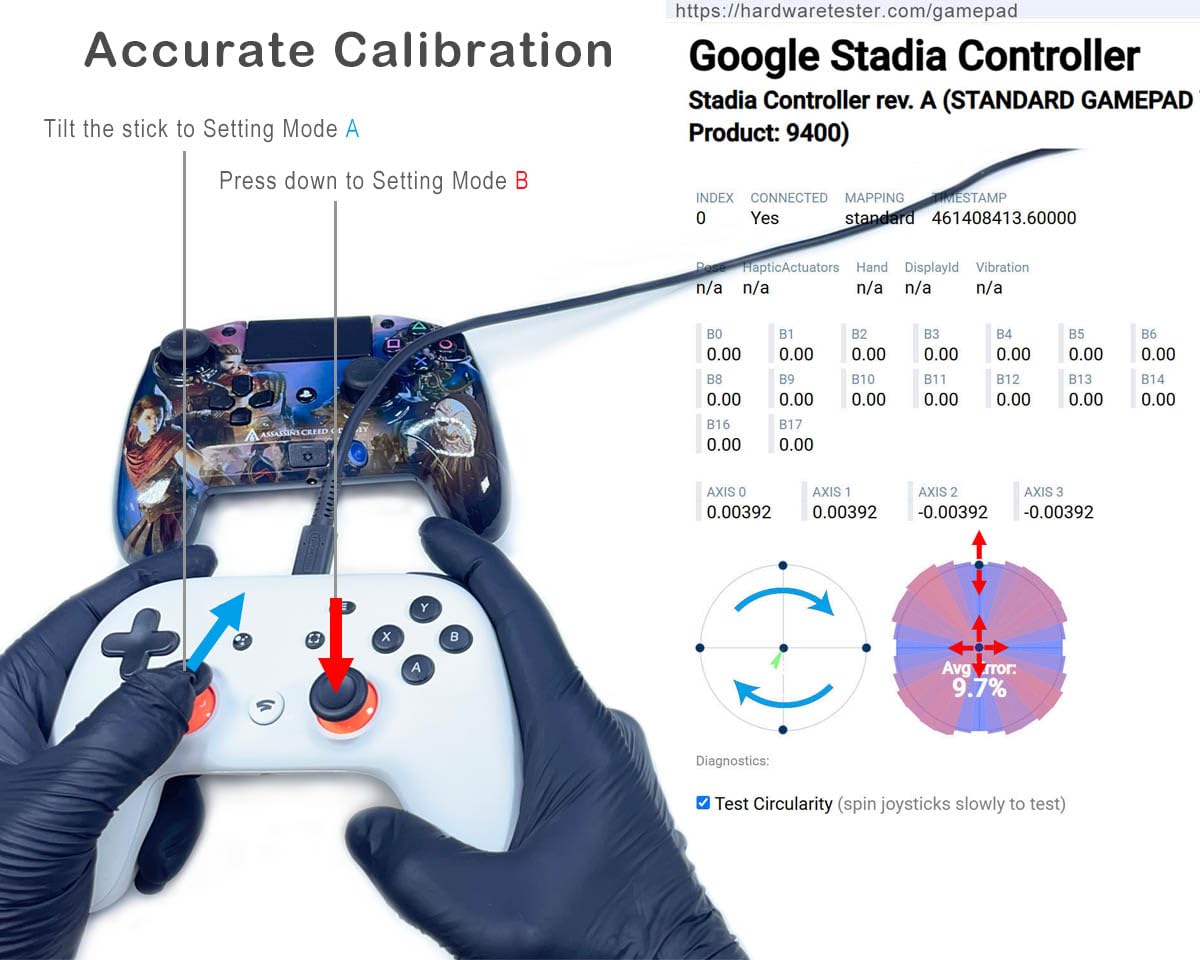

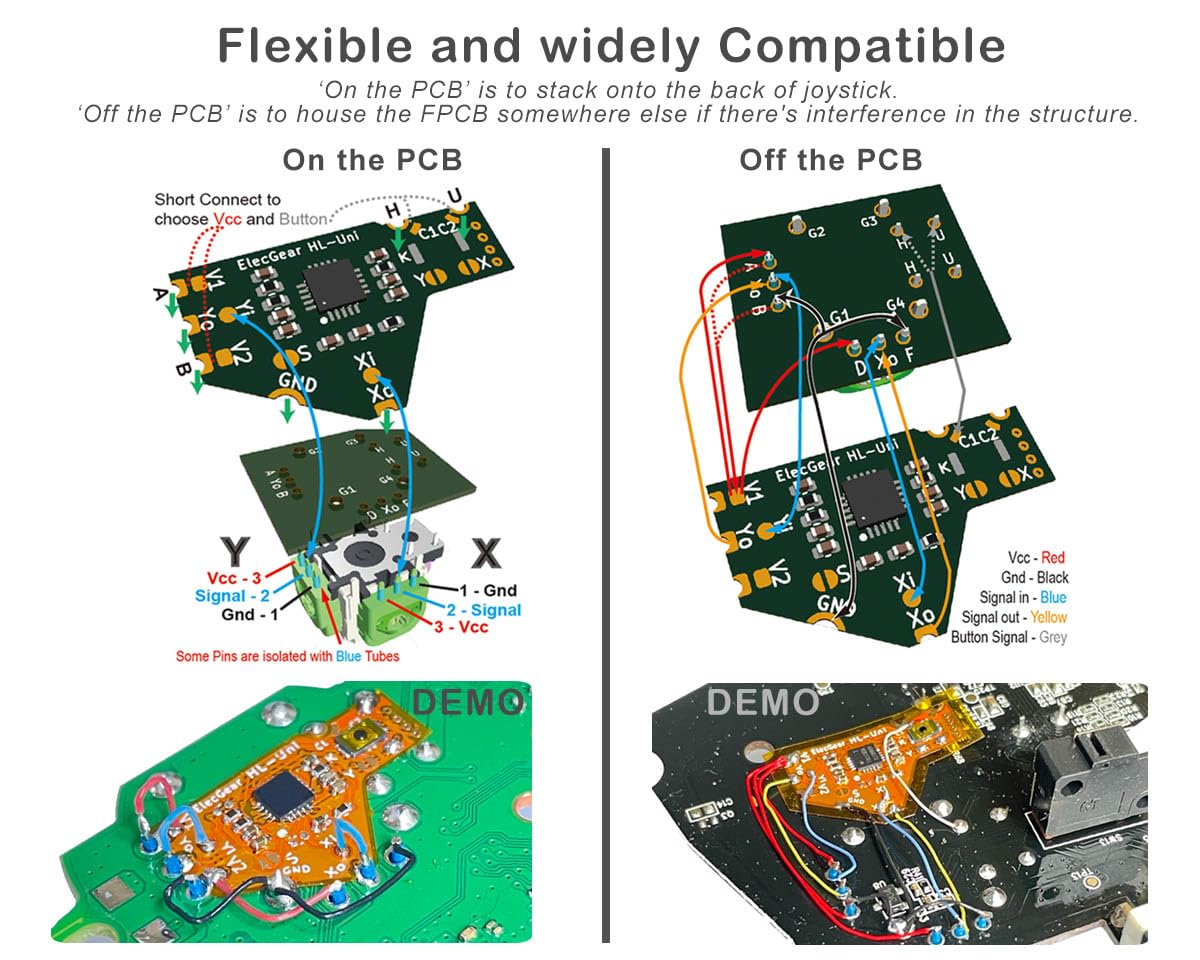

• [2x Added-on Calibration FPCB] – Two options to install the FPCB. Stack onto the back of main PCB, or house it at a free position and link individual wires remotely when there’s some interference in the structure. The sensor signals input to MCU. The processed signals output to the main board of controller. You can fine reset the center and trim the curve via a joystick test web
• [Attention] – 1.🔺It takes serious electronic know-how and soldering skills. Not for newbies. 2.🔺Carefully follow the steps on the image before ordering. 3.🔺Make sure your controller works with the test web or other joystick testing tools. 4.🔺Before desoldering, the main board should be carefully measured with a multi-meter
• [Desoldering Tools included] – A copper heating plate melts all the solder joints simultaneously simply with a soldering iron. Multi gauge braid wire performs better than desoldering wick. PCB clamps and other helping tools included
• [What’s in box: TMR-UniA] – 2x TMR Joysticks, 2x Calibration FPCB, 1x Heating Plate, 5x Color Wires for wiring off the PCB, 1x Installation Guide in English alone. (🔺 Quality soldering station with big and small tips, Teardown tools, other soldering devices and materials are required, however NOT included.)

Model: TMR-UniA 🔺This UniA version of Repair kit was rated 10 difficulty. Not for beginners TMR Joysticks Replacement for Most Normal ALPS, FU and 3rd Joysticks Calibration PCB with MCU for the finest Centering and Rocking Curve Stack on the back of the PCB, or Link the individual Wires off the PCB A Copper Heating Plate and Solder Wick help a lot for the Desoldering 🔺ATTENTIONs before Ordering: 1.Thoroughly read the page and images, measure the joystick and PCB before ordering 2.This UniA fits normal analog sticks measured 19.0 mm on the image. Not for UniB or X360 3.Serious electronic know-how and soldering skills required. Not for newbies 4.Turn to ours TMR-PS4, PS5, DSE, Xbox and NSPro for these specific controllers 5.Make sure your controller works with the tester web link or other testing tools 6.Multimeter, Teardown screwdriver tools, other soldering tools and materials are required, however NOT included What’s in the box: 2x TMR Joysticks UniA 2x Calibration PCB UniA 1x Heating Plate 5x Color Wires for wiring off the PCB 1x Installation Guide in English alone
