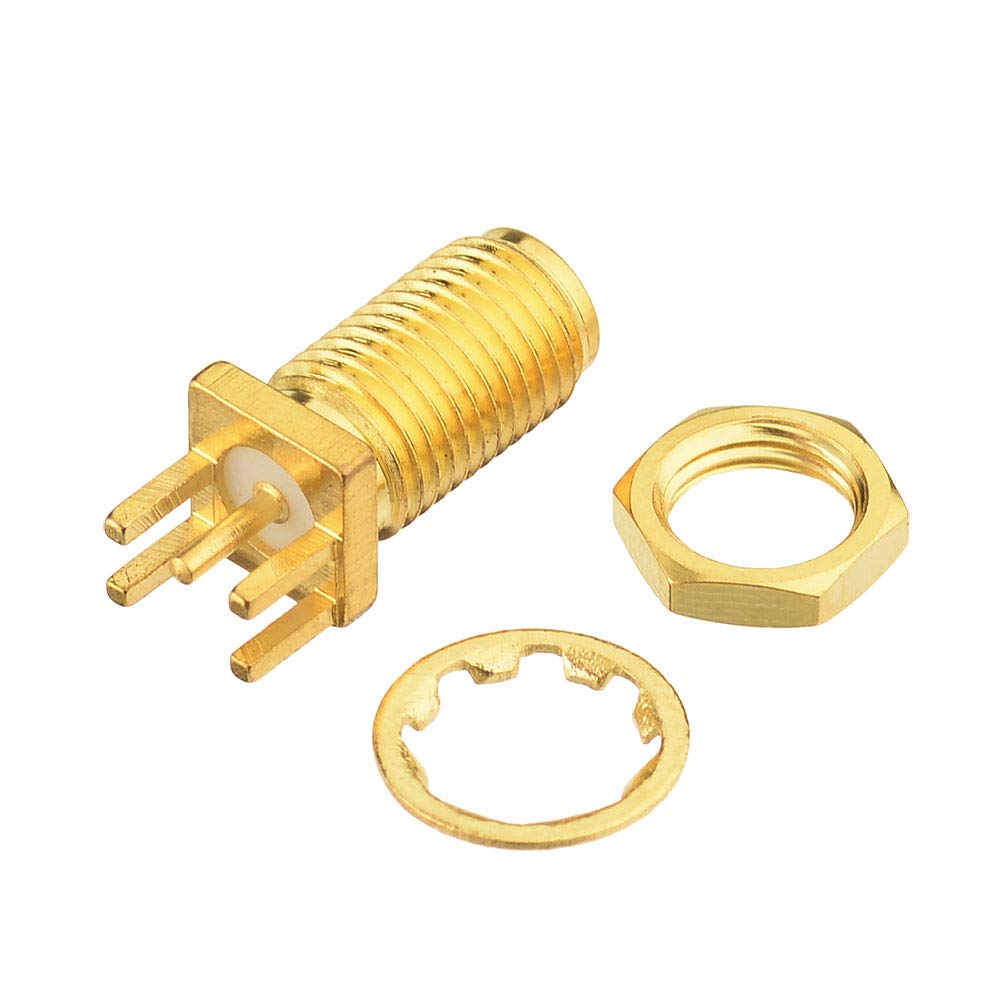

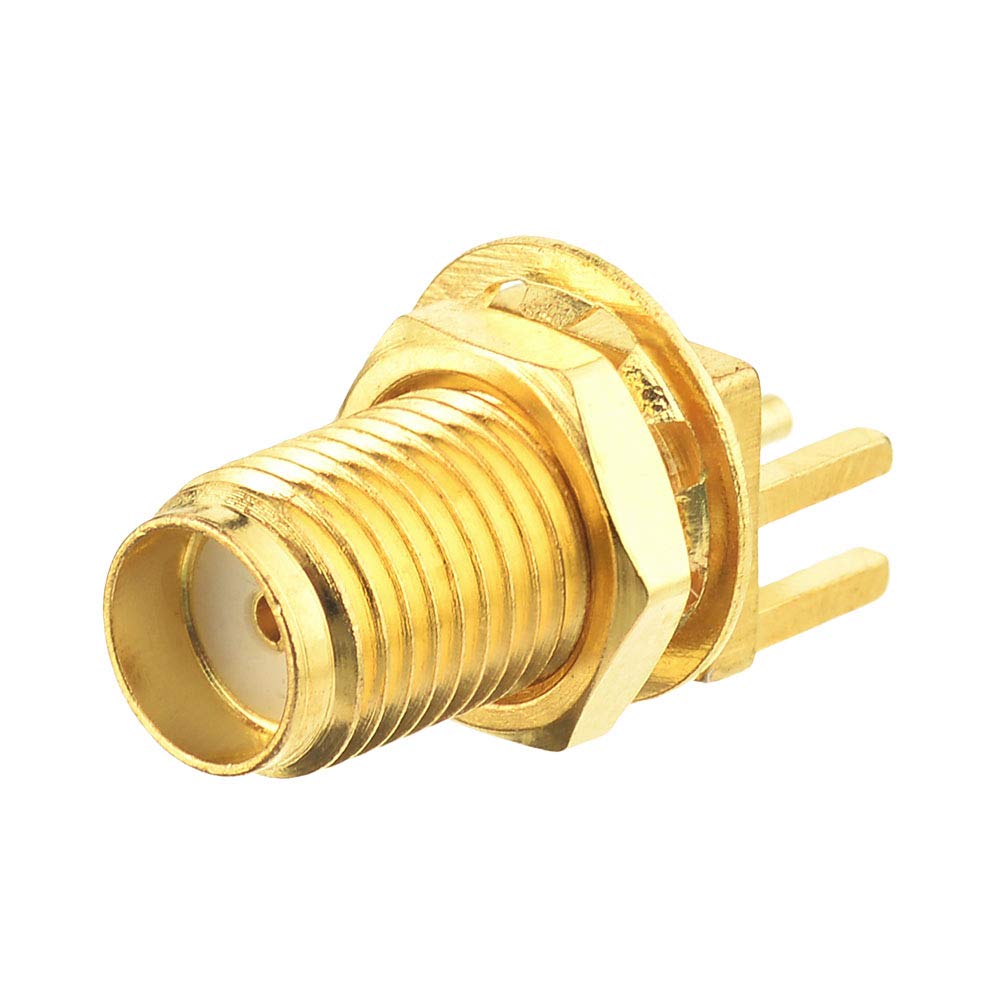

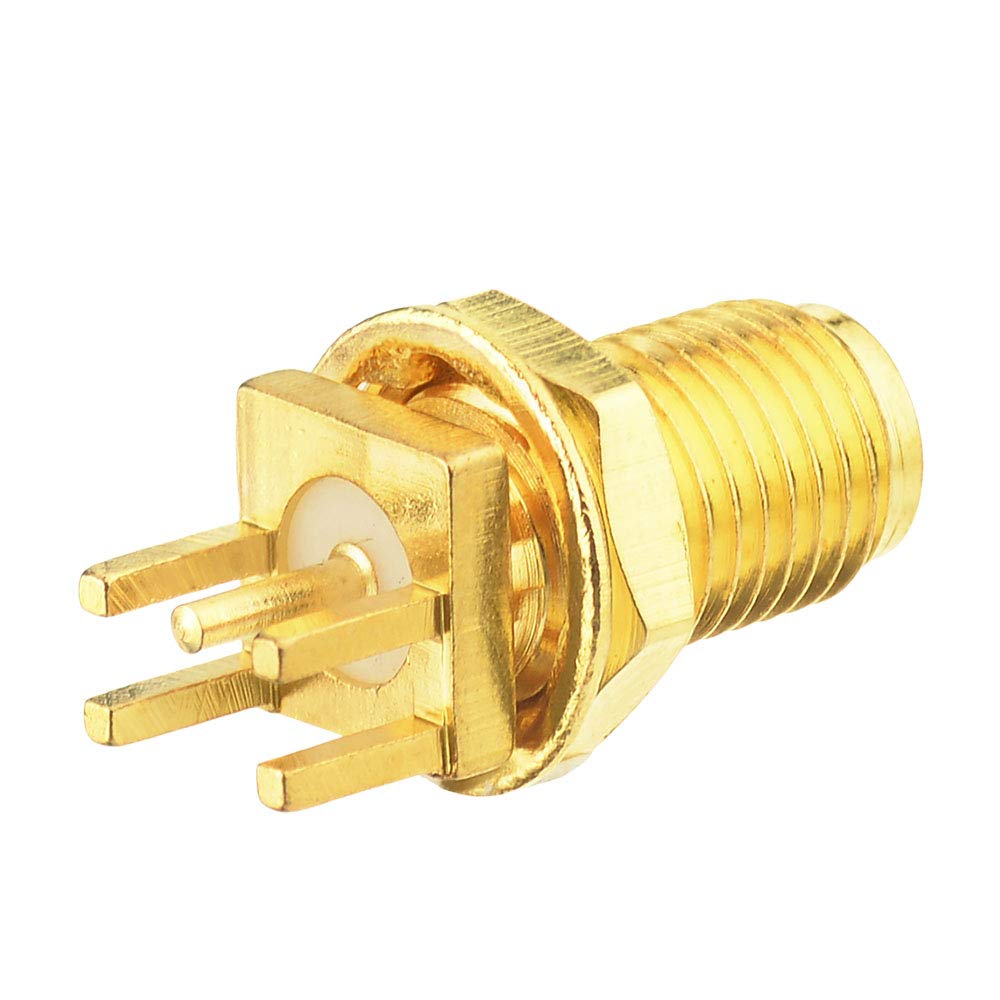

Eightwood SMA Connector SMA Jack Female Connector Straight Bulkhead Solder .062 inch End Launch For Wireless WLAN Wifi Antenna 10pcs

• Series: SMA | Termination Type: PCB | Gender: Jack , Female | Polarity: Standard | Interface Type: .062 inch End Launch | Body Style: Straight | Mount Method: Bulkhead
• Impedance: 50 | Attachment Method: Solder | Body Material: Brass | Body Plating: Gold | Dielectric Type: PTFE | Frequency Range: 3GHz
• The SMA connector can be used for wireless WIFI antennas WIFI router SMA antennas Wifi 4G antenna router Wireless wifi security camera antenna, Instrumentation , PC/LAN
• Light weight, compact and vibration proof design. Low cost commercial grade (Brass SMA). Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables and industry standard semi-rigid and conformable cables.
• Package: 10pcs SMA connectors

Using a threaded interface, the SMA 50 Ohm connectors are semi-precision units that offer excellent electrical performance ranging from DC to 18 GHz and exceptional mechanical durability. SMA connectors have a stainless steel or brass construction and ¼ - 36 threaded coupling, which offers high performance in a compact design. For phase network radars, test equipment, ILS landing systems and other instruments using phase matching techniques, SMA interconnects provide a simple and accurate way of phase adjustment for microwave devices. Built to MIL-C-39012 and CECC 22110/115, SMA connectors can be coupled to all connectors that meet the corresponding diameters of the specification, regardless of manufacturer. Features and Benefits Lightweight, compact and vibration resistant design. Low Cost Commercial Grade (SMA Brass) Terminates all standard flexible coaxial cables, low loss type (LMR) cables and semi-rigid cables and adaptable to industry standards. Applications Base Stations Antennas Telecommunications Instrumentation PC / LAN
