Eightwood DAB Aerial Car antenna Splitter Fakra Adapter AM/FM Aerial Radio Fakra GPS Roof Antenna Signal Amplifier Shark Fin Antenna with Extension Cable RG174 500cm for Car AM/FM GPS

• Shark fin active AM/FM DAB+ GPS+ car aerial. AM / FM Frequency: 522-1710KHz (AM), 87.5-108MHz (FM) | Gain: 13 ± 3 dB (AM), 16 ± 3 dB (FM) | Plug: Fakra B adapter | Cable: 5m RG174
• DAB Frequency: 170MHz-240MHz (Band III), 1452MHz ~ 1492MHz (L-band) | Gain: 18dB ± 3dB (band III), 8dB ± 3dB (L band) | Plug: Fakra A Adapter | Cable: 5m RG174
• GPS frequency: 1575.42 ± 1023MHz | Gain: 28dB ± 3dB | Plug: Fakra C Adapter | Cable: 5m RG174
• Applications: TechniSat Pioneer Panasonic AiliTech Clarion Kenwood Alpine Pure Revo Sony JVC Blaupunkt PP16DAB PP15DAB RXD10 RXD34 RXD35 RXD50 RXD120 IRD30 BD400 CLRD30

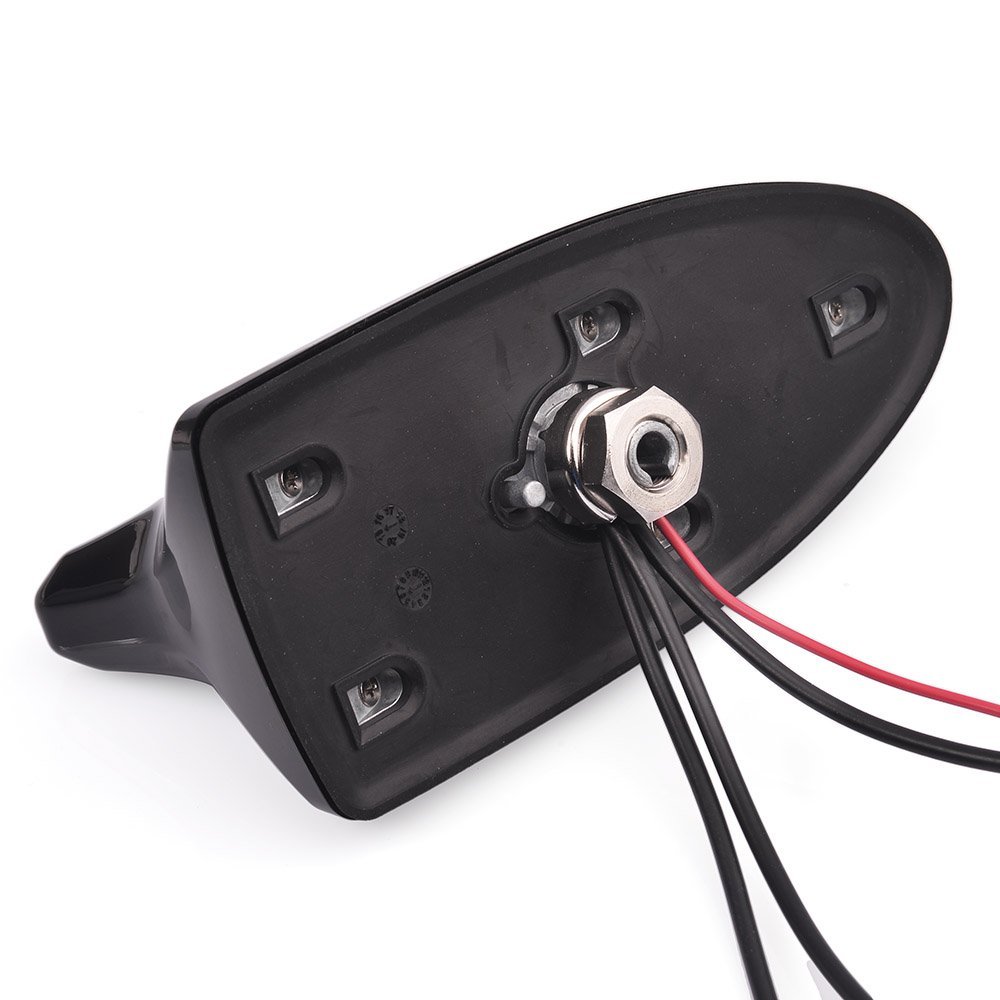

• Package: 1x antenna (power supply cable 12V + including mounting nut) | Roof installation: borehole diameter 10.5mm | Dimensions (length * width * height): 138. mm * 65mm * 63mm

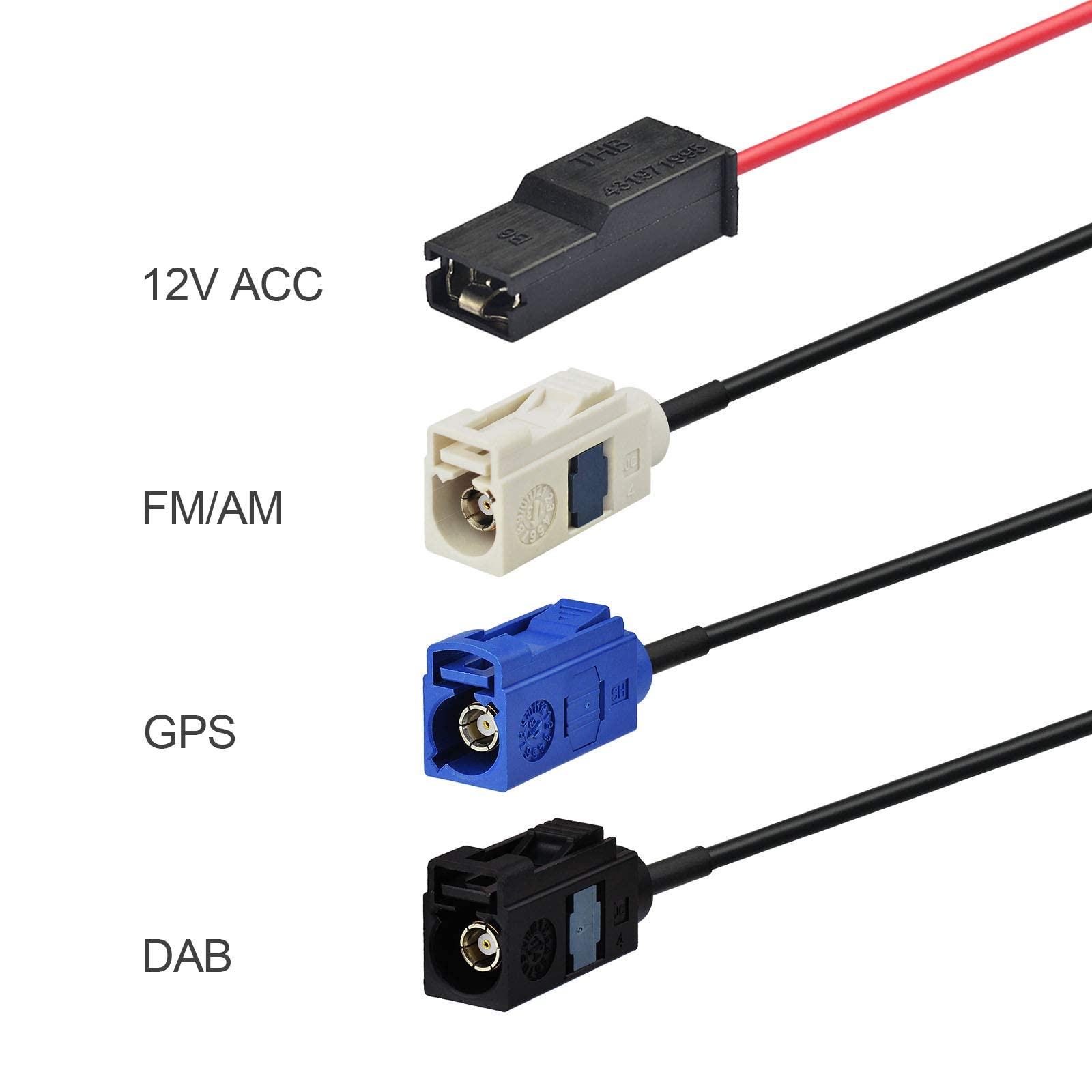

Feature: 1. Combine GPS, DAB and FM / AM antenna application. 2. Car roof by hole mounting. 3. 5 meters of antenna adapter cable and signal amplifier power cable. 4. Apply to the original navigation system and the in-dash DAB digital radio transmitter. FM / AM / DAB Radio Antennas Specification: Operating Voltage: DC 9V-16V DAB frequency: 170 MHz ~ 240 MHz (band III), 1452 MHz ~ 1492 MHz (L band) FM / AM frequency: 522 ~ 1710 kHz (AM), 87.5 ~ 108 MHz (FM) output gain : 18 dB ± 3dB (Band III), 8 dB ± 3dB (L band), 13 ± 3 dB (AM), 16 ± 3 dB (FM) Output Impedance: 50ohms Cable Length: 5 meters Cable Connector: Fakra B White Female (FM / AM Radio) Fakra A Black Female (DAB Digital Radio) GPS Navigation Antenna Specification: Operating Voltage: DC 3V -5V Frequency: 1575.42 ± 1.023 MHz Output gain: 28 dB ± 3dB Output impedance: 50ohm Cable length: 5 meters Cable plug: Fakra C Blue We iblich (GPS) Packing list: 1x antenna (including mounting nut) Roof mounting: borehole diameter 10.5mm Dimensions (length * width * height): 138.4 mm * 65 mm * 63 mm Net weight: 505g
