EDISION MULTI-FINDER, for testing Satellite DVB-S/S2, Terrestrial DVB-T/T2, Cable DVB-C signals and CCTV Testing. H265 HEVC, 7-intch LCD color Display, IR remote control., Black

• Satellite DVB-S/S2, Terrestrial DVB-T/T2, Cable DVB-C & CCTV Testing Instrument, Software Upgrade by USB & HTTP.

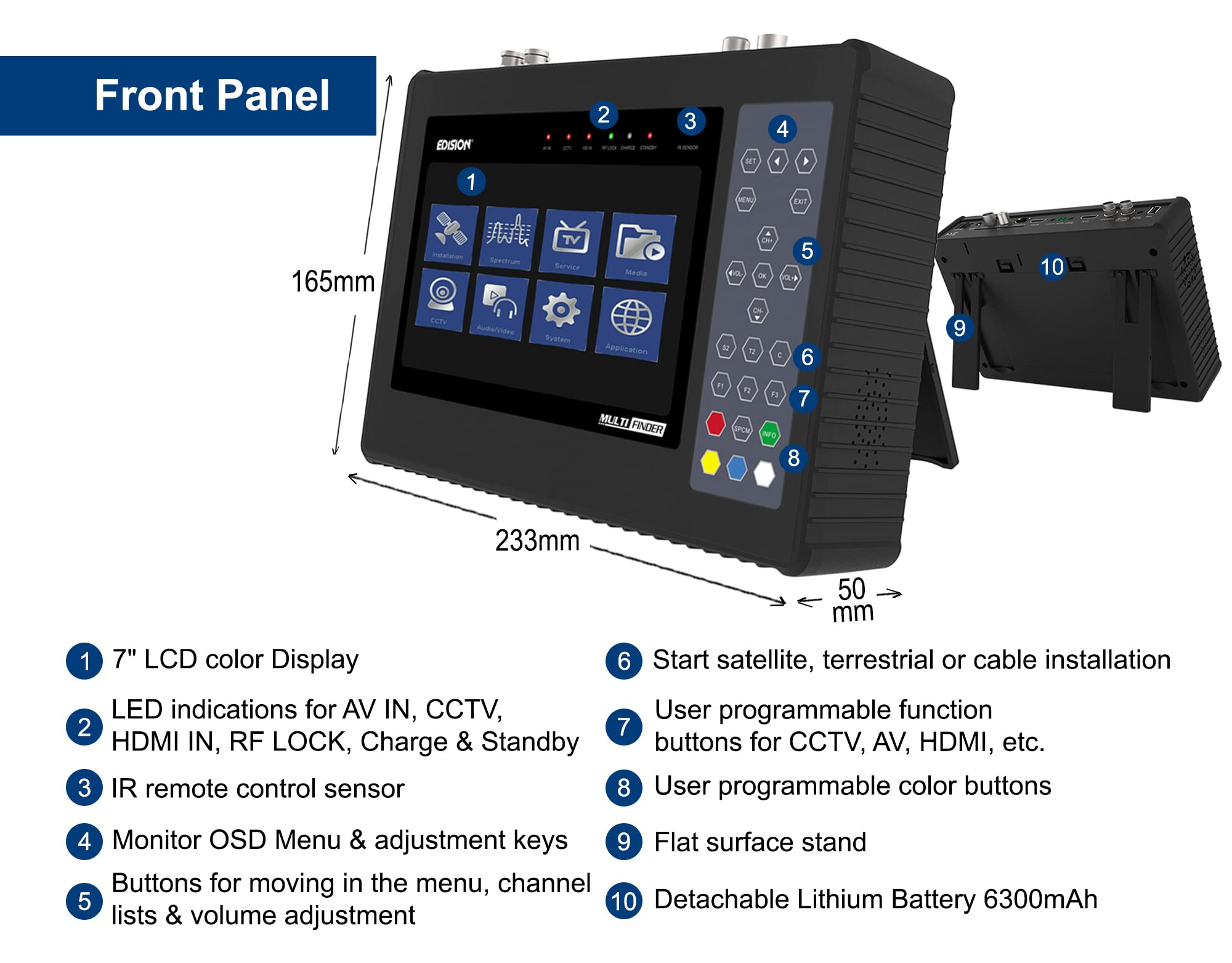

• 7" LCD color Display, HDMI & AV input/output support, Smart Card Reader
• Support for CCTV systems: AHD/TVI/CVI max.4MP & CVBS (576). RS485 PTZ Control

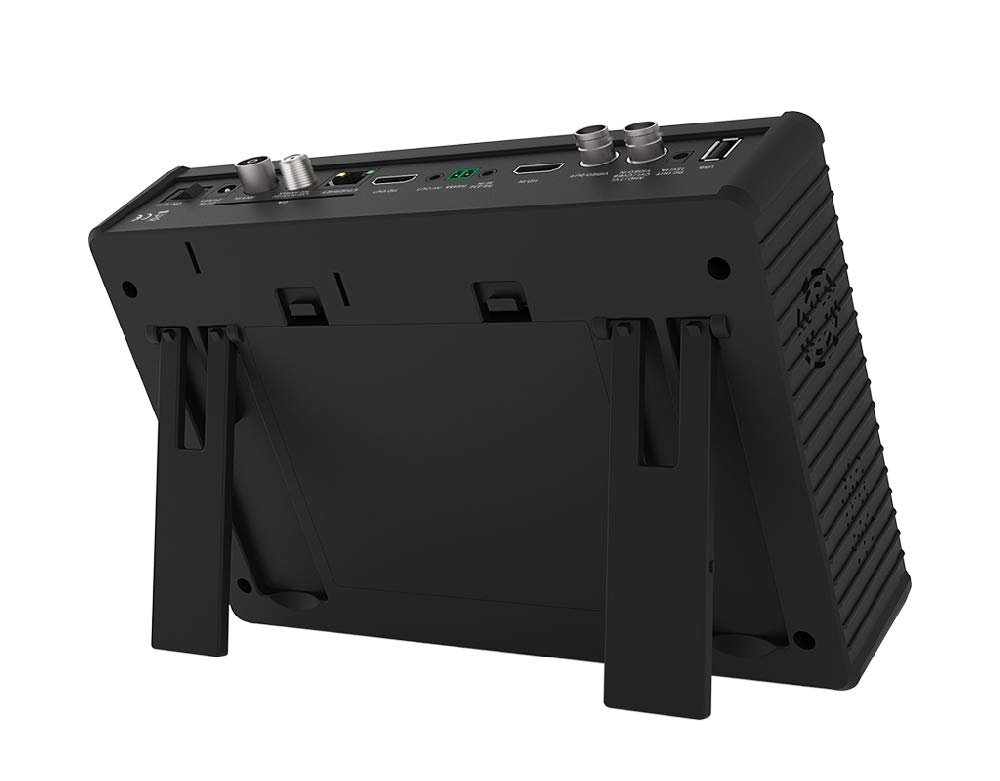

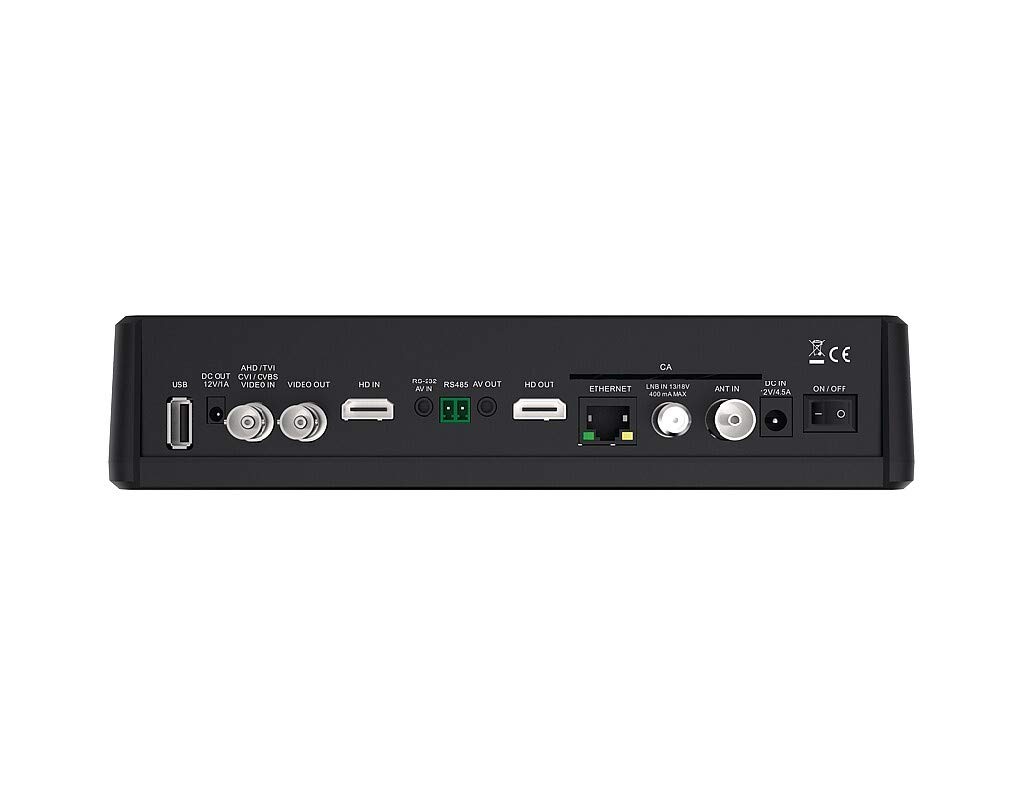

• Ports: DC IN, ANT IN, LNB IN, LAN, HD OUT, AV OUT, RS485, RS232/AV IN, HD IN, BNC OUT, BNC IN, DC OUT, USB

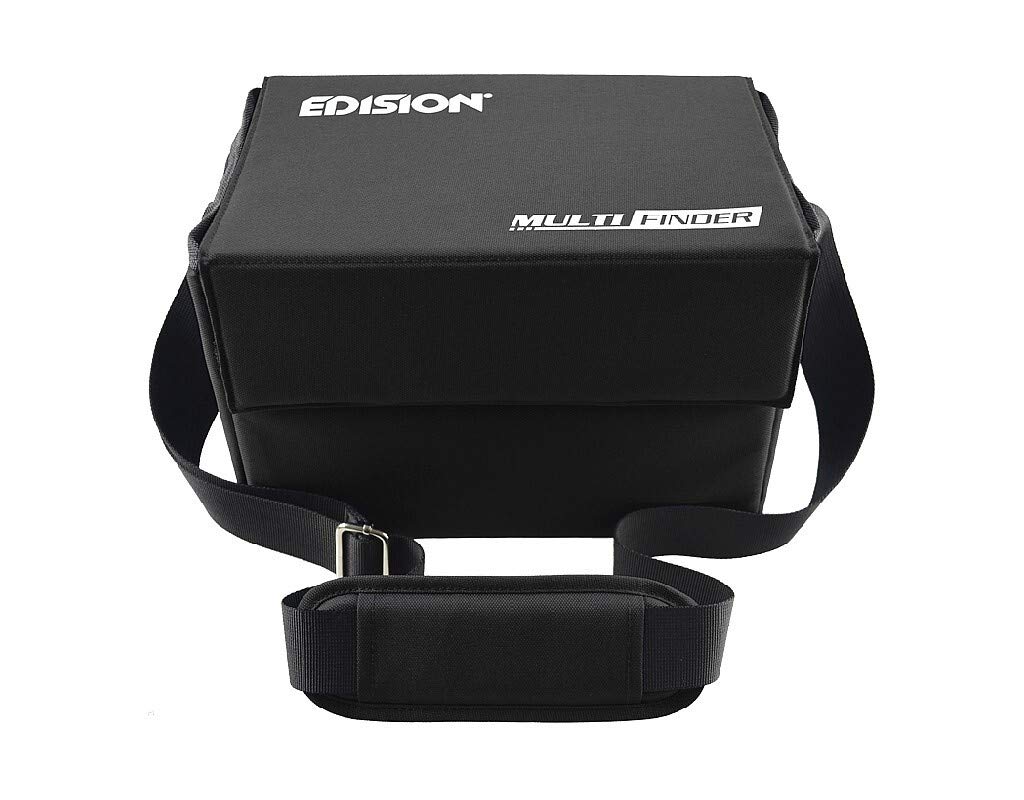

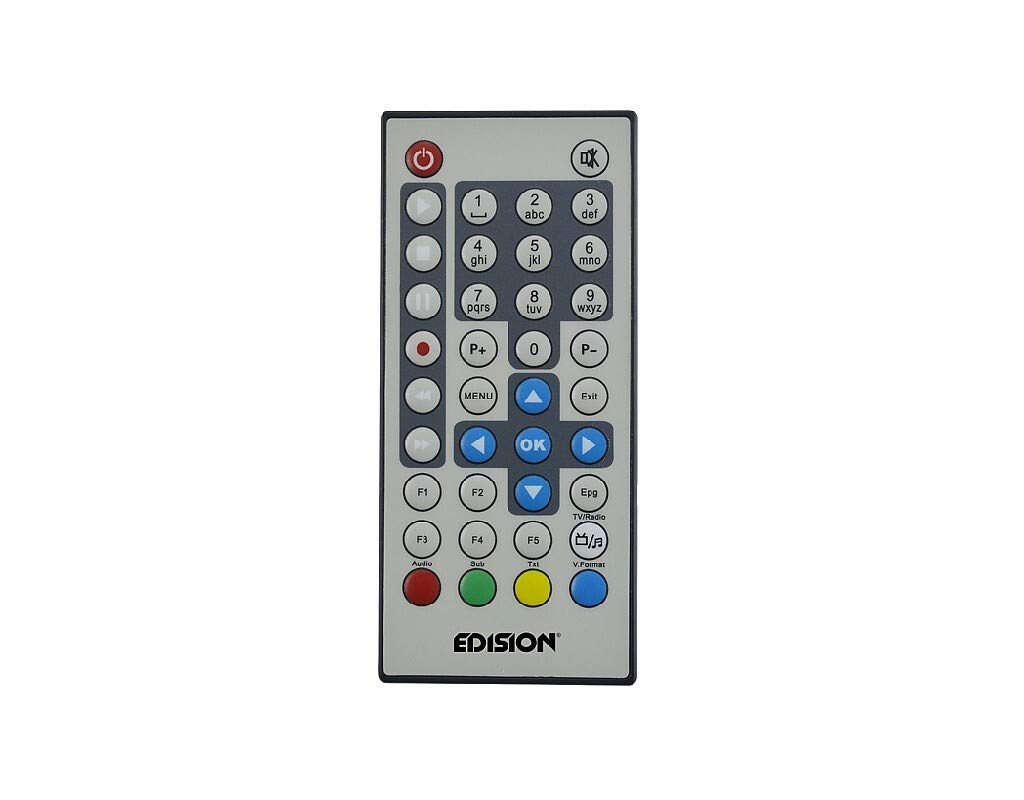

• Box contents: Edision Multi-Finder, carry case, protective case, remote control, car charger, jack to AV cable, jack to RS232 cable, BNC to BNC cable, DC out adaptor cable and power supply.

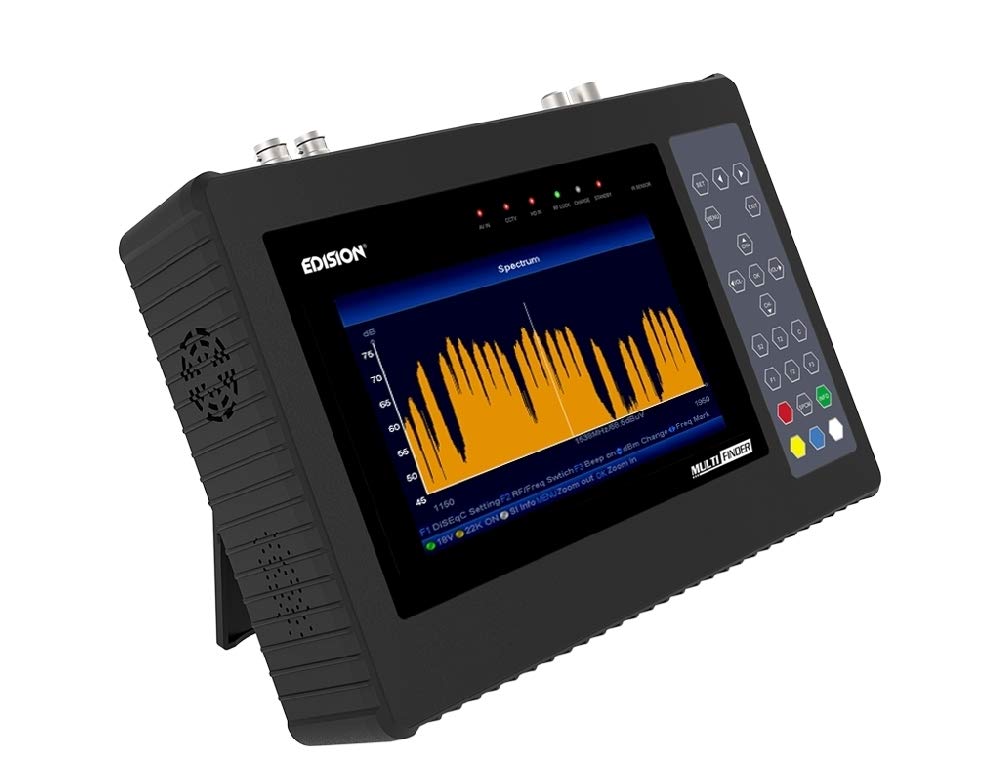

Description EDISION MULTI-FINDER is and all-around new testing instrument, designed to meet the technical needs of DVB & CCTV installations. The EDISION MULTI-FINDER is a compact, 100% portable tester for DVB-S/S2, DVB-T/T2, DVB-C and CCTV systems. It comes complete with all the necessary features for testing devices and sigls in installations, as well as for examining any problems in sigl reception and distribution. It features H.265/HEVC TV sigl decoding, HDMI IN/OUT ports, AV IN/OUT, BNC IN/OUT and RS485 for PTZ Control in CCTV systems. It covers television sigl systems using DVB-S/S2,T/T2/C digital modulations, and the most widely used CCTV sigls such as AHD/CVI/TVI/CVBS. Plus, it features detachable Lithium 6300mAh battery and it is available in a surprisingly full and affordable package, with many useful accessories included as standard! Technical features: - 7" LCD color Display - Functions: Satellite DVB-S/S2, Terrestrial DVB-T/T2, Cable DVB-C & CCTV Testing Instrument - H.265 HEVC decoding support (covered by patents listed at patentlist.hevcadvance.com) - DiSEqC 1.0, 1.1, 1.2, USALS and Unicable - Fast Spectrum Alyzer - Constellation Chart on DVB-S/S2 - Transponder Data parsing on DVB-S/S2 - Azimuth, Elevation & LNB skew tilt calculator - 6000 channels TV & Radio programmable - Favorite Channel list editing - CCTV Cameras support: AHD/TVI/CVI max.4MP & CVBS (576) - DC out support: 12V/1A - DC out for LNB power and testing active dipols and amplifiers - RS485 PTZ Control - HDMI & AV input/output support - Display Buttons with quick access function - Detachable Lithium Battery 6300mAh - USB Wi-Fi Support - Apps: YouTube, RSS Reader, Weather Forecast, WEB-TV - Ports: DC IN, ANT IN, LNB IN, LAN, HD OUT, AV OUT, RS485, RS232/AV IN, HD IN, BNC OUT, BNC IN, DC OUT, USB - Smart Card Reader - Software Upgrade by USB & HTTP Package includes: - Multi-Finder - Users Guide EN/DE/GR - Transportation bag - Protective Bag - Remote Control - Car Charger - Jack to AV Cable - Jack to RS232 Cable - BNC to BNC Cable - DC-OUT Adaptor Cable - PSU General: - Dimensions: 233mm x 165mm x 50mm - Weight: 2 kg - Color: black
