EDISION 3in1 Pro HDMI Modulator, Terrestrial DVB-T, ISDB-T or Cable DVB-C, Full HD Distribution via Coaxial, HDMI-Loop, RF IN, LCD Display, Quick Configuration, Plug & Play

• Digital HDMI Modulator with 3 selectable modulation output signals (DVB-C, DVB-T, ISDB-T), HDMI loop-through function, IR control over coaxial ready through the embedded IR Transmitter
• Input signal: 1x HDMI / Output signal: Cable DVB-C, Terrestrial DVB-T or ISDB-T or MPEG4, Video support up to Full HD 1080p 60FPS
• Frequency range DVB-C: 47-862 MHz / DVB-T: VHF (CH.5-12) & UHF (CH.21-69) / ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
• Top quality of the modulator MER >35 dB, adjustable output signal level, Default 90dbµV, Fast Pre-Config Function 50 ID’s Selectable, LCD Display with Standby function

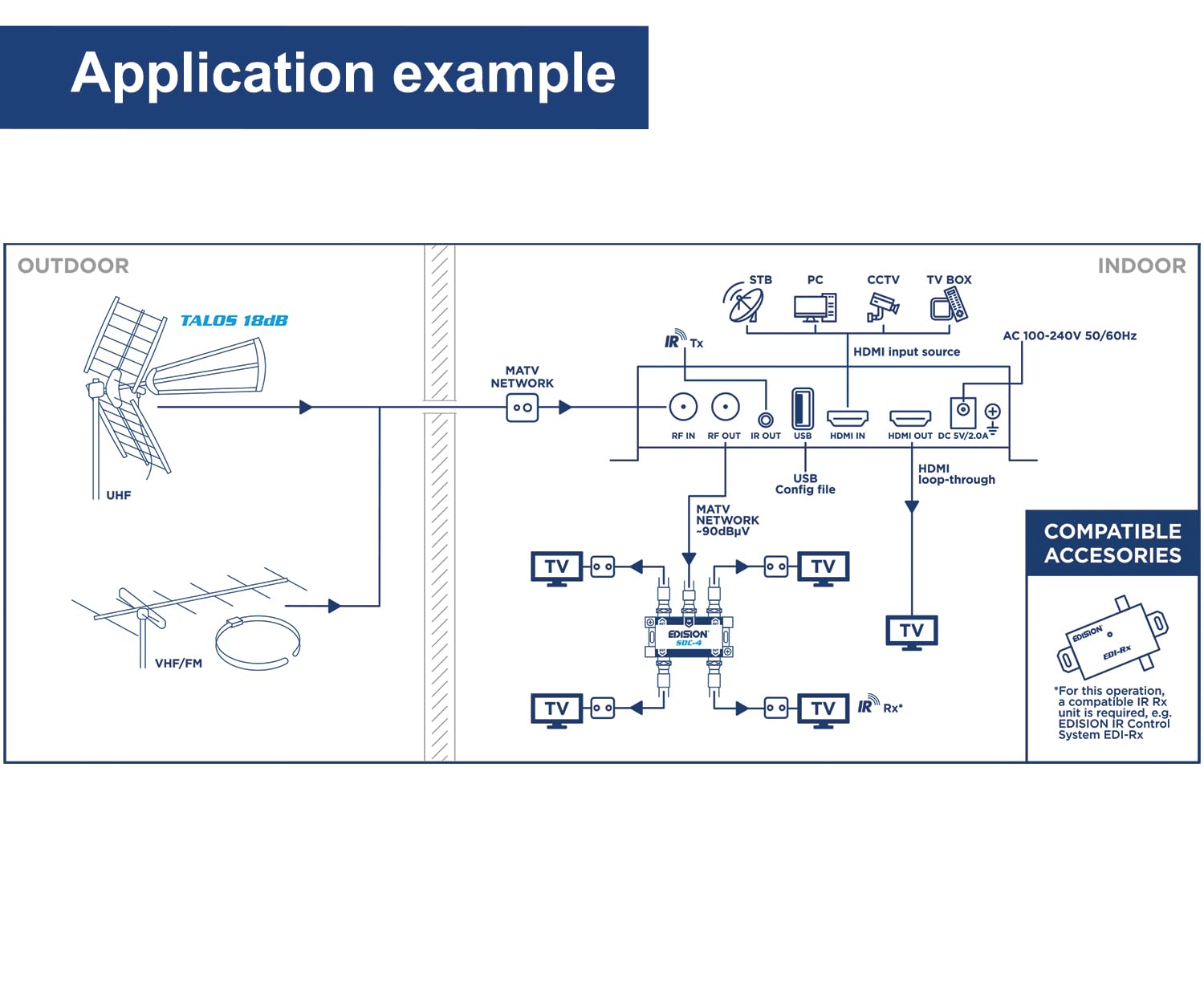

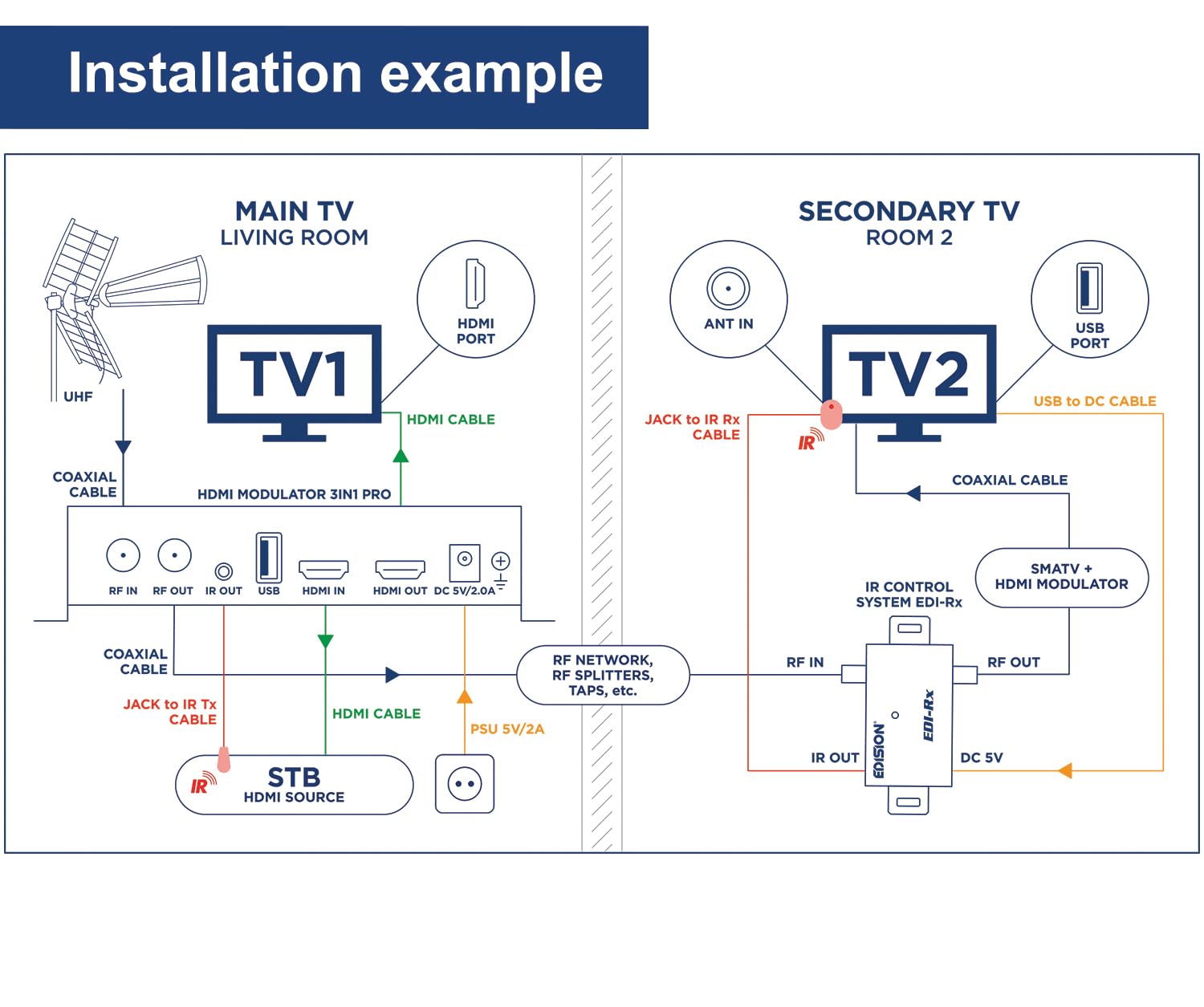

• Distribution via coaxial cable, Suitable for Distribution systems such as hotels, supermarkets, betting offices, sports cafes, bars, restaurants, fitness studios, hospitals or home users who want to feed their surveillance camera (CCTV) into the existing distribution network

Digital single channel HDMI modulator with HDMI loop-through function and embedded IR Transmitter. HDMI signal input from any HDMI source (Satellite Receiver, TV Box, CCTV, DVD, Digital Signage, etc.) can be converted up to FULL HD 1080p Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4 signal output, in VHF or UHF band. Produces excellent quality signal output, combined with reliable, easy and fast configuration with the LCD Display and stable operation in any installation scheme.
