EC360® BLUE 5W/mK Thermal Pad (100 x 100 x 4,0 mm)

• GOOD THERMAL CONDUCTIVITY: EC360 BLUE are the premium variant of our all-round silicone thermal pads. At 5 W/mK they conduct heat 180 x better than air.
• BRIDGE GAPS: The thermal pads are the perfect gap filler and seamlessly bridge surface irregularities.
• EASY INSTALLATION: They are self-adhesive and can be adjusted at any time, which makes them suitable for beginners.
• SAFE HANDLING: Electrically insulating and non-capacitive. No risk of short-circuiting.

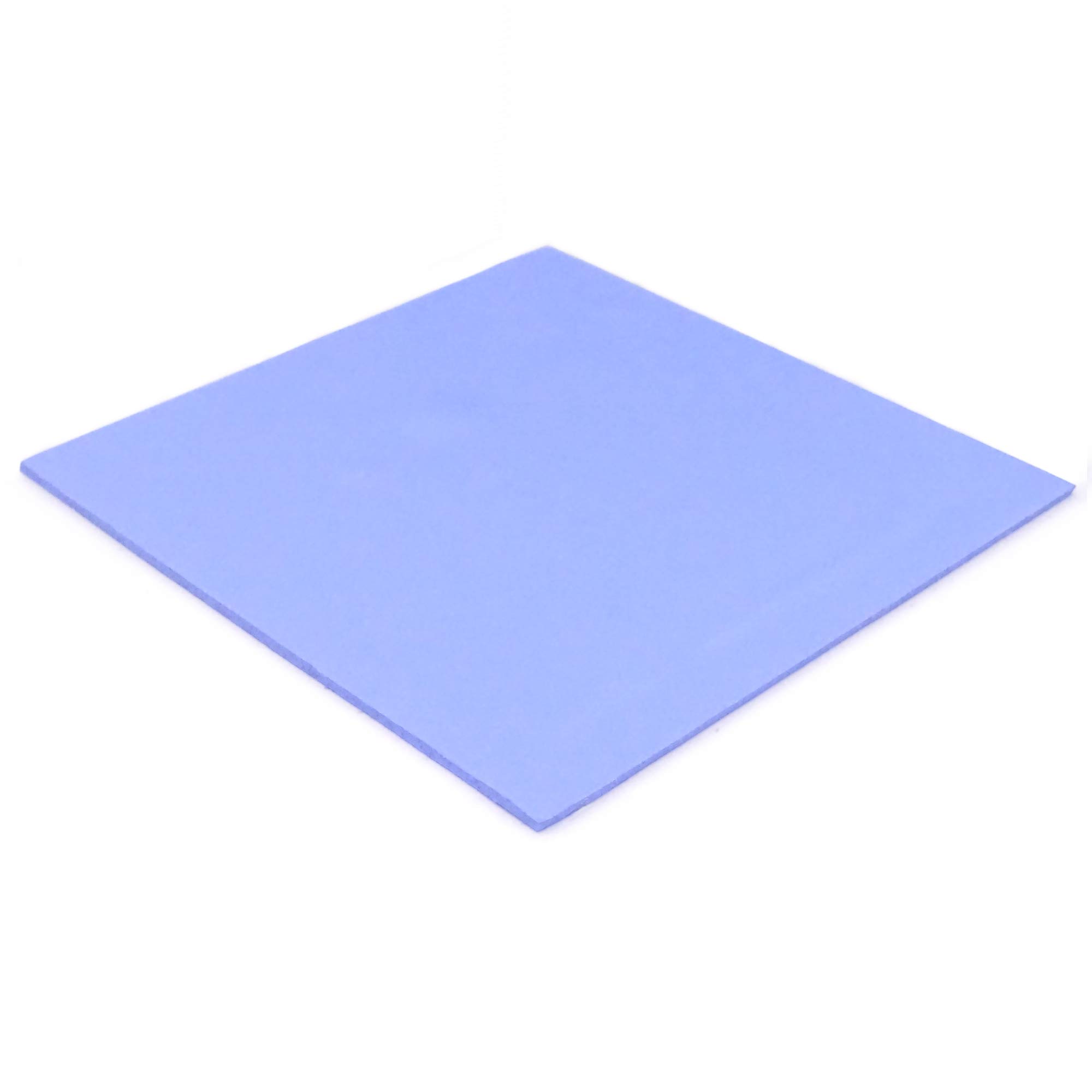

• SIZE: 100 x 100 x 4,0 mm. Perfect for use with memory chips and electronic components. Easy to trim, for example with a scissor.

The EC360 BLUE series presents silicone-based thermal pads with the best price-performance ratio regarding thermal conductivity. It features the highest thermal conductivity for our silicone-based thermal pads of 5 W/mK and is suitable for a variety of applications including GPUs(that are cooled by thermal pads), memory chips and other electrical components. It is the perfect solution for heat-transfer in adverse surface conditions when the use of thermal paste is unsuitable. Being based on silicone, they have good elasticity and compression abilities. This means this type of thermal pad will spring back into its original form even after longer periods of compression and perfectly adapt to any tiny surface irregularity. Installation Recommendation: Clean surfaces from dirt and other possible residue. If applicable, isopropyl 90% alcohol is recommended to ensure a clean surface. Remove one of the protective layers and place the exposed side of the thermal pad facing the surface of the chip. Once positioned gently press on it to make it stick. Remove the second protective layer and install the heatsink.
