Eboxer Raspberry Pi Expansion Board Raspberry Pi HIFI DAC+ HD Audio PCM5122 24-bit Expansion Board for Raspberry Pi 3 Model B / 2B /B+/A+/ Raspberry Pi Zero W

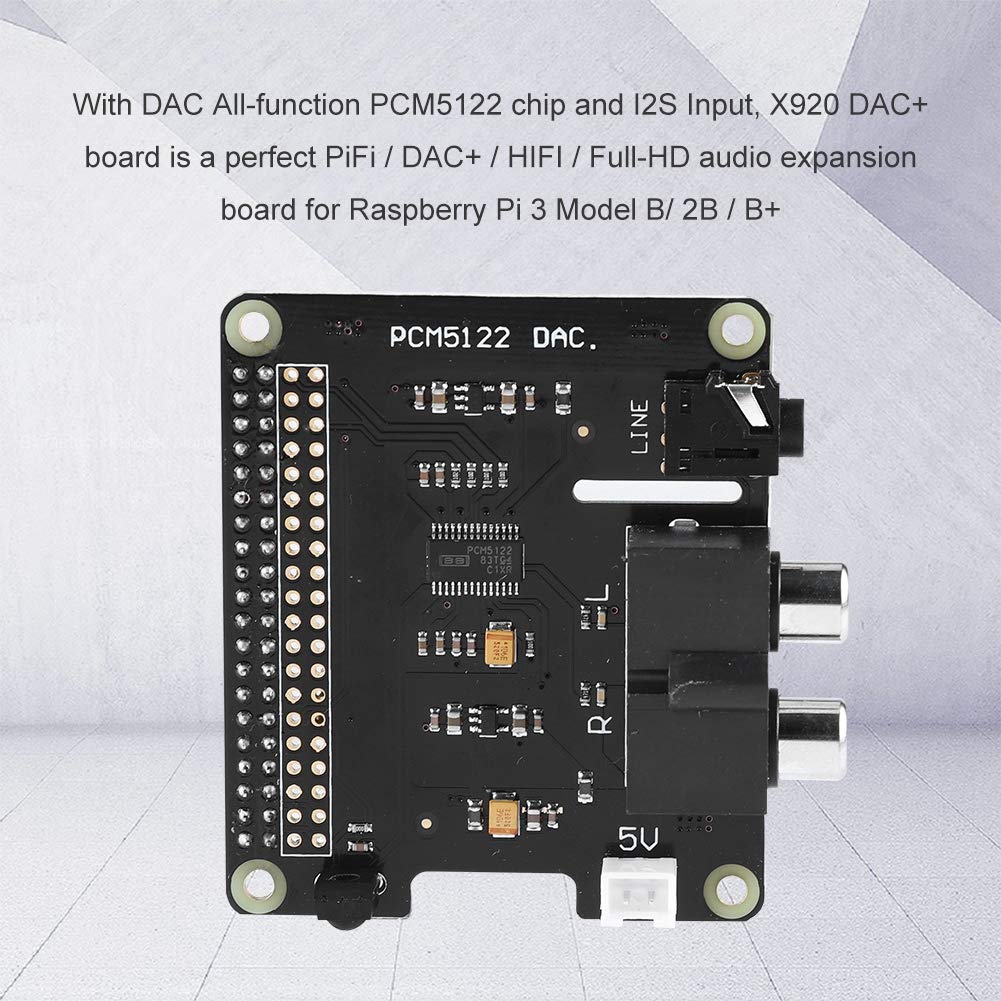

• With DAC All-function PCM5122 chip and I2S Input, X920 DAC+ board is a perfect HiFi / DAC+ / HIFI / audio expansion board for 3 Model B/ 2B / B+;

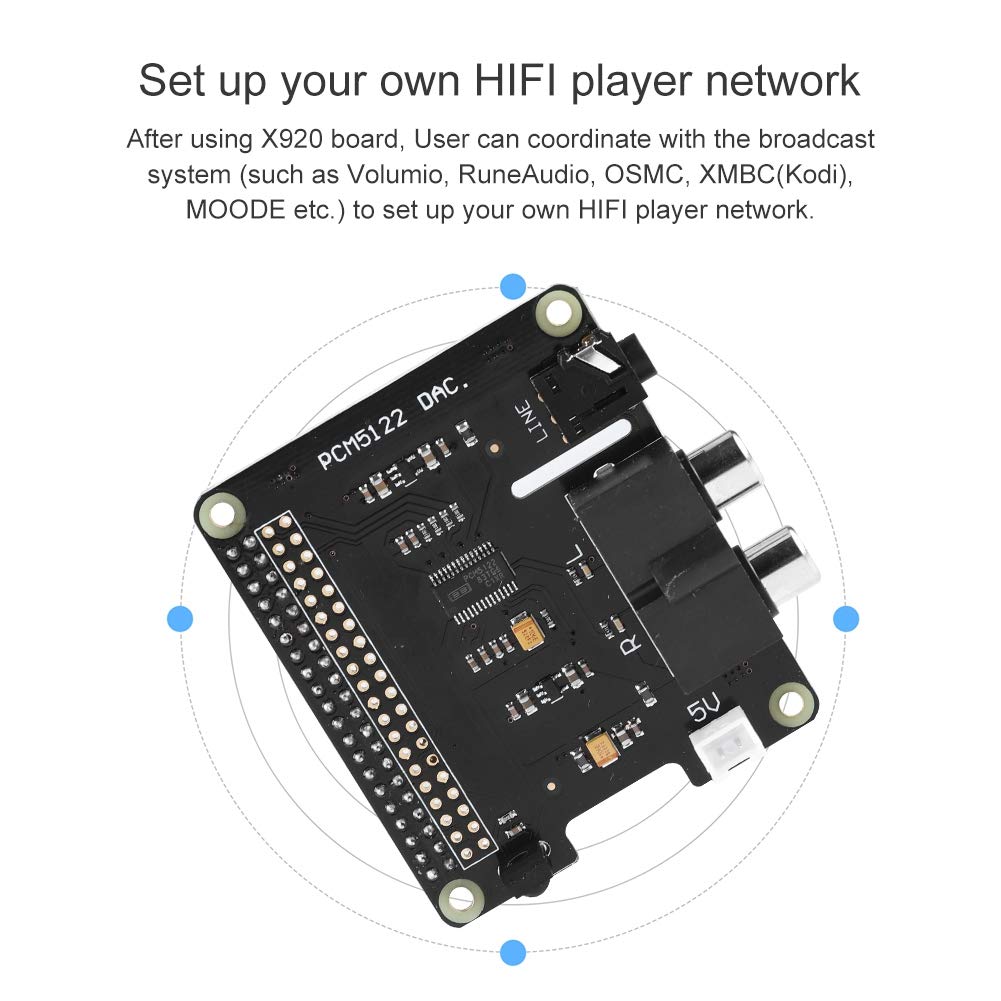

• After using X920 board, User can coordinate with the broadcast system (such as Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc.) to set up your own HIFI player network.

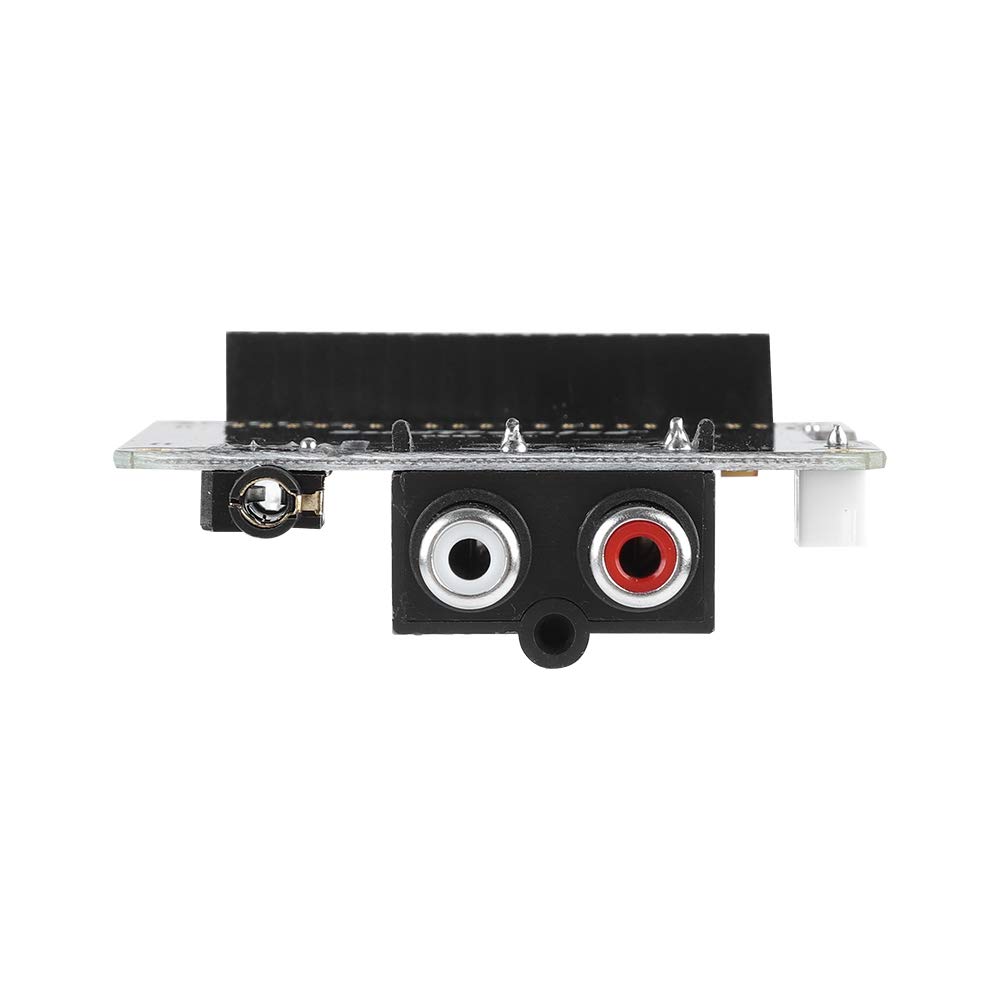

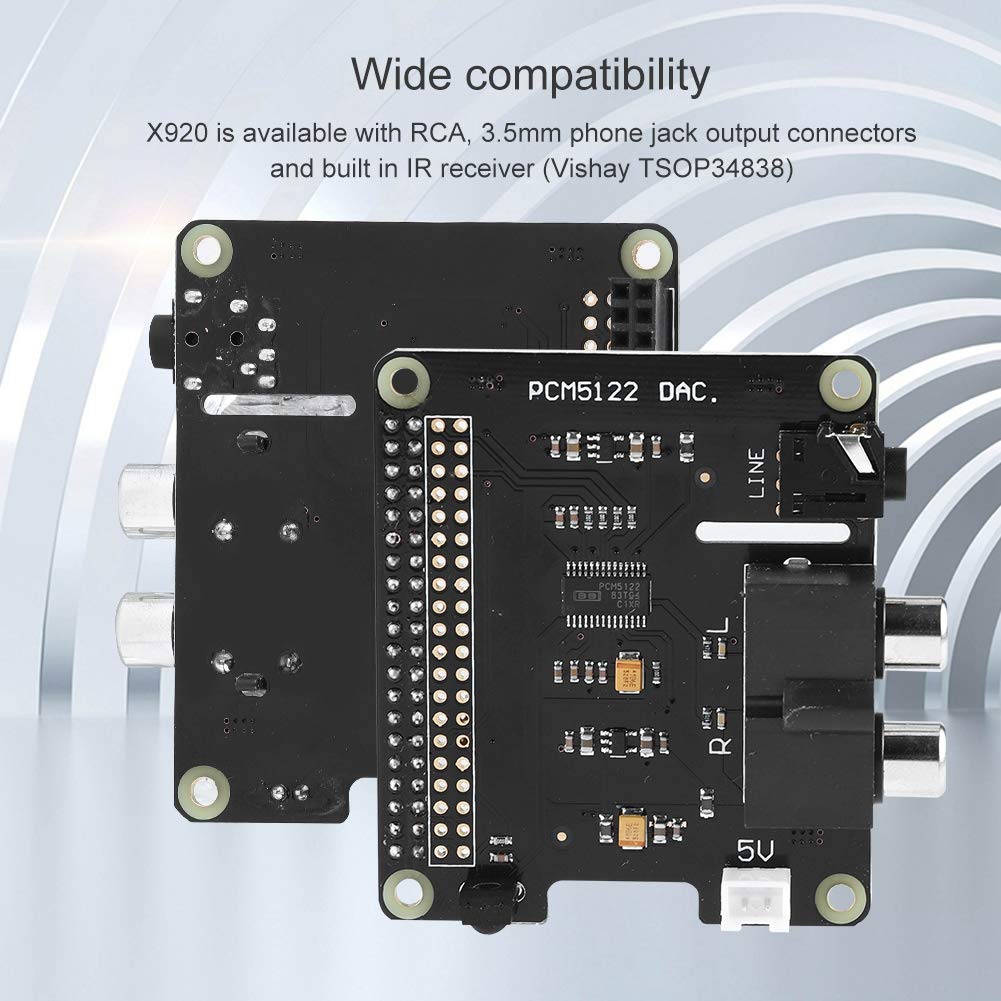

• X920 is available with 3.5mm phone jack output connectors and built in IR receiver (Vishay TSOP34838);

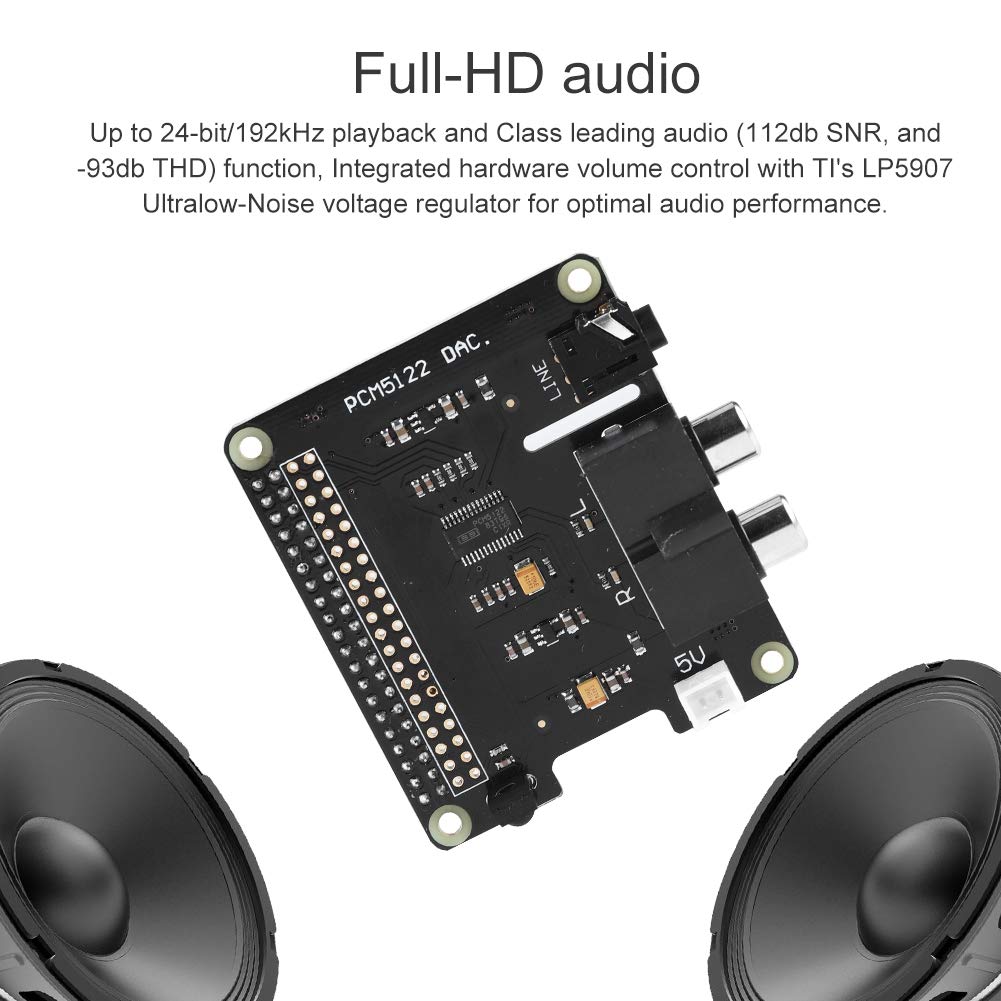

• audio up to 24-bit/192kHz playback and Class leading audio (112db SNR, and -93db ) function, Integrated hardware volume control with TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance.

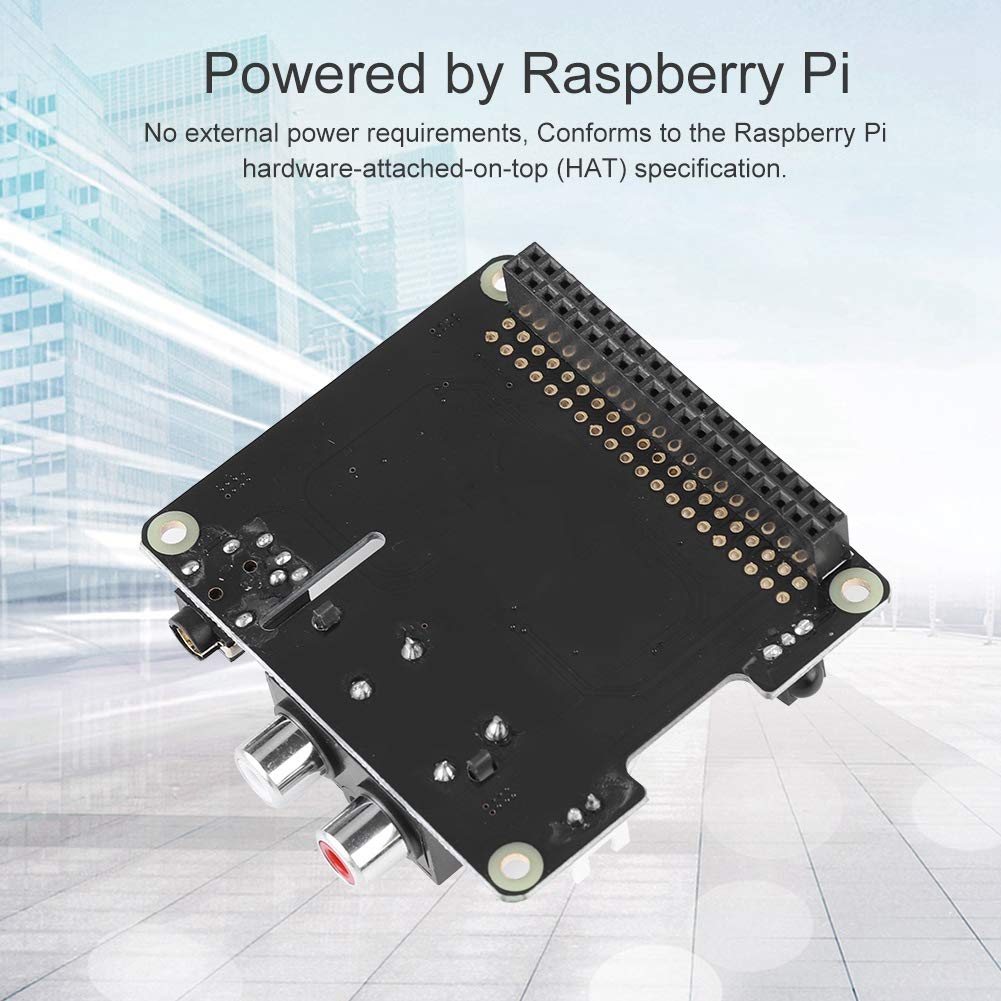

• Powered by , no external power requirements, Conforms to the hardware-attached-on-top (HAT) specification.

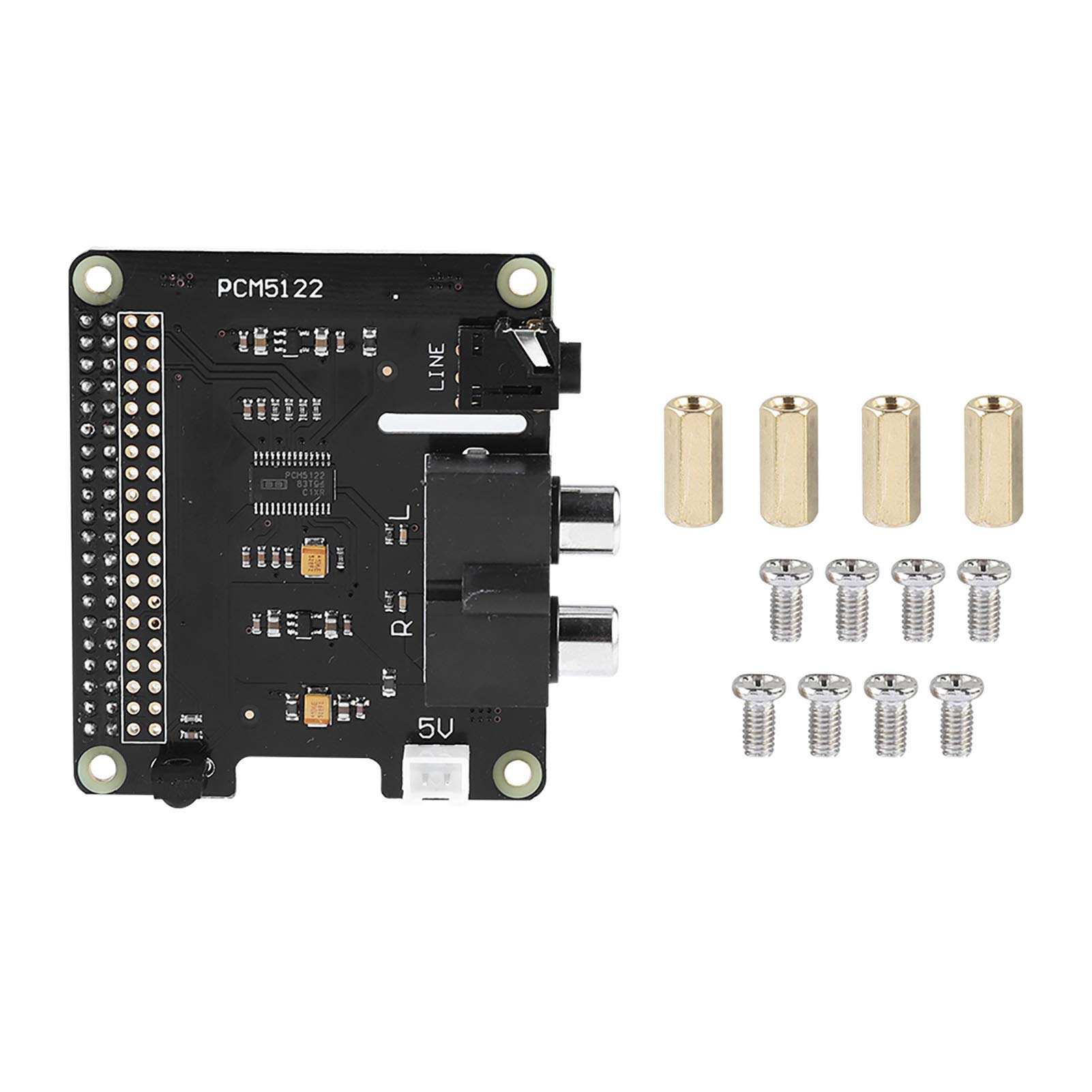

Specification: I2S Input (LRCK - GPIO19, BCK - GPIO18, DATA - GPIO21, GND) Output Ports: 1 x 3.5mm phone jack, 2 x connectors Analog audio output level: 2.0VRMS Resolution/Sampling Rate: upto 24bit / 192KHz ( I2S) IR receiver: GPIO17, 38KHz Operating System: Moode Audio Player, OSMC, Openelec, Raspbian Jessie, Volumio, Pi Core Player, RuneAudio Support: Volumio, RuneAudio, OSMC, XMBC(Kodi), MOODE etc. audio: up to 24-bit/192kHz playback Built in audiophile TI Burr Brown DAC (TI PCM5122) Class leading audio: 112db SNR, and -93db Integrated hardware volume control TI's LP5907 Ultralow-Noise voltage regulator for optimal audio performance Built in IR receiver :Vishay TSOP34838) Available with and 3.5mm phone jack output connectors Powered by , no external power requirements Conforms to the hardware-attached-on-top (HAT) specification Access to GPIO pins on HAT Packing List: 1 x Expansion Board
