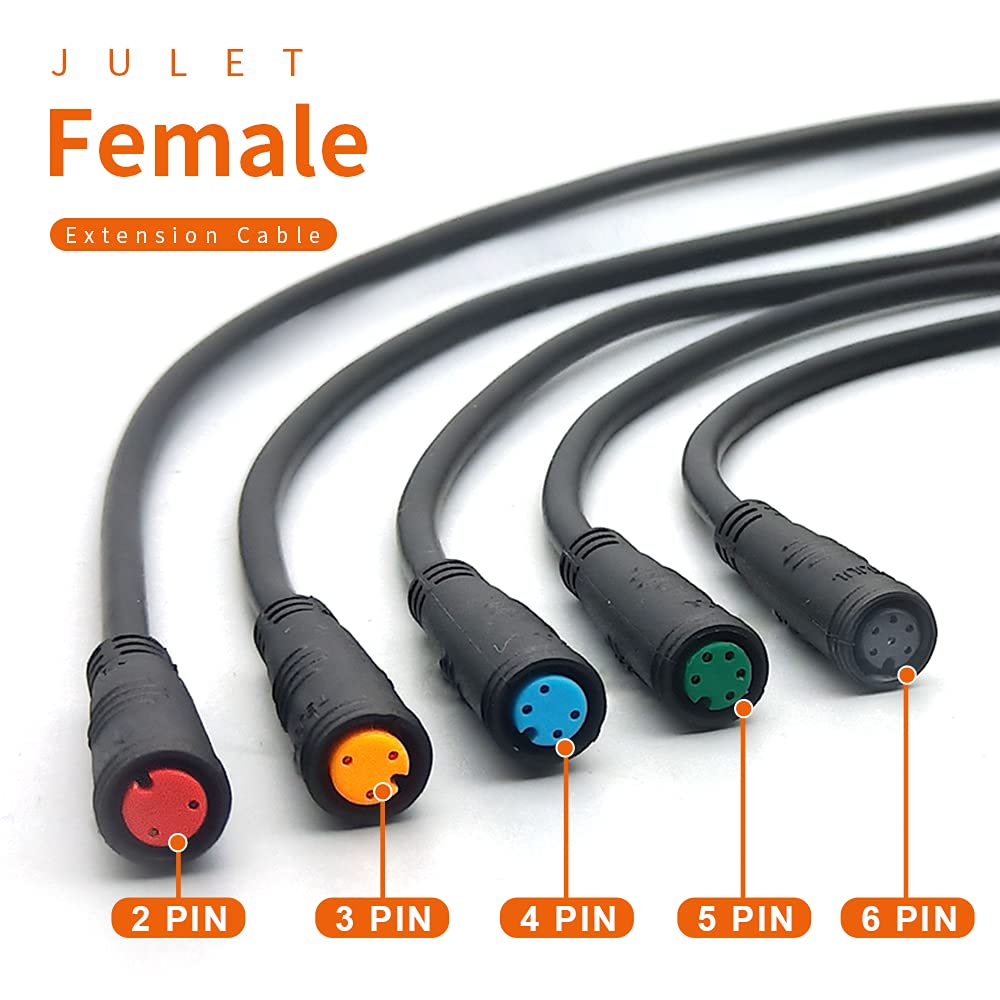

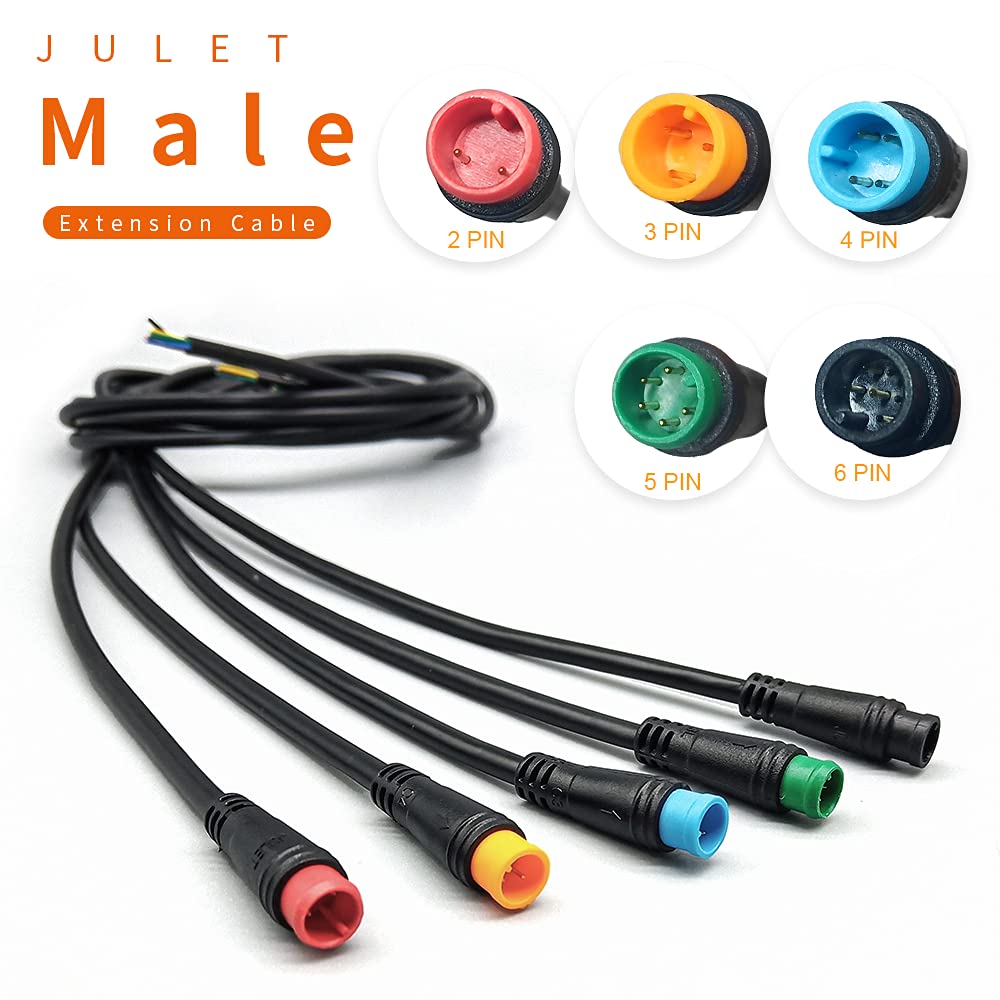

HUDAMZKY Ebike Cable Extension - Julet Female/Male 2/3/4/5/6 Pin Connector, Waterproof Plug for Electric Bicycle Display/Throttle/PAS Ebike Parts, Extend Cable (6Pin Male)

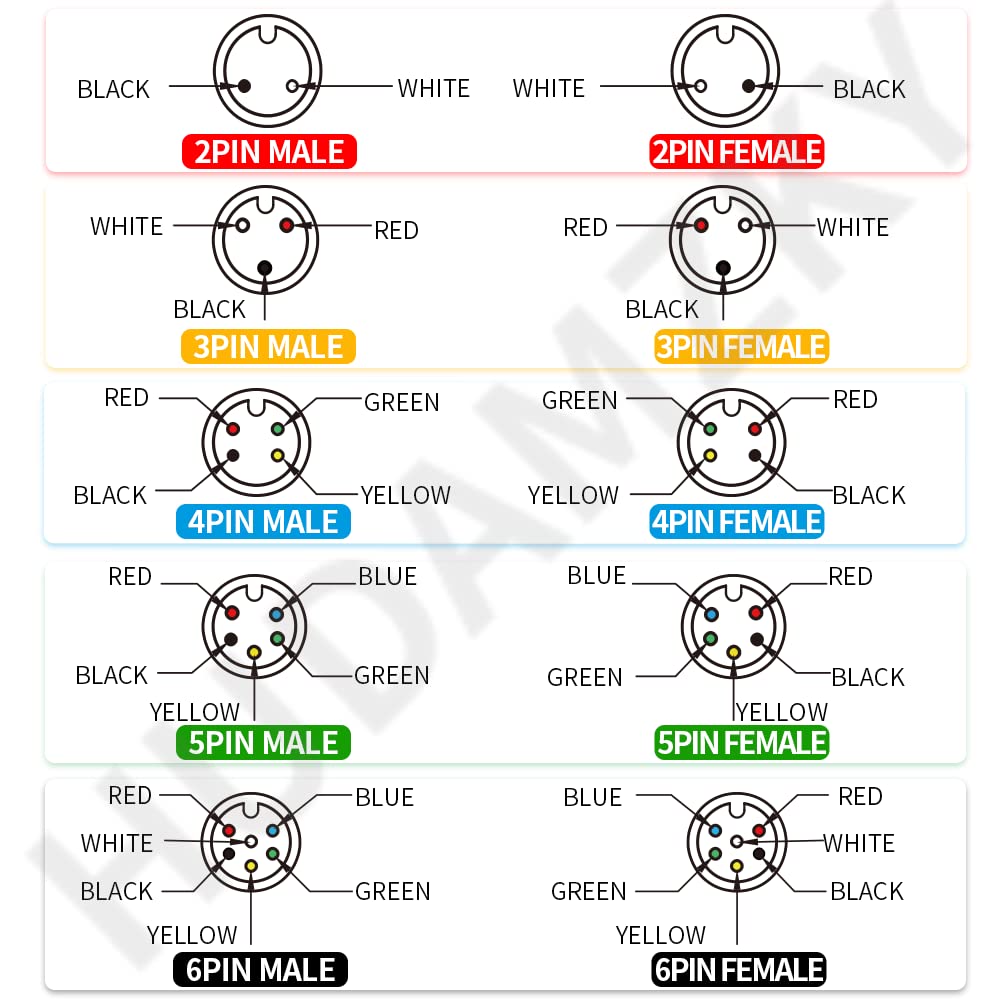

• The single-head waterproof signal line is divided into male and female connectors, and the other end is the signal line of the corresponding color, which can be used according to the drawing.
• There are 2Pin/3Pin/4Pin/5Pin/6Pin Connectors with Multiple Specifications to Make Your Modification Easier

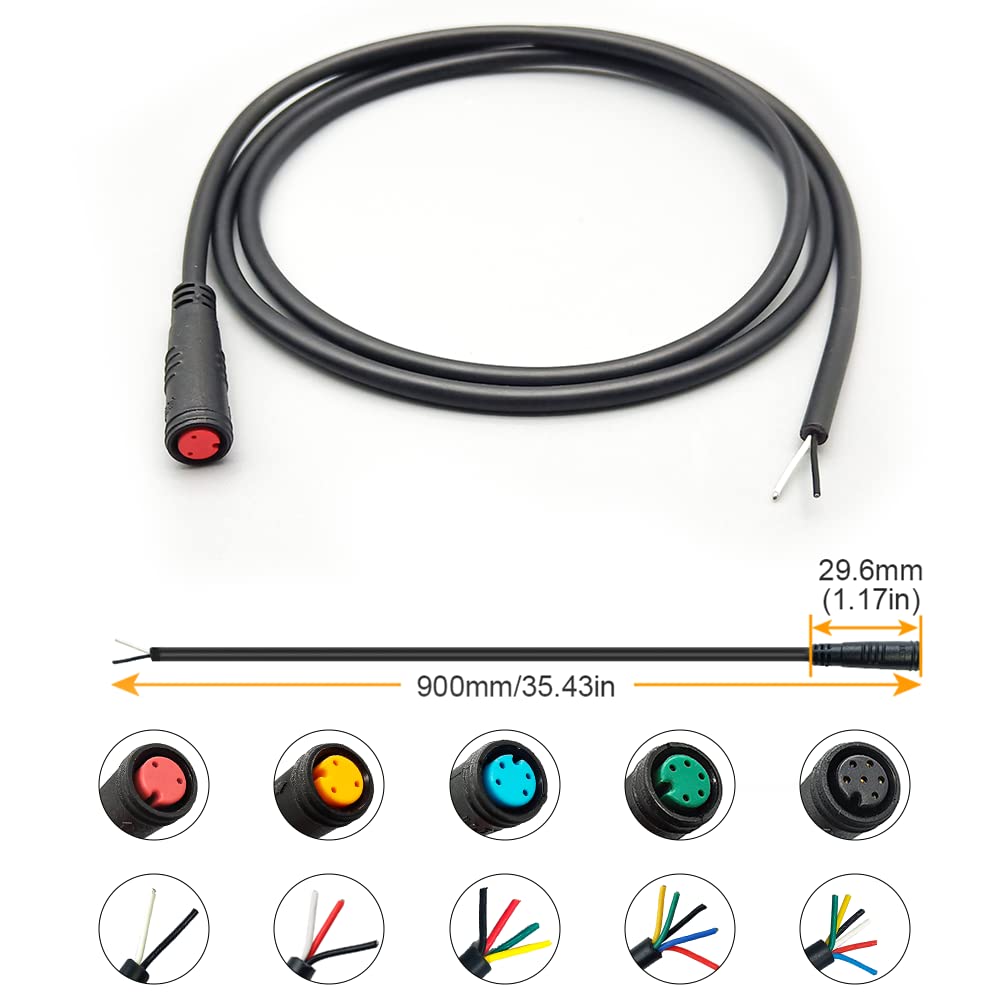

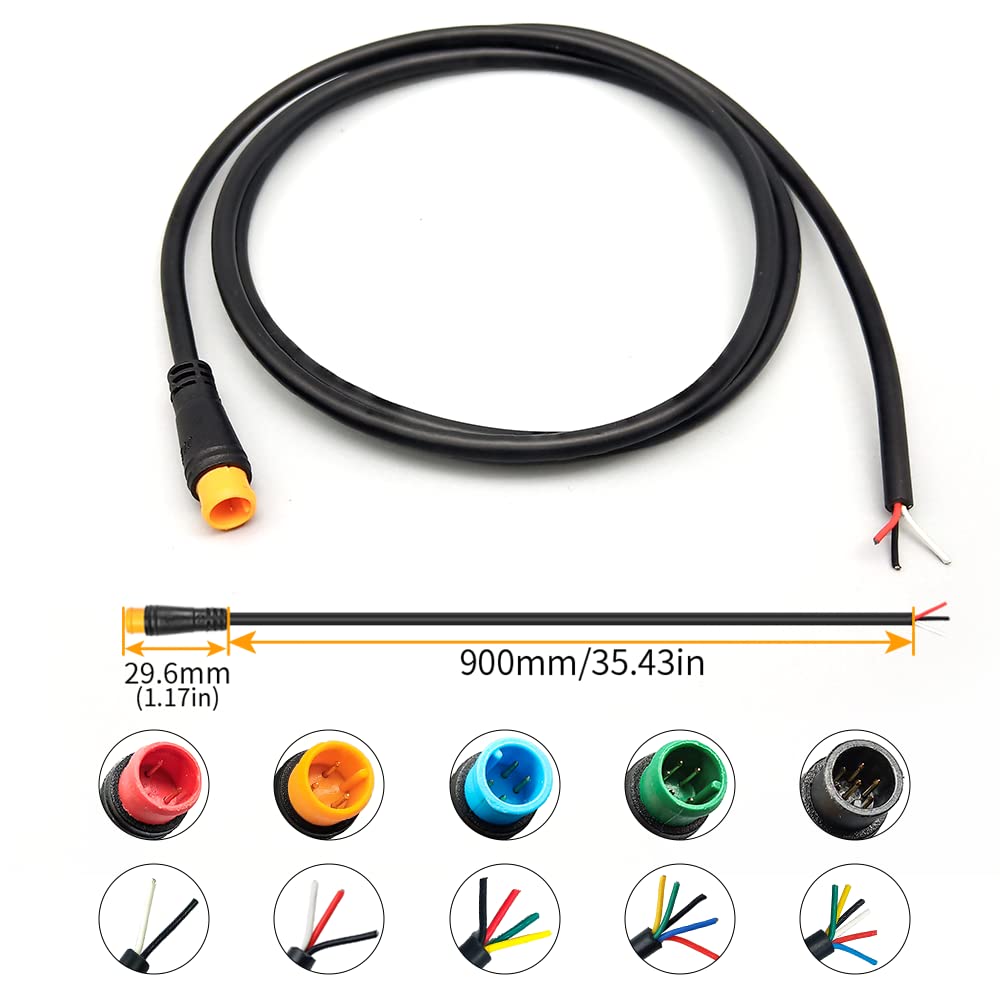

• The 900 mm cable length is enough to modify the lights, displays, Ebreak and throttle on electric bicycles, electric motorcycles or electric scooters
• Waterproof grade IP66, when the cable is exposed, you don't have to worry about short circuit or water ingress. It can be used perfectly in rain and snow
• It Can Be Used not Only On Electric Bicycles, But Also Where You Need to Use Signal Cables in DIY Can Meet Your Needs.

Note: If you need to connect and use, please purchase a male bus Parameter: Product model: JL-F-Z209AT.Z309AT.Z409AT.Z509AT.Z609AT Specification: Male (2pin/3pin/4pin/5pin/6pin extension cable) Female (2pin/3pin/4pin/5pin/6pin extension cable) Temperature range: -40℃～+85℃ Rated voltage: 200V AC Rated current: 3A (determined by the cable according to the specific situation) Contact resistance: ≤10mΩ Insulation resistance: ≥10MΩ under normal and humid conditions Withstand voltage: AC 200V 50Hz no breakdown or flicker for 1 minute Contact: Copper alloy tinned/gold plated Protection level: IP66 Mechanical life: 200 times Maximum outer diameter: 9mm Total length: 900mm Use wire specifications: 0.05mm-0.2mm 2 Application: Power and signal transmission of electrical and electronic equipment (Light/Throttle/Ebrake/Display) Packing list: Single head waterproof signal cable*1pcs
