eBike Electric Bike (With SW900 Display)

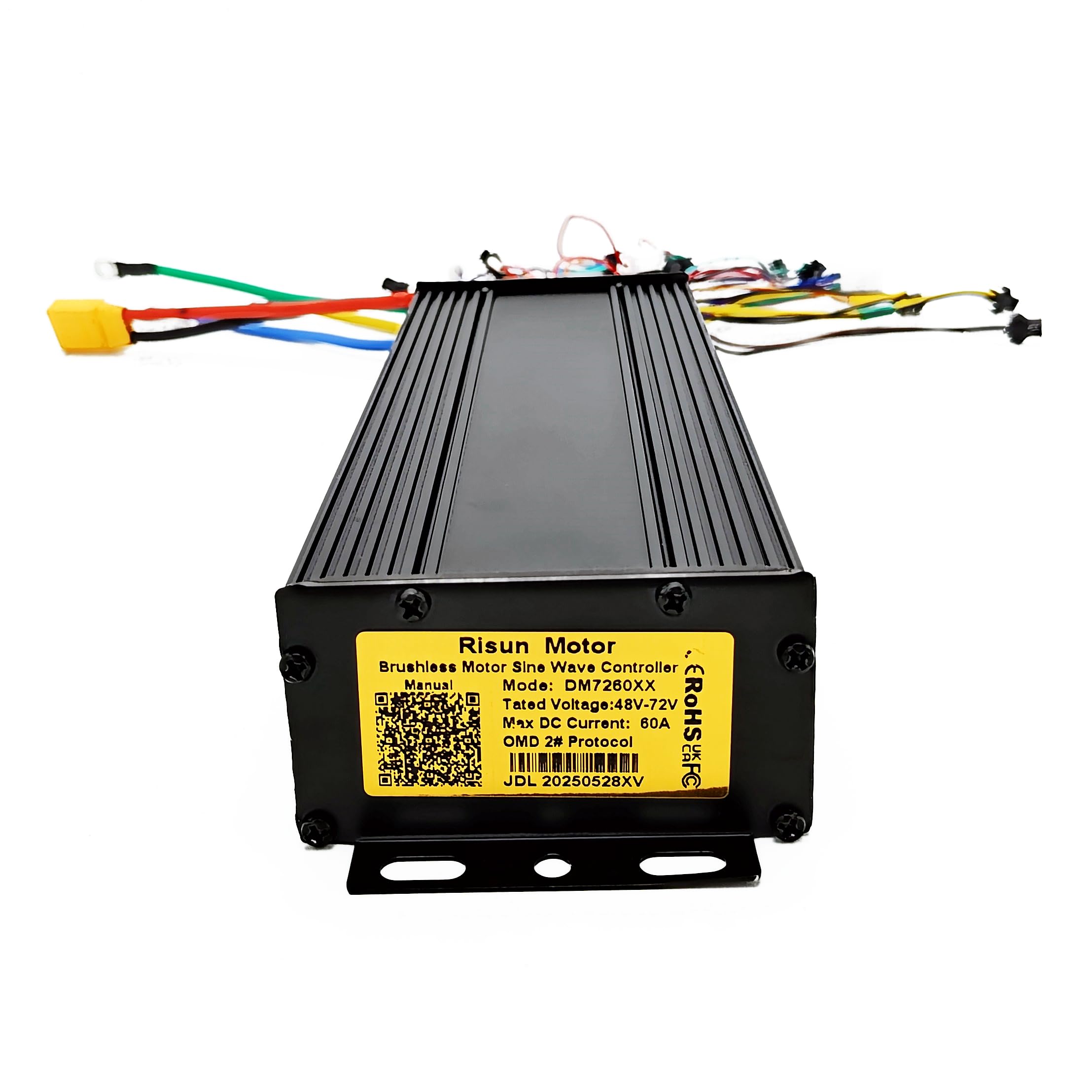

• POWERFUL & VERSATILE：With a wide voltage range of 48V - 72V and power output from 3000W, plus a 60A current and 18MOSFET design, this sine wave intelligent controller delivers high - performance for eBikes, ensuring smooth rides and efficient operation.

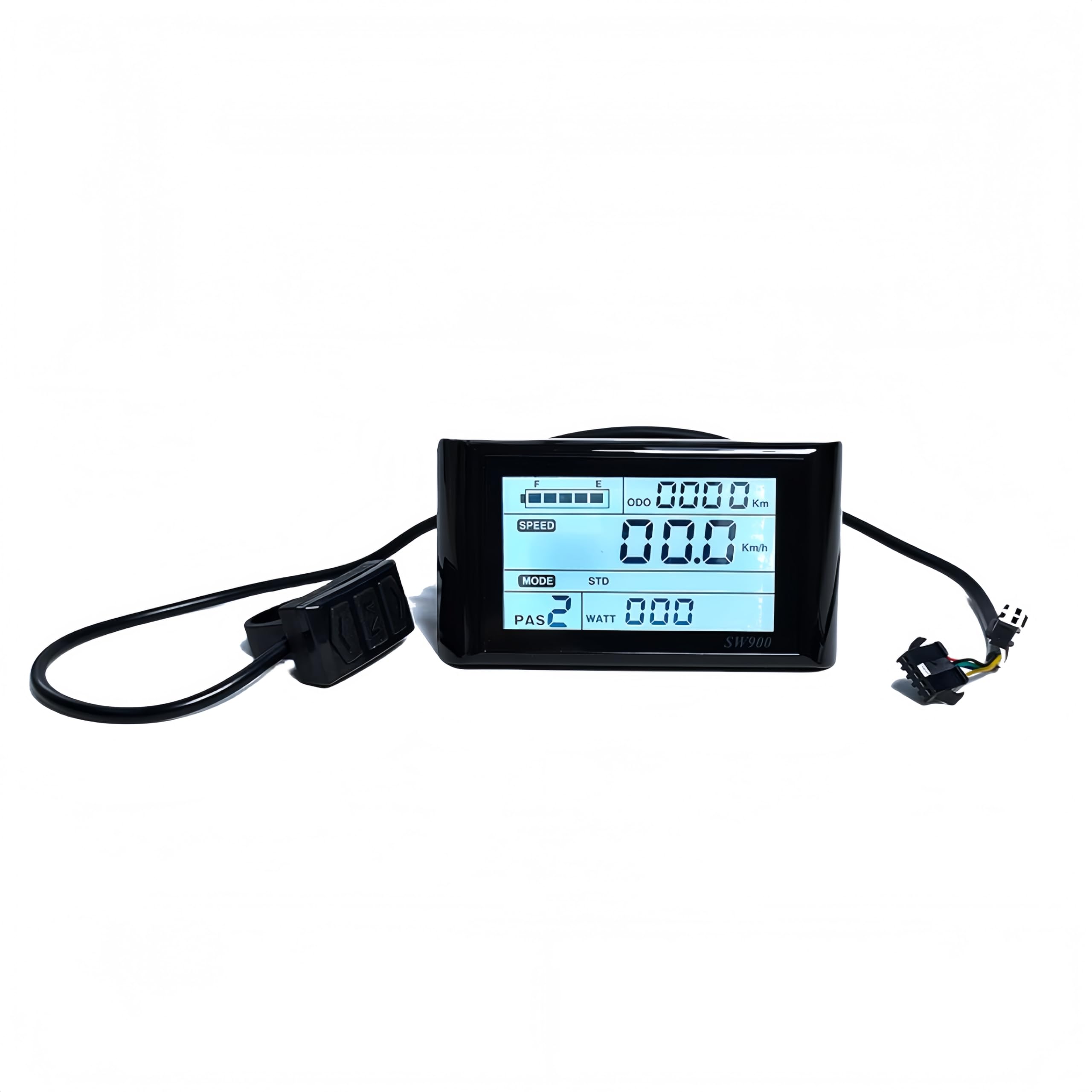

• DISPLAY COMPATIBILITY：Exclusive to work without display or with our provided UKC1 Colorful Display, SW 900 Display, or SW 900 Colour Display. Avoid using other displays due to program differences.

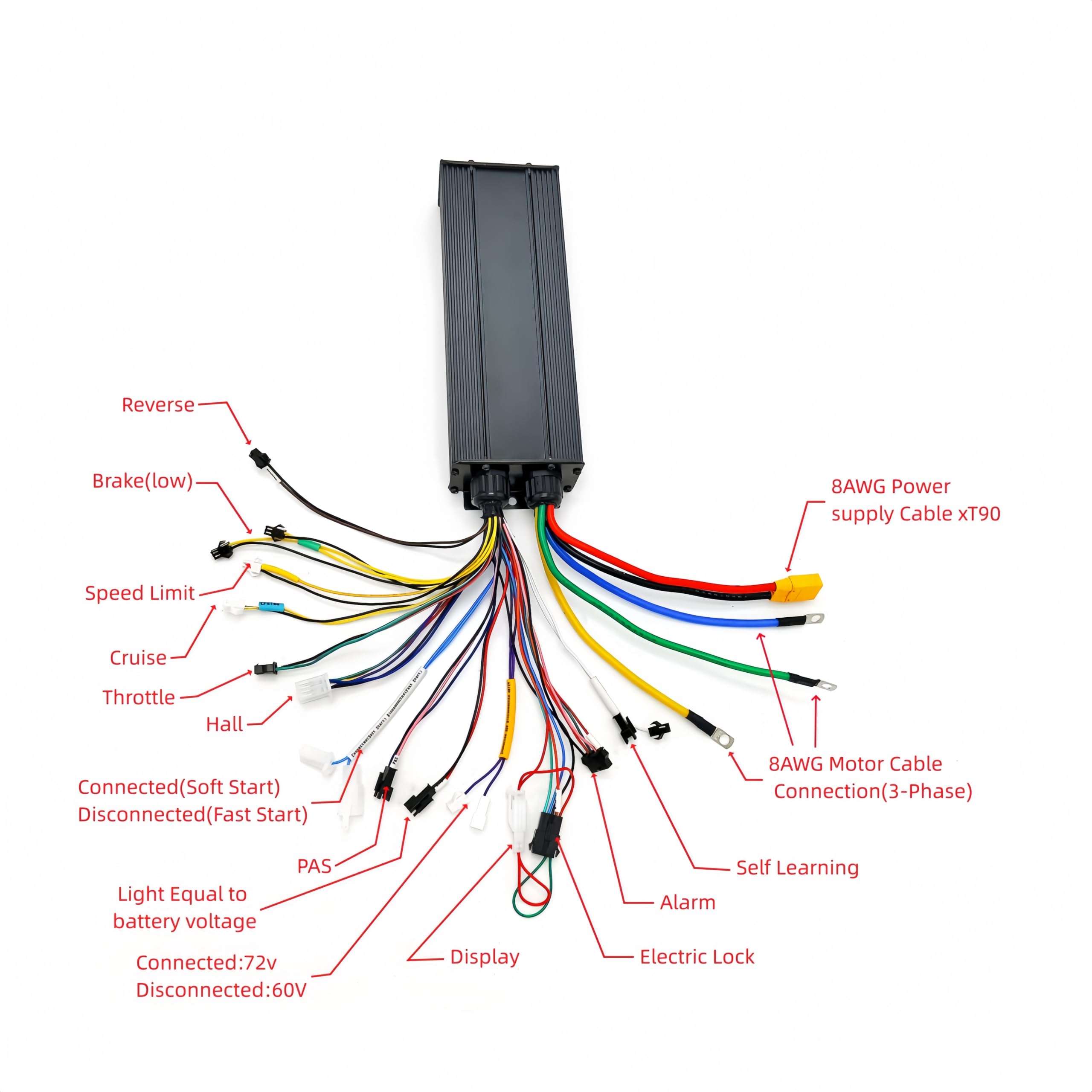

• INTEGRATED FEATURES：Equipped with low - voltage brake and alarm functions, along with a Hall sensor for rotor position detection, it offers enhanced safety and accurate control.

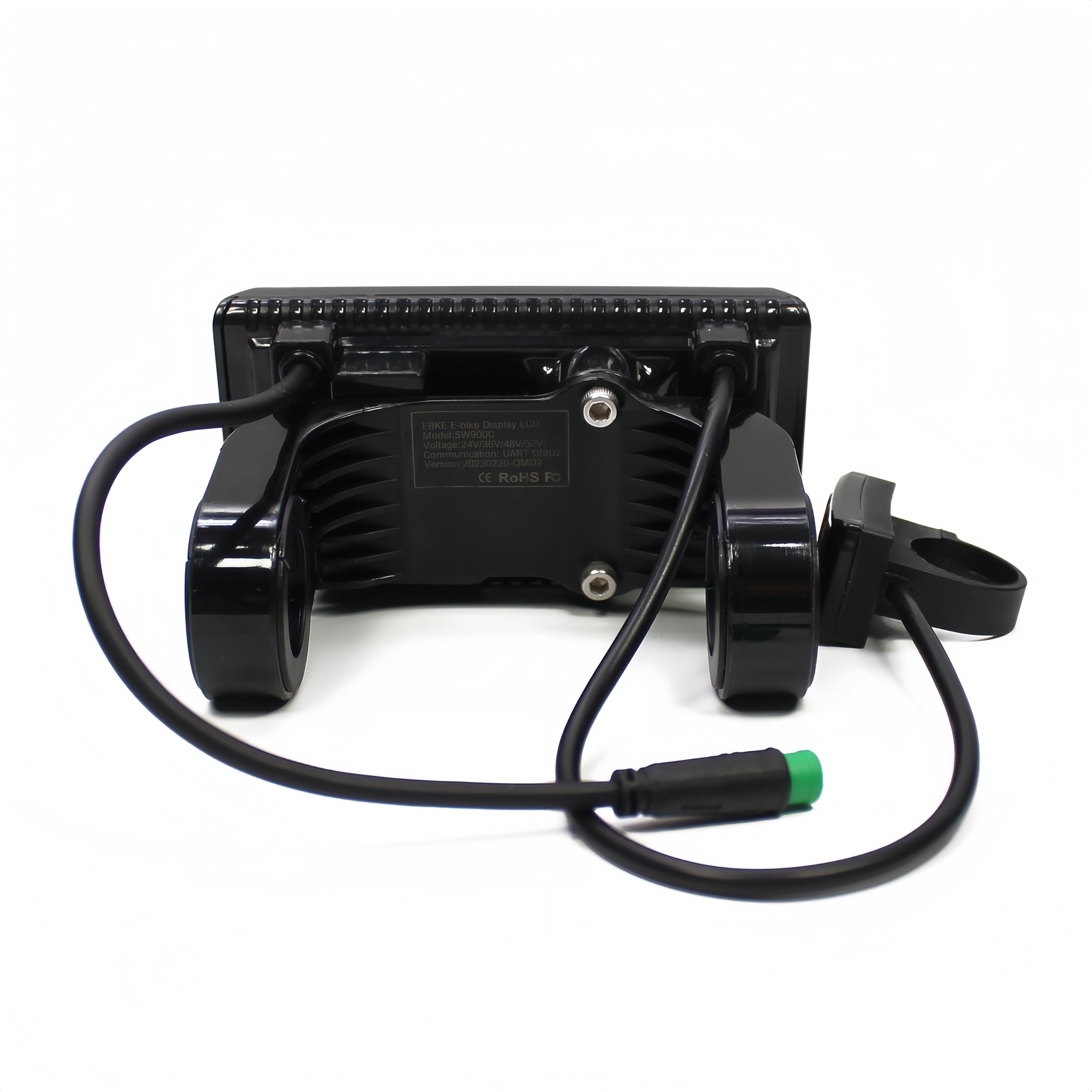

• PREMIUM DISPLAY OPTION：Optional UKC1 LCD Color Display features a 3.5 - inch IPS screen, wide voltage input (24V - 72V), USB charging, and excellent temperature resistance.
• RUGGED & RELIABLE：Both the controller and display boast an IP65 waterproof grade, protecting against dust and water splashes, making them suitable for various riding conditions.

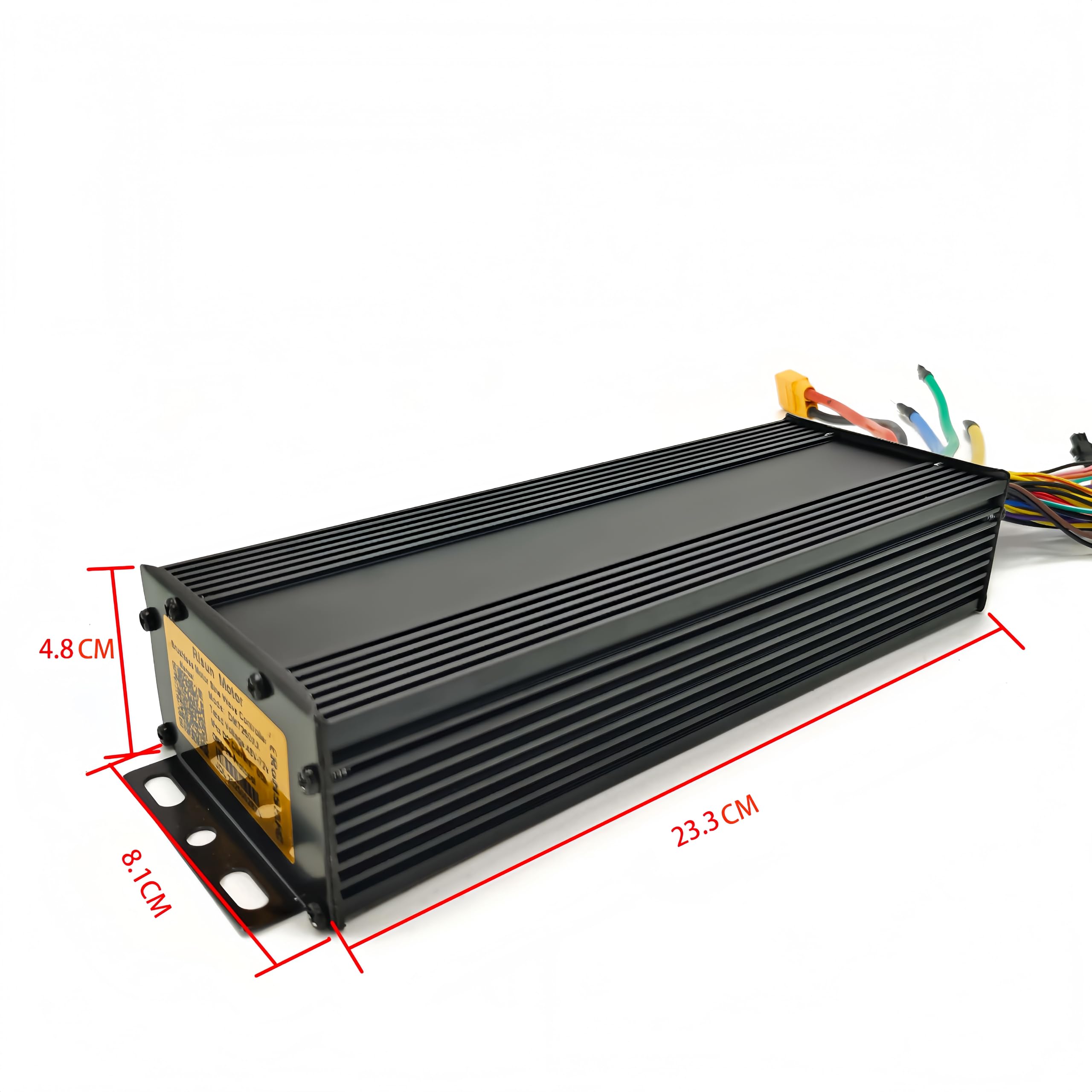

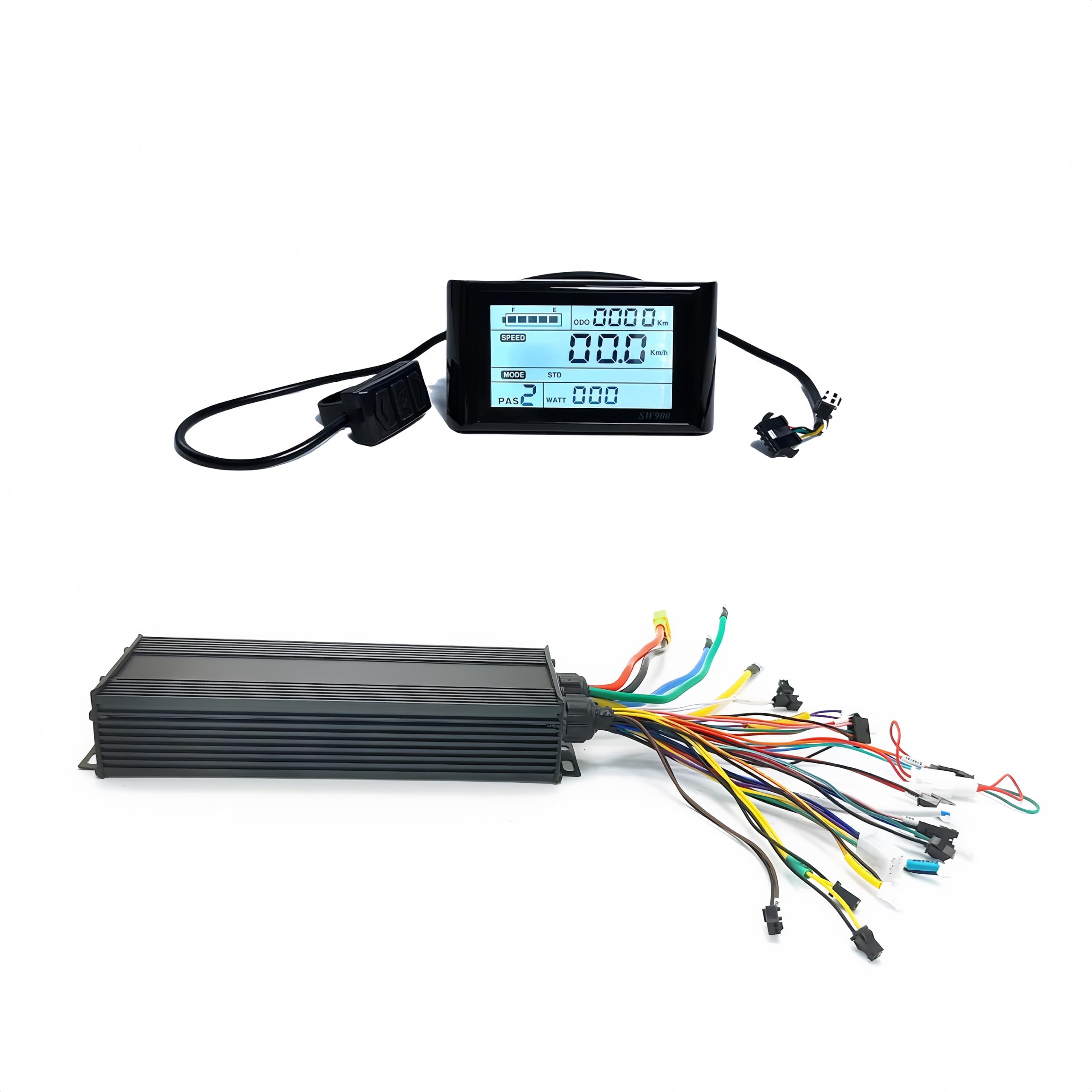

48V-72V 3000W 60A 18MOSFET Sine WaveIntelligent Controller for eBike Electric Bike Very important Notice: This controller can only work without display or with our display, please never use it with your own display (because program is different) Parts Including: 1. 48V 52V 60V 72V 60A 18 MOSFET Universal Voltage 3000W Sine Wave Controller 2. 48V, 52V, 60V, 72V UKC1 Colorful Display, SW 900 Display or SW 900 Colour Display (Optional) Technical Data of the Controller: 1. Rated Power: 48V 1382W/ 52V 1498W/ 60V 1320W/ 72V 2073W 2. Brake: Low Voltage Brake 3. Alarm: Low Voltage Alarm 4. Rotor Position Detecting Method: Hall sensor 5. Size: 233*81*48mm 6. Waterproof Grade: IP65 UKC1 LCD Color Display Specification: 3.5 inch IPS screen 1) 24V/36V/48V/52V/60V/72V input 2) Rated operating power: 1W 3) Max operating power : 5W 4) USB charging port : 5V 500mA 5) Off leakage current <1uA 6) Support current to controller : 100mA 7) Size:111.1*66.8*82.8mm 8) Waterproof grade:IP65 9) Operating temperature : -20~70℃ 10) Storage temperature : -30~80℃
