Eaton xComfort CSAU-01/04 121080 Wireless Switch Actuator Potential-Free with Push Button Function

• Suitable for resistive loads up to 8 A
• Quickly and easily assigned to a radio button with just 3 clicks, later can be extended at any time
• Country of origin: Ireland.
• Package dimensions (L x W x H): 8.6 cm x 7.8 cm x 4.0 cm.

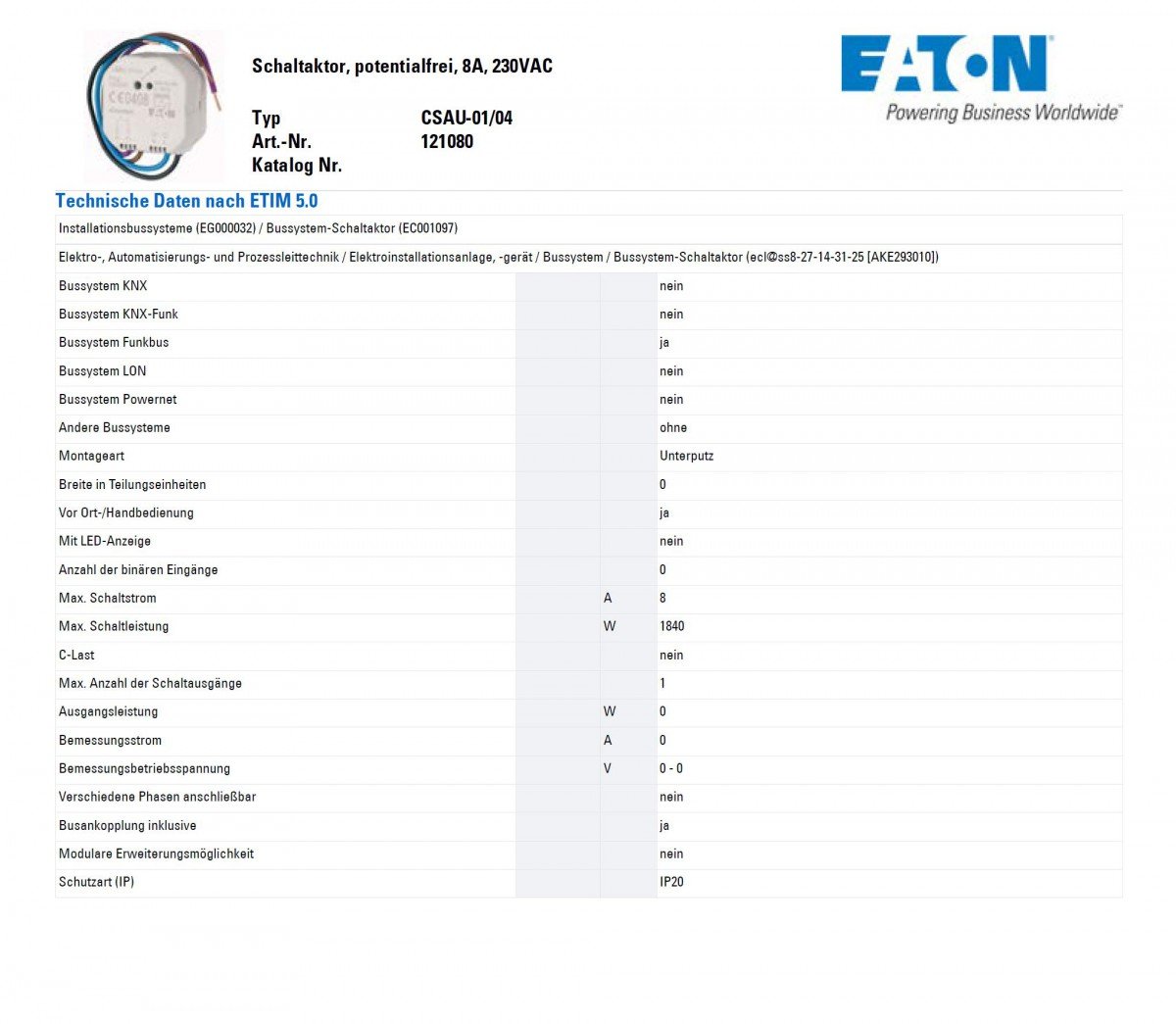

Eaton xComfort wireless switching actuator potential-free with button function CSAU-01/04 (121080). The "switch actuator potential-free with touch function" receives and switches devices such as the bell. The special feature of this product is that only the "touch function" is used when assigned in basic mode. The output is switched as long as the assigned button/sensor is operated (function of a bell button). Only the button function is available when reset to delivery state (reset) and reset a button/sensor in basic mode. In comfort mode, all known and proven functions remain unchanged. The supply is via the net. It can also be switched on other voltages than the mains voltage. The device is installed in the switch, junction box, installation box or directly in the lamp cover. - When used with inductive loads (e.g. fluorescent lamps) must be observed the protective circuit. Technical details: Power supply: 230VAC / 50Hz. Connections: Connection wires, single wire, 1.5 mm² load: 230 VAC, 50 Hz, 8 A ohmic load; 24 VDC, 8 A (device switches A through A1). Safety: LS 16A, characteristic C (internal protection via thermal protection). Frequency: 868.300 MHz. Transmission type: Bi-directional, via coded telegrams. Range in the building: typically 30 - 50 m, 2 walls + 1 ceiling (depending on wall thickness and material). Protection class: IP20. Degree of pollution: 2. Operating temperature: -5 to +45 °C. Storage, transport temperature: -25 to +70 °C. Case colour: Grey, RAL7035. Case dimensions: H x W x D: 48.6 x 45.3 x 26.2 mm. Length of connection wires: 150 mm.
