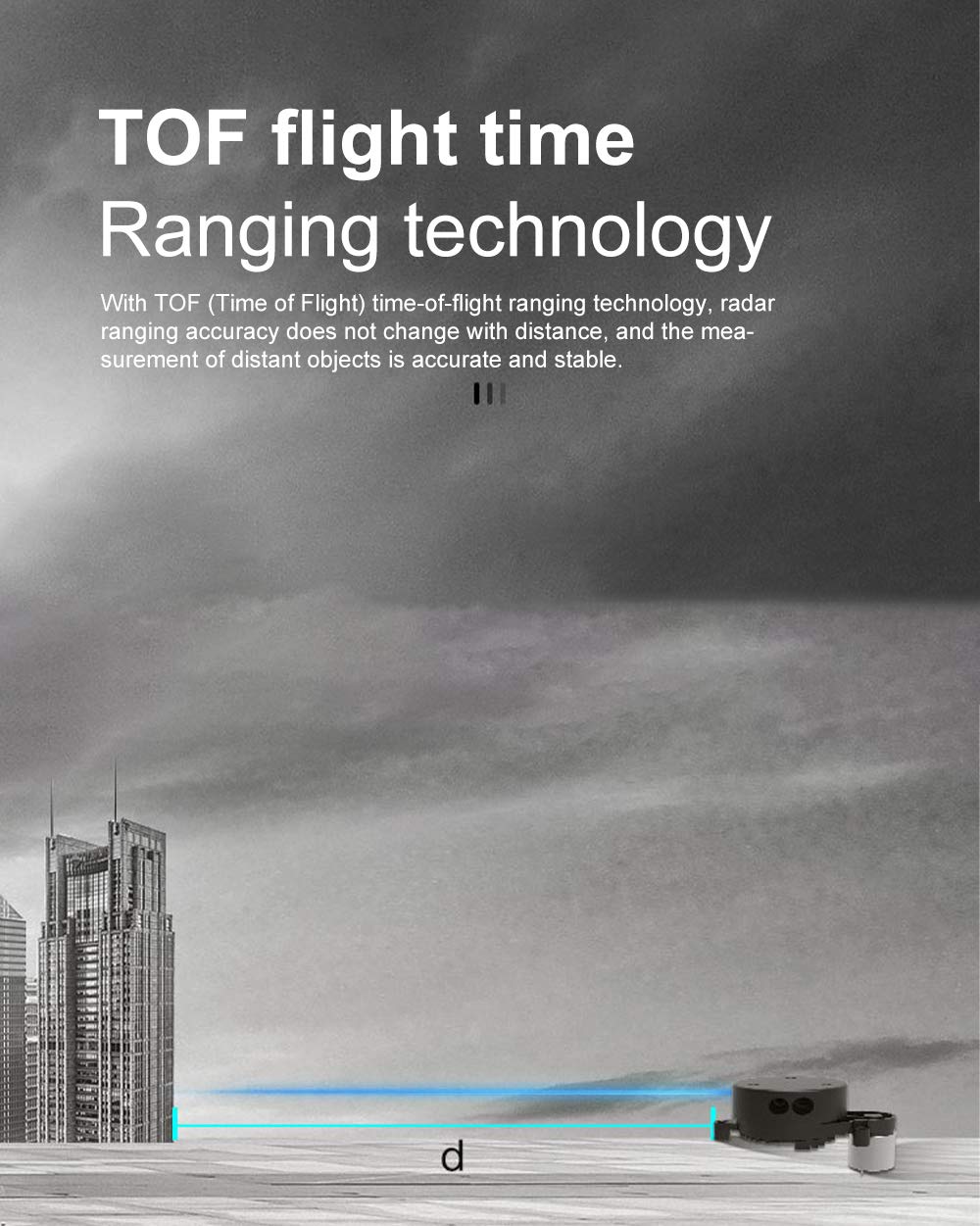

EAI YDLIDAR TX20 TOF Lidar Range Finder Sensor Module 20M 4K Ranging Frequency for Outdoor/indoor

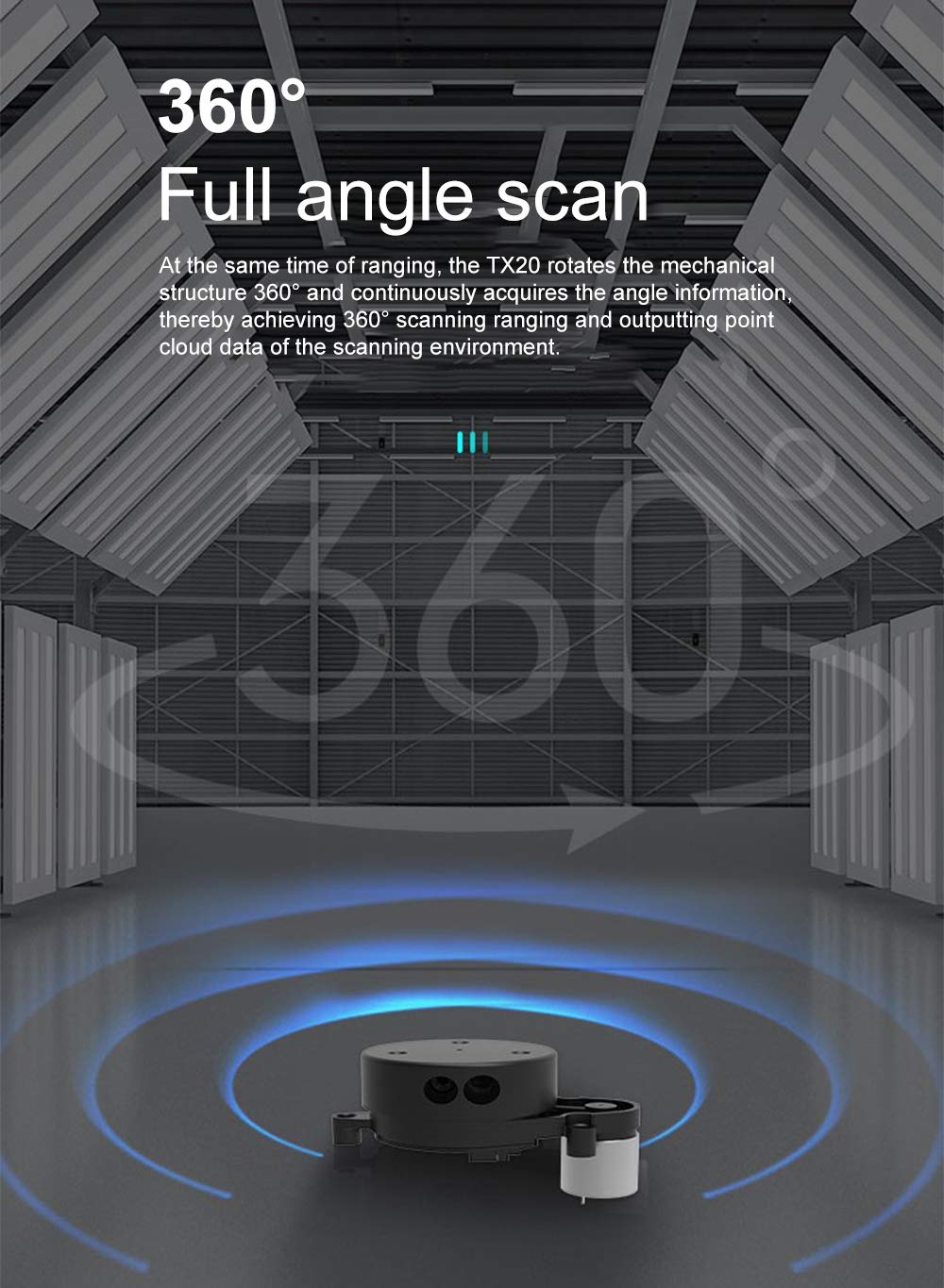

• Application field: Outdoor as well as Indoor;360-degree TOF Lidar Laser Range Finder
• Wide ranging range, Max.20 meter, Laser grade:class 1,Linux drive:yes

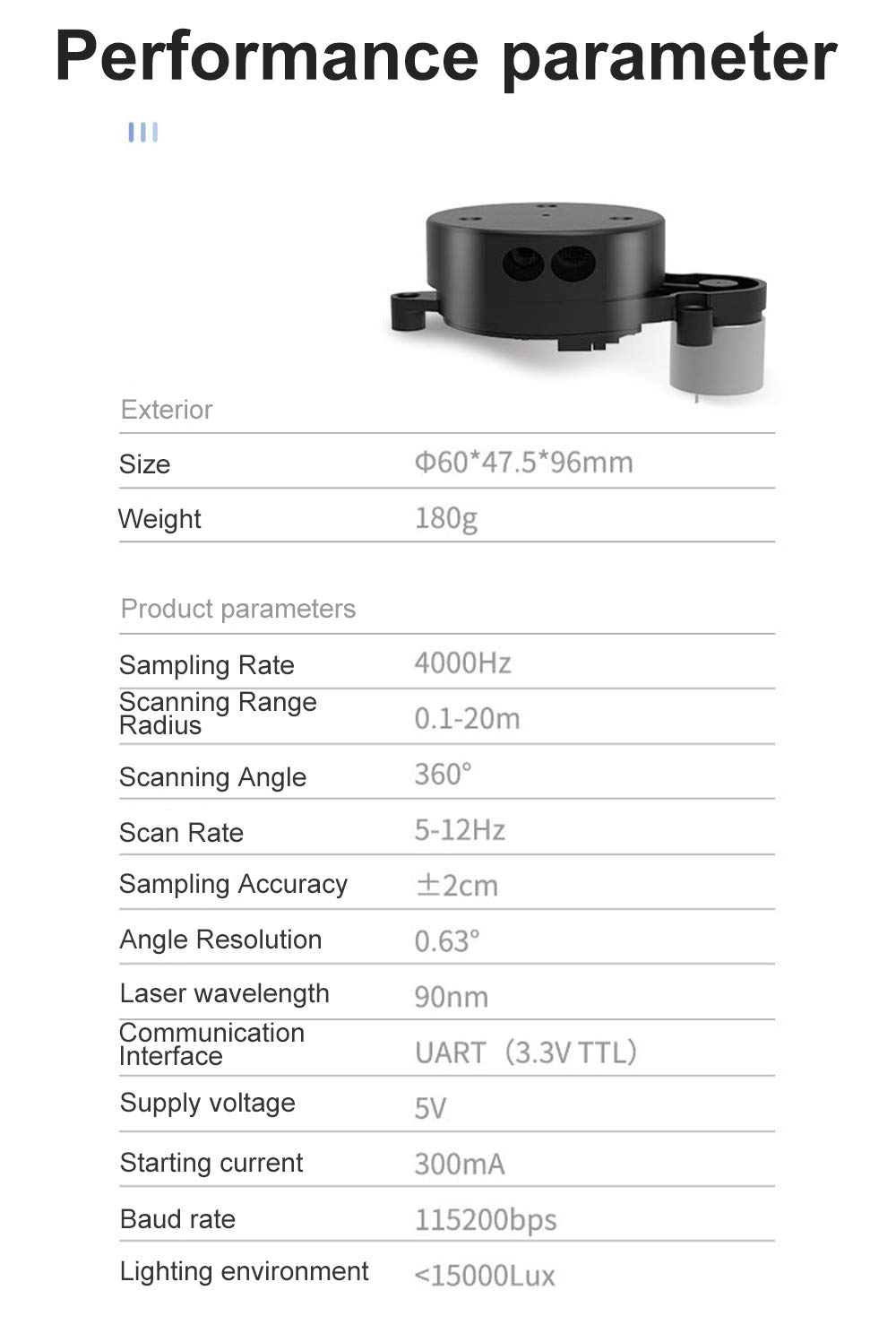

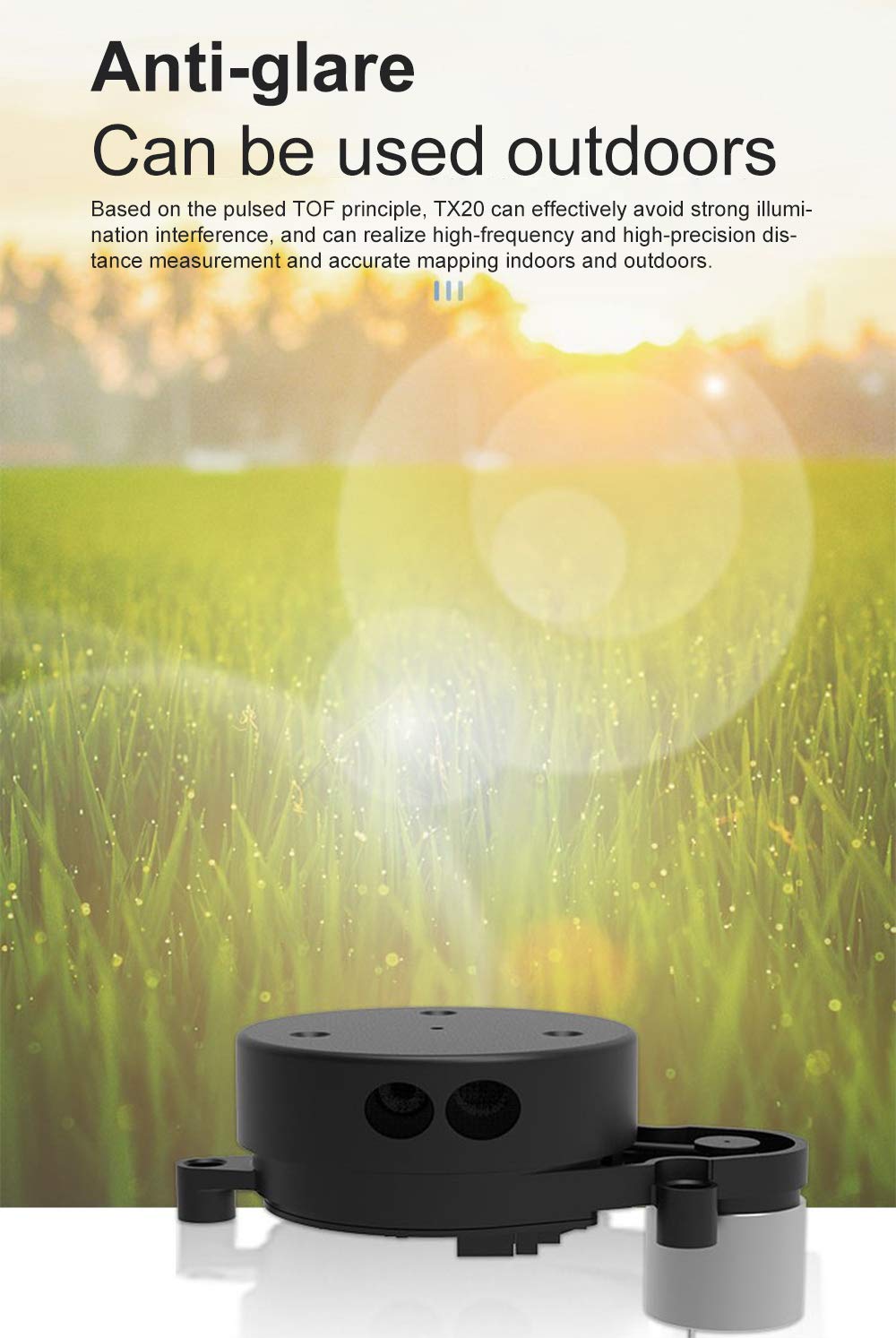

• Strong anti-ambient light interference,Configurable scanning frequency 5-12Hz, standard size:Ø60*47.5mm*96mm,weight:180g

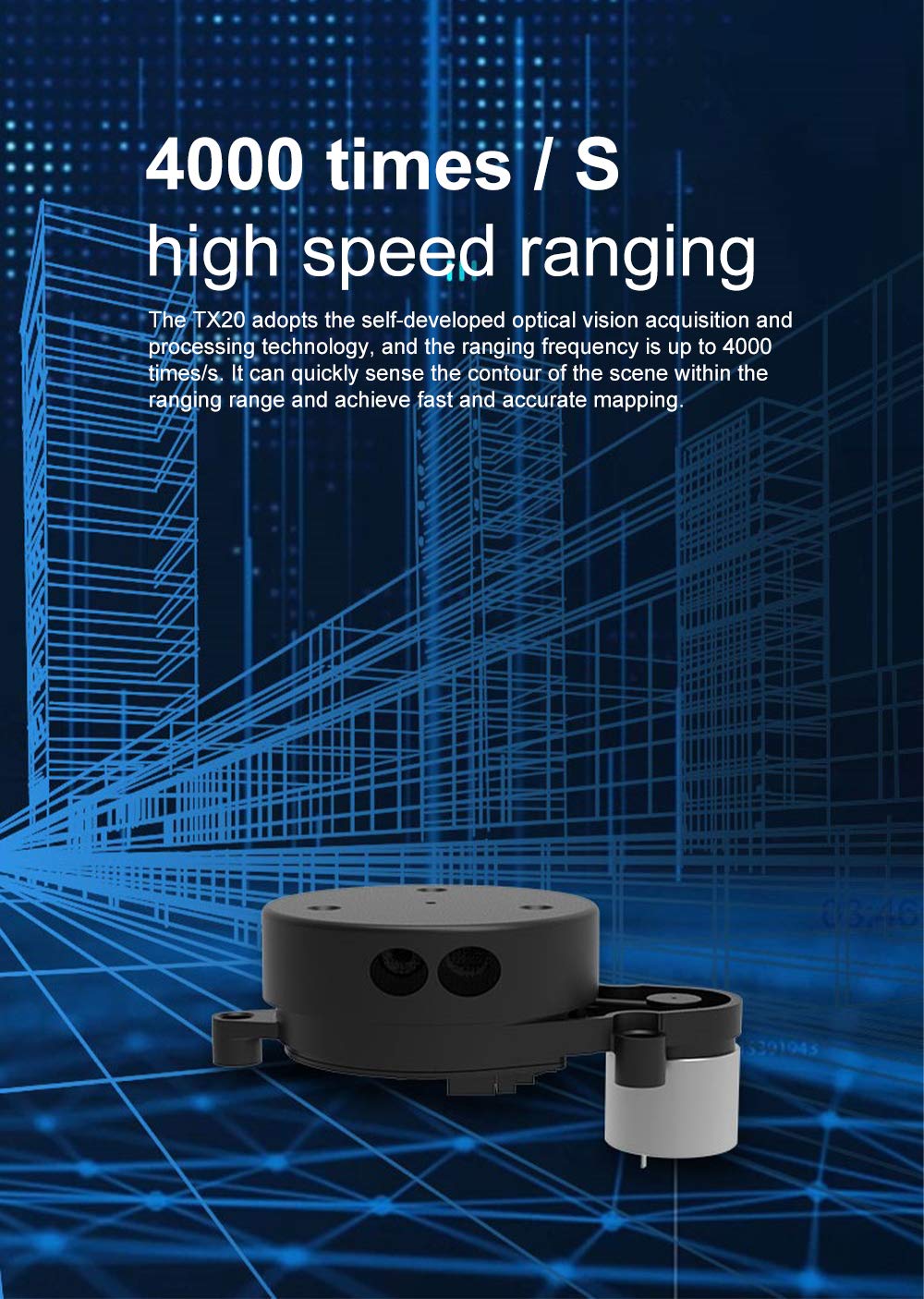

• High repeatability and consistency: 4000Hz Ranging Frequency;Standard supply voltage: 5V
• Quick Start-TX20 has complete drivers as well as complete SDK ,API and documentation. It's easy for users to get started quickly.

-Overview- YDLIDAR TX20 is a low cost, high-performance TOF lidar and ultra-small 360-degree two-dimensional 2D rangefinder that can be used outdoor as well as indoor! -Features- 360 degree omnidirectional scanning ranging Low ranging error, good range stability and high precision Wide range of ranging, no less than 20m Strong resistance to ambient light interference Low power consumption, small size, stable performance and long life Laser power meets Class I laser safety standards Adjustable motor speed -Application Scenarios- Ø Lawn mower obstacle avoidance Ø Drone/UAV height positioning Ø Car/Vehicle navigation Ø Robot navigation and obstacle avoidance Ø Robot ROS teaching and research Ø Regional security Ø Environmental scanning and 3D reconstruction Ø Commercial robot /Robot vacuum cleaner Data communication With a 3.3V level serial port (UART), users can connect the external system and the product through the physical interface. After that, you can obtain the real-time scanned point cloud data, device information as well as device status. -In the Box- 1x YDLIDAR TX20 -Note- YDLIDAR provides PointCloud Viewer, a point cloud data visualization software for TX20 real-time scanning. Users can use this software to visually observe the scanning effect of TX20. -Technical Support- https://github.com/YDLIDAR Tech-team: monica@smartfire.cn Skype: monica_9122
