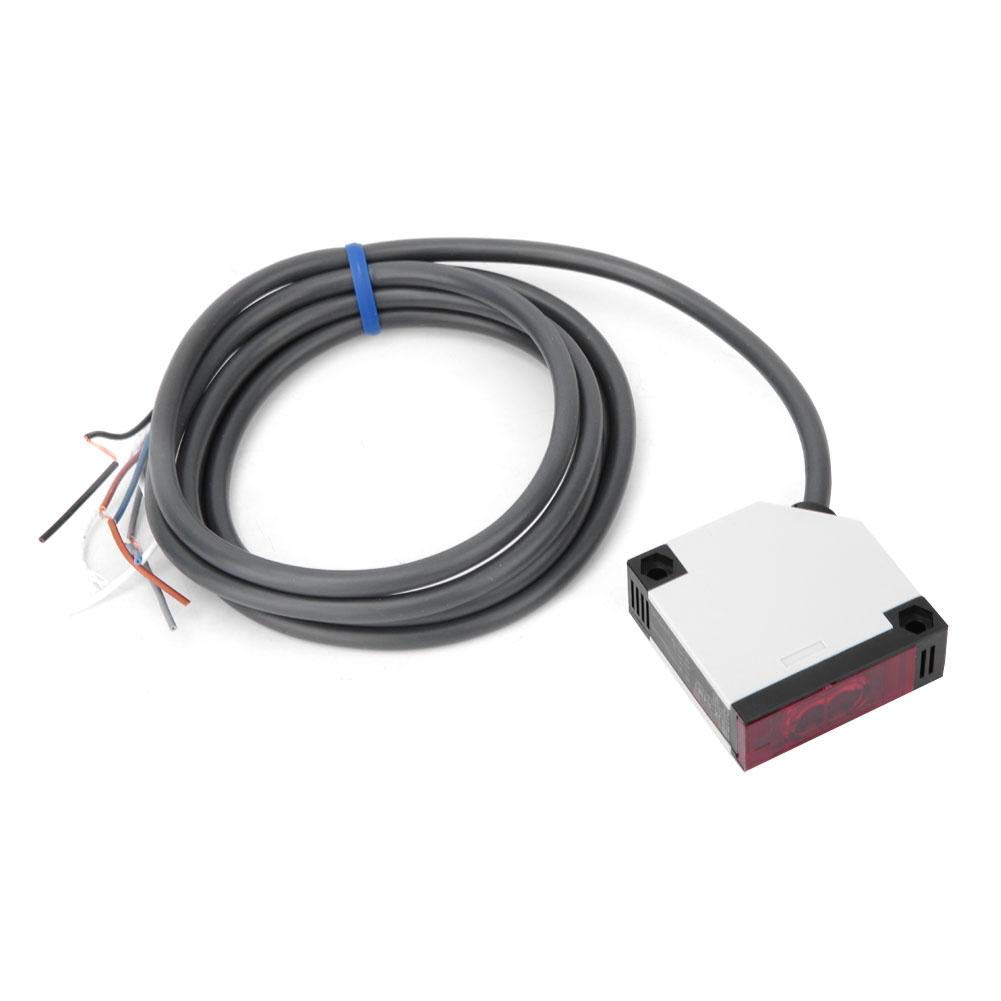

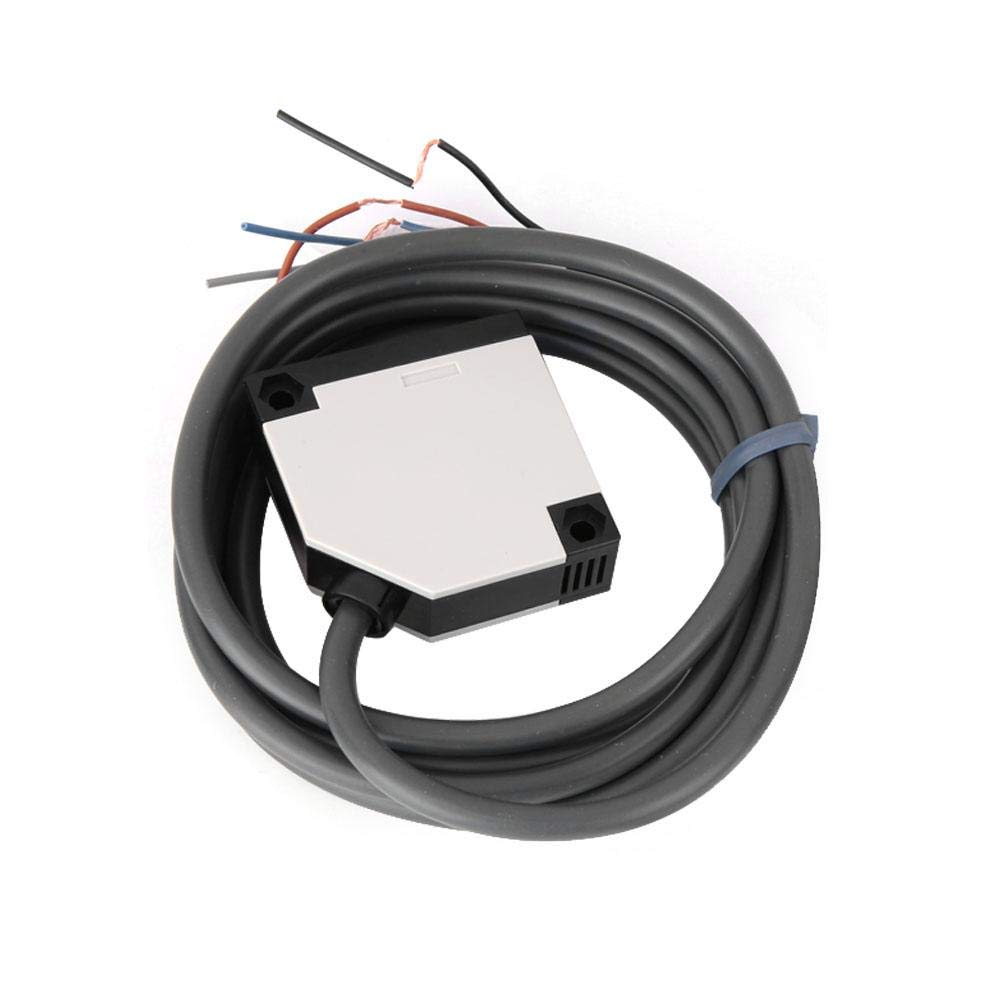

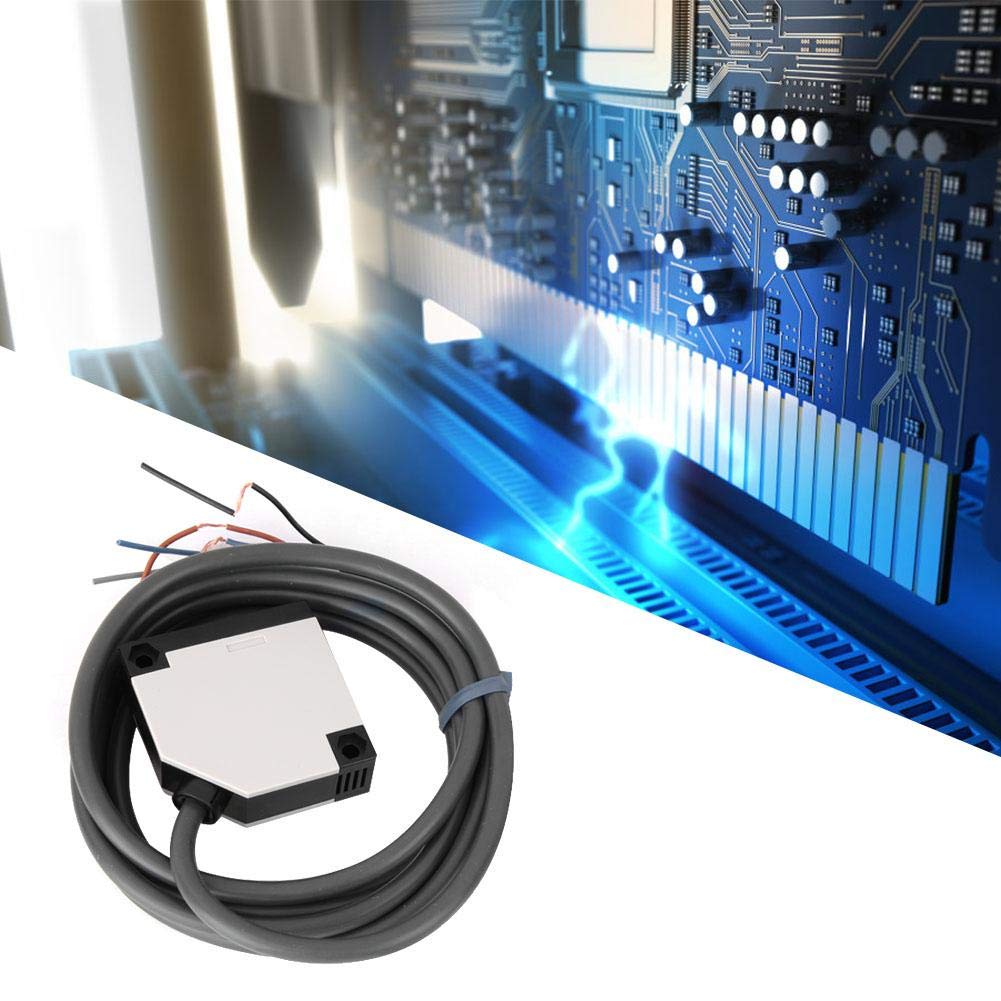

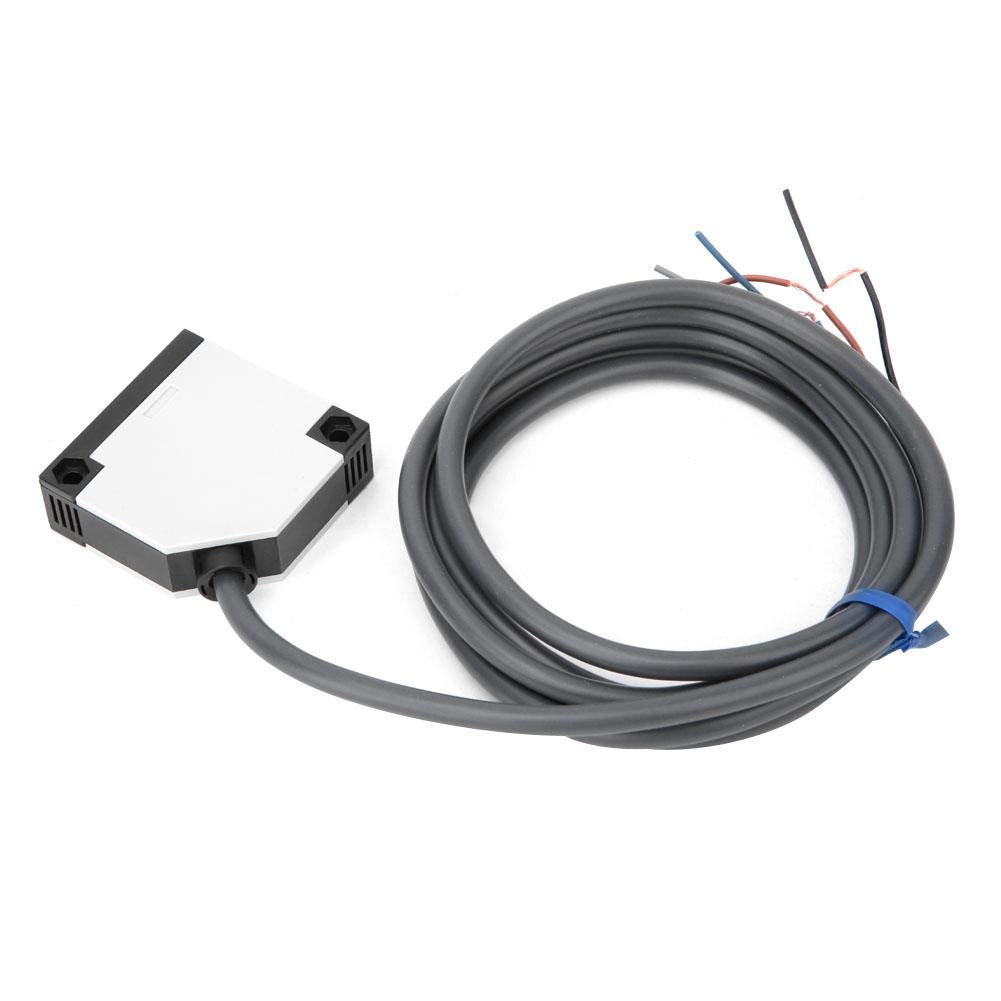

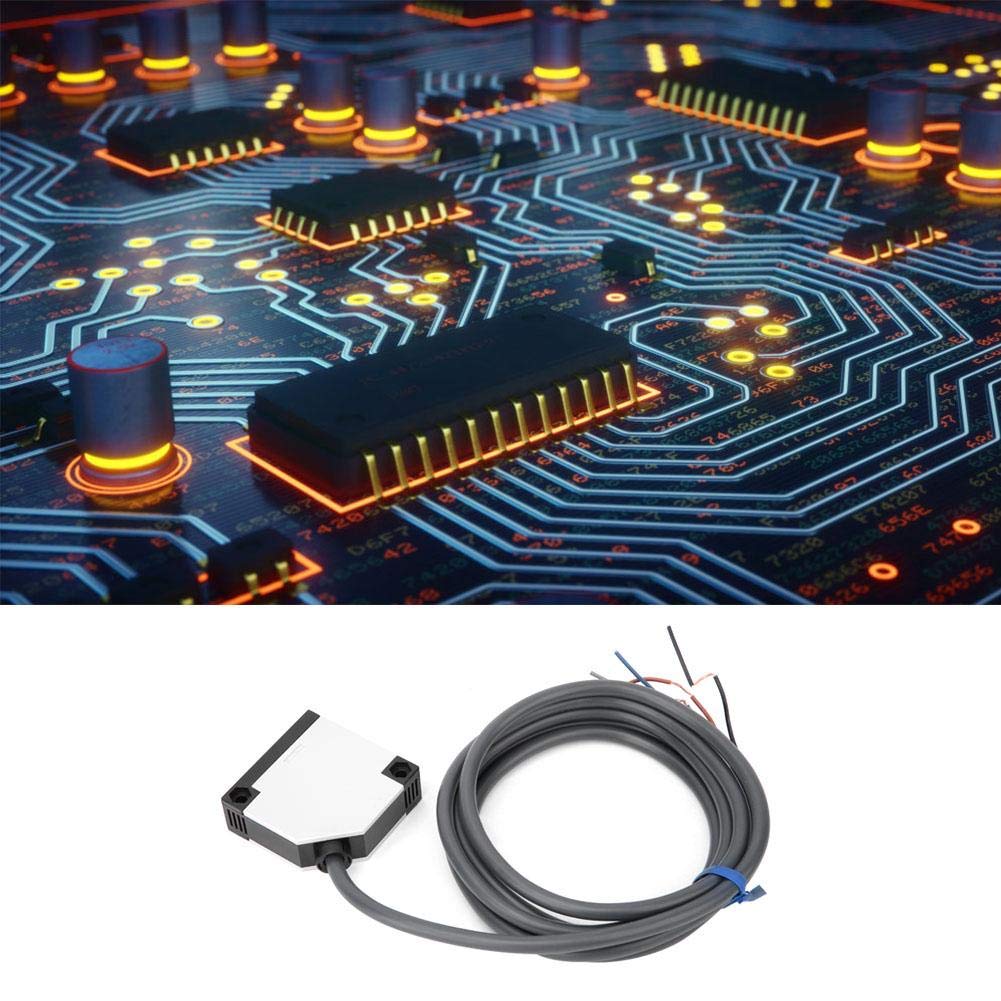

E3JK-R4M1 IP65 3500mm/500mm/500mm Infrared Proximity Sensors, ABS Housing Specular Reflection Type Photoelectric Switch Sensor(90-250VAC 3500mm)

• RED LED ACTION INDICATOR:This photoelectric sensor switch has a red LED action indicator, and it responds quickly.
• HIGH QUALITY MATERIAL: The housing of this sensor switches is made of ABS fireproof material, and long service life.
• THE SUITE INCLUDES:The sensor switch includes 1 x sensor switches, 1 x reflector plate, 1 bags of screws and fixing brackets.
• ADOPT TRANSMITTING TUBE LIGHT SOURCE TYPE:This photoelectric sensor switch adopt transmitting tube light source type which can provide stable performance.
• THREE TYPES ARE AVAILABLE: This photoelectric sensor switch has three types for you to choose: 90-250VAC 3500mm, AC/DC12-240V 500mm and DC12-24V 500mm.

Specification: Condition: 100% Brand new Model: E3JK-R4M1 Detection Method: Specular reflection type Detection Distance (adjustable): 3500mm/500mm/500mm (corresponding to optional) Detection Object: Opaque objects above dia. 60mm Number of Wires: 5 (black, white, brown, gray, blue) Wire Length: 1.75 Meters Light Source Type: Transmitting tube Induction Method: Specular reflection Protection Level: IP65 Housing Material: ABS Freproof Control Output: 30VDC 3A Impedance load Current Consumption: 10mA or less Response Frequency: 500Hz Indicator Light: Action indicator (red LED) Temperature Effect: -15 ~ +70 Impact Resistance: 500m/s2 (50G) X, Y, Z 3 times in all directions Ambient Temperature: -25 ~ +70, when stored: -30 ~ +80 Ambient Humidity: 35-95% RH, when stored: 35-95% RH Optional Style: 90-250VAC 3500mm, AC/DC12-240V 500mm, DC12-24V 500mm Package List: 1 x Sensor Switches 1 Bags of Screws and Fixing Brackets 1 x Reflector Plate
