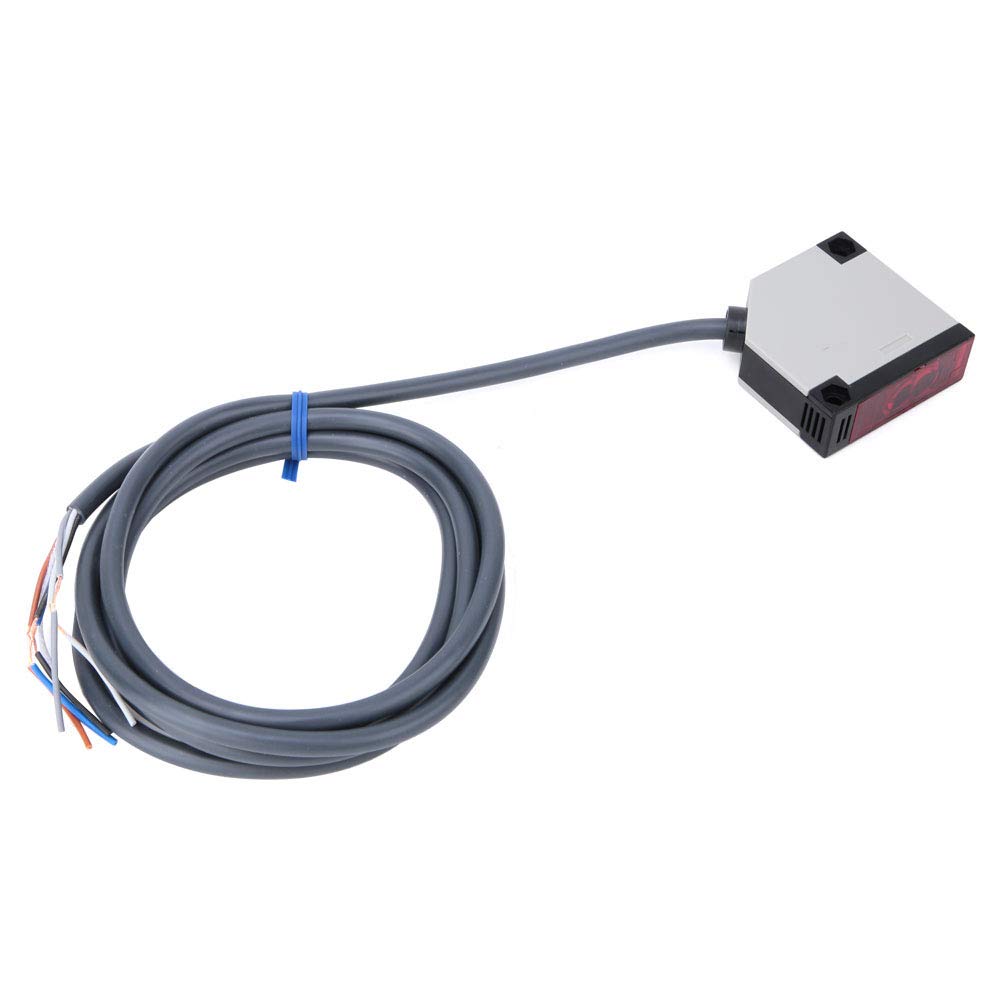

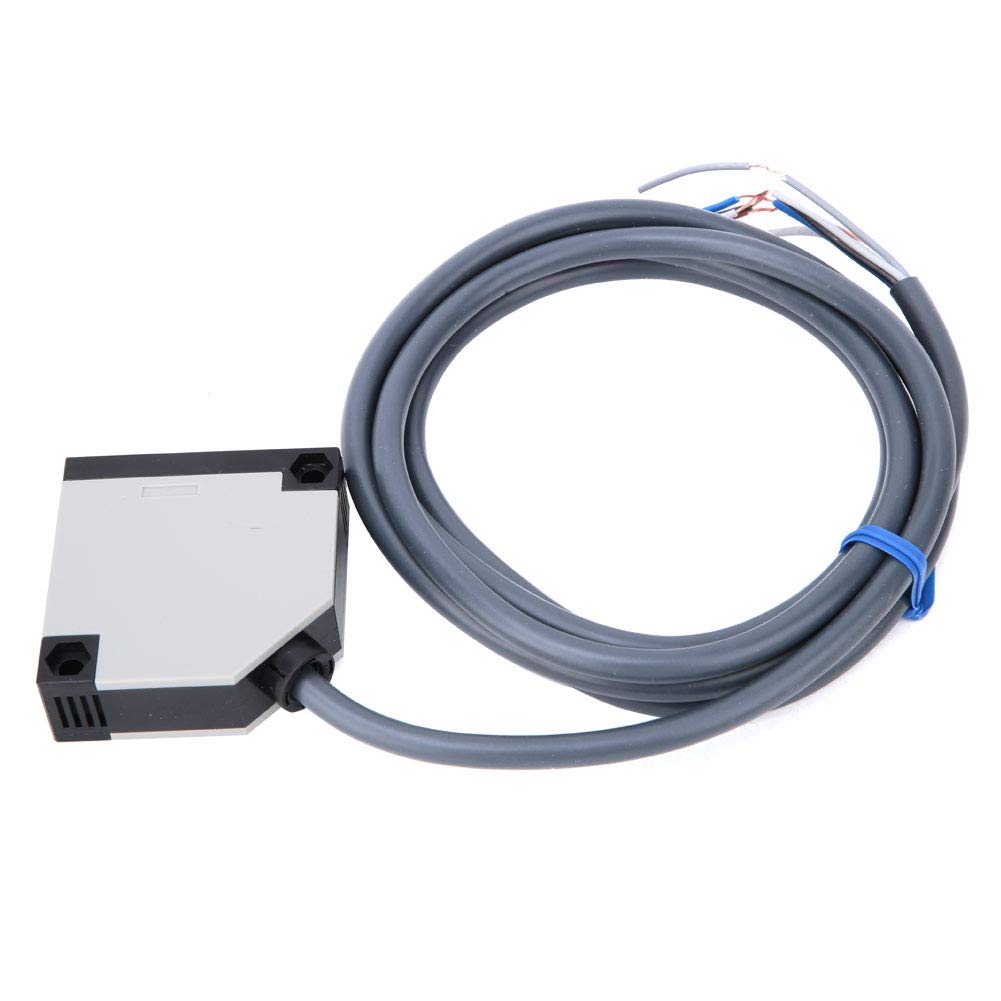

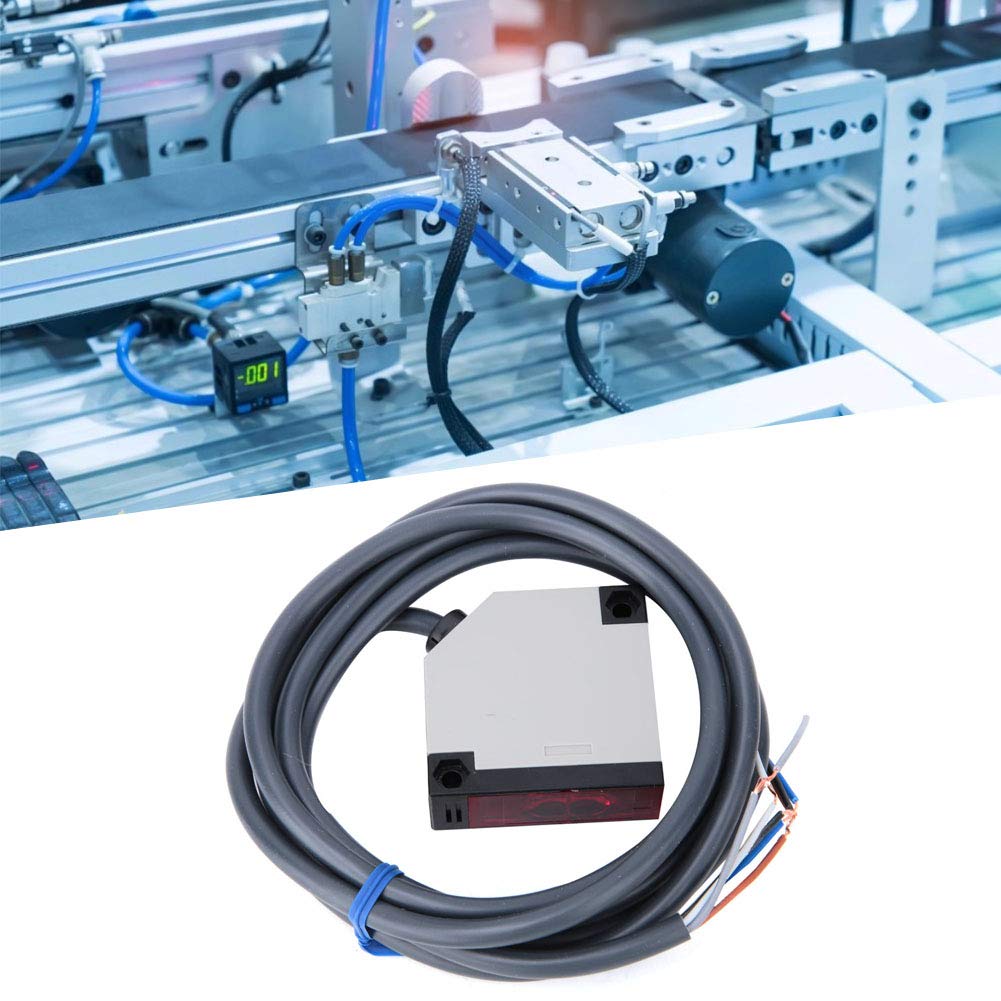

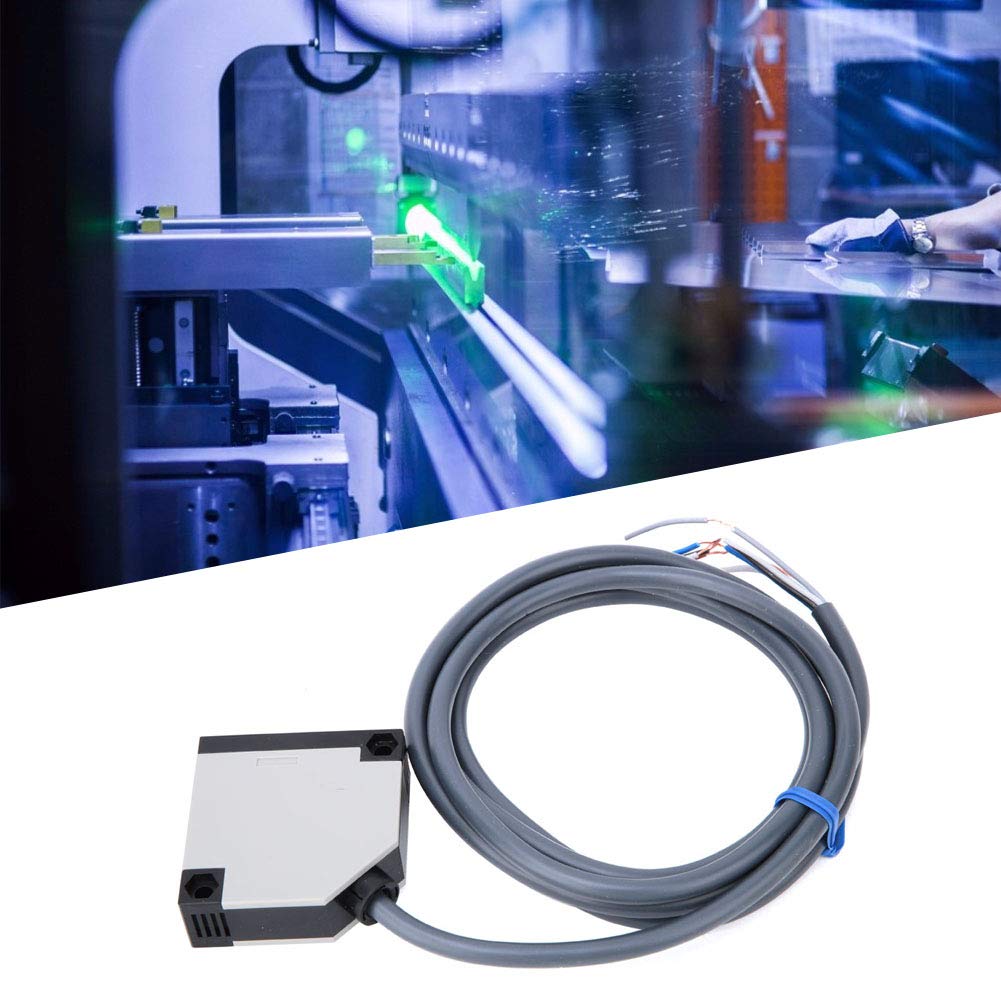

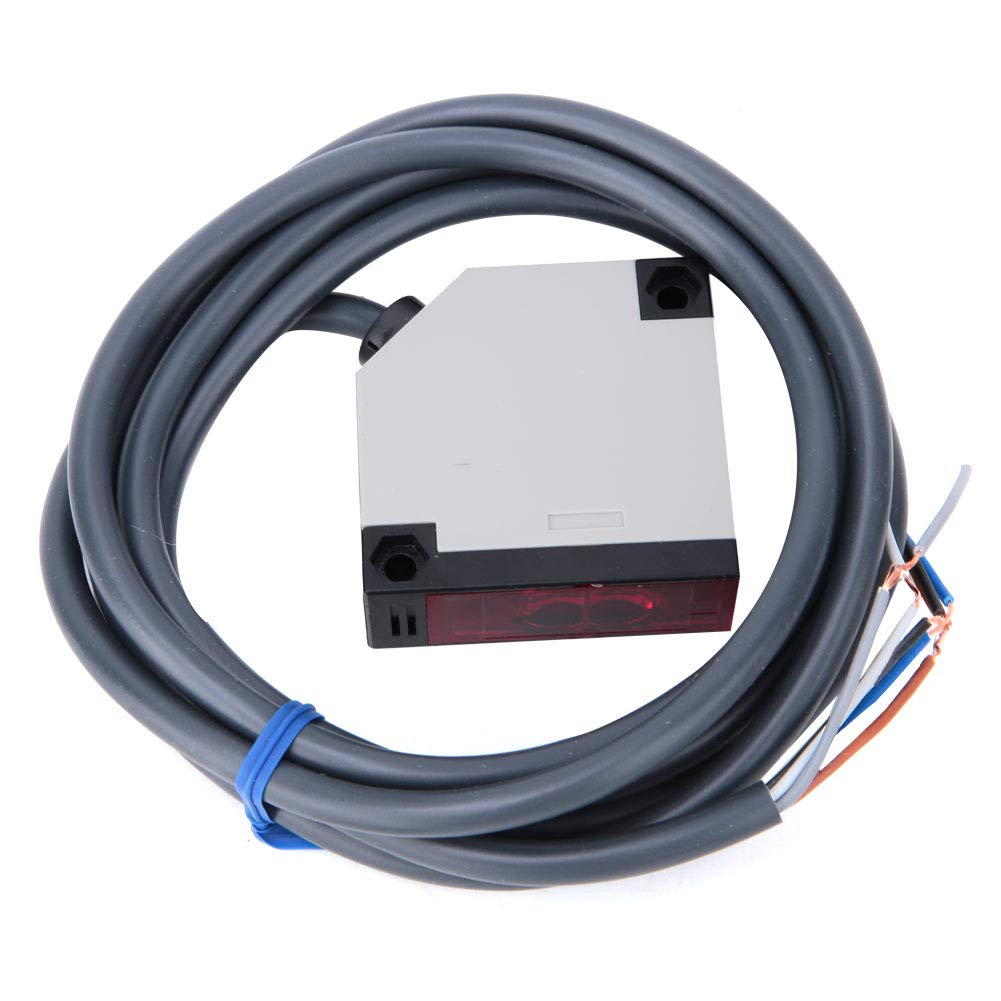

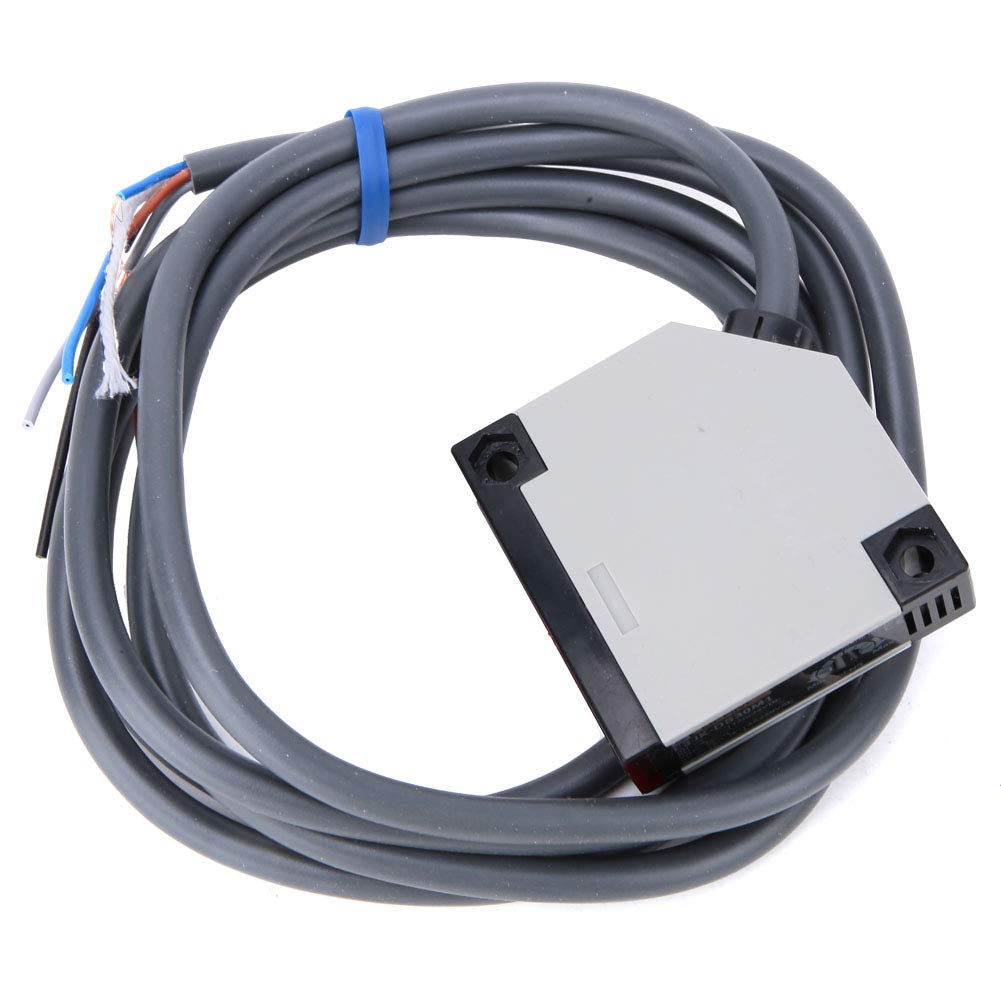

E3JK-DS30M1 IP65 300mm Infrared Proximity Sensors, ABS Housing Diffuse Reflection Type Photoelectric Switch Sensor (DC12-24V)

• ADOPT TRANSMITTING TUBE LIGHT SOURCE TYPE:This photoelectric sensor switch adopt transmitting tube light source type which can provide stable performance.
• WIDE RANGE OF USES:The detection objects of this photoelectric sensor switch are not limited to metal, and all objects that reflect light (or block light) can be detected.
• HIGH QUALITY MATERIAL: The shell is made of ABS fire-proof material, and long service life.
• RED LED ACTION INDICATOR:This photoelectric sensor switch has a red LED action indicator, and it responds quickly.
• THREE TYPES ARE AVAILABLE: This photoelectric sensor switch has three types for you to choose: 90-250VAC, AC/DC12-240V and DC12-24V.

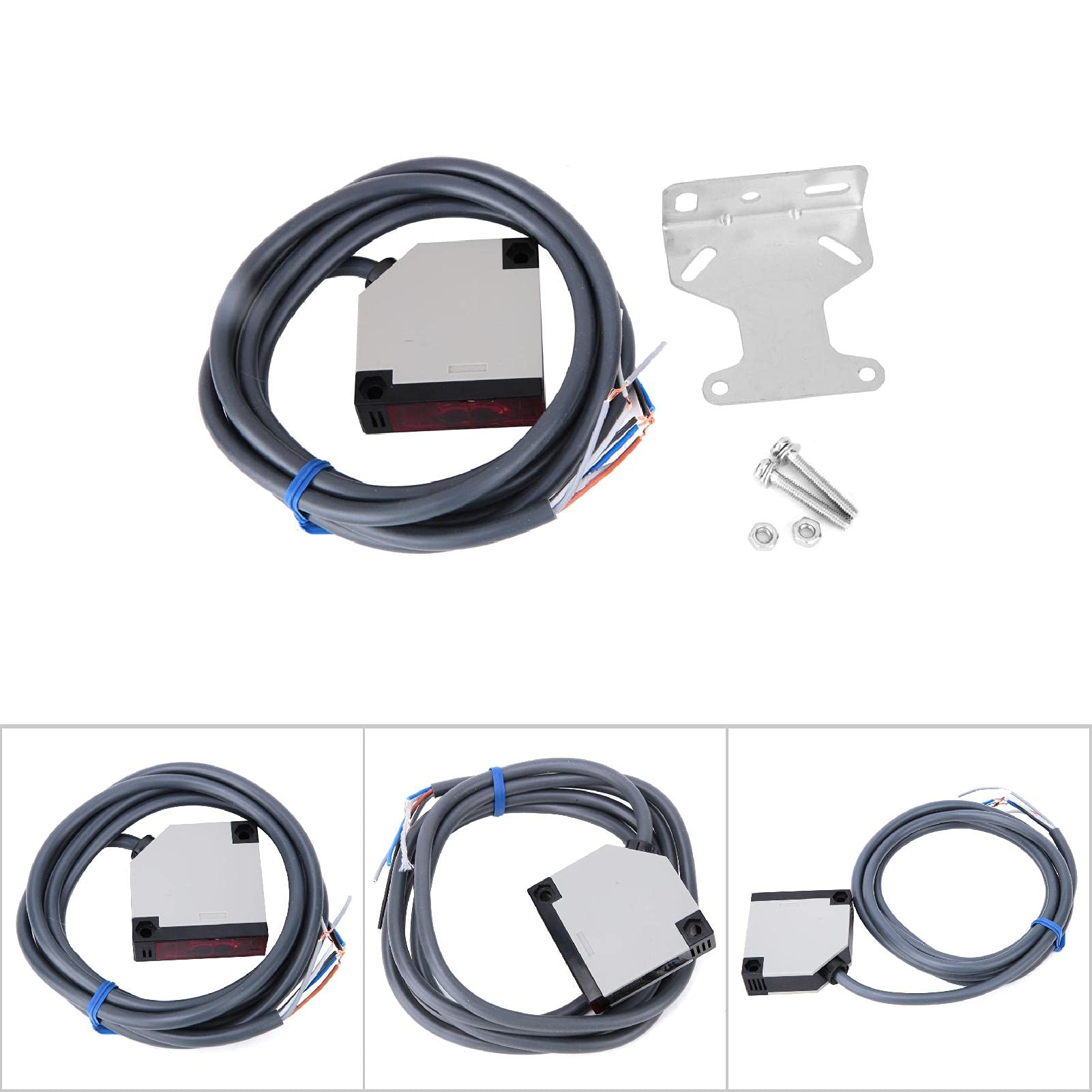

Specification: Condition: 100% Brand new Model: E3JK-DS30M1 Detection Method: Diffuse reflection type Detection Distance: 10-300mm (adjustable) Detection Object: Transparent body / translucent body / opaque object Number of Wires: 5 Wire Length: 1.75 Meters Light Source Type: Transmitting tube Induction Method: Diffuse reflection Protection Level: IP65 Housing Material: ABS Fireproof Control Output: 30VDC 3A Impedance load Current Consumption: 10mA or less Response Frequency: 500Hz Indicator Light: Action indicator (red LED) Temperature Effect: -15 ~ +70 Impact Resistance: 500m/s2 (50G) X, Y, Z 3 times in all directions Ambient Temperature: -25 ~ +70, when stored: -30 ~ +80 Ambient Humidity: 35-95% RH, when stored: 35-95% RH Optional Style: 90-250VAC, AC/DC12-240V, DC12-24V Package List: 1 x Sensor Switches 1 Bags of Screws and Fixing Brackets
