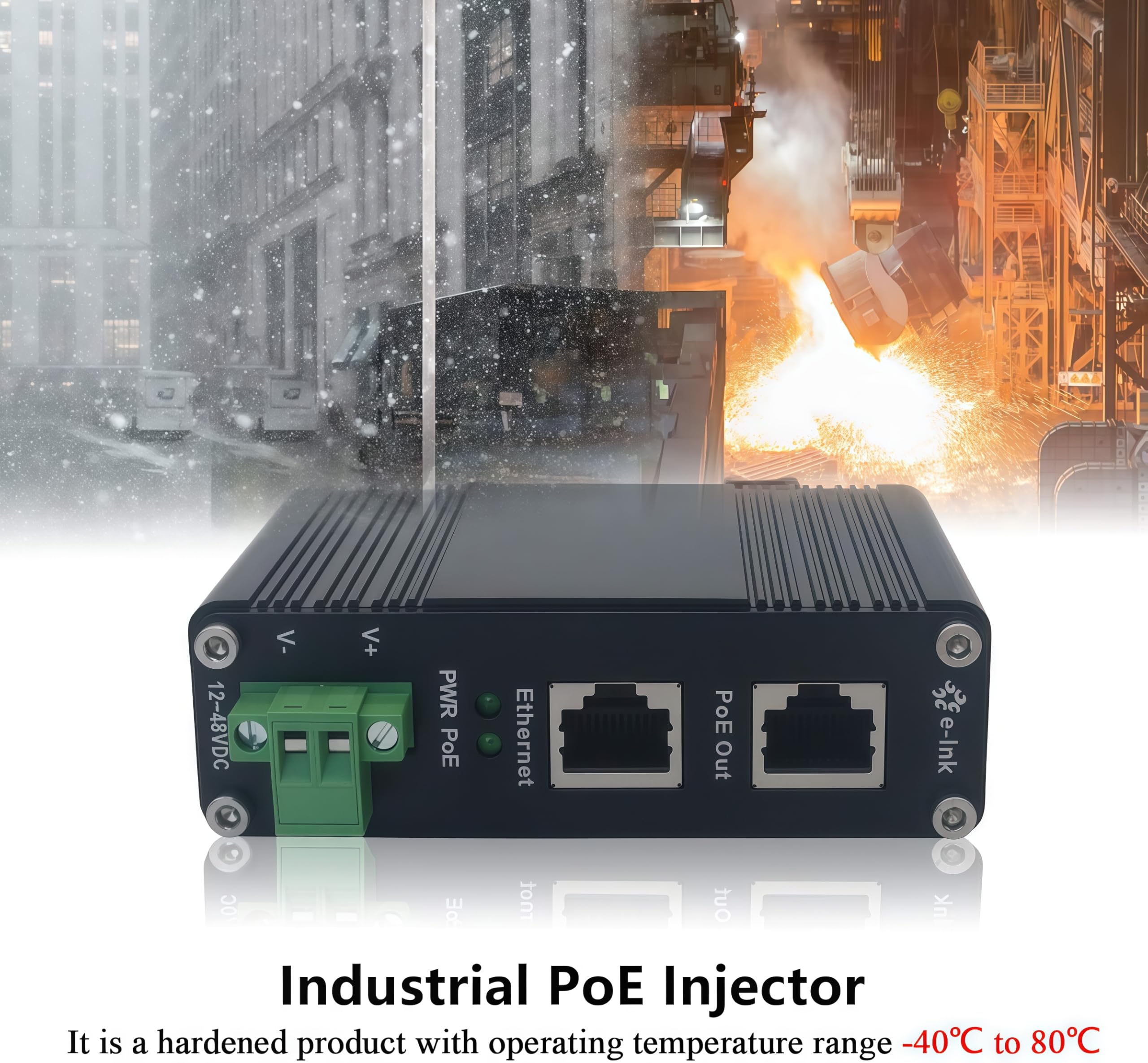

E-link Hardened Industrial Gigabit PoE+ Injector 12-48VDC Input PoE+ IEE802.3 at 30W up to 100 meters Output DIN- Rail, Wall Mount -40°C to 80°C IP40

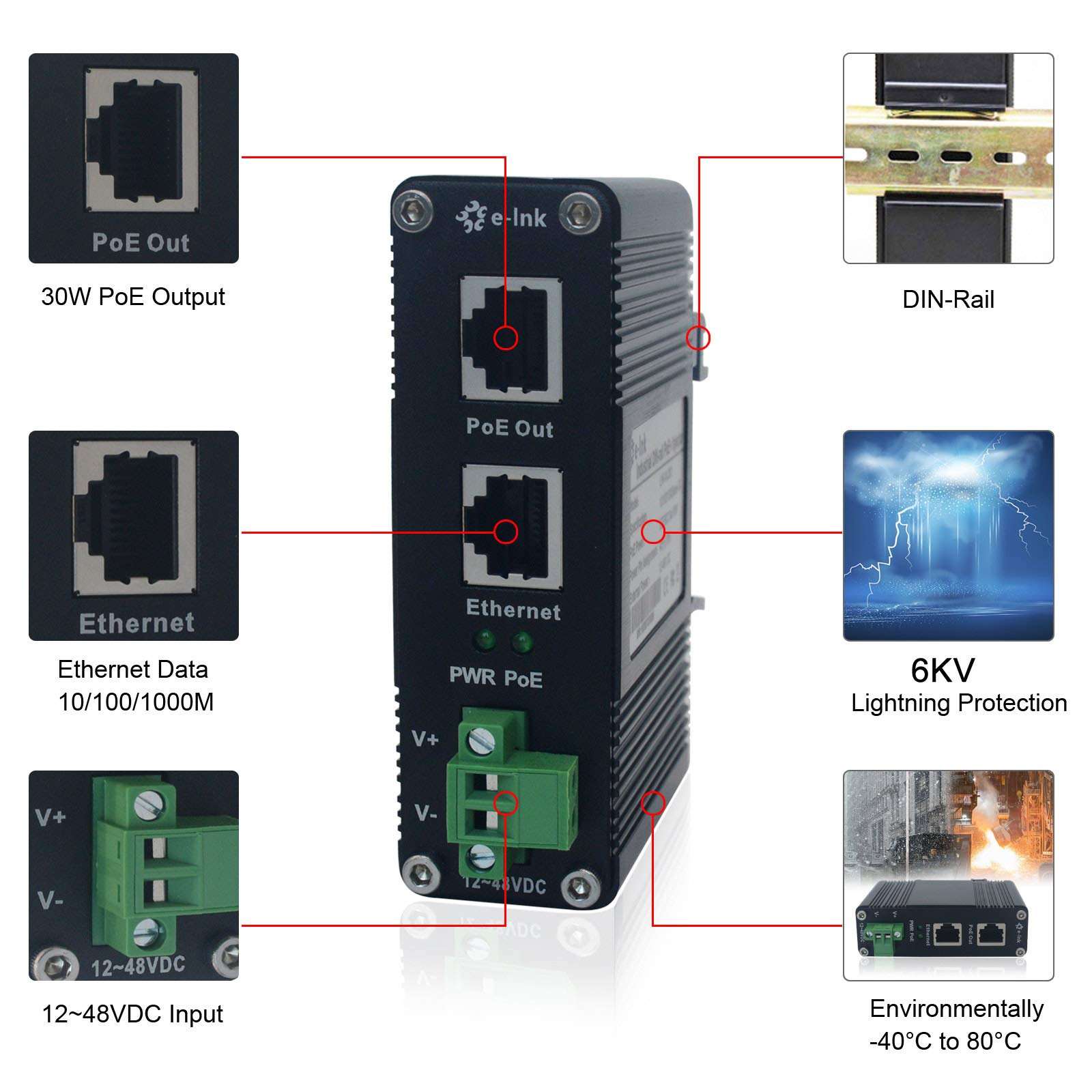

• 1 RJ-45 Gigabit Ethernet Data Input Port + 1 RJ-45 Gigabit with High Power PoE Ethernet Output Port (Data + Power).
• Supports IEEE 802.3at Power over Ethernet (PoE) Power Sourcing Equipment (PSE).
• Support 10/100/1000 Base-T. ET Mini Case DIN-Rail installation. Power Pin Assignment: 4/5(+), 7/8(-).
• Plug and Play. Operating temperature: -40℃ to 75℃ ( -40℉ to 167℉).
• Complies with EN55022 class A standard. Extensive LED indicators for network diagnostics.

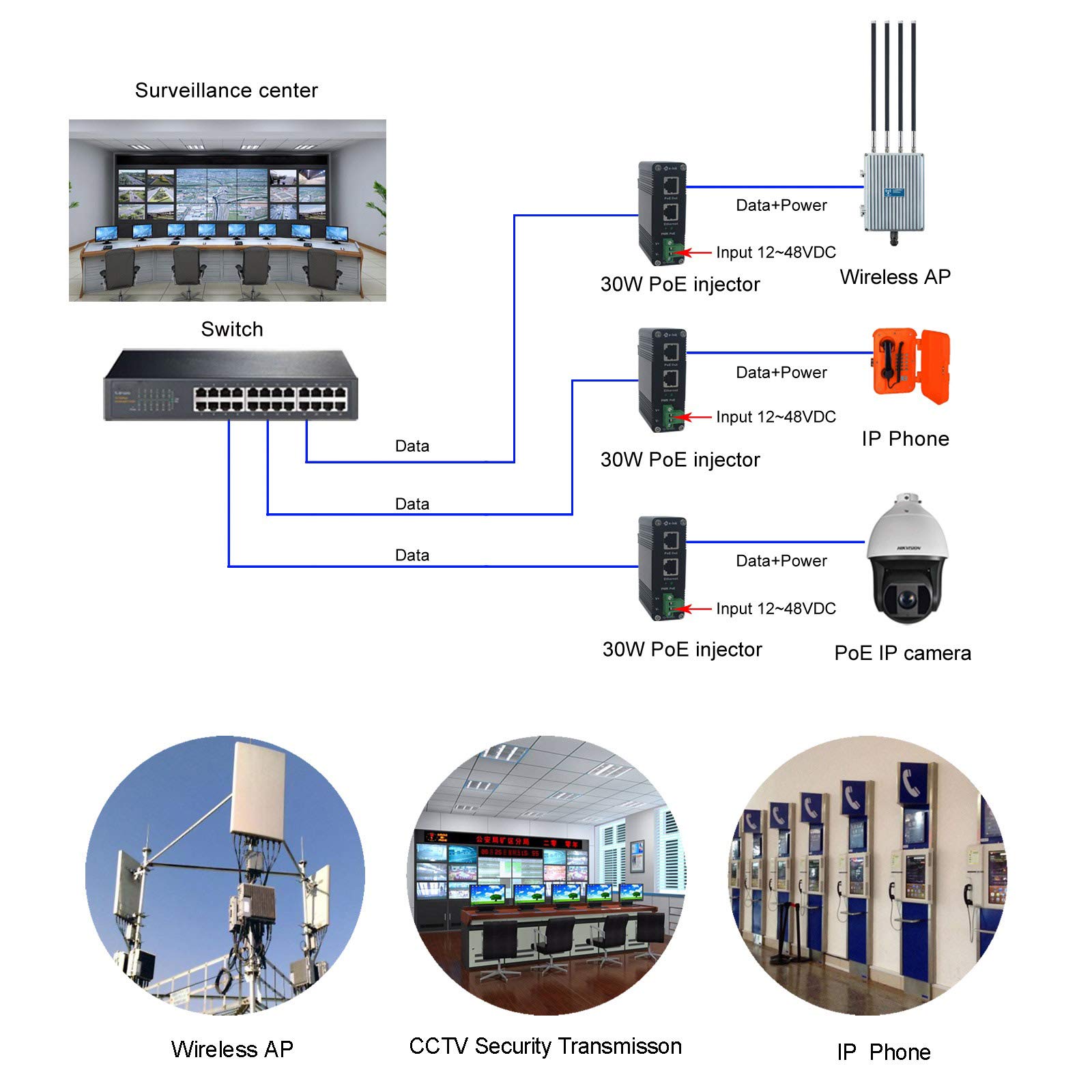

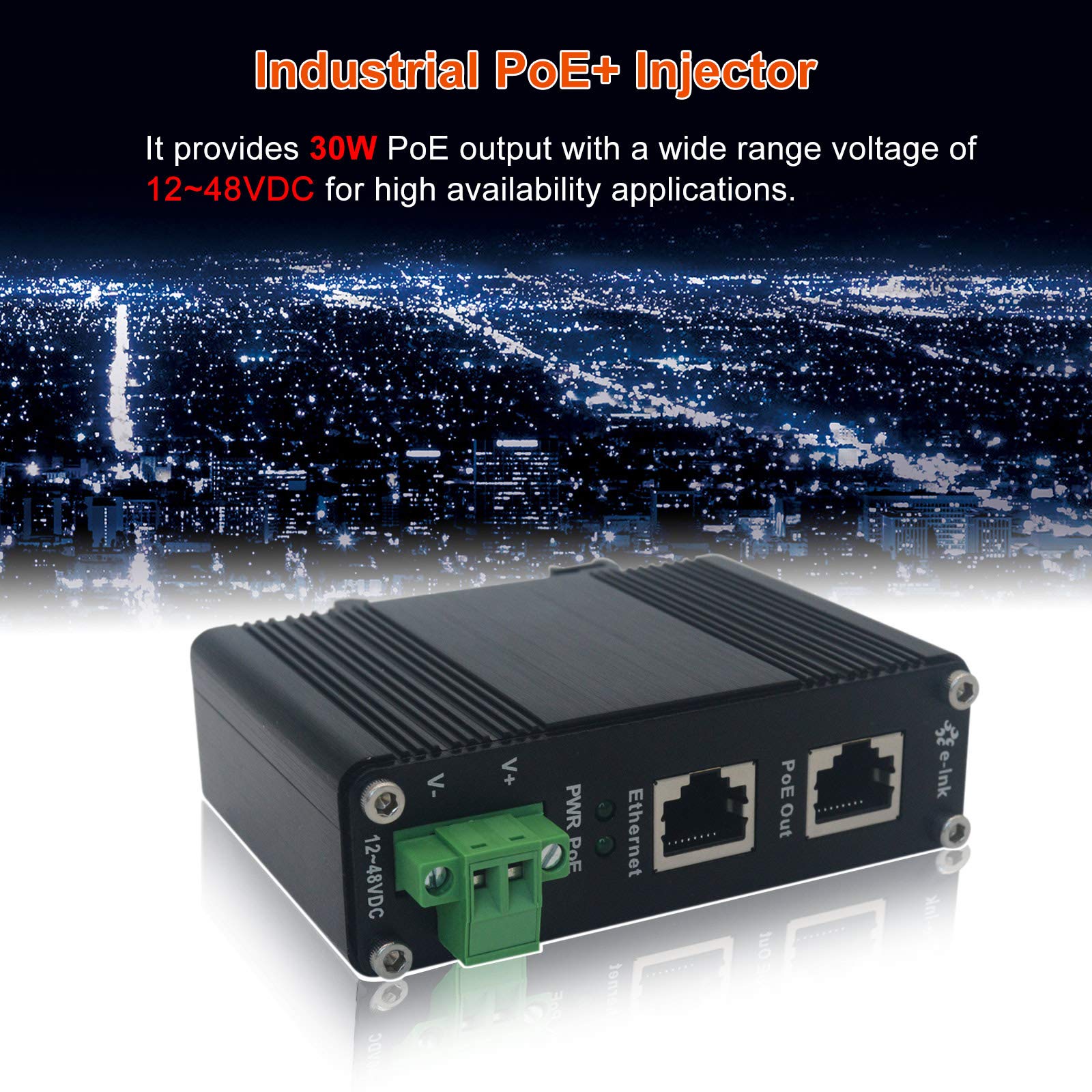

Product description The LNK-INJ301 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at 30W PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at. LNK-INJ301 provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications. Features 12~48VDC Power Input 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power) SupportIEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment Support 10/100/1000Base-TX Support DIN-Rail & Wall-mount installation. Extensive LED indicators for PoE diagnostics Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature Plug and Play. ET Mini Case DIN-Rail installation. Complies with EN55022 class A standard. Extensive LED indicators for network diagnostics. How To Set Up a)Connect the Ethernet port of the injector to a LAN switch with a network cable. b)Connect the PoE Out port to the PoE device. c)After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection. d)After all cables are correctly connected, the indicators will be lit as per port status LEDs. Package Content 1 * LNK-INJ301 30W PoE Injector 1 * Quick Start Guide 1 * L-Shaped Wall Mount Bracket Safety Warning Connectivity Technology：CAT5 UTP cable connection Data Transfer Rate：10/100/1000Base-T: Cat5 or above
