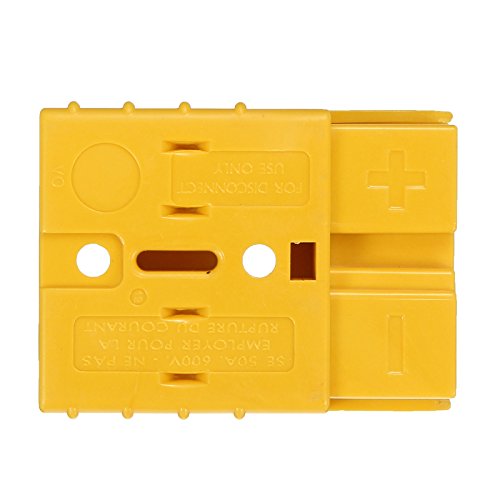

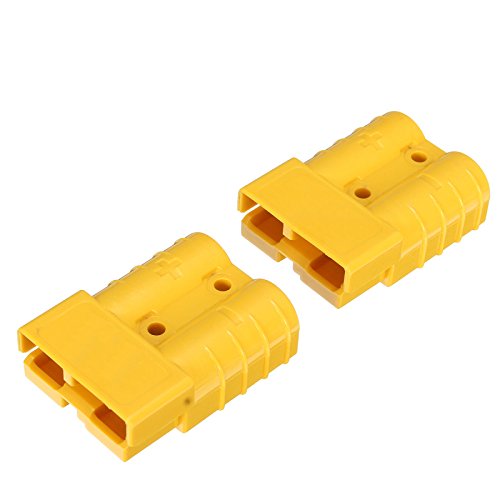

2Pcs 50A DC12/24V Anderson Style Plug Connectors Anderson Power Plug 4X Terminals Yellow

• Color: Yellow
• Housing Material: Polycarbonate (PC)

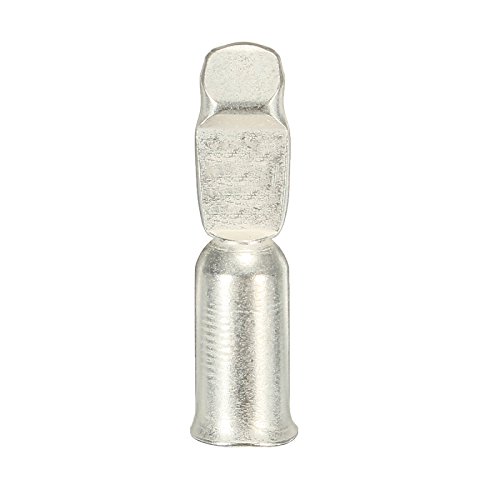

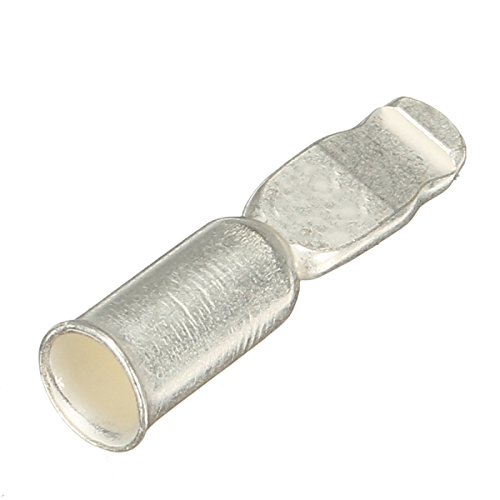

• Contact material: Pure copper silver plating
• Rated Current: 50A
• Rated Voltage: 600V

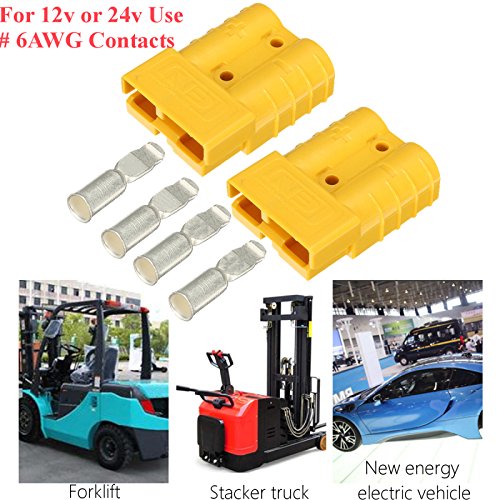

Specifications: Color: Yellow Housing Material: Polycarbonate (PC) Contact material: Pure copper silver plating Rated Current: 50A Rated Voltage: 600V Voltage:For 12v or 24v Use Vibration Resistance: Excellent Impact Resistance: High Cable Size: 6B&S / 6AWG (up to 13.3 sq mm) Average contact resistance: 0.05MO Voltage proof: 2200V (DC) Insulation resistance: 500MO A. No load (Contact/Disconnect Cycles): To 10,000 B. Under load (Hot Plug 250cycless@120V): 50A Flammability Rating of Housing Material: UL94 V- 0 Operating temperature range: -20°to 105° Connector Dimensions: 35.1mm x 48mm x 15.9mm Features: The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals. Provide simplified assembly and minimize the number of components. Silver plated copper contacts inside housings that strongly force the contacts together. Contacts feature a sacrificial tip that allows high current circuit interrupt. Prevents accidental cross mating of circuits. For signal transmission or the added safety of a premate ground position. Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc. Application: Common use includes: Battery Connections,Forklifts,Battery Chargers,Solar Panels,Wind Generators,Tow Trucks,Snow Plows,Farm Equipment,Jumper Booster Cables,Welding Equipment,Winches,Electric Vehicles.etc Package Included: 2 x Plugs 4 x Terminals
