DUBEUYEW VL53L0X Time-of-Flight Distance Sensor Flight Measurement ToF Laser Range Finder 940nm Laser Detect Module for Arduino (2PCS)

• Parameter: Range time 50ms, 20mW power, 2.6V-5V Voltage, I2C Interface, IIC Communication, VCSEL driver;Distance Sensor can report distances of up to 1m in normal mode with a resolution of 1 mm;In long range mode the sensor can report distances of up to 2m, but with lower accuracy.
• Chip: VL53L0X, measurement results accurate to millimeters.
• Laser: Laser emits non-visible light with a wavelength of 940nm, does not harm eyes and enhances the anti-interference performance of external light source.
• Application: Gesture sensing or proximity detection of innovative user interfaces; Wall detection, Cliff detection & collision detection of home appliances; Sanitary products; Laptop user presence detection; Power switch monitoring; Drones; IOT.

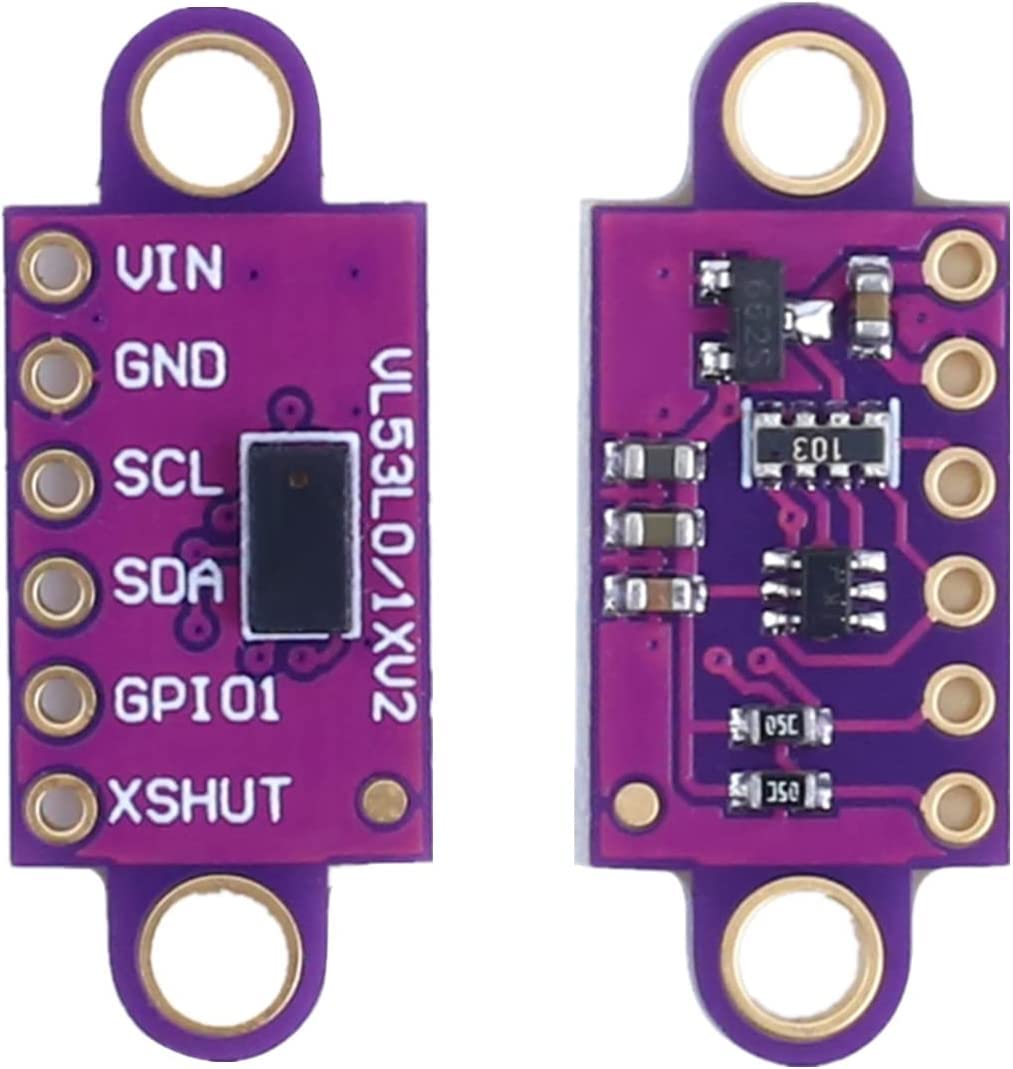

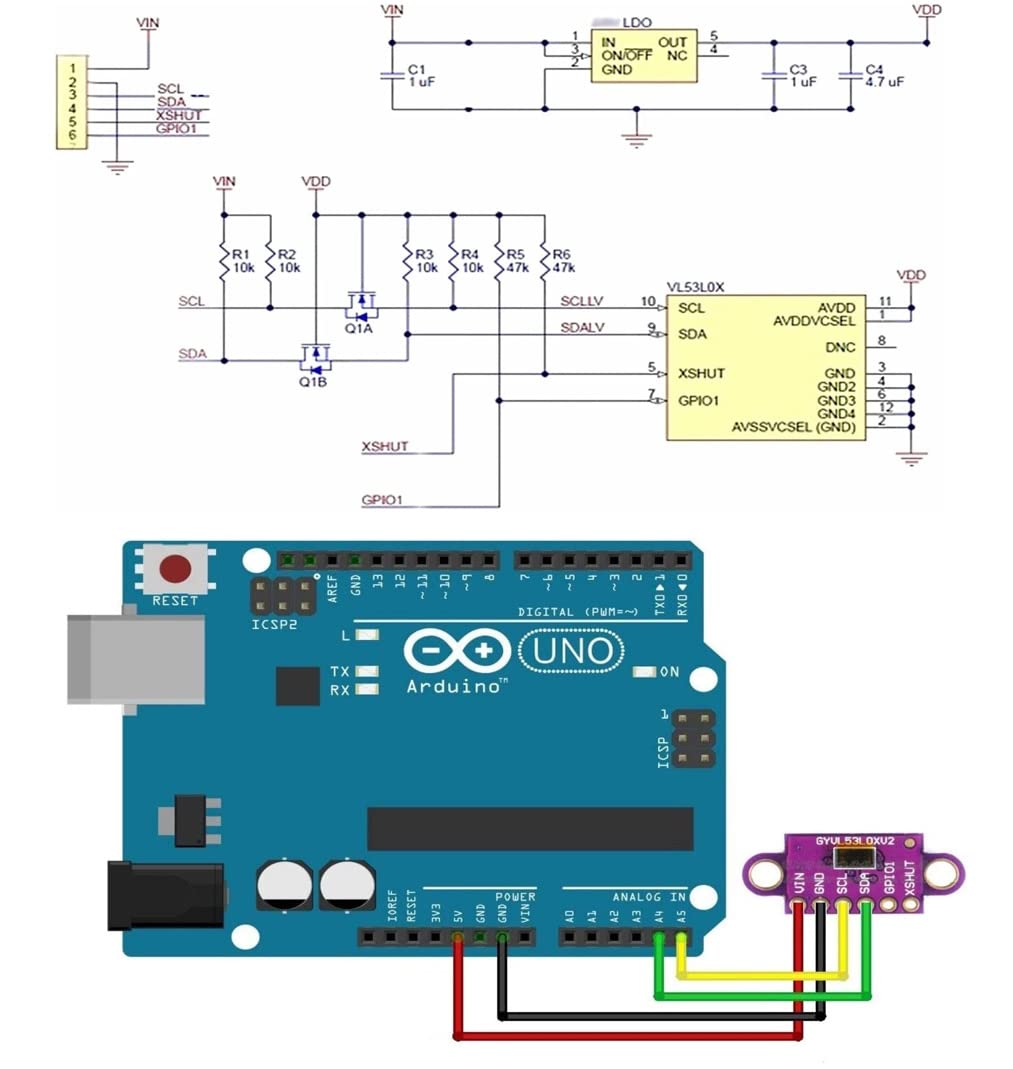

Description: VL53L0X time-of-flight ranging sensor is a new generation of laser ranging module, VL53L0X is a fully integrated sensor, equipped with embedded infrared, eye safety laser, advanced filters and high-speed photon detection array, measurement distance is longer, speed and accuracy higher. Parameter: 1. ToF ranging length: ≤2M 2. Accuracy: Accuracy of 1% at distances up to 1m (more than 10% at 2m) 3. Ranging time: ≤50ms 4. Power consumption: 20mW 5. Standby power consumption: 5μA NOTE: 1. The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. Please read VL53L0X related reference documents carefully before use.（Contact Customer Service for details） 2. VL53L0X is operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible. Package includes: 2x VL53L0X Time-of-flight ToF Ranging Sensor
