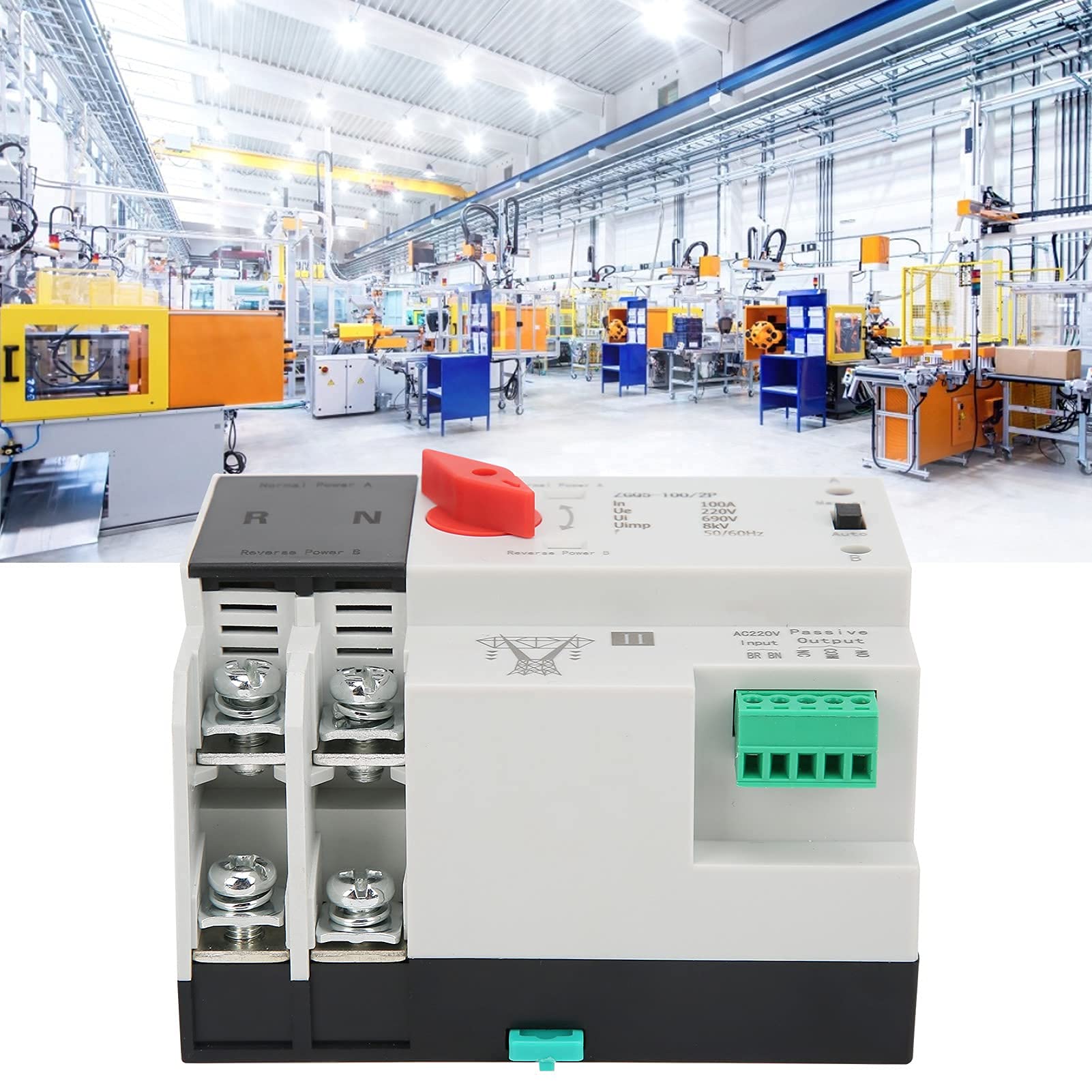

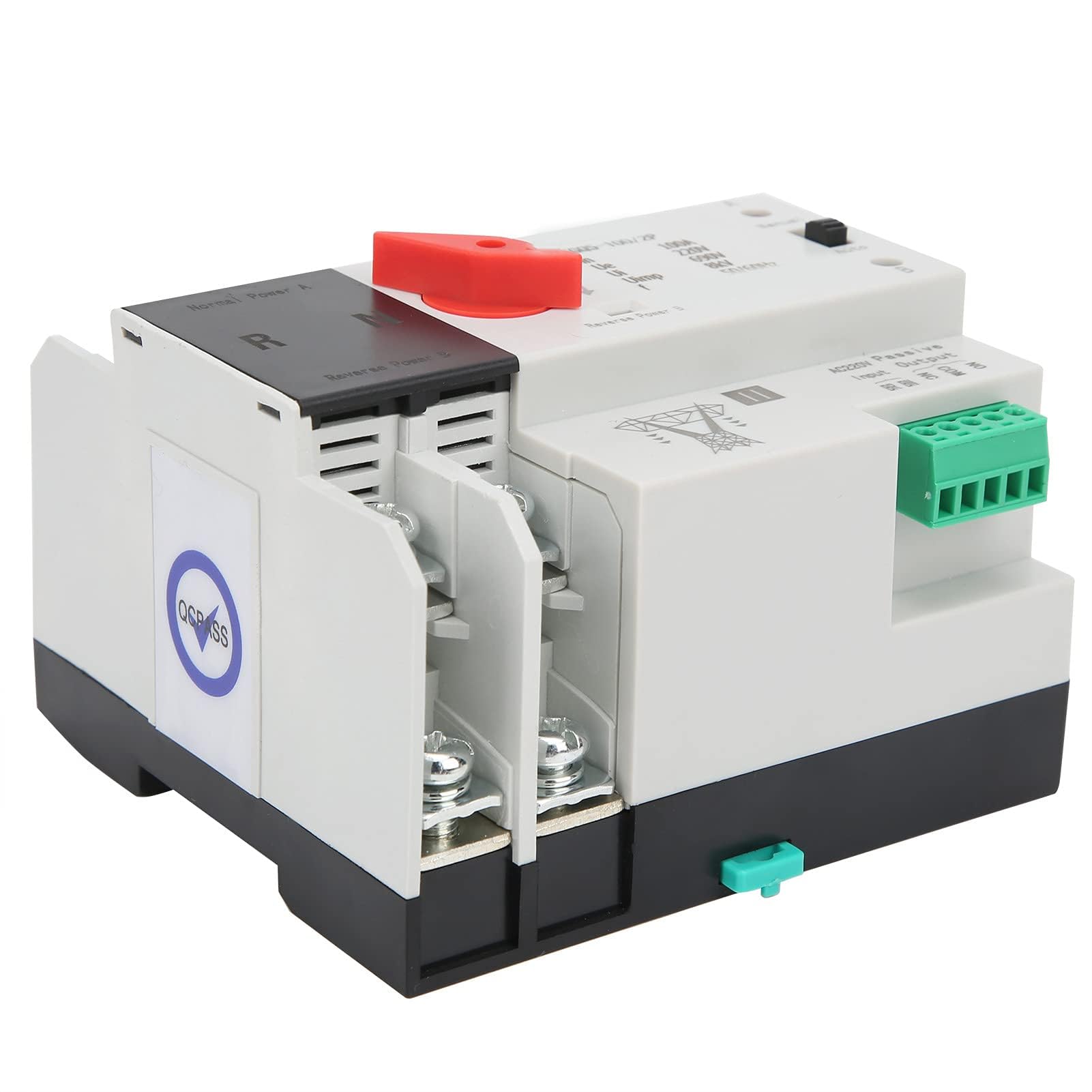

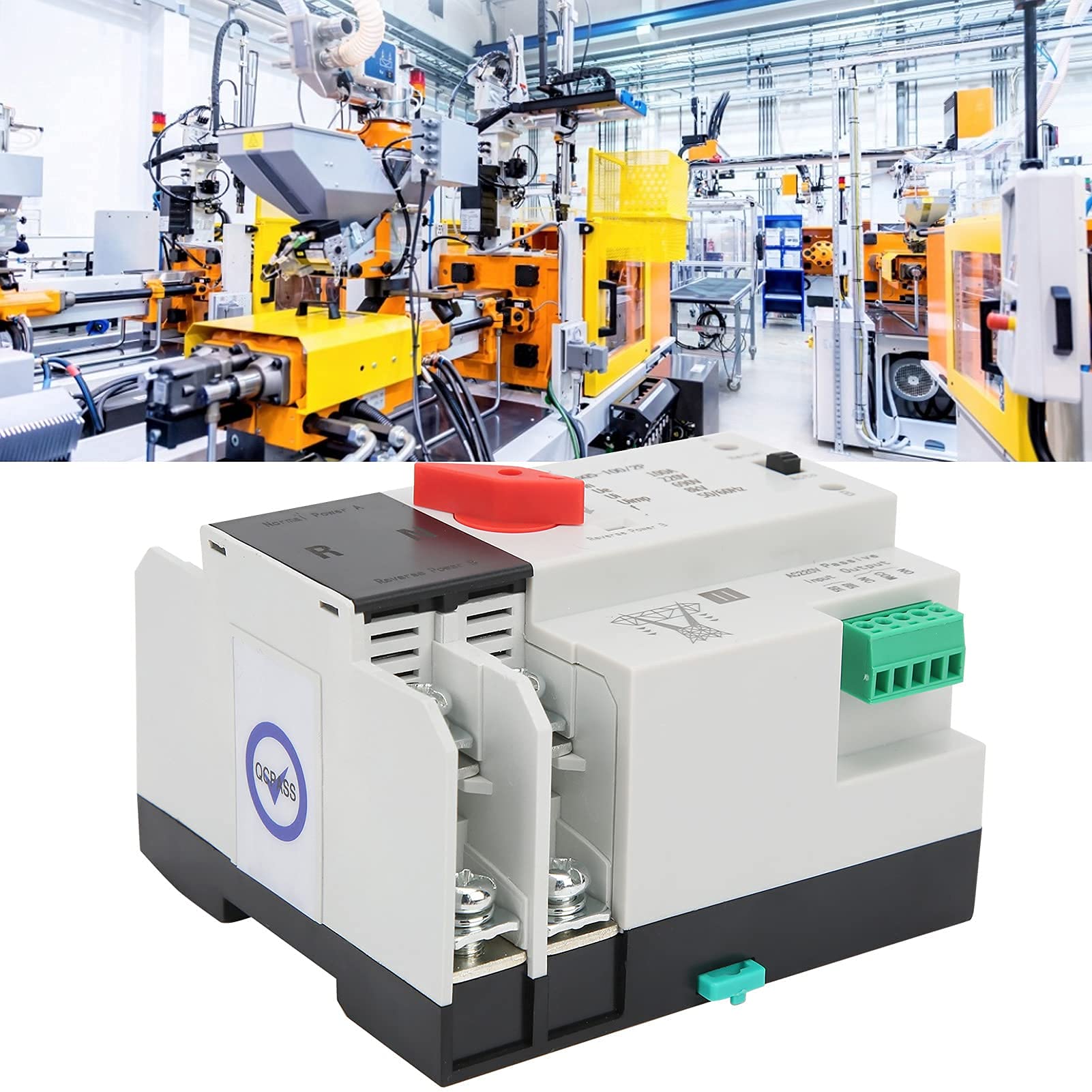

Dual Power Automatic Transfer Switch Electrical Transfer Switches Circuit Breaker Changeover Switch Controller ZGQ5-100/2P 220V

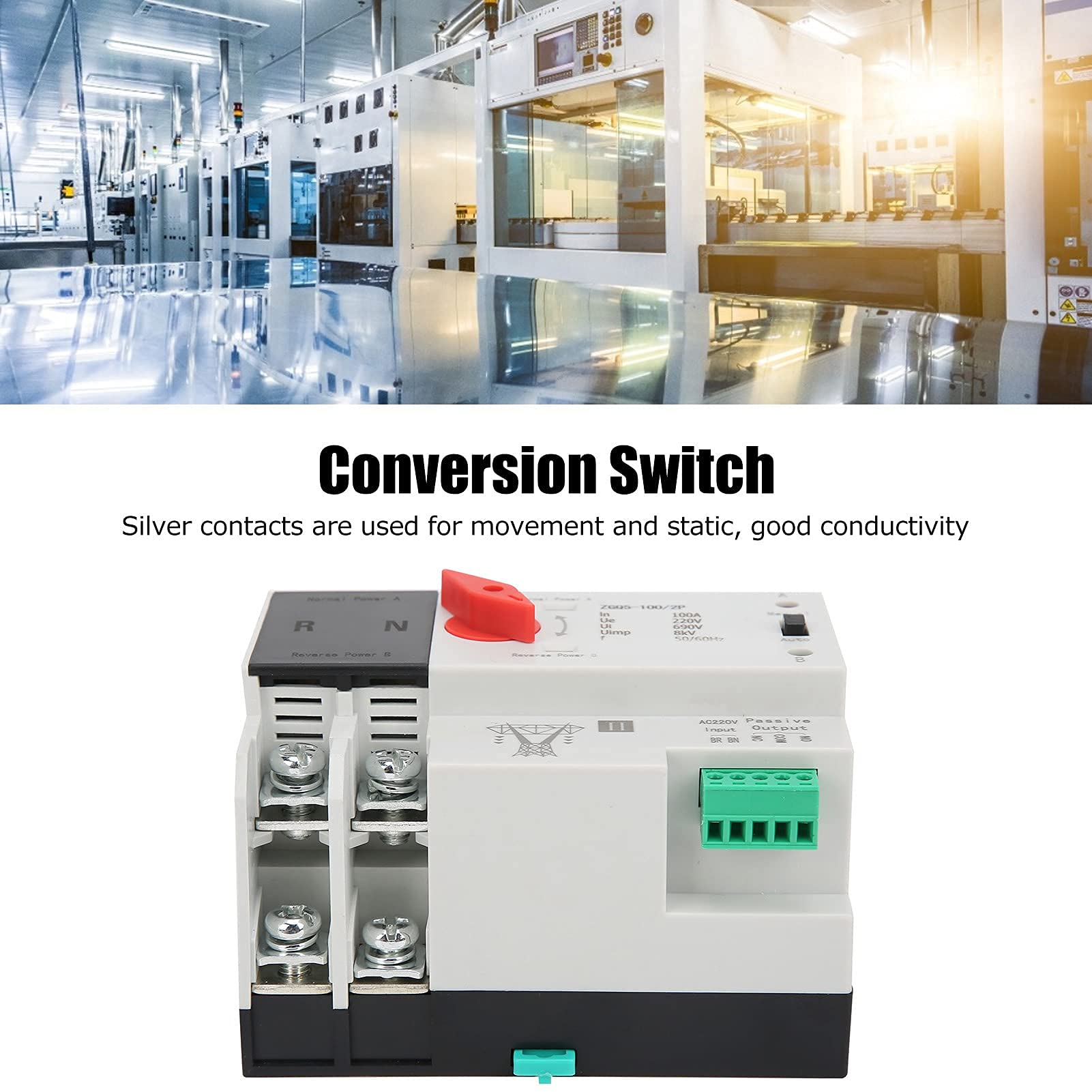

• 【Long Lasting】The silver contacts of this automatic transfer switch are used for moving and stationary, which greatly improves the conductivity and service life of the product
• 【Features】This automatic transfer switch has a built-in normally open output port, which can be connected to a indicator, which is very practical in daily life

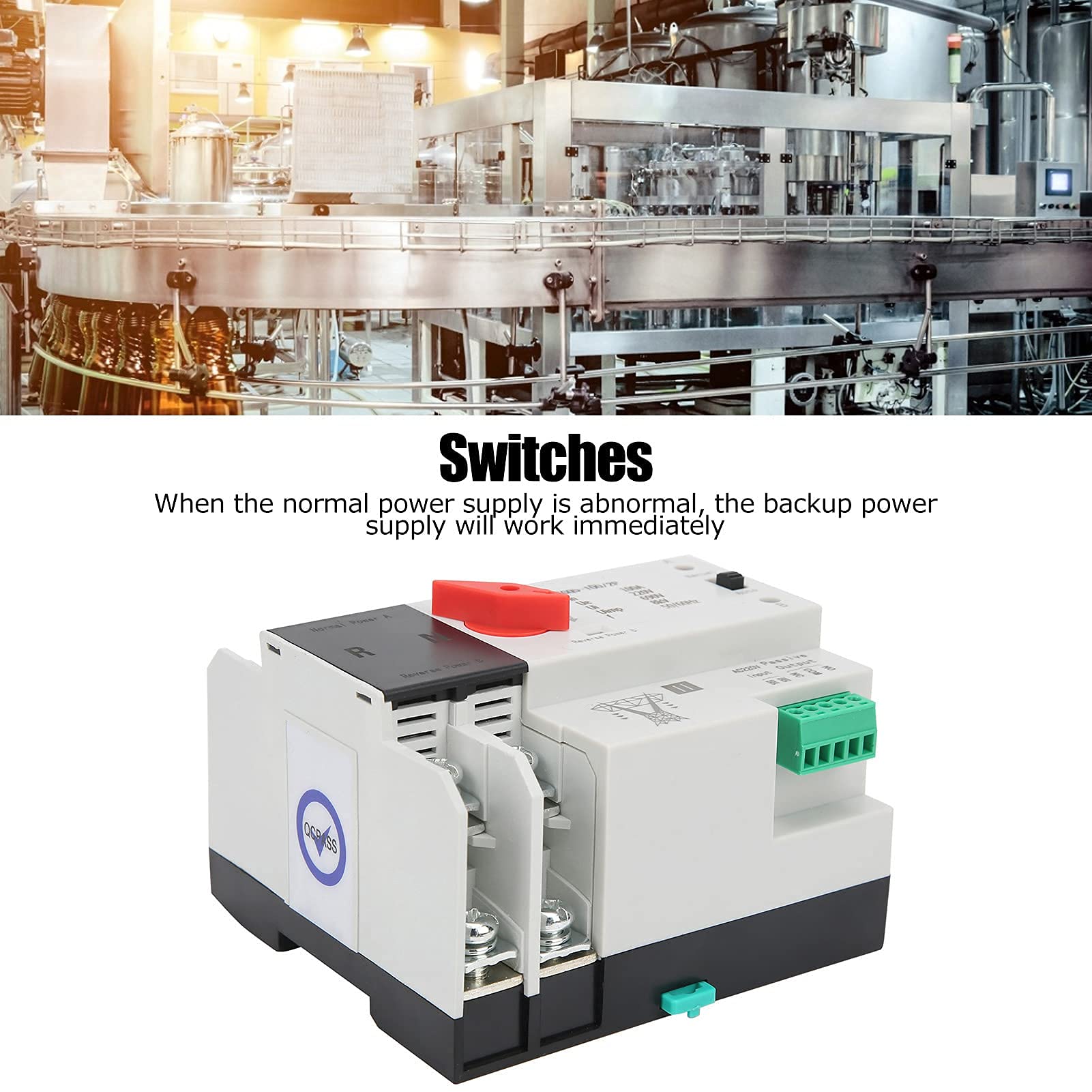

• 【Effect】When the normal power supply of this automatic transfer switch is abnormal, the backup power supply will work immediately to ensure the continuity of the power supply
• 【Material】This dual power automatic transfer switch uses flame-retardant plastic material, good insulation, high temperature resistance, safe and
• 【Performance】This dual power automatic transfer switch is small in size, easy to carry and store, easy to use, excellent in performance, and will not be stuck for a long time

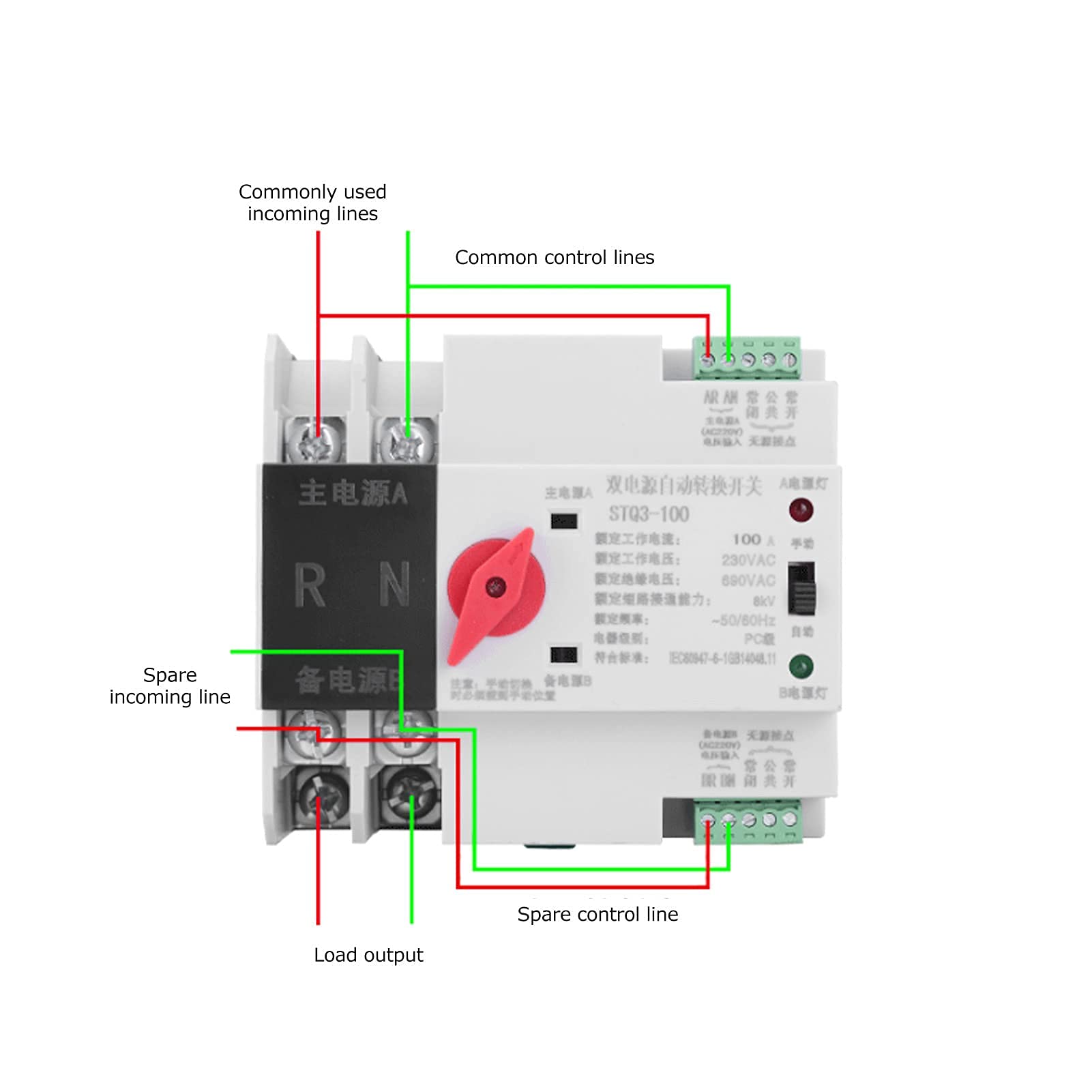

Specification: Item Type: Dual Power Automatic Transfer Switch Model: ZGQ5-100/2P Material: Plastic Purpose: Switch to the backup power supply when the power fails, and switch to the main power supply when the power comes in. Working Frequency: 50-60HZ Rated Current: 100A Rated Voltage: AC110-230V Working Voltage: AC220V Mode: Automatic and manual ATS: CB level Conversion Time: ≤0.05 (S) Number of Poles: 2P How to Use: 1. Place the automatic transfer switch of the dual power supply on the debugging platform, and connect the corresponding power line in the correct phase sequence. The phase line and the neutral line are connected in position and cannot be connected wrongly. 2. When debugging the three-pole switch, the common and spare neutral wires should be connected to the neutral terminal (NN and RN) respectively. 3. Set the dual-power automatic transfer switch to work in the self-turning and self-resetting mode. If the voltage of the two power supplies is normal, the switch should be placed in the common power supply position and the common power supply is closed. 4. Set the common power supply NA, NB, NC, NN for any phase failure, the dual power supply should be automatically converted to the backup power supply, if the common power supply returns to normal, it should be converted back to the common power supply. 5. Adjust the voltage of any phase of the common power supply to the predetermined undervoltage voltage value, and the dual power supply should automatically switch to the standby power supply. When the normal power supply returns to normal, the switch should return to the normal power supply. Package List: 1 x Dual Power Automatic Transfer Switch 1 x User Manual
