Dual Port Gigabit Ethernet Converged PCI-E x1 card,2X RJ45 Gigabit Network Interface Controller Adapter,with 82575EB Chipset for Desktops,work stations,servers, with Low Profile Bracket.

• 【Gigabit NIC Card】PCIe gigabit network card allow desktop computers to upgrade to the latest Gigabit Ethernet through the PCIE X1 slot. Each port will automatically communicate with the router/switch/modem to adjust the Ethernet speed to 10/100/1000Mbps

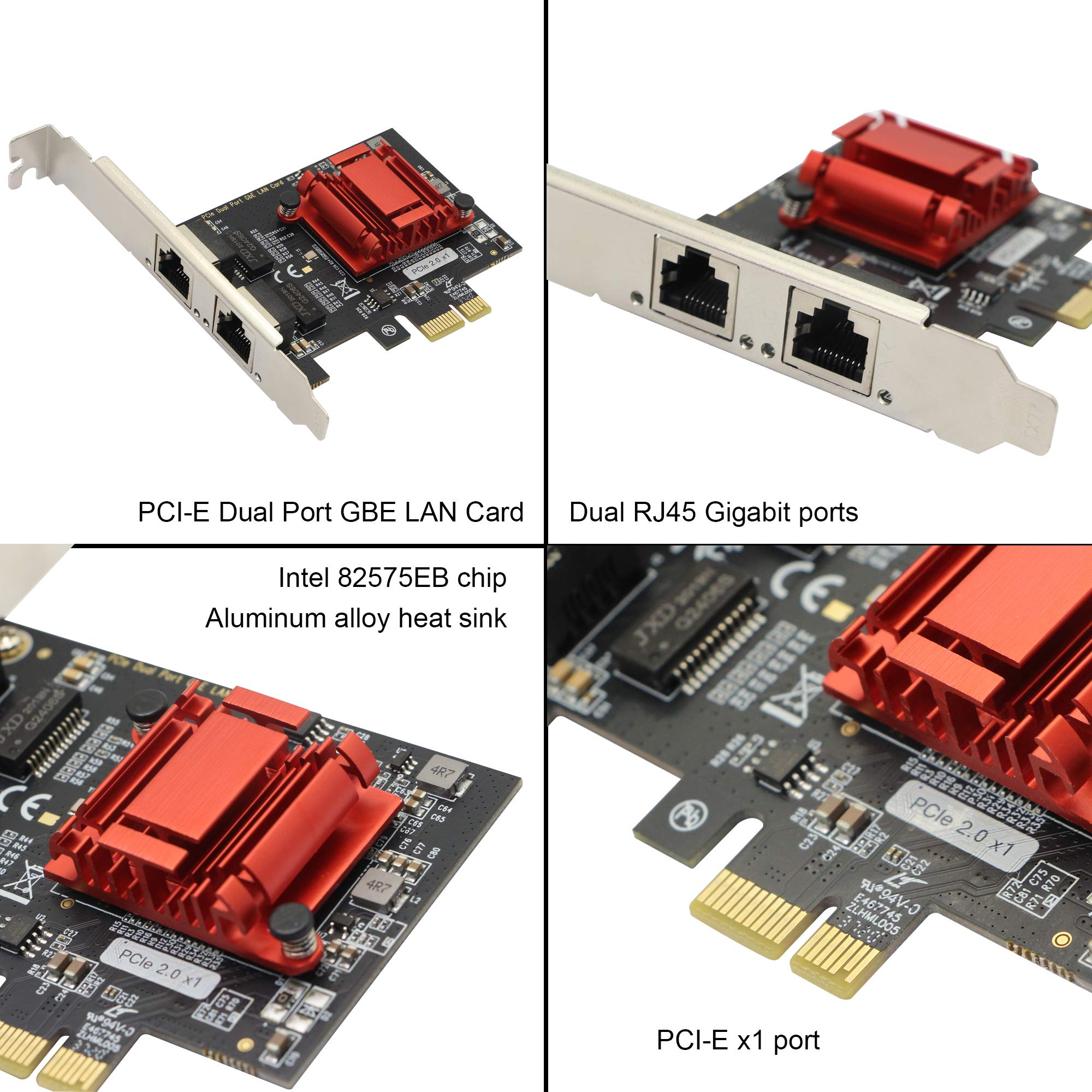

• 【2x rj45 gigabit network】Dual Port Gigabit Ethernet card Adopt Intel 82575 main control chip, support intelligent offloading, support link aggregation/teaming support, enabling you to add extra bandwidth to your system and make the server more stable

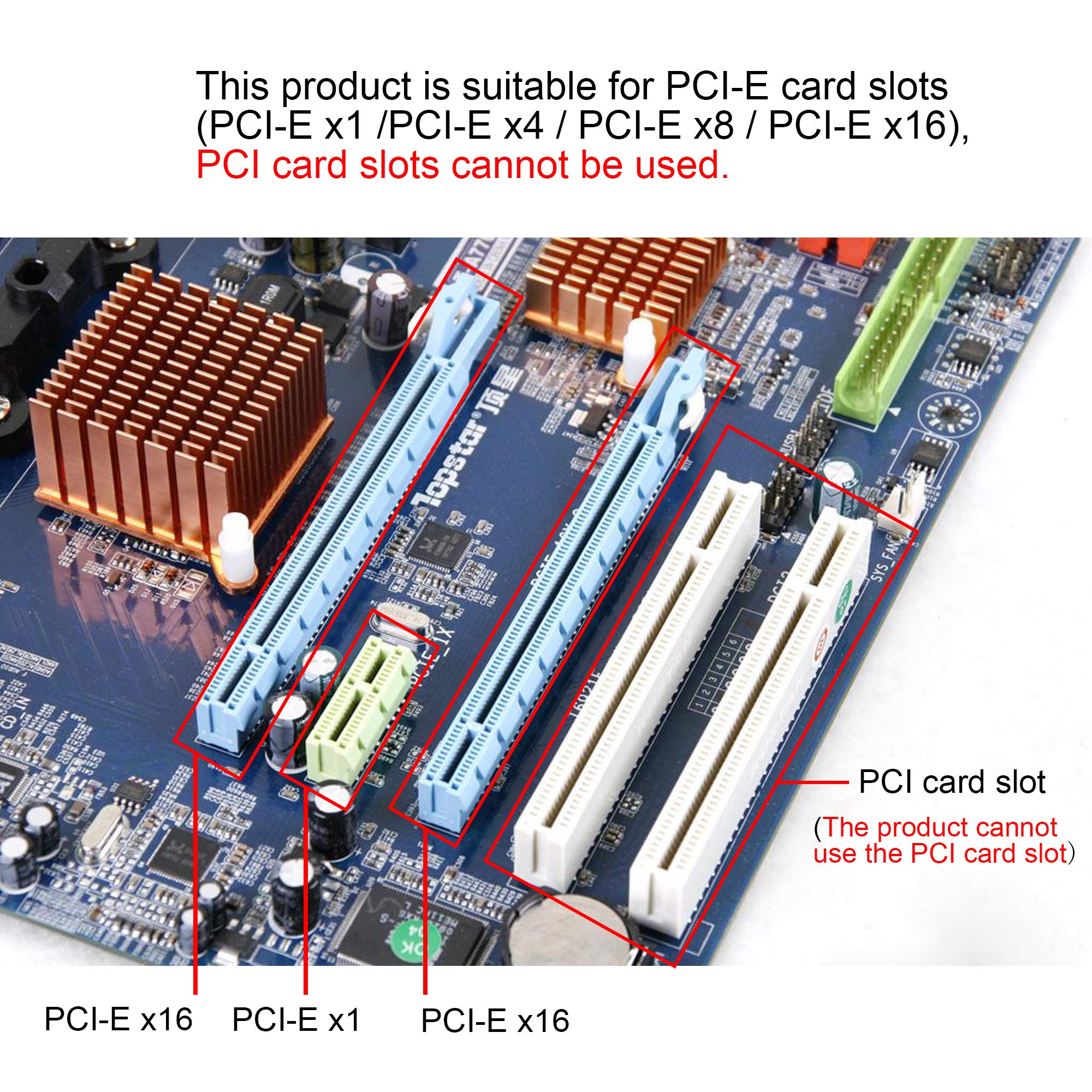

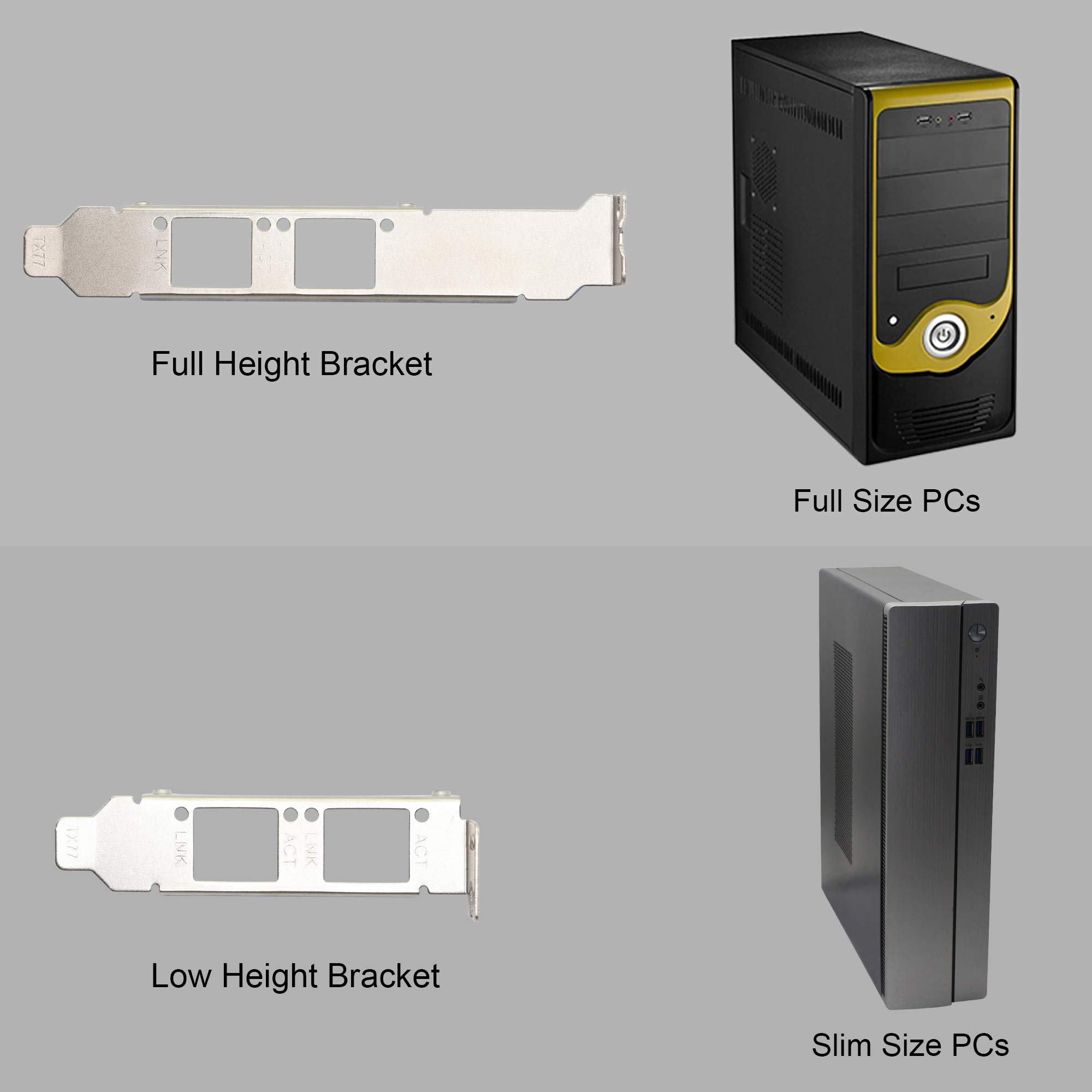

• 【Wide Compatibility & Safety】Compatible with Windows XP/10/8.1/8/7,LINUX,NAS,and can be used with PCI Express X1,X4,X8,X16 slots.An additional half-height bracket makes it easy to install on a small computer or server.

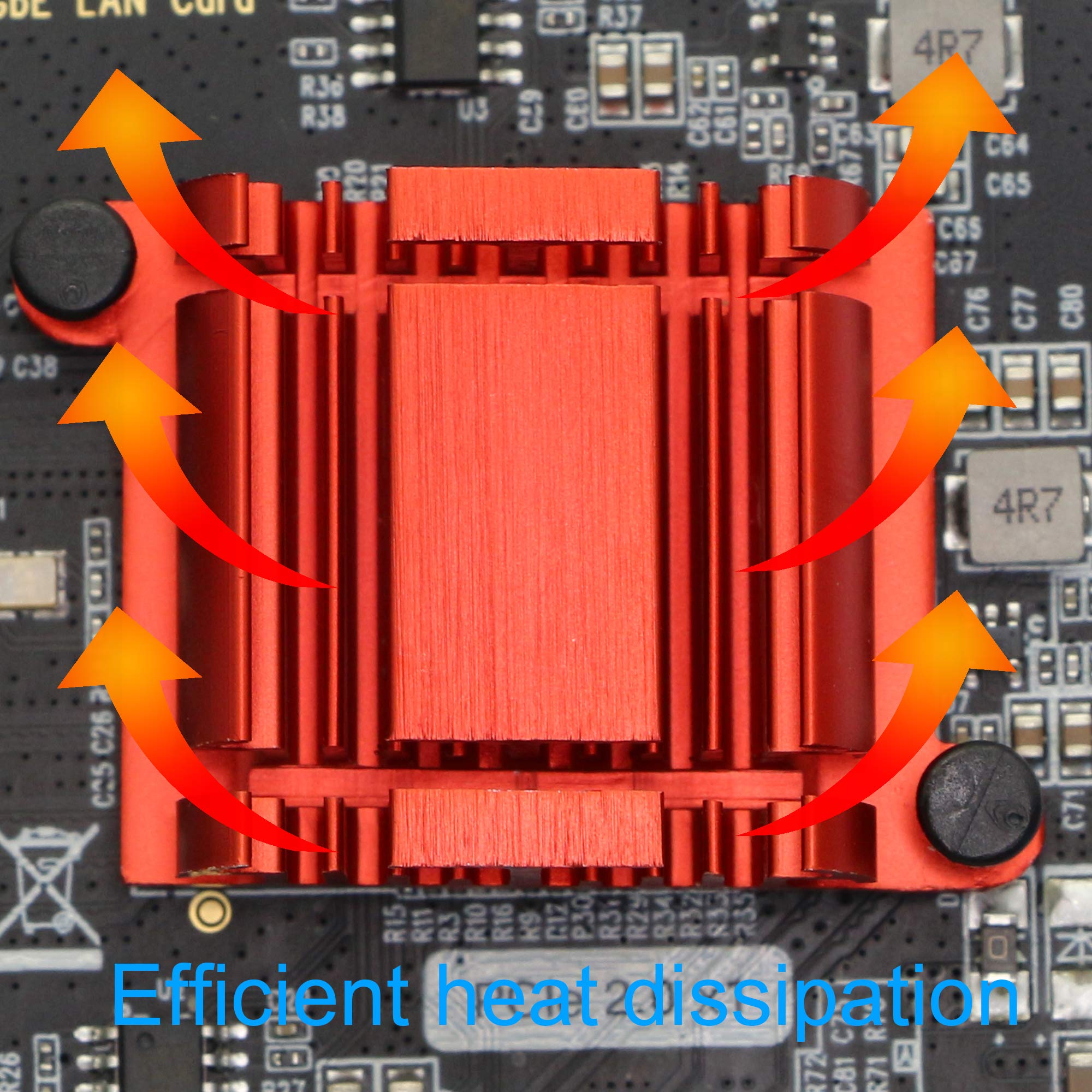

• 【Aluminum alloy heat sink】The aluminum alloy heat sink with high thermal conductivity can effectively remove excess heat, prevent the chip from burning out after long-term use, make the network card run stably and prolong its service life

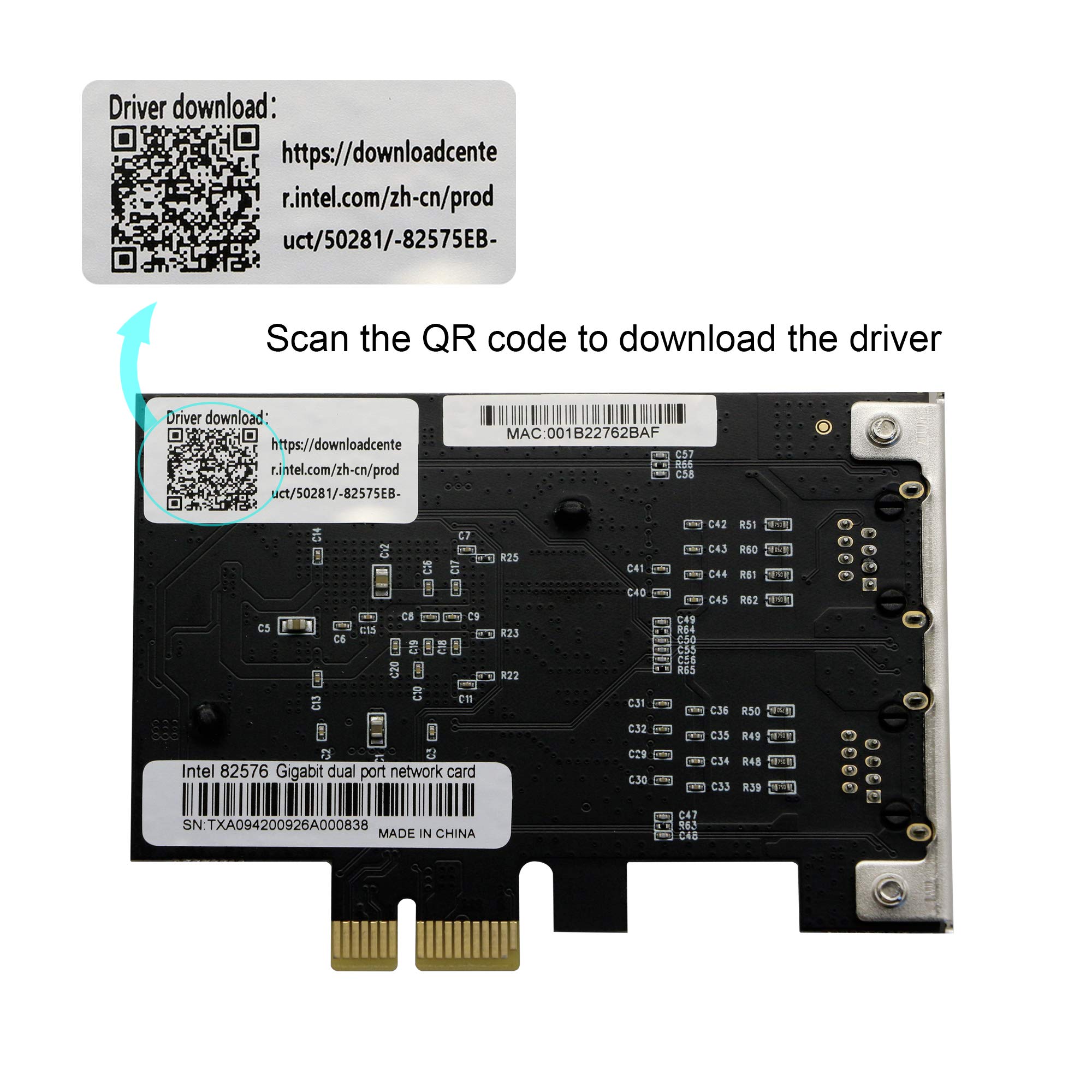

• 【Note】1- If the driver cannot be installed automatically after inserting this card, please scan the QR code on the back of the network card or log in to Intel’s official website to download. 2- Do not insert this card when the PC is on. 3- Do not put this PCIE NIC card in PCI slot

1.PCEI gigabit network card converts PCI-E x1 to dual gigabit Ethernet ports, and can be inserted into all types of PCIE slots (PCIe x1,X4,X8,X16).Note: Not compatible with PCI slots 2.Dual-port PCI Express Gigabit network interface controller card. Allow desktop computers to upgrade to the latest Gigabit Ethernet through the PCIE X1 slot. Each port will automatically communicate with the router/switch/modem to adjust the Ethernet speed to 10/100/1000Mbps.Support multiple Windows systems, and most Linux systems (including NAS). 3.Compliant with IEEE 802.3/u/ab standards, and with support for 9.5K Jumbo Frames,VLAN tagging, this Gigabit NIC Adapter offers effective network performance. 4.Network standards:IEEE 8002.1P,IEEE 802.1Q,IEEE 802.2,IEEE 802.3ac,IEEE 802.3az,IEEE 802.3x,IEEE 802.3ad 5.Driver support: Microsoft Windows* (32&64bit),SCO UnixWare*7.x,Open Unix*8.0,Novell ODI*, Novell Netwarex,SUSE Linux Enterprise SERVER*9.0,Red Hat Enterprise Linux*4.0,Linux *.EreeBSD*,Sun Solaris*, Microsoft Dos*,Vare ESX* Features:Support VLAN aggregation,ESXI,diskless boot (PXE),soft routing,etc. 6.Integrate hardware acceleration function,perform TCP/UDP/IP validation and TCP segmentation tasks Support Iscsi PEX diskless boot,VLAN aggregation, soft routing functions. 7.Features Two 10/100/1000 Mbps compatible RJ45 Ethernet ports Link and Activity LED indicators Fully Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3x and IEEE 802.3ab standards Supports IEEE 802.1Q VLAN tagging, and IEEE 802.3x Fully Duplex Flow Control Full and half duplex support PXE network boot support Jumbo frame supports up to 9.5Kbytes Complies with Microsoft and Linux platforms 8.Package includes: 1 x Dual Port Gigabit Ethernet PCIE Card
