DTXMX Flysky FS-iA6B Receiver 6CH 2.4G AFDHS2A Support PWM/PPM/i-Bus Output Compatible with FS-i6 FS-i6X and FS-i6S RC Transmitter Radio Remote Control

• It is reliable, works with 2.4 GHz AFHDS signal, safe and stable and does not interfere.
• Support PPM output, single core flight control, iBus interface, scalable channel.
• Better compatibility, it can be compatible with a variety of FS-i4, FS-i6, FS-i6X, FS-i6S, FS-i10 transmitters, reduce your problems.
• The 2.4G mode is an upgraded version of the second generation digital automatic FM system with six channels for better signal.
• Applicable to airplanes, gliders, helicopters, with I-bus interface and data acquisition interface.

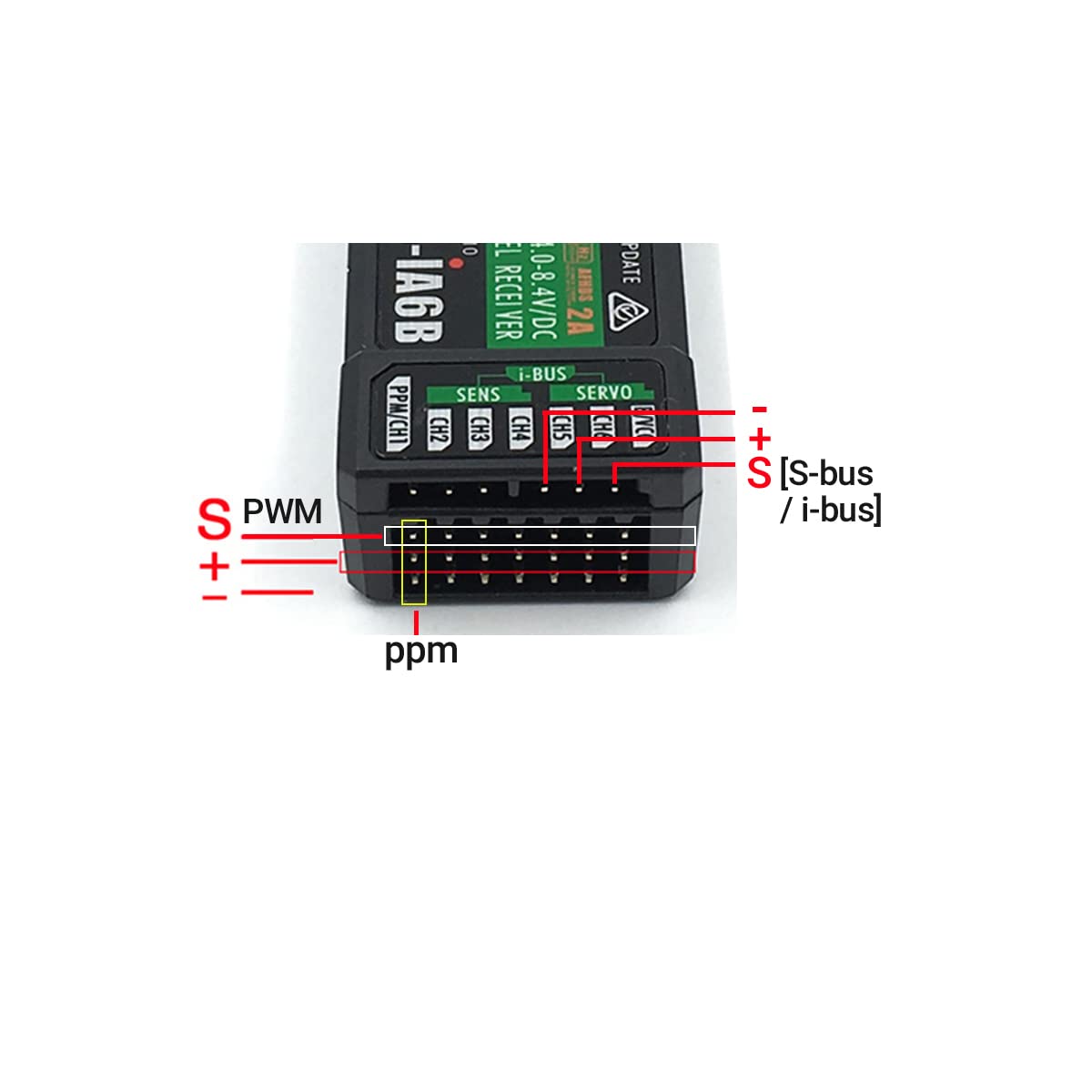

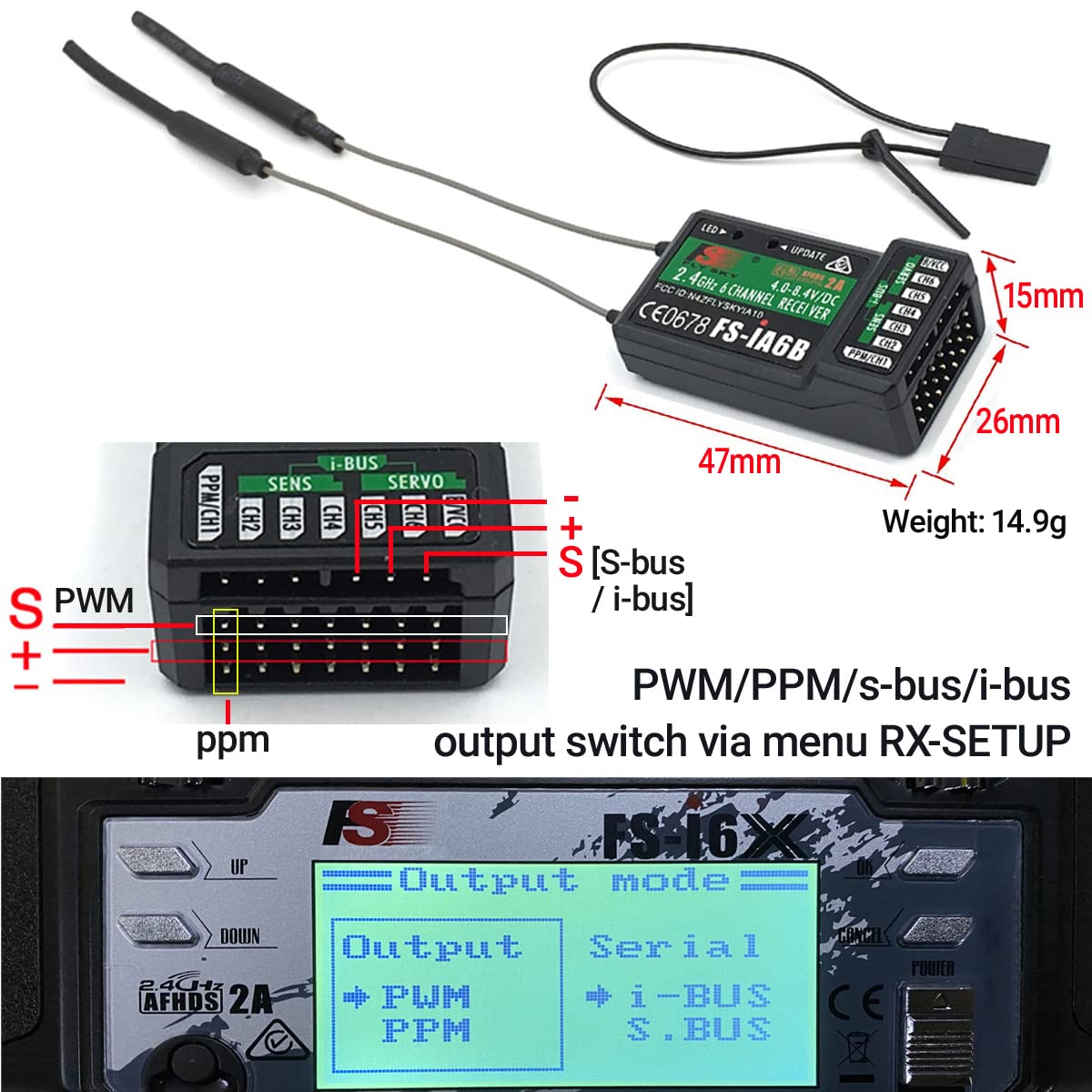

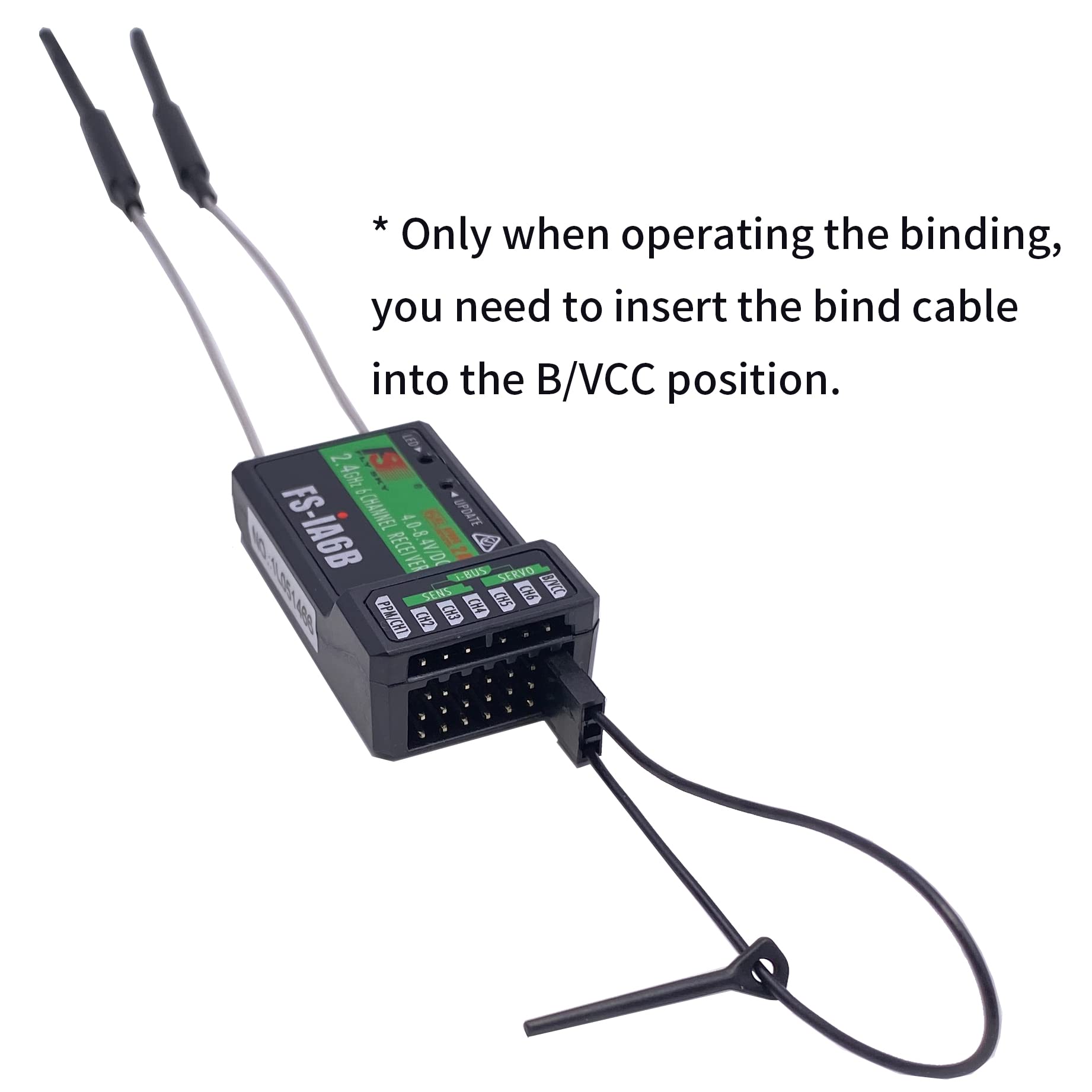

Working steps of frequency pairing between the FS-iA6B receiver and the Flysky FS-i6/FS-i6X transmitter: 1. Plug the supplied tie connector into the B/VCC port of the receiver. 2. Plug the DC 4V-6.5V power supply into other ports, the positive and negative poles cannot be connected incorrectly. 3. Press and hold the "BIND KEY" and then turn on the transmitter to enter binding mode. 4. The transmitter shows the RX voltage, which means that the binding was successful. 5. Remove the jumper cable, check the function of the servos. If something doesn't work as expected, start this process from the front. Supports PWM/PPM/i.bus, How to turn on PPM: Press the OK button on the right side of the screen for 2 seconds, enter the remote control menu - System - RX Setup - PPM Ostput and set it on or off. Press the CANCELL button on the right side of the screen for 2 seconds to save. Then the position output of the FS-IA6B receiver emits CH1 PPM. FS-iA6B. Technical data: Channel: 6CH RF range: 2.408 - 2.475 GHz. Band:135 RF power: ≤20dBm RX sensitivity: -105dBm 2.4G system: AFHDS 2A. Code type: GFSK. ANT slot: 26 mm x 2 (double antenna). Input power: 4.0-6.5V DC Dimensions: 43 x 26 x 15 mm. Weight: 16 g. i-Bus Interface: Yes Data acquisition interface: Yes Model Type: Multi-Rotor/Fixed Wing/Heli Compatible Transmitters: Compatible with FS-i6, FS-I6X, FS-I6S, FS-i4 Box contents: 1 x FS-iA6B receiver. 1 x binding cable.
