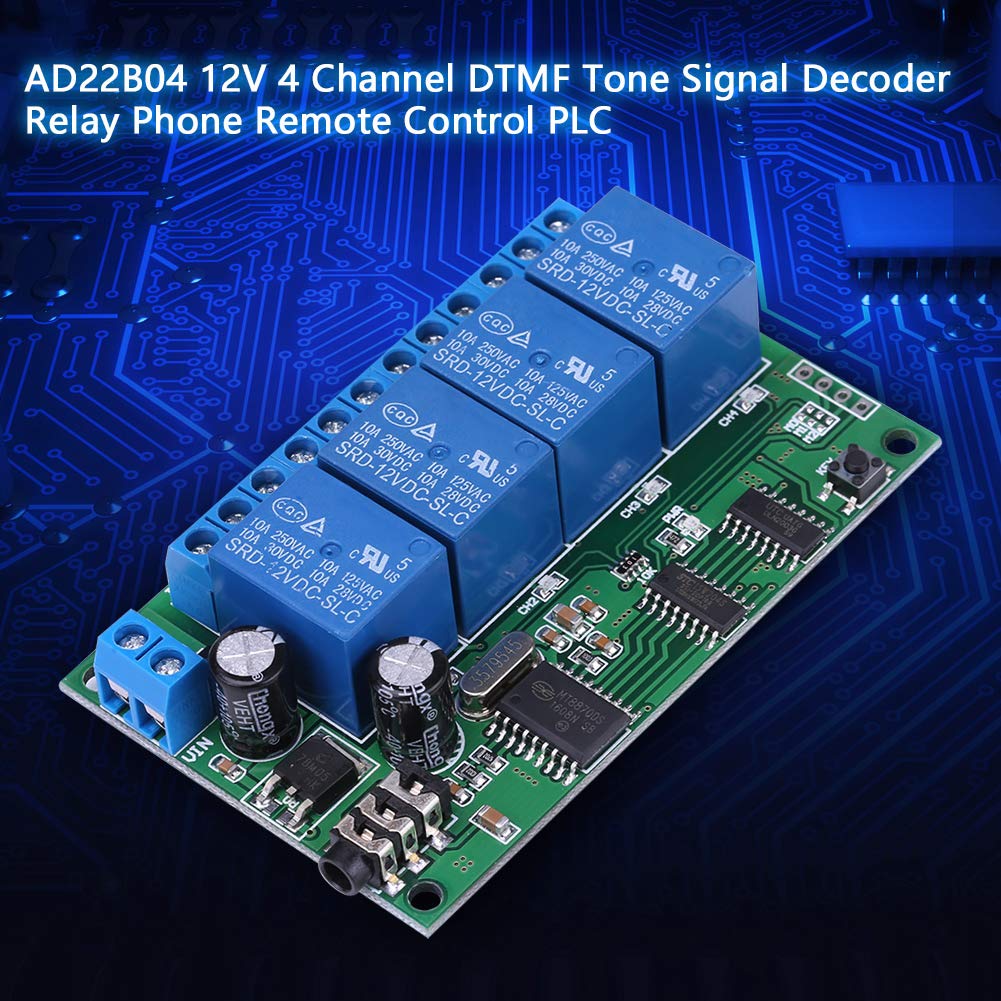

DTMF Tone Decoder Relay, DTMF Tone Decoder Relay, 12V 4 Channel DTMF Tone Decoder Relay Phone Remote Control PLC

• [Efficient DTMF Tone Decoder Relay] - This 12V 4 Channel DTMF Tone Decoder Relay sets the standard for phone remote control and PLC operations. With a working voltage of DC 12V and built-in reverse polarity protection, it ensures efficient and safe operation at all times.
• [Energy Efficient Design] – This Decoder Relay is designed to be energy-efficient with standby operating current ranging from 11-13 MA. While operating 1 to 4 relays, the current ranges from 44MA to 140MA respectively, guaranteeing optimal control without excessive power consumption.
• [Versatile Operating Modes] – Equipped with eight different modes of operation, including Non-locking, Self-locking, Inter-locking, and various delay modes. This provides the flexibility for you to customize your operations according to your specific needs, making it a versatile tool for any application.
• [User-Friendly Operation] – The default control command functions are easily accessible, allowing for seamless control of individual relays. For instance, dialling 1 controls relay 1, 2 for relay 2, and so on. Plus, control commands can be altered to be any 1-4 bits, providing a flexible and intuitive user experience.
• [High Load Capability] – Boasting a maximum load capacity of 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, and 10A/12VDC, this decoder relay can handle heavy-duty operations. It weighs a mere 72g and comes with a cable, making it easily portable. You can rely on its durability and reliability for all your operations.

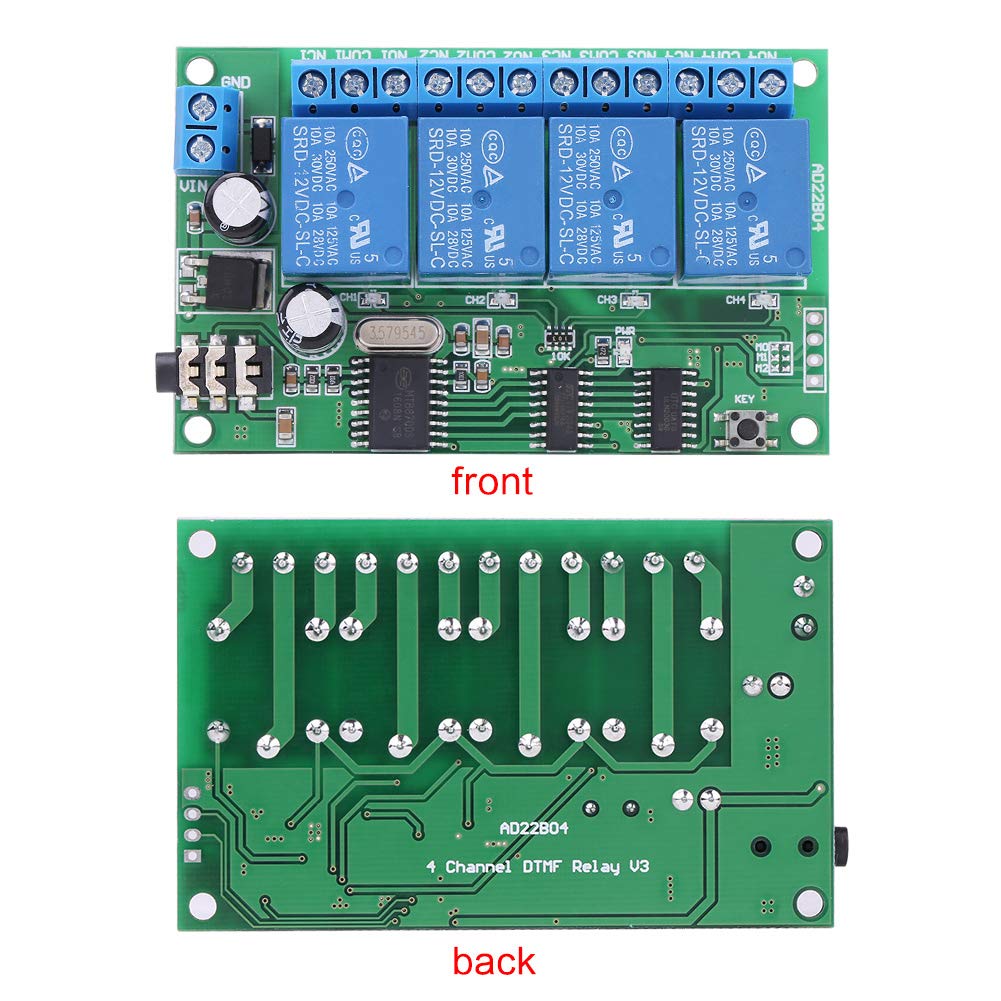

Specifications: Size: as the picture Weight: 72g Maximum load: 10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC Package Included: 1 x 4 Channel DTMF Tone Decoder Relay 1 x cable
