DTGN 22 Inch Pocket Door Slide Pocket Door Hardware Kit- 1 Set - for 18-20mm Think Inset Cabinet Wardrobe - Soft Close Silent Retractable System W/Hinges & Screws 14kg/30.9lb - Silver

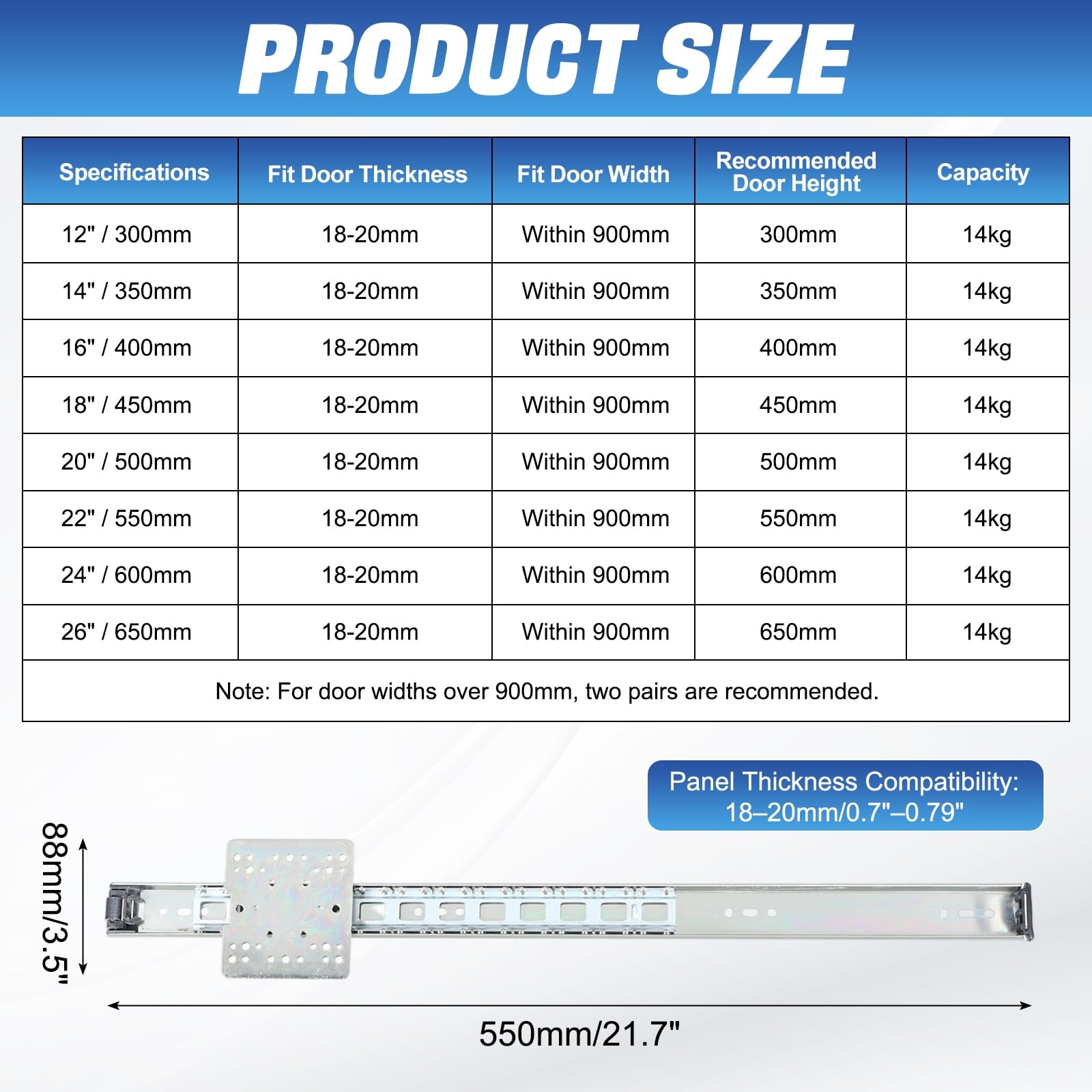

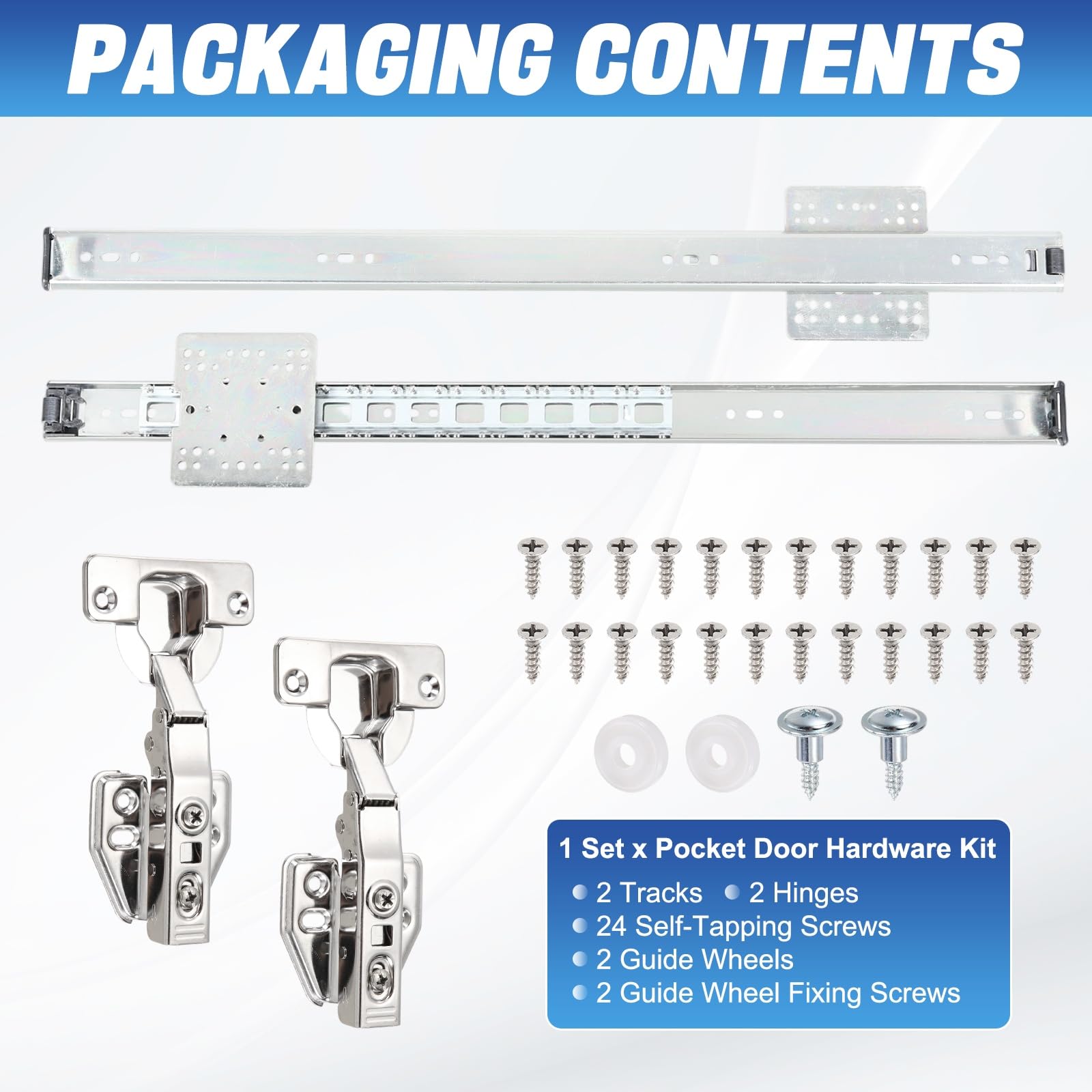

• Package Content: 1 Set x Pocket Door Hardware Kit (Each Set Includes 2 Tracks, 2 Hinges, 24 Self-Tapping Screws, 2 Guide Wheels, 2 Guide Wheel Fixing Screws); Track Length: 550mm/21.7"; Track Width: 88mm/3.5"; Hinge Size: 130mm x 66mm/5.1" x 2.6" (L x W); Load Capacity: 14kg/ 30.9 lbs; Panel Thickness Compatibility: 18–20mm/0.7"–0.79"

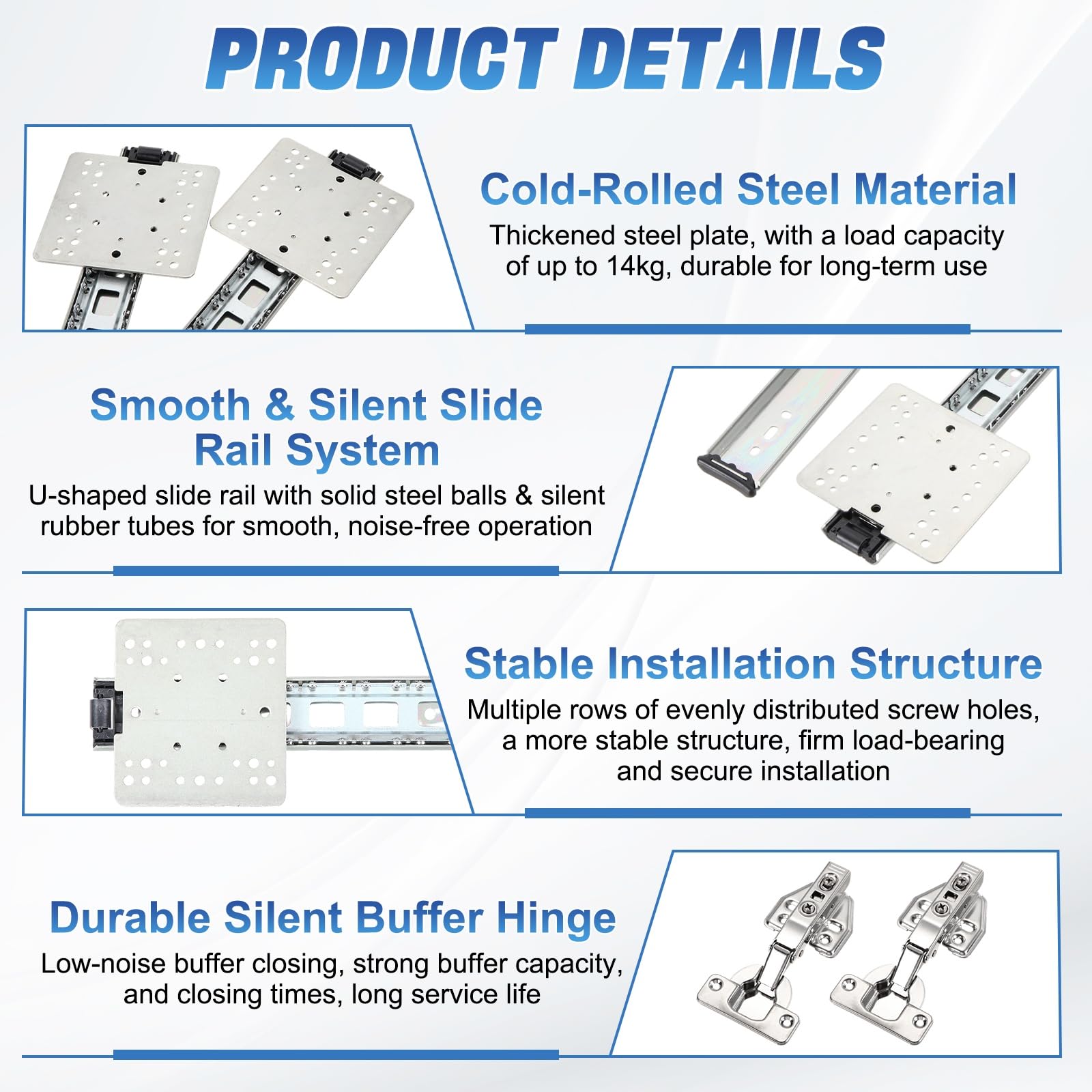

• Material: The pocket door slide is made of thickened cold-rolled steel, with enduring strength and stability, while the electroplated finish offers superior protection against rust, corrosion, and daily wear and tear for extended service life.
• Feature: This pocket door hardware enables a space-saving installation where the door slides into a concealed recess. The U-shaped track features precision ball bearings and high-density solid steel balls for ultra-smooth, quiet movement. A built-in multi-point anti-collision mechanism reduces noise, while multiple evenly spaced screw holes enhance structural stability. The complete accessory kit simplifies installation.

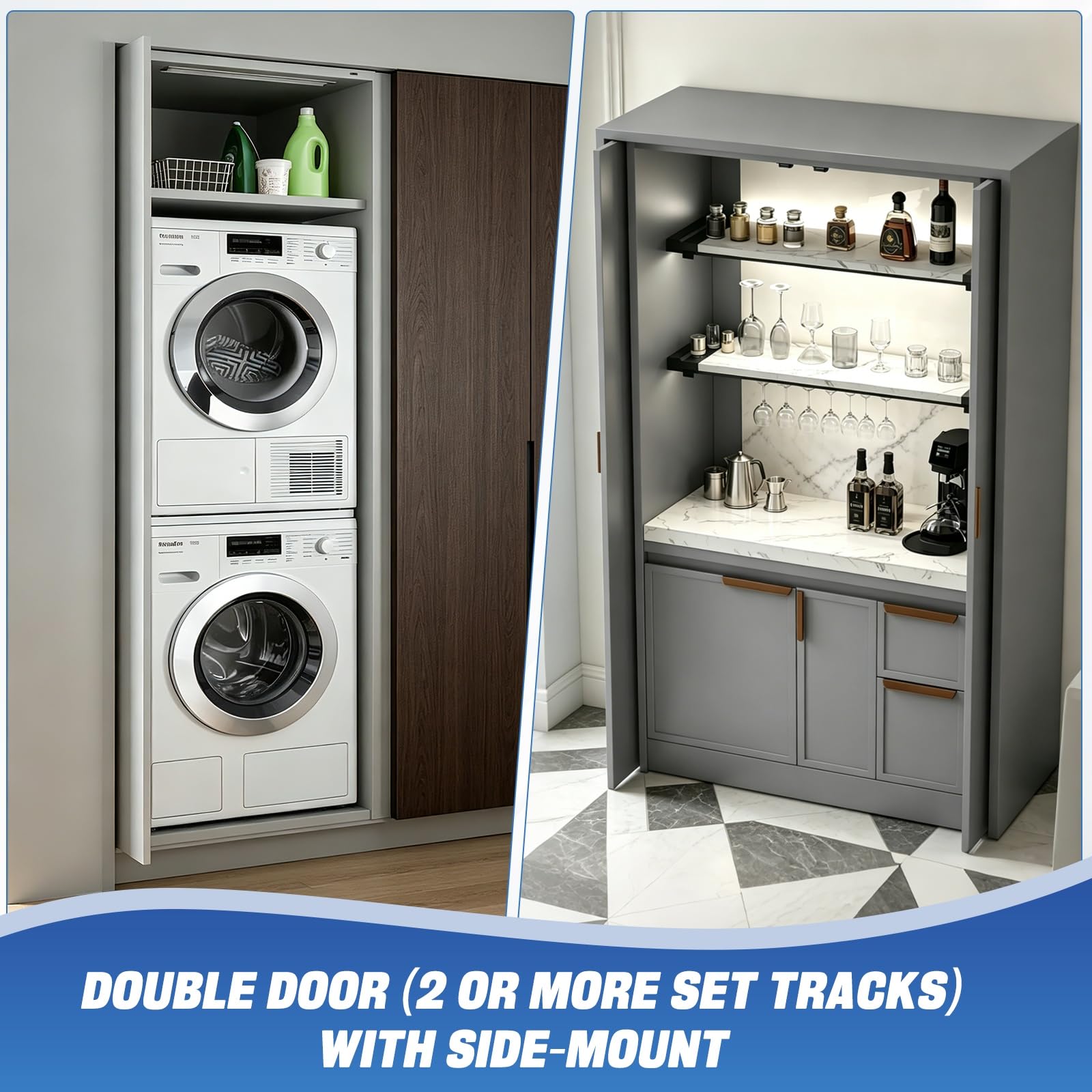

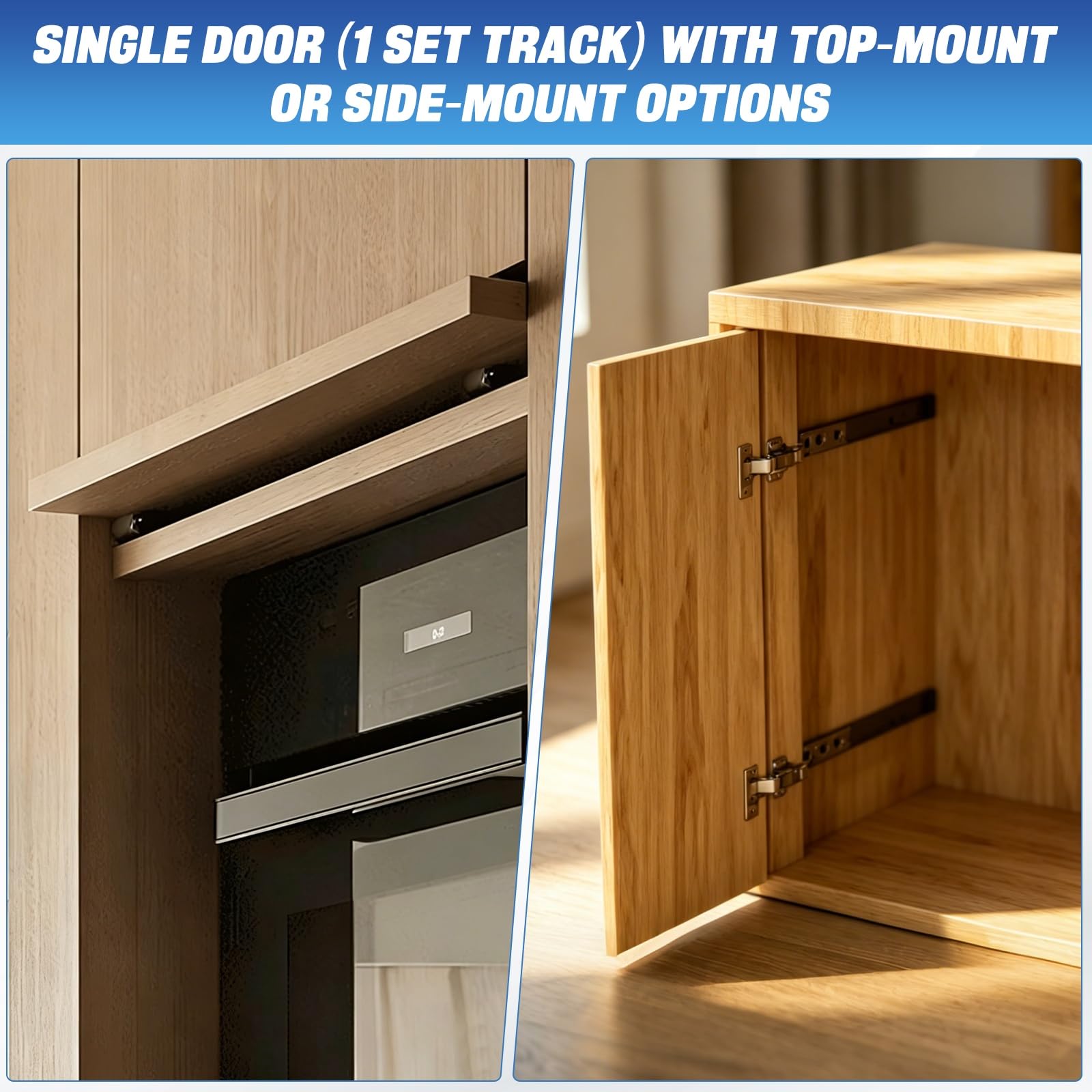

• Application: Designed specifically for cabinet doors, and supports two installations: Single Door (1 track) with top-mount or side-mount options; Double Door (2 tracks) with side-mount only. Suitable for closets, pantries, laundry rooms, bathrooms, and other cabinetry in modern homes and offices.

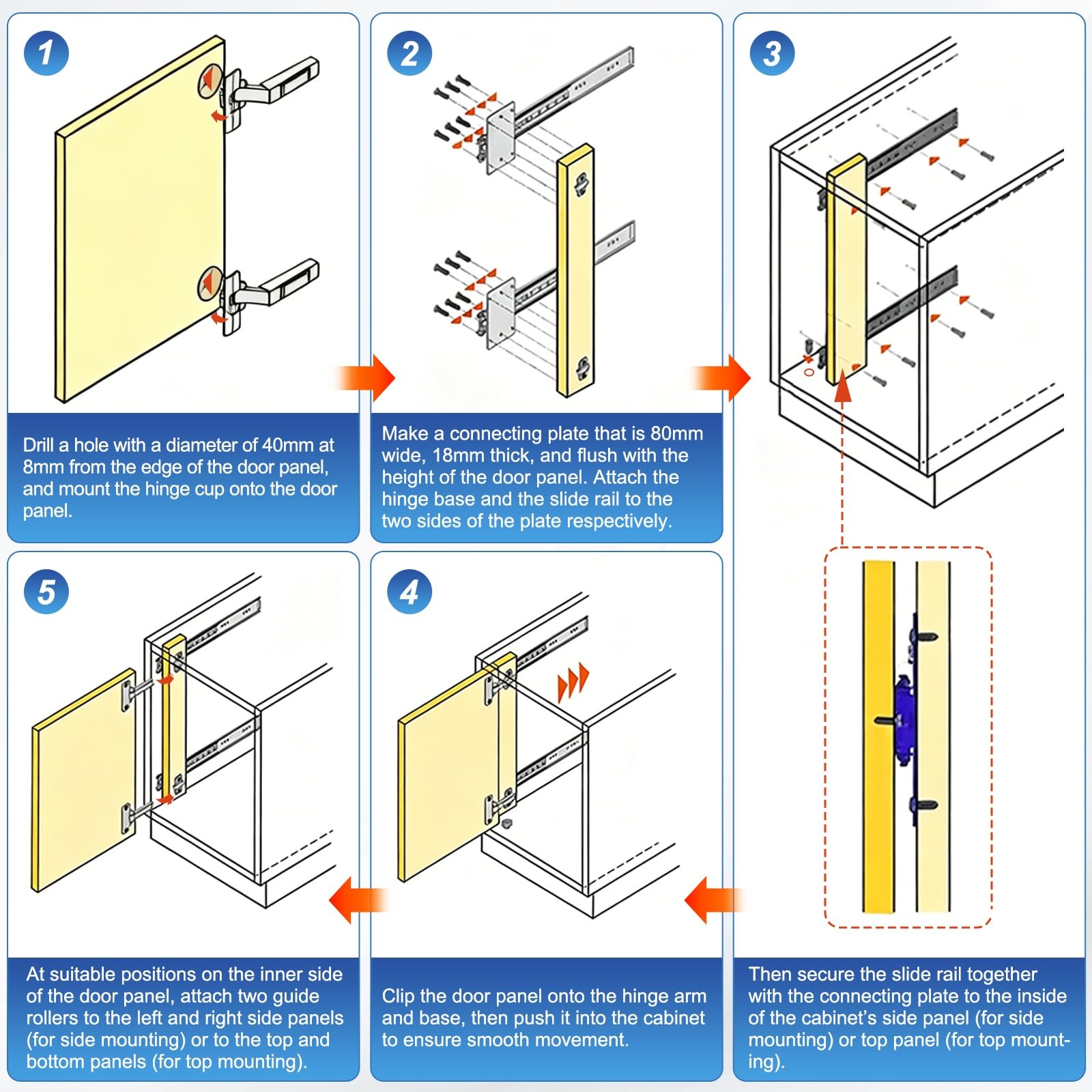

• Install Steps: 1)Drill a 40mm-diameter cup hole, 8mm away from the door edge. 2)Fabricate an 80mm-wide, 18mm-thick connecting plate to attach to the track square plate. Install the hinge base according to the hinge position. 3)Fix the track inside the cabinet and drill holes for the guide wheel base (Φ8mm). 4) Assemble the door panel and fasten it to the hinges. 5)Screw in the bearing guide wheel and adjust the door panel as needed.

Description Product Details: Color: Silver Material: Cold-Rolled Steel Finish: Electroplating Track Length: 550mm/21.7" Track Width: 88mm/3.5" Hinge Size: 130mmx66mm/5.1" x 2.6" (L x W) Each Rail Set Load Capacity: 14kg/30.9 lbs Panel Thickness Compatibility: 18–20mm/0.7"–0.79" Package Content: 1 Set x Pocket Door Hardware Kit (Each Set Includes 2 Tracks, 2 Hinges, 24 Self-Tapping Screws, 2 Guide Wheels, 2 Guide Wheel Fixing Screws) Material: The pocket door slide is made of thickened cold-rolled steel, offering enduring strength and stability, while the electroplated finish provides superior protection against rust, corrosion, and daily wear for extended service life. Feature: This hardware enables a space-saving installation where the door slides into a concealed recess. The U-shaped track features precision ball bearings and high-density solid steel balls for ultra-smooth, quiet movement. Application: Designed specifically for cabinet doors, and supports two installations: Single Door (1 set track) with top-mount or side-mount options; Double Door (2 or more set tracks) with side-mount. Suitable for closets, pantries, laundry rooms, bathrooms, and other cabinetry in modern homes and offices. Install Steps: Drill a 40mm hinge cup hole 8mm from the door edge; use an 80×18mm connecting plate level with the door panel as the hinge base, and mount the guide rail plate and hinge base on both sides respectively. Then install the guide rail inside the cabinet, drill a Φ8mm hole for the guide wheel base, connect the door panel to the hinge, fit the bearing guide wheels, and adjust and align them accordingly.
