DTECH DB9 RS232 to RJ45 Serial Adapter S232 Male to RJ-45 CAT5 CAT6 Female Ethernet Converter Compatible with Standard 9 Pin RS-232 Devices

• A simple, cost effective solution to process serial data communication between RS232 COM port devices over inexpensive cat5 cat6 RJ45 network cable

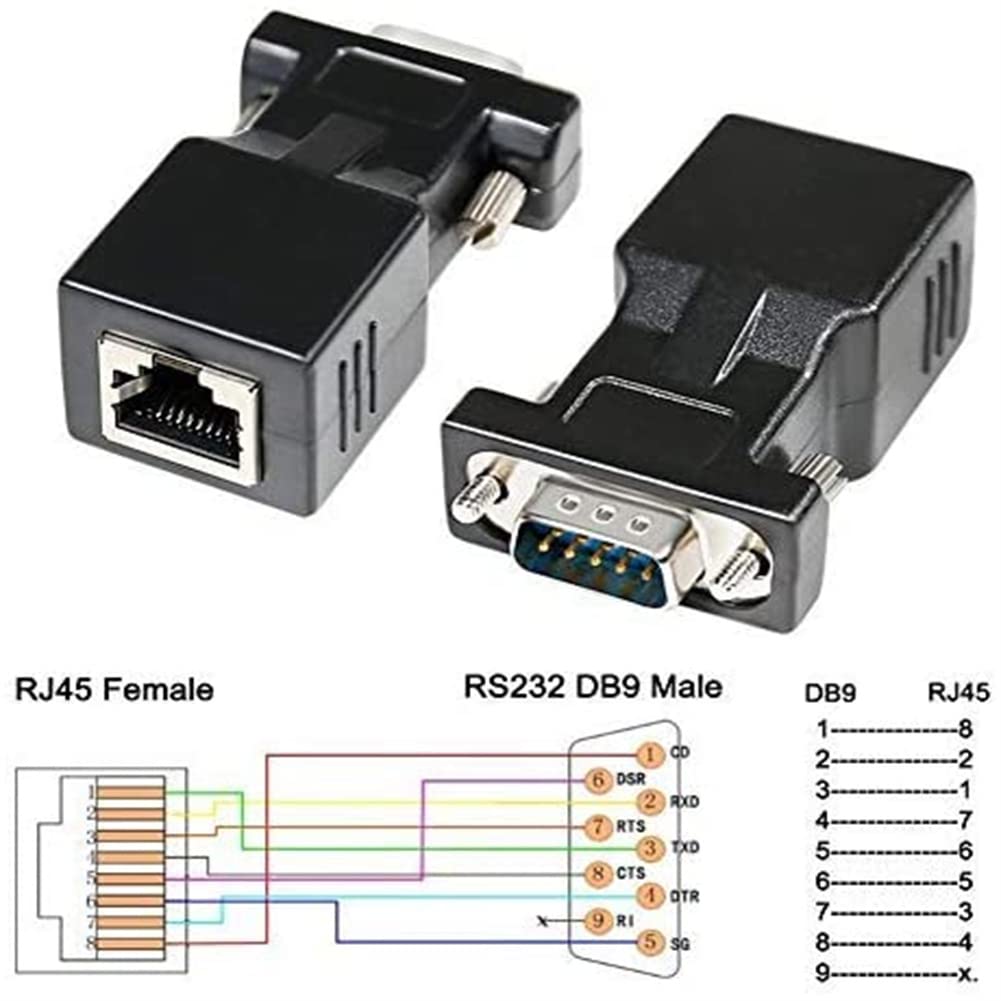

• DB9 male to RJ45 modular adapter converts DB9 male connector into an RJ45 female connector (DB9 male - RJ45 Female pinout: 1-8, 2-2, 3-1, 4-7, 5-6, 6-5, 7-3, 8-4, 9-x)
• A pair of DB9 to RJ45 socket coupler can be used a extender to extend rs232 serial signals up to 65ft
• Bi-directional DB-9 male to RJ-45 female converter comes with thumbscrews for easy and secure connection

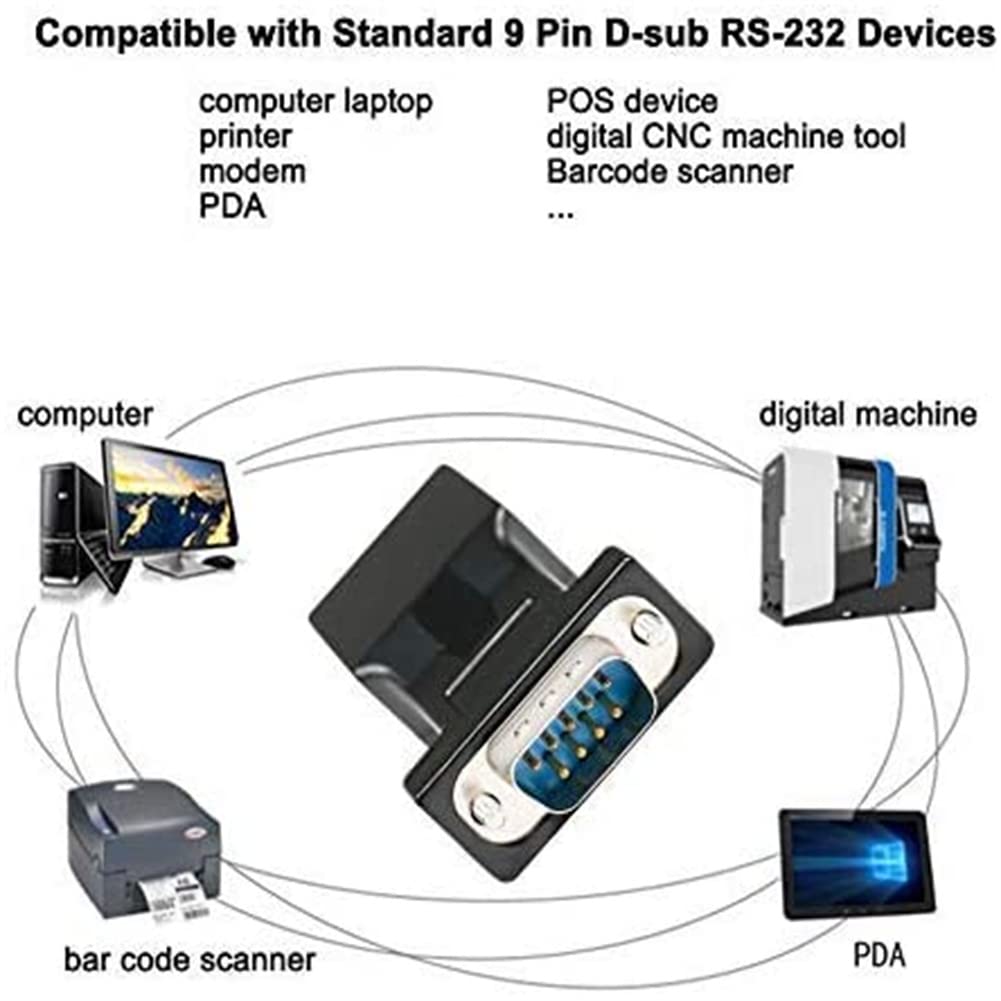

• Compatible with Standard 9 Pin D-sub RS-232 Devices e.g. computer laptop, printer, modem, router, PDA, POS device, digital CNC machine tool, Barcode scanner, etc.

Connector A: DB9 9 Pin Male Connector B: RJ45 8 Pin Female Data cabling transmission signal up to 20M Compatible with Standard 9 Pin D-sub RS-232 Devices e.g. computer laptop, printer, modem, router, PDA, POS device, digital CNC machine tool, Barcode scanner, etc. Please be Noted: DB9 serial RJ45 adapter is only an adapter for extending RS232 serial data (max. distance 65ft), not a console adapter. Usually this adapter needs to be used in pairs. DB9 serial data is transmitted over the network cable. To use this pair of adapters, you need to connect them with a cat5e or CAT6 cable. What’s Included 1x DB9 Male to RJ45 Female Serial Adapter
